Description
Enjoy solid-state clarity or tube warmth with the BlueTube DP dual-path mic/instrument preamp, which features both PreSonus' classic Class A XMAXTM solid-state mic preamplifier and a high-output,12AX7 tube preamp that operates on voltages double that of other preamps in its class, providing lots of headroom and big tone. A Tube Drive control produces anything from gentle warmth to edgy distortion. With two combo mic/instrument inputs, the half-rackspace BlueTube DP is a great choice for guitars and basses as well as vocals.
Features:
- Dual path, with both 12AX7 vacuum tube and solid-state gain stages
- Combo mic/instrument inputs with Class A XMAXTM mic preamplifiers
- XLR and 1/4" line outputs
- Tube Drive tube-saturation control
- 48V phantom power
- 80 Hz high-pass filter
- -20 dB pad
- Polarity-reverse switch
- Illuminated analog VU input-level meter
- Compact 1/2U rack-mount chassis
PreSonus' popular Class A XMAX preamps are widely lauded for their clarity and transparency. Tube preamps are beloved for their warm, smooth sound. With the Blue Tube DP V2 dual-path mic/instrument preamp, you get both types of high-quality sound in one unit. Now PreSonus has improved on the classic unit with the BlueTube DP V2. The solid-state path now feeds PreSonus' top-of-the-line Class A XMAXmic preamplifier with 80 dB of variable gain-an upgrade from the original BlueTube DP's solid-state stage.
The tube path features a 12AX7 tube that operates on voltages double that of other preamplifiers in its class, producing lots of headroom and big tone. BlueTube DP V2 offers lower noise, more high-end clarity, and an even smoother tube sound than its predecessor.
The Essential Features-and More!

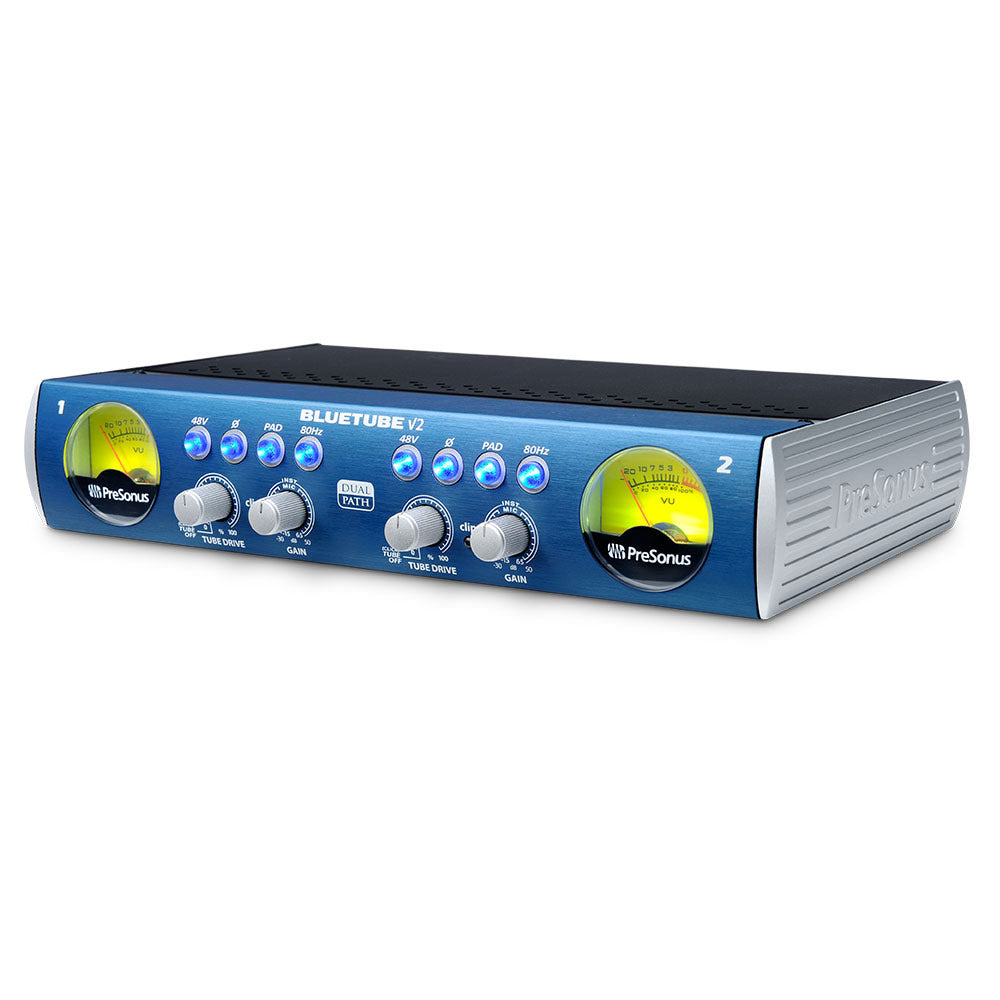

You still get all the secondary features you expect in a professional-grade preamp: 48V phantom power, an 80 Hz high-pass filter, -20 dB pad to control hot input signals, and a polarity-reverse switch. Each channel has an illuminated VU meter so you can visually monitor your input levels.
A Tube Drive control provides a wide range of sounds: when it's clicked off, you're using the solid-state preamp for quiet, transparent amplification; when it's engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion.

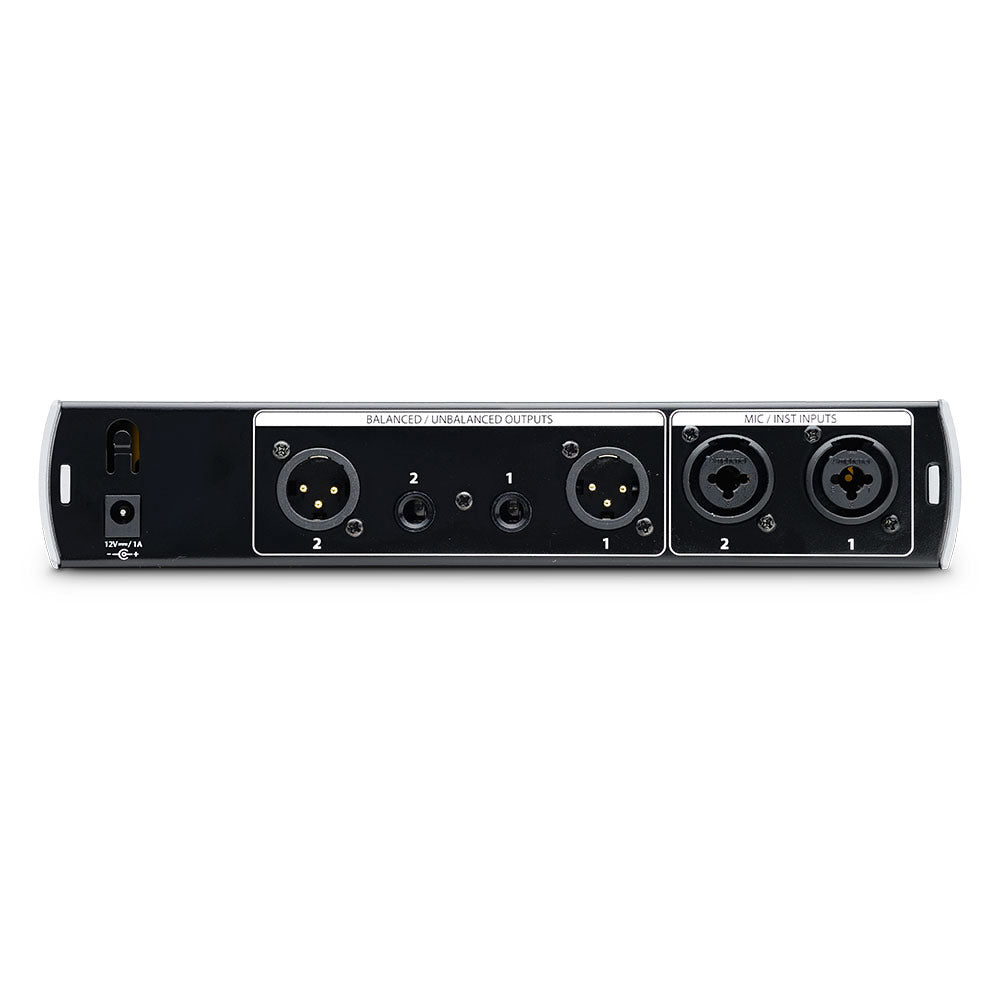

Versatile and AffordableWith two combo mic/instrument inputs, the half-rackspace BlueTube DP V2 is a great choice for guitars and basses as well as for vocals. Singer-songwriters can run their vocal through one channel and their guitar through the other, feeding both to the P.A.-no guitar amp needed. It also serves as a DI box, thanks to balanced XLR and unbalanced 1/4" outputs, and is housed in a new, rugged, 1/2U case.
Try the BlueTube DP V2 as a front end for a DAW, too; sure, your recording interface might already include preamps, but few of them give you both tube and solid-state operation.
PreSonus has also updated the preamp's compact, rugged enclosure; it has more rounded edges and looks modern and sleek. It can be used as a desktop unit or it can be screw-mounted to a standard rack tray.
So get the new and improved version of the most versatile, best-sounding mic/instrument preamplifier in its price range: the BlueTube DP V2.
INPUTS | |
Mic Input | |
Connector Type | XLR, female, balanced |
EIN | -131 dB, 20kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20kHz BW, max gain, Rs=40Ω, unwtd |
Frequency Response | 20 Hz - 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain |
THD+N | 0.01%, -10 dBu, 1kHz, unity gain, 20kHz BW, unwtd |
Dynamic Range | 115 dB, 1kHz, unity gain, 20kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20kHz BW, unwtd |
Input Impedance | 1.3 kΩ |
Phantom Power | +48 VDC, 10 mA |
Instrument Input | |
Connector Type | _Ó TS, female, unbalanced |
Input Impedance | 1 MΩ |
OUTPUT | |
Analog Output | |
Connector Types | XLR, male, balanced _Ó TS, female, unbalanced |
Maximum Output | +20 dBu |
Output Impedance | 51Ω |
Tube Stage | |
Type | 12AX7 |
Power | |
Type | +12 VDC, 1000 mA, center pin positive |
PSU Barrel Dimensions | 5.5mm O.D., 2.1mm I.D., 9.5mm length |
Enjoy solid-state clarity or tube warmth with the BlueTube DP dual-path mic/instrument preamp, which features both PreSonus' classic Class A XMAXTM solid-state mic preamplifier and a high-output,12AX7 tube preamp that operates on voltages double that of other preamps in its class, providing lots of headroom and big tone. A Tube Drive control produces anything from gentle warmth to edgy distortion. With two combo mic/instrument inputs, the half-rackspace BlueTube DP is a great choice for guitars and basses as well as vocals.
Features:
- Dual path, with both 12AX7 vacuum tube and solid-state gain stages
- Combo mic/instrument inputs with Class A XMAXTM mic preamplifiers
- XLR and 1/4" line outputs
- Tube Drive tube-saturation control
- 48V phantom power
- 80 Hz high-pass filter
- -20 dB pad
- Polarity-reverse switch
- Illuminated analog VU input-level meter
- Compact 1/2U rack-mount chassis
PreSonus' popular Class A XMAX preamps are widely lauded for their clarity and transparency. Tube preamps are beloved for their warm, smooth sound. With the Blue Tube DP V2 dual-path mic/instrument preamp, you get both types of high-quality sound in one unit. Now PreSonus has improved on the classic unit with the BlueTube DP V2. The solid-state path now feeds PreSonus' top-of-the-line Class A XMAXmic preamplifier with 80 dB of variable gain-an upgrade from the original BlueTube DP's solid-state stage.
The tube path features a 12AX7 tube that operates on voltages double that of other preamplifiers in its class, producing lots of headroom and big tone. BlueTube DP V2 offers lower noise, more high-end clarity, and an even smoother tube sound than its predecessor.
The Essential Features-and More!
You still get all the secondary features you expect in a professional-grade preamp: 48V phantom power, an 80 Hz high-pass filter, -20 dB pad to control hot input signals, and a polarity-reverse switch. Each channel has an illuminated VU meter so you can visually monitor your input levels.
A Tube Drive control provides a wide range of sounds: when it's clicked off, you're using the solid-state preamp for quiet, transparent amplification; when it's engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion.
Versatile and AffordableWith two combo mic/instrument inputs, the half-rackspace BlueTube DP V2 is a great choice for guitars and basses as well as for vocals. Singer-songwriters can run their vocal through one channel and their guitar through the other, feeding both to the P.A.-no guitar amp needed. It also serves as a DI box, thanks to balanced XLR and unbalanced 1/4" outputs, and is housed in a new, rugged, 1/2U case.
Try the BlueTube DP V2 as a front end for a DAW, too; sure, your recording interface might already include preamps, but few of them give you both tube and solid-state operation.
PreSonus has also updated the preamp's compact, rugged enclosure; it has more rounded edges and looks modern and sleek. It can be used as a desktop unit or it can be screw-mounted to a standard rack tray.
So get the new and improved version of the most versatile, best-sounding mic/instrument preamplifier in its price range: the BlueTube DP V2.
INPUTS | |
Mic Input | |
Connector Type | XLR, female, balanced |
EIN | -131 dB, 20kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20kHz BW, max gain, Rs=40Ω, unwtd |
Frequency Response | 20 Hz - 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain |
THD+N | 0.01%, -10 dBu, 1kHz, unity gain, 20kHz BW, unwtd |
Dynamic Range | 115 dB, 1kHz, unity gain, 20kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20kHz BW, unwtd |
Input Impedance | 1.3 kΩ |
Phantom Power | +48 VDC, 10 mA |
Instrument Input | |
Connector Type | _Ó TS, female, unbalanced |
Input Impedance | 1 MΩ |
OUTPUT | |
Analog Output | |
Connector Types | XLR, male, balanced _Ó TS, female, unbalanced |
Maximum Output | +20 dBu |
Output Impedance | 51Ω |
Tube Stage | |
Type | 12AX7 |
Power | |
Type | +12 VDC, 1000 mA, center pin positive |
PSU Barrel Dimensions | 5.5mm O.D., 2.1mm I.D., 9.5mm length |
