PreSonus CDL Sub18 - Active Subwoofer for CDL Series

  • Dale #:

    PRES-CDLSUB18
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Special Savings! $100 Instant Rebate!
Purchase by May 31st, 2024 and save $100!
Selling price reflects instant savings.

Description

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficienc... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL Sub18 Active Subwoofer delivers tight, coherent low-end, driven by an integrated 2,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL Sub18 a great choice for installed and mobile sound.

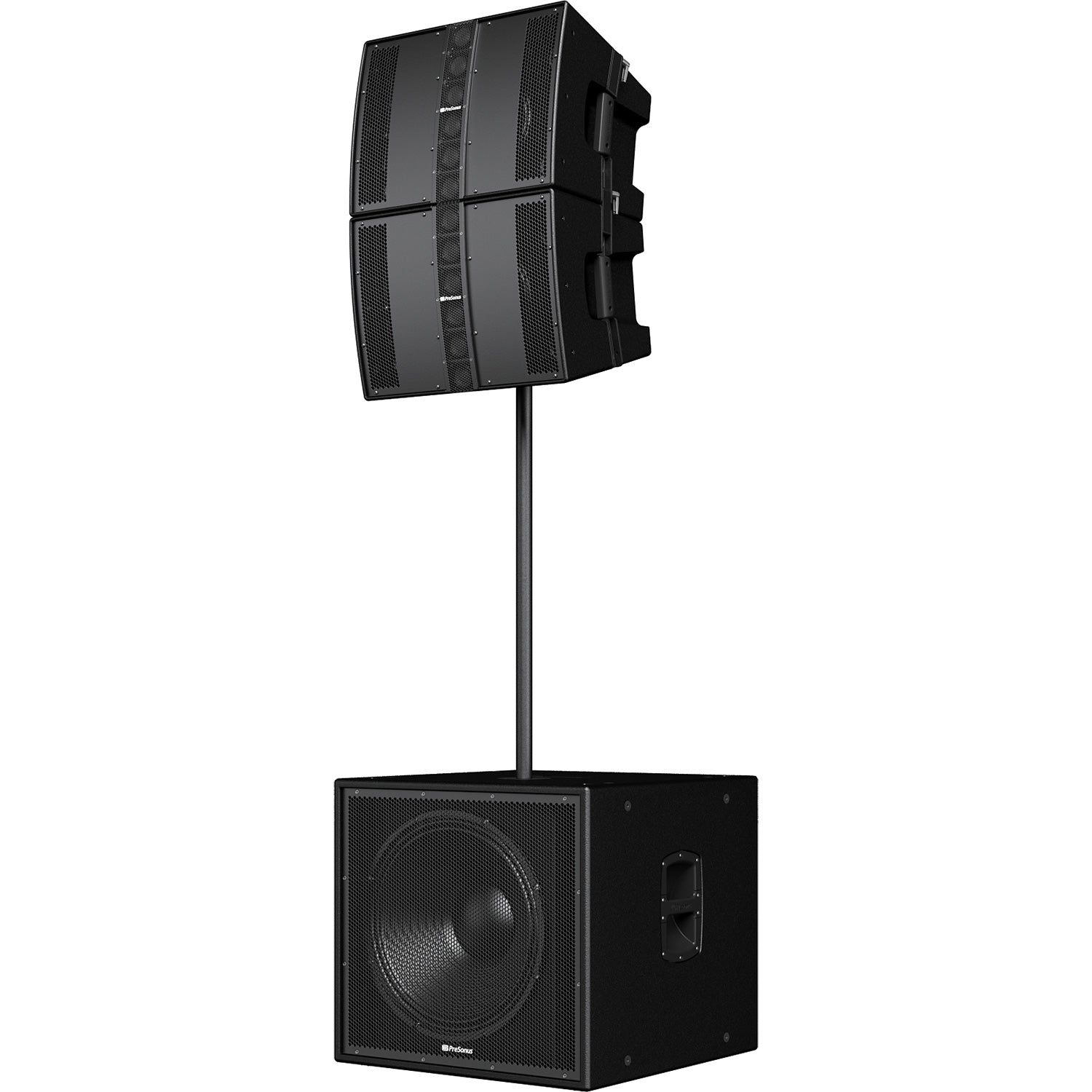

The CDL Sub18 features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown or combined for ground-stacked applications, the CDL Sub18 and CDL12P or CDL10P form a complete system with an even response across the frequency spectrum.

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, stack two CDL Sub18 subwoofers together. Integrated M10 fly points make it easy to suspend CDL Sub18 subwoofers, for flexibility in any environment.

For flexibility in various live sound situations, a menu system is provided for adjusting the performance of the subwoofer. This includes, sound enhancing presets, plus a variable low pass filter for adjusting the transition between full range loudspeakers.

Features:

  • 18-inch low-frequency driver with a 4-inch voice coil
  • 2,000W peak (1000W RMS) Class D power amp
  • Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
  • Unique ported design that maximizes efficiency
  • Easy-to-use Menu and Performance Monitoring LED's
  • Variable Low Pass Frequency Control
  • Integrated M20 threaded pole mount for ground-stacked systems
  • Integrated M10 Fly Points for suspending
  • Balanced XLR input and balanced XLR direct output
  • Locking In and Out powerCon AC connectors
  • Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille


The CDL18s' Unique Port Configuration

The CDL18s port configuration creates big bass in a compact cabinet. The four triangular ports are placed in corners so they couple to the cabinet and take advantage of the side walls to effectively elongate each port, allowing the CDL18s to move more air, while avoiding port chuffing and minimizing baffle reflections for better phase coherence.

Inputs, Outputs And More

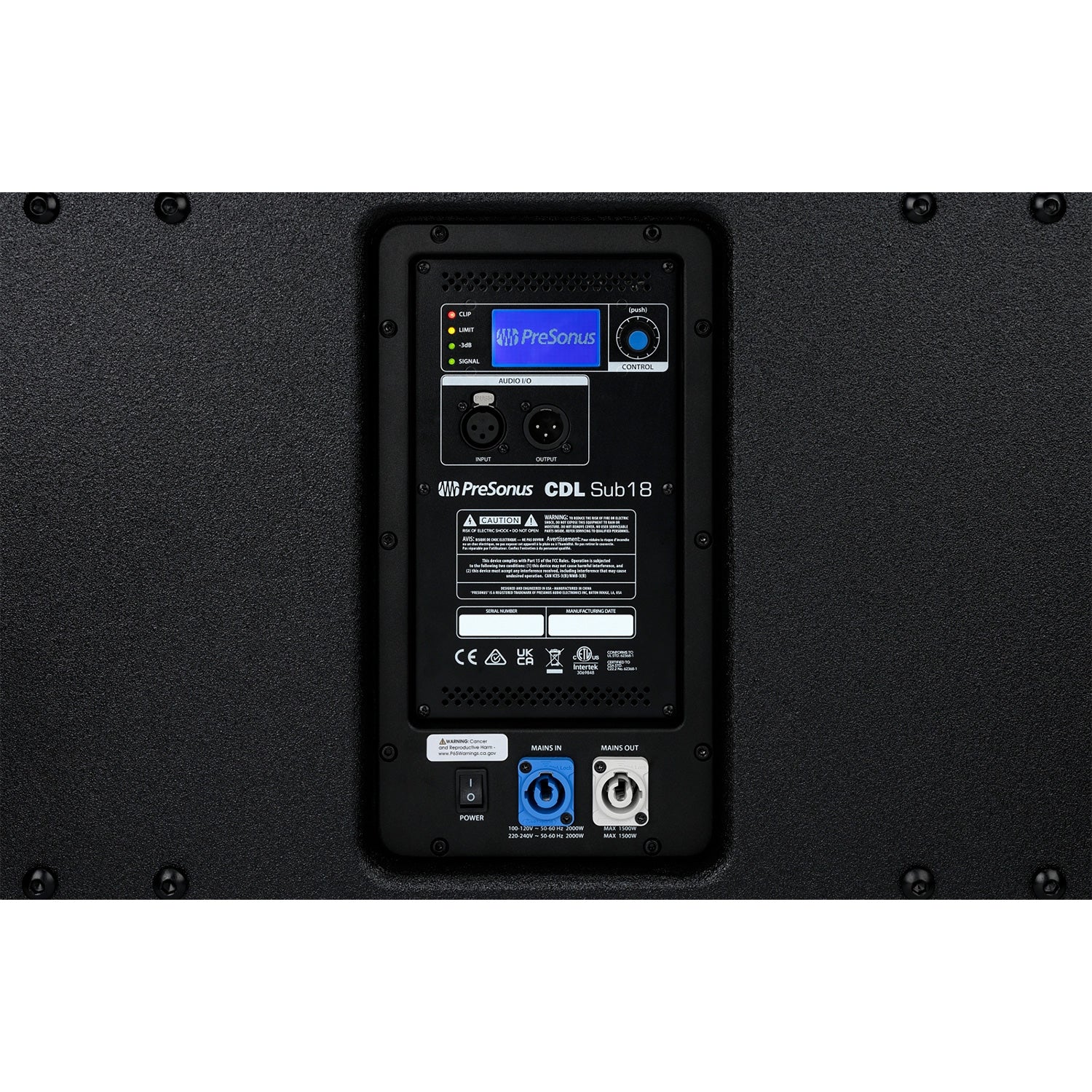

The CDL Sub18 sports balanced XLR input and XLR direct output and menu-driven onboard variable low-pass filter, output power preset select, and polarity invert, giving you total control over your low end.

PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. PreSonus takes their build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don't abuse them), the repair or replacement is on them.

More +

Product Specs

Type Active Subwoofer
LF Driver 18" (4"Voice Coil)
Amplifier Type Class D
Total System Power 2000W Peak, 1000W Program (500W RMS x 2, BTL)
Frequency Range (-3 dB) 42 Hz – 150 Hz (Variable)
Maximum Peak SPL 135 dB
Input 1 Line (XLR)
Output Direct Line Out (XLR)
Power Connection Locking 3 conductor AC connector In and Out
User Controls LPF, Preset Select, Polarity Invert
Indicators Clip, Limit, -3dB, and Signal
Enclosure 18mm Eucalyptus plywood
Mounting • M20 Threaded pole receiver, Integrated rigging (10:1 load)
• M10 mount points
• Support for (4) Ground Stack provisions;
• Support for PreSonus Caster Kit; 4 mount points for casters on the rear
Dimensions (H x W x D) 25" x 24.5" x 22.75" (635 mm x 622 mm x 577.8 mm)
Weight 105.8lbs (48kg)
Optional Accessories Caster Kit, Dust Cover, M10 Hanging Kit
