Description

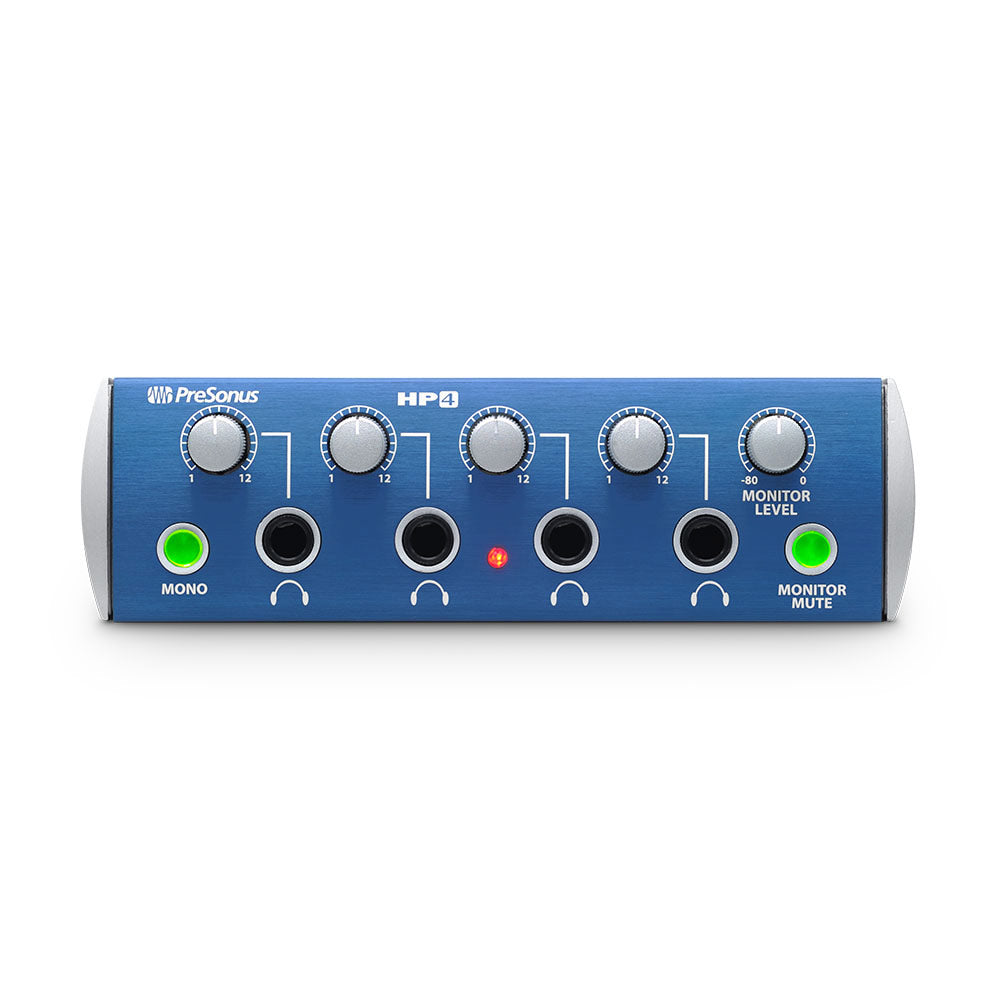

Tired of straining to hear the headphones? The HP4's four 130 mW headphone outputs are clear, clean, and screaming loud, all packed in a compact, 1/3U chassis. Features include balanced L/R line inputs and outputs, global mute, overall level control, and sum to mono. The line outputs can feed another HP4 or an HP60.
Features:
- 4 screaming-loud (130 mW per channel) stereo headphone amps
- 2 balanced 1/4" line inputs
- Headphone level control
- Mono summing switch
- Monitor level control
- Monitor mute switch

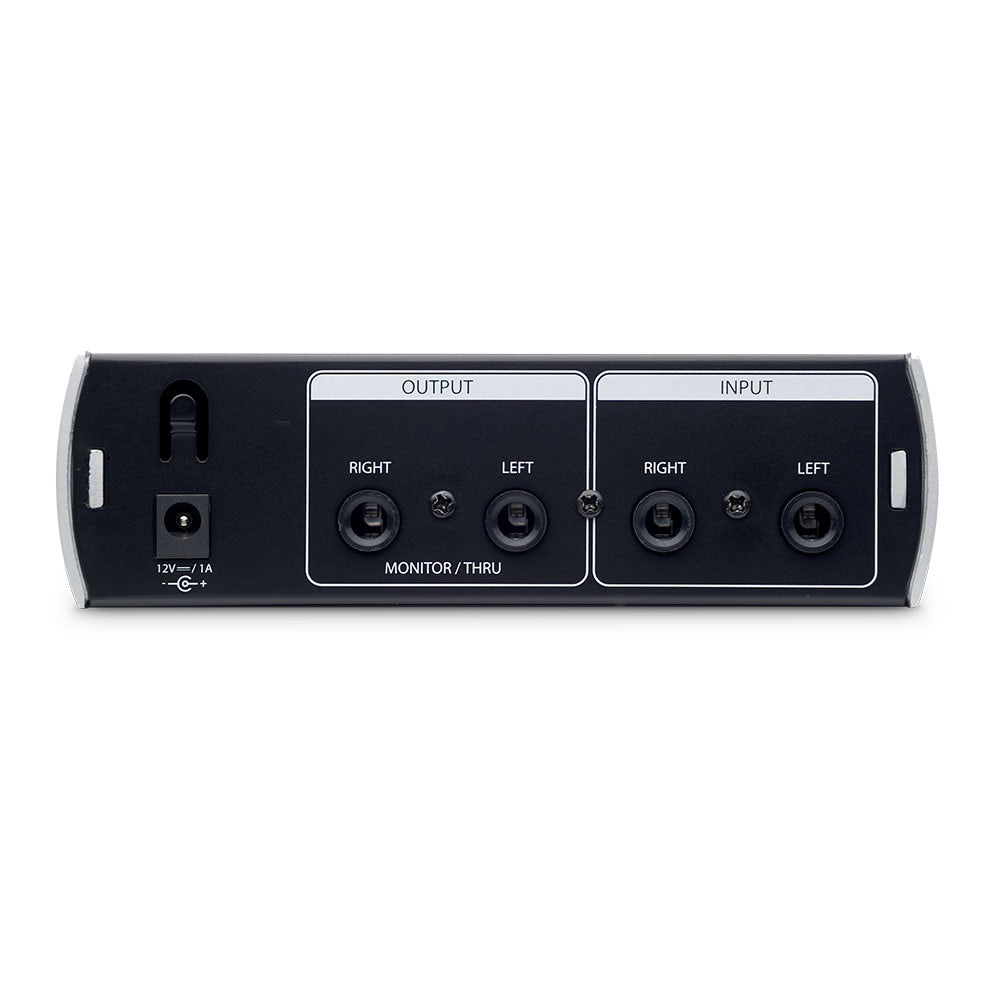

- Daisy-chain multiple units via 2 balanced 1/4" monitor outputs
- Compact 1/3U rack-mount chassis
Number of Channels | 4 | Input Connections | 1 x 1/4" TRS Input | Output Connectors | 4 x High Power 1/4" TRS Outputs | Maximum Output Level | -80dB to +10dB; 51 Ohm Impedance | Function Controls | Headphone Level, Monitor / Feed Output, Mono Switch, Monitor / Feed Mute | Frequency Response | 10Hz to 50kHz | THD + N | 0.002% | Noise | -98dB | Display | No | Dimensions | 5.5 x 1.75 x 5.5" (140 x 44 x 140mm) | Weight | 5 lbs (2.3kg) |
Tired of straining to hear the headphones? The HP4's four 130 mW headphone outputs are clear, clean, and screaming loud, all packed in a compact, 1/3U chassis. Features include balanced L/R line inputs and outputs, global mute, overall level control, and sum to mono. The line outputs can feed another HP4 or an HP60.
Features:
- 4 screaming-loud (130 mW per channel) stereo headphone amps
- 2 balanced 1/4" line inputs
- Headphone level control
- Mono summing switch
- Monitor level control
- Monitor mute switch
- Daisy-chain multiple units via 2 balanced 1/4" monitor outputs
- Compact 1/3U rack-mount chassis
Number of Channels | 4 | Input Connections | 1 x 1/4" TRS Input | Output Connectors | 4 x High Power 1/4" TRS Outputs | Maximum Output Level | -80dB to +10dB; 51 Ohm Impedance | Function Controls | Headphone Level, Monitor / Feed Output, Mono Switch, Monitor / Feed Mute | Frequency Response | 10Hz to 50kHz | THD + N | 0.002% | Noise | -98dB | Display | No | Dimensions | 5.5 x 1.75 x 5.5" (140 x 44 x 140mm) | Weight | 5 lbs (2.3kg) |
