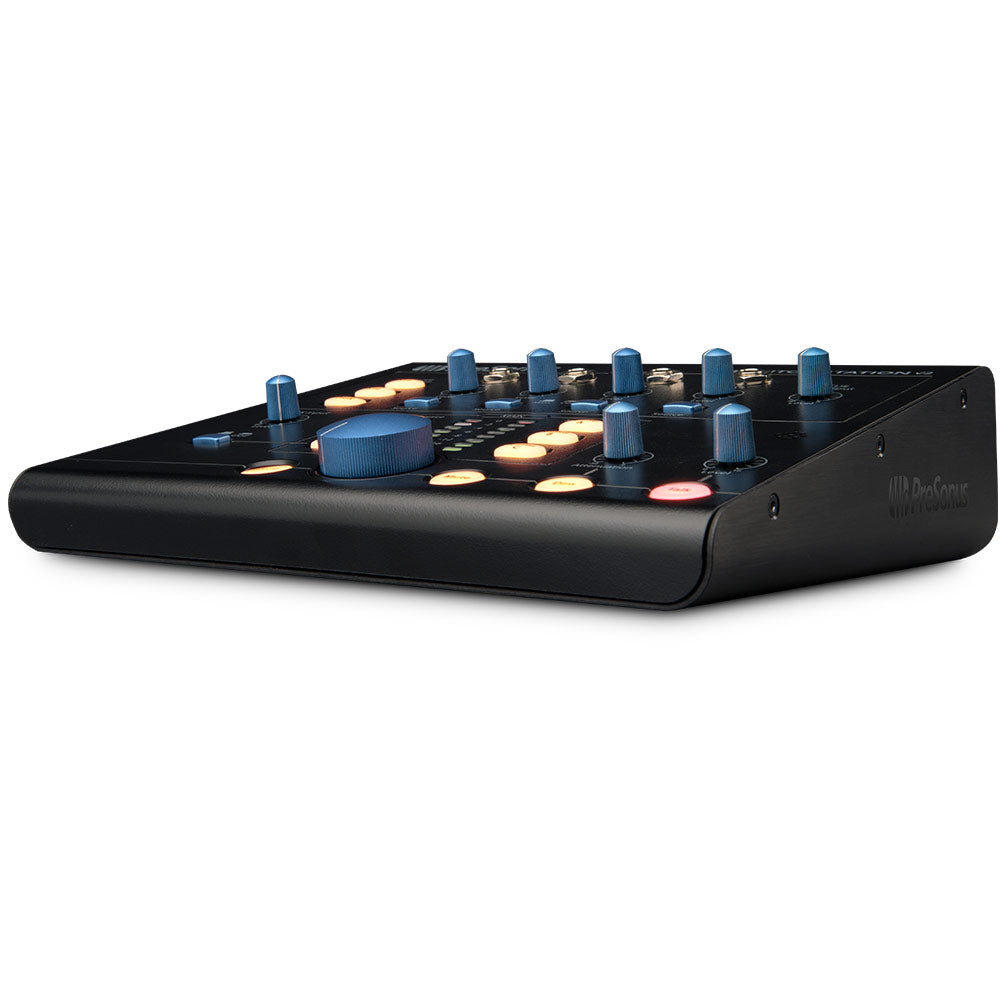

PreSonus Monitor Station V2 Desktop Studio Control Center
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
PreSonus Monitor Station V2 Desktop Studio Control Center
Sale price$367.99
Regular price$461.99
Description
Easily manage multiple sources and monitor speakers from your desktop with three sets of stereo, line-level inputs, a stereo S/PDIF digital input, and three pairs of speaker outputs. You also get Main Mute, Mono, and Dim; main and cue outs; four loud headphone amplifiers; and a talkback mic.
Features:
- 4 stereo input pairs into three selectable analog sources
- 3 stereo pairs of individually selectable speaker outputs with level controls
- Stereo S/PDIF digital input (44.1/48/88.2/96 kHz)
- Stereo Main and Cue outputs
- Large Main level control
- Cue section with Source select, input- and output-level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- 4 screaming-loud stereo headphone amplifiers with level controls and independent source selection
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- 9"/228.6 mm (W) x 2.5"/63.5 mm (H) x 8.5"/216 mm (D) desktop-type chassis
- External 18 VDC power supply
| Internal Talkback Microphone | |
| Gain Range | +15 to +55 dB |
| Type | Electret condenser |
| Sensitivity | -42 dB |
| Stereo 1 and Stereo 2 Inputs | |
| Type | _Ó TRS Active Balanced |
| Input Impedance (Balanced) | 10 k |
| S/N Ratio (1 kHz @ +10 dBu, Unity Gain) | >105 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.0075% |
| Frequency Response (±0.5 dB) | 10 Hz to 65 kHz |
| Noise Floor (20 Hz to 20 kHz, 150 input termination) | -96 dBu |
| Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) | +22 dBu |
| Auxiliary Inputs | |
| Type | RCA Active Unbalanced |
| Input Impedance | 47.5 k |
| S/N Ratio (1 kHz @ 0 dBu, Unity Gain) | >115 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
| Gain Range | 80 dB to +10 dB |
| S/PDIF | |
| Types | RCA 75 coax |
| Dynamic Range | 113 dB |
| THD+N | 0.0025% (1 kHz @ -1 dBFS) |
| Maximum output at 0 dBFS | +18 dBu |
| Sample Rates | 44.1, 48, 88.2, 96 kHz |
| Input Meters (ST1, ST2, and Aux only) | |
| Type | Dual 8-segment LED w/peak hold |
| Sensitivity Range | -24 dB to 0 dB |
| Audio Outputs | |
| Type | _Ó TRS Active Balanced |
| Output Impedance (Balanced) | 51 |
| THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
| Speaker A, B, and C | |
| Trim Range | -80 dB to 0 dB |
| Main Level Range | -80 dB to 0 dB |
| Dim Attenuation Range | -30 dB to -6dB |
| Cue | |
| Cue Level Range | -80 dB to 0 dB |
| Dim Attenuation (Talkback activated) | -20 dB |
| Headphones | |
| Type | _Ó TRS Active Stereo |
| Maximum Output (60 load) | 150 mW / channel |
| Frequency Response (±1.0 dB) | 10 Hz to 50 kHz |
| Power | |
| Power Supply Type | External DC Transformer/Internal Line |
| Input Connector Type | Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter |
| Monitor Station Input Voltage Range | 18 VDC |
| Power Requirements (Continuous) | 10W |
| Dimensions | |
| Height | 2.5Ó (63.5 mm) |
| Depth | 8.5Ó (216 mm) |
| Width | 9Ó (228.6 mm) |
| Weight | 6 lbs. (4.54 kg) |
Easily manage multiple sources and monitor speakers from your desktop with three sets of stereo, line-level inputs, a stereo S/PDIF digital input, and three pairs of speaker outputs. You also get Main Mute, Mono, and Dim; main and cue outs; four loud headphone amplifiers; and a talkback mic.
Features:
- 4 stereo input pairs into three selectable analog sources
- 3 stereo pairs of individually selectable speaker outputs with level controls
- Stereo S/PDIF digital input (44.1/48/88.2/96 kHz)
- Stereo Main and Cue outputs
- Large Main level control
- Cue section with Source select, input- and output-level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- 4 screaming-loud stereo headphone amplifiers with level controls and independent source selection
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
- 9"/228.6 mm (W) x 2.5"/63.5 mm (H) x 8.5"/216 mm (D) desktop-type chassis
- External 18 VDC power supply
| Internal Talkback Microphone | |
| Gain Range | +15 to +55 dB |
| Type | Electret condenser |
| Sensitivity | -42 dB |
| Stereo 1 and Stereo 2 Inputs | |
| Type | _Ó TRS Active Balanced |
| Input Impedance (Balanced) | 10 k |
| S/N Ratio (1 kHz @ +10 dBu, Unity Gain) | >105 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.0075% |
| Frequency Response (±0.5 dB) | 10 Hz to 65 kHz |
| Noise Floor (20 Hz to 20 kHz, 150 input termination) | -96 dBu |
| Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) | +22 dBu |
| Auxiliary Inputs | |
| Type | RCA Active Unbalanced |
| Input Impedance | 47.5 k |
| S/N Ratio (1 kHz @ 0 dBu, Unity Gain) | >115 dB |
| THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
| Gain Range | 80 dB to +10 dB |
| S/PDIF | |
| Types | RCA 75 coax |
| Dynamic Range | 113 dB |
| THD+N | 0.0025% (1 kHz @ -1 dBFS) |
| Maximum output at 0 dBFS | +18 dBu |
| Sample Rates | 44.1, 48, 88.2, 96 kHz |
| Input Meters (ST1, ST2, and Aux only) | |
| Type | Dual 8-segment LED w/peak hold |
| Sensitivity Range | -24 dB to 0 dB |
| Audio Outputs | |
| Type | _Ó TRS Active Balanced |
| Output Impedance (Balanced) | 51 |
| THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) | <0.01% |
| Frequency Response (±0.5 dB) | 10 Hz to 50 kHz |
| Speaker A, B, and C | |
| Trim Range | -80 dB to 0 dB |
| Main Level Range | -80 dB to 0 dB |
| Dim Attenuation Range | -30 dB to -6dB |
| Cue | |
| Cue Level Range | -80 dB to 0 dB |
| Dim Attenuation (Talkback activated) | -20 dB |
| Headphones | |
| Type | _Ó TRS Active Stereo |
| Maximum Output (60 load) | 150 mW / channel |
| Frequency Response (±1.0 dB) | 10 Hz to 50 kHz |
| Power | |
| Power Supply Type | External DC Transformer/Internal Line |
| Input Connector Type | Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter |
| Monitor Station Input Voltage Range | 18 VDC |
| Power Requirements (Continuous) | 10W |
| Dimensions | |
| Height | 2.5Ó (63.5 mm) |
| Depth | 8.5Ó (216 mm) |
| Width | 9Ó (228.6 mm) |
| Weight | 6 lbs. (4.54 kg) |
