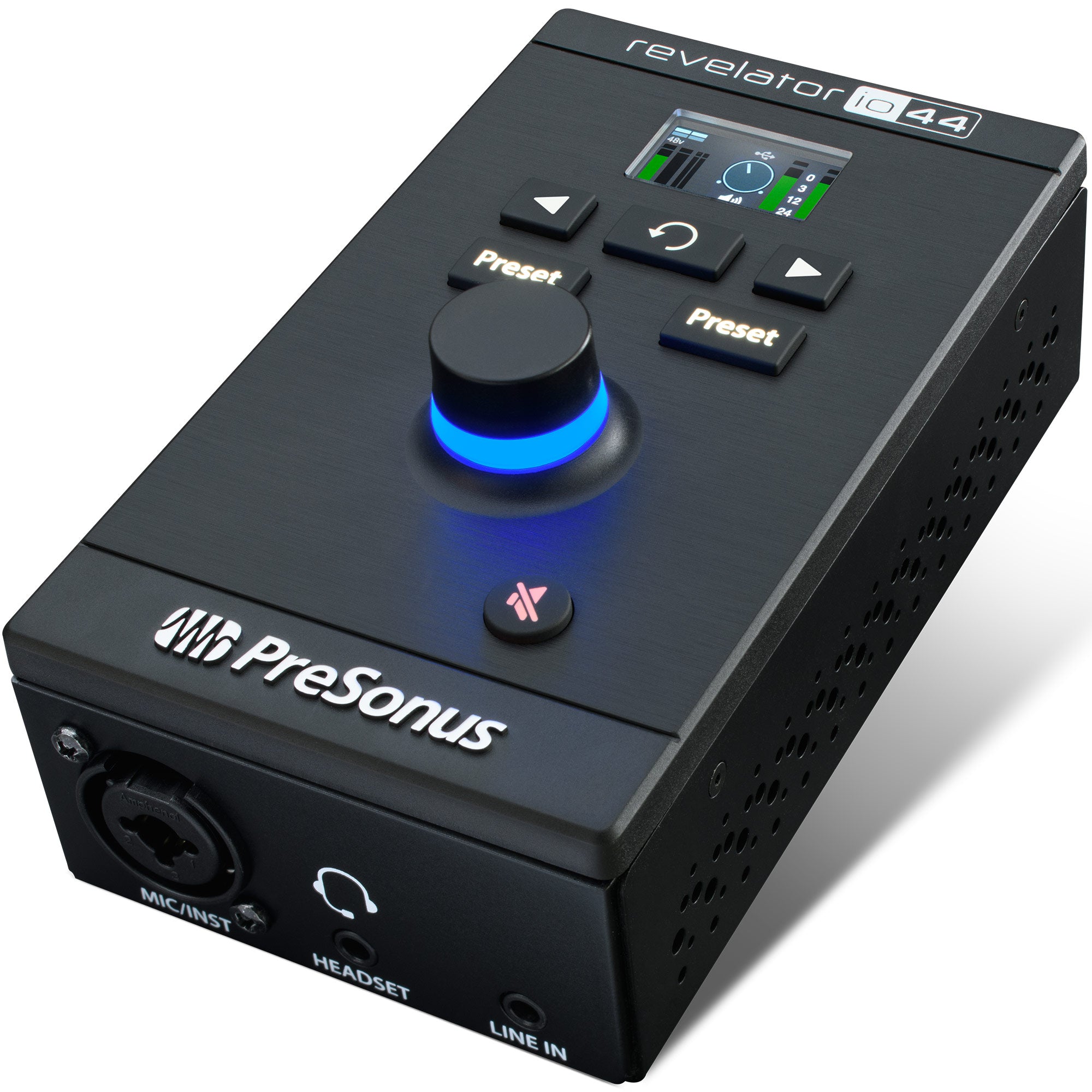

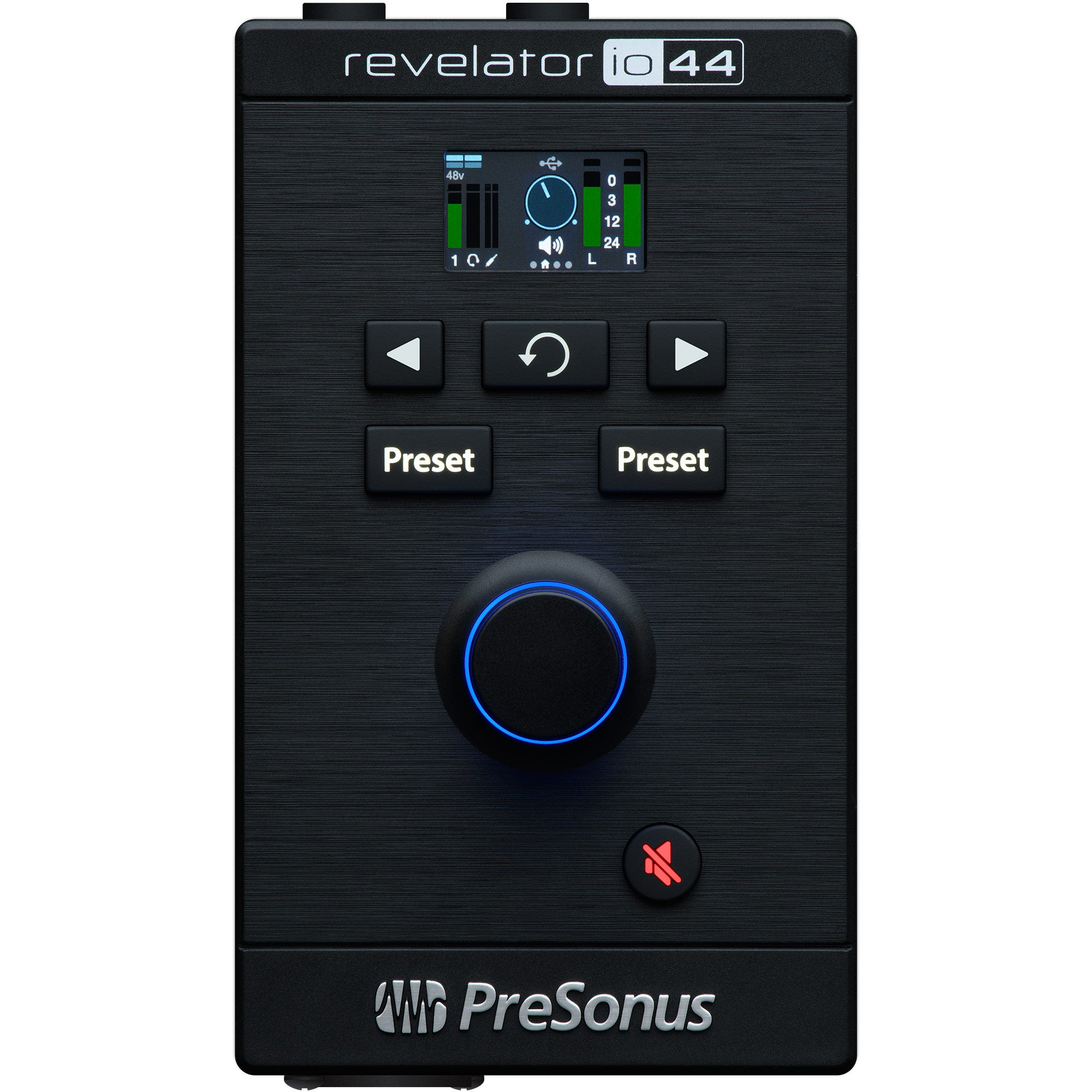

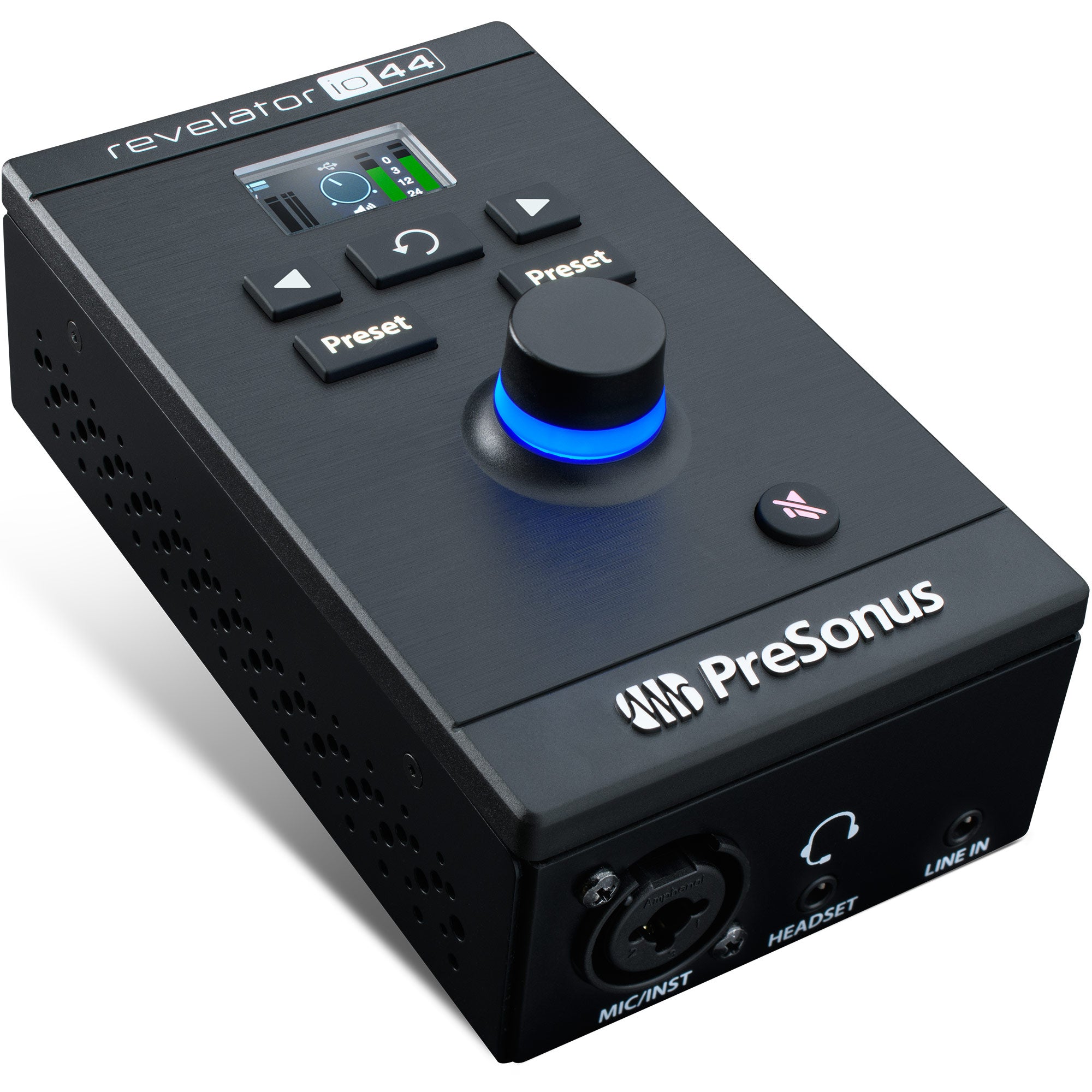

PreSonus Revelator io44 - Ultra Compact Broadcasting USB Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Don't let its compact size fool you, Revelator io44 has everything you need to create high-quality recordings and live streams - an XMAX-L mic preamp for a professional XLR microphone, plus connections for anything from a guitar or a DJ mixer. You also get balanced Main outputs for your speakers and a high-powered headphone output that works with TRS as well as TRRS headsets all in a pocket-sized bus-powered device.
Features:
- Ultra-compact, mobile 4x2 USB streaming interface
- Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
- Integrated mixer lets you blend audio from up to three applications at once

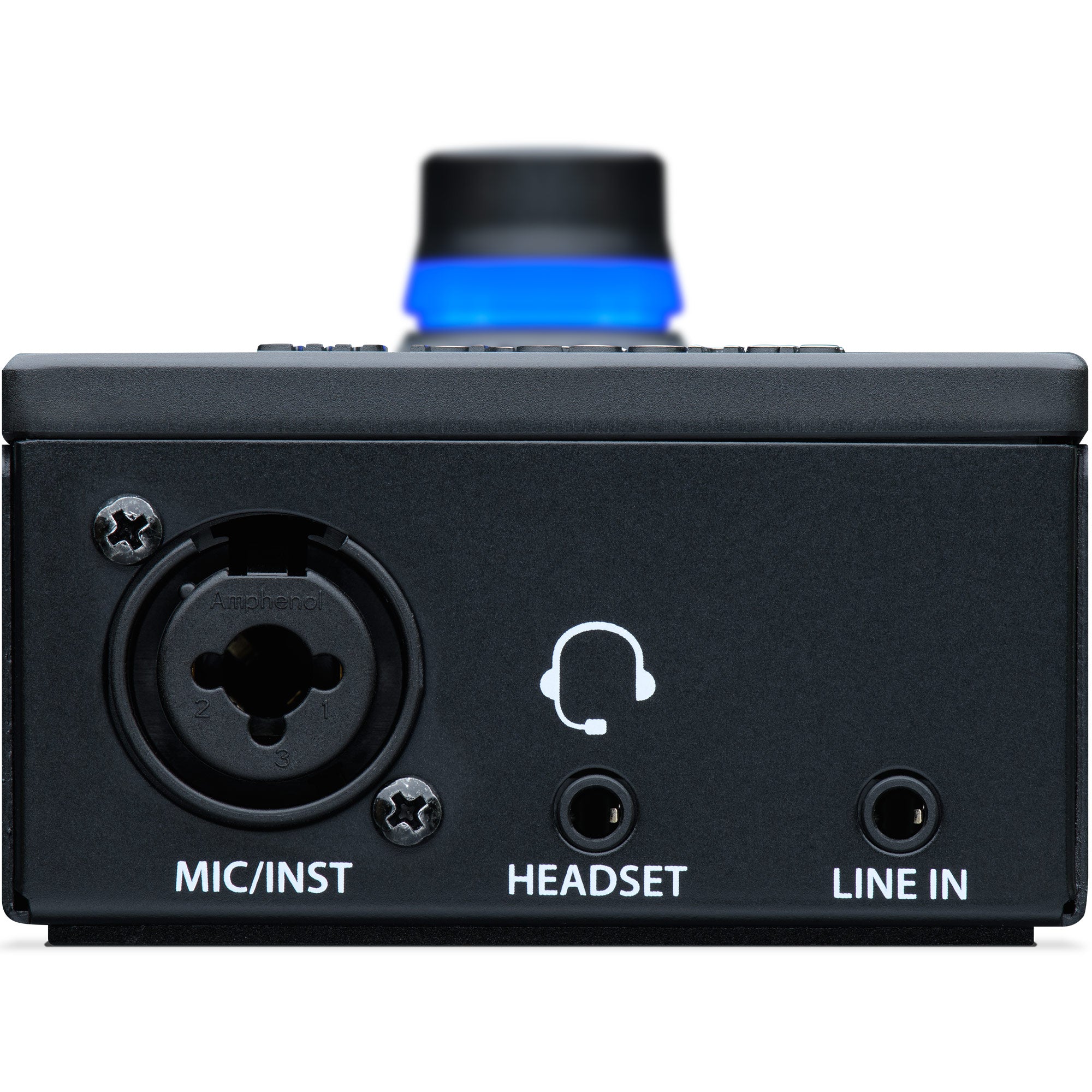

- Connect nearly anything: mics, guitars, headsets, and stereo sources like DJ mixers
- Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
- Studio One Artist recording software and Studio Magic software bundle included
- 1 XLR combo Microphone/Inst input with +48v phantom power
- 1 TRS 1/8" Stereo Line input
- 1 TRRS 1/4" stereo Headset connection (mic in, stereo out)

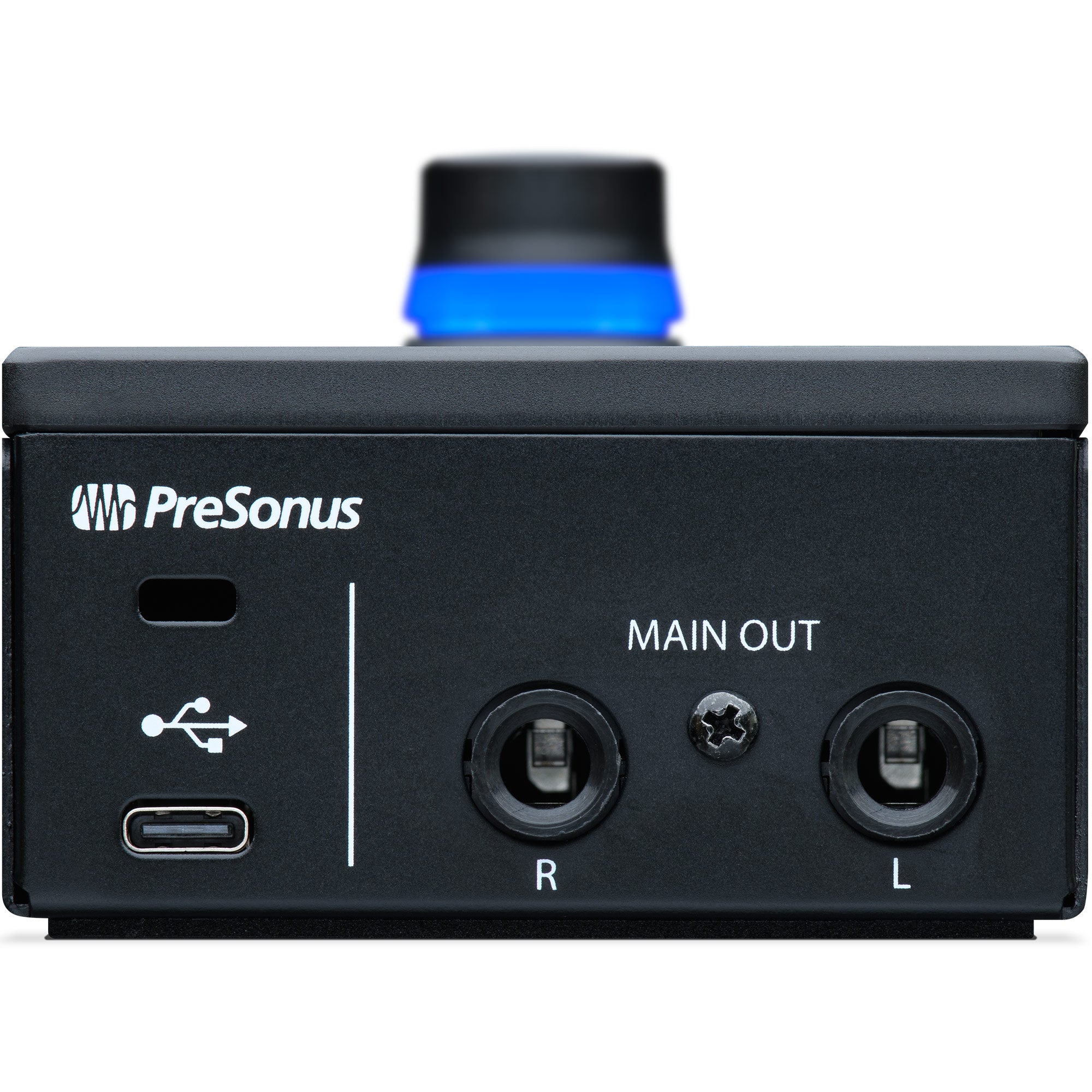

- 2 TRS 1/4" Main outputs
Built-in onboard audio effects for every analog input are designed using State-Space models of classic analog gear. Professionally-crafted presets make you stand out with a single click so you'll get a polished sound without keeping an audio engineer on retainer. Additional effects let you emulate concert halls, AM radio, or otherworldly invaders to completely transform your sound - or get into character.
Revelator io44 features an easy-to-use mixer that lets you add audio from three different applications at once so you can add backing tracks, Skype calls, or gameplay quick and easy - without taxing your computer. An automatic output limiter prevents your stream from distorting. Whether you're on macOS or Windows, you can create custom mixes of your inputs and your applications and monitor it all at near-zero latency so you can stream and record simultaneously!
You can even control the processing and mixer of Revelator io44 from a compatible mobile device running UC Surface - no need to switch applications on your main computer. And best of all, you also get award-winning Studio One Artist plus the Studio Magic suite - over $1000 worth of plug-ins, software, and tutorials.
| Microphone Preamp | |
| Type | XLR female, balanced |
| Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd) | 20 Hz - 20 kHz |
| Input Impedance (Balanced) | 1.4k½ |
| THD+N (1 kHz, -1 dBFS, min gain) | 0.005% (1 kHz, -1 dBFS, min gain) |
| EIN (A-wtd, 150½, max gain) | -128 dBu |
| Gain Control Range (± 1 dB) | 60 dB |
| Max Input Level (±0.5 dBu, min gain) | +10 dBu |
| Phantom Power (10 mA total) | +48 VDC |
| Instrument Input | |
| Type | _" TS female, unbalanced |
| Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd) | 20 Hz - 20 kHz |
| Input Impedance | 750k½ |
| Gain Range | 50 dB |
| Maximum Level | +10 dBu (min. gain) |
| Line Input (Stereo | |
| Type | 1/8" TRS female |
| Maximum Level (1 kHz, unity gain, z-balanced) | +10 dBu |
| Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd) | 20 Hz - 20kHz |
| Gain Range | 40 dB |
| Main Outputs | |
| Type | 1/4" TRS, Female |
| Frequency Response (+0.1dB/-0.5 dB, unity gain, unwtd) | 20 Hz - 20 kHz |
| THD+N (1 kHz, 0 dBFS, loaded) | 0.003% |
| Maximum Level | +10 dBu |
| Headphone Output | |
| Type | 1/8" TRRS female |
| Maximum Power | 30mW/Channel @56½ |
| Frequency Response (+0.1dB/-0.3 dB, unity gain, unwtd) | 20 Hz - 20kHz |
| Impedance Working Range | 32 ½ to 300 ½ |
| Audio Interface | |
| Type | USB-C¨ÊCompatible USB 2.0 |
| Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Bit Depth | 24 bit |
| ADC Converter Range | 96 dB |
| DAC Converter Range | 96 dB |
| Controls | |
| Hardware | Direct Monitor, Mic Gain, Line Input Trim, Headphone Level, Mute, Preset Select, HPF |
| Software | Mic Gain, Monitor Mix, Preset Management, Loopback Mixes, |
| Onboard DSP Options | PreSonus StudioLive Fat Channel Processing High Pass Filter, Noise Gate / Expander, 3 Compressor models, 3 EQ models, and Limiter, Reverb |
| Loopback Mixer | 7 input digital mixer, 3 stereo loopback mixes, stereo monitor mix |
| Voice Effects | Doubler, Vocoder, Ring Modulator, Comb Filter, Detuner, Delay |
| Physical | |
| Height | 2.3" (58.4 mm) |
| Depth | 3" (77 mm) |
| Width | 5.35" (135.9 mm) |
| Weight | 0.78 lbs (0.35 kg) |
