Presonus TubePre V2 Single Channel Tube Microphone/Instrument Preamp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Twist the TubePre V2 Drive saturation control and add the "color" that only a hand-selected 12AX7 vacuum tube can deliver- from gentle warmth to total fuzz. Unlike other compact tube preamps, TubePre V2 starts with the low noise, high headroom Class A XMAX preamp input stage found in PreSonus's premium interfaces and digital mixers. Discrete components and high-voltage operation deliver best-in-class dynamic range and detail not found in other single-channel tube preamps.
Features:
- XMAX Class A preamp input stage
- 12AX7 dual-servo vacuum tube output stage
- Tube Saturation and Input Gain controls
- 48V phantom power
- 80 Hz high-pass filter and -20 dB pad
- Instrument input select
- Polarity-reverse switch
- Backlit VU meter and Clip LED
- 1 unbalanced, 1/4 instrument input, 1 balanced, XLR mic input
- 1 unbalanced, 1/4 line output, 1 balanced, XLR line output
- Rugged, metal 1/3U chassis
- Sealed, metal, rotary controls
- External 12 VDC/1A power supply included
Improving on a Great Sound
PreSonus has been designing preamps for a long time, and they always focus on audio quality first. So when they decided to upgrade their popular TubePre V2, they focused on improving an already high-quality sound-without jacking up the price. Like the original TubePre, the new version is a fully professional tube preamp, with a dual-servo (no capacitors) gain stage that lets you boost the program signal to smoking hot levels without significantly increasing the background noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class.
But the TubePre V2 provides an even wider palette of sound options, and a much more focused tube saturation, than the original TubePre. It has been upgraded to employ PreSonus' popular XMAXClass A solid-state preamp, which is followed in the signal path by a 12AX7 vacuum-tube stage. Twist the TubePre V2 Drive saturation control to add the "color" that only a hand-selected 12AX7 vacuum tube can deliver - from gentle warmth to total fuzz.
Versatile and Feature-Rich

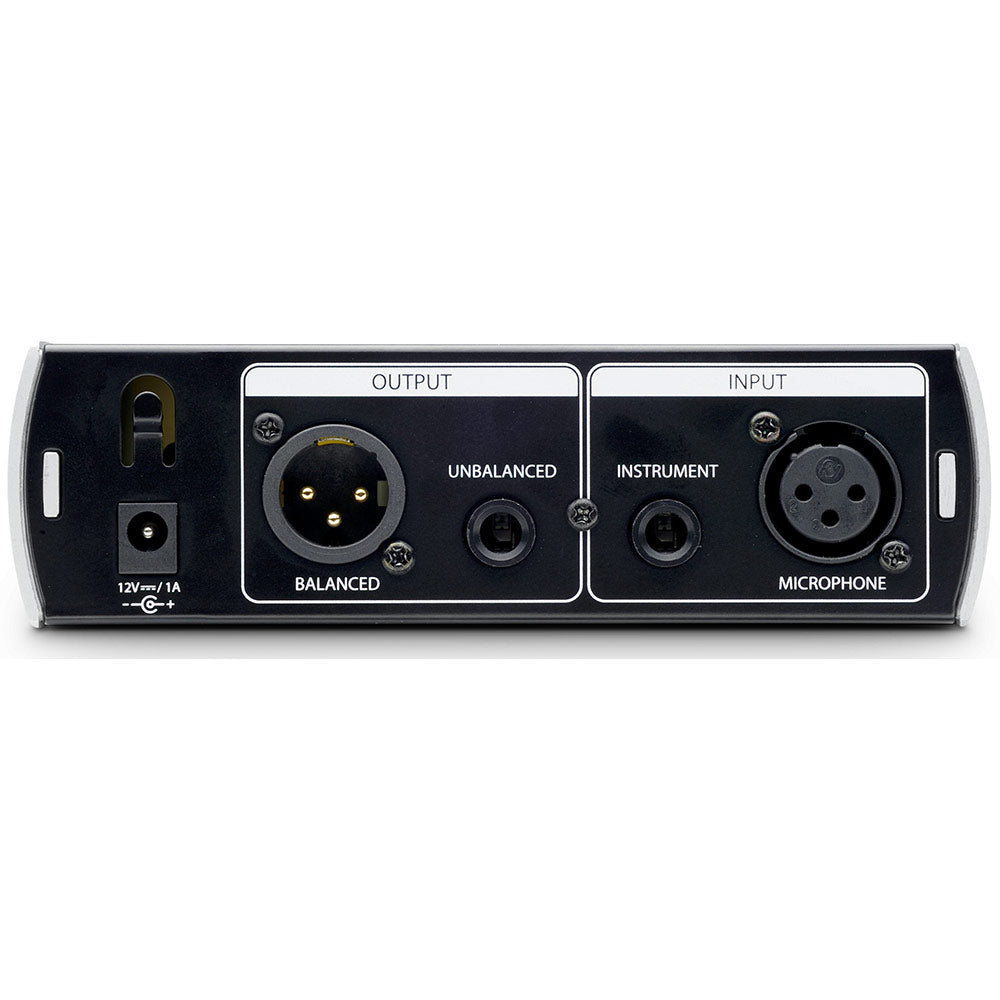

Housed in a rugged case, the TubePre V2 rear panel sports separate unbalanced, 1/4" instrument and balanced, XLR mic inputs and unbalanced 1/4" and balanced XLR line outputs. We've included all of the extras you need for professional operation including a high-pass filter, phantom power for condenser mics, polarity reverse switch, and a backlit VU meter.
The TubePre V2 is more than a mic preamp, though.
Thanks to its separate instrument and mic inputs, it also serves as a dynamite direct box (DI) for guitars and basses. And it's small enough to carry almost anywhere, although you also can screw-mount it to a standard rack tray. So if you are a fan of the original TubePre, you're going to love the improved TubePre V2. And if you are checking out the TubePre for the first time, your ears are in for a real treat. Then check out the amazing low price-but sit down first because you're in for a shock. Because with PreSonus, big sound does not have to cost big bucks.
| Mic Input | |
| Connectory Type | XLR, female, balanced |
| EIN | -131 dB, 20 kHz BW, max gain, Rs=40 , A-wtd -128 dB, 20 kHz BW, max gain, Rs=40 , unwtd |
| Frequency Response | 20 Hz Ð 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain |
| THD+N | 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd |
| Dynamic Range | 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd |
| Input Impedance | 1.3 k |
| Phantom Power | +48 VDC, 10 mA |
| Instrument Input | |
| Connector Type | _” TS, female, unbalanced |
| Input Impedance | 1 M |
| Analog Output | |
| Connector Types | XLR, male, balanced _” TS, female, unbalanced |
| Maximum Output | +20 dBu |
| Output Impedance | 51 |
| Tube Stage | |
| Type | 12AX7 |
| Physical | |
| Dimensions | 1/3U rack-mountable (screw-mount to standard rack tray, not included) |
| Height | 1.75” (44.45 mm) |
| Depth | 5.5” (139.7 mm) |
| Width | 5.5” (139.7 mm) |
| Weight | 5 lb. (2.27 kg) |
