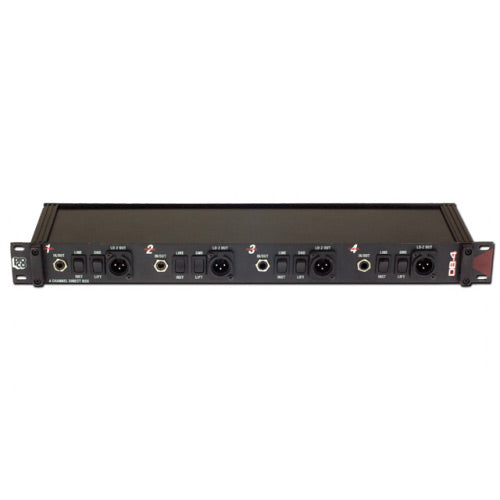

Pro Co DB4A Rack Mount 4-Channel Passive Direct Box


  • Dale #:

    PROC-DB4A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The DB4A provides four discrete "direct-box" channels in a convenient single space (1 3/4" , 44.45mm) rack-mounting package. Ideal for the multi-keyboardist, it is equally well suited to any application requiring the interface of unbalanced high-impedance equipment and balanced low-impedance mixe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

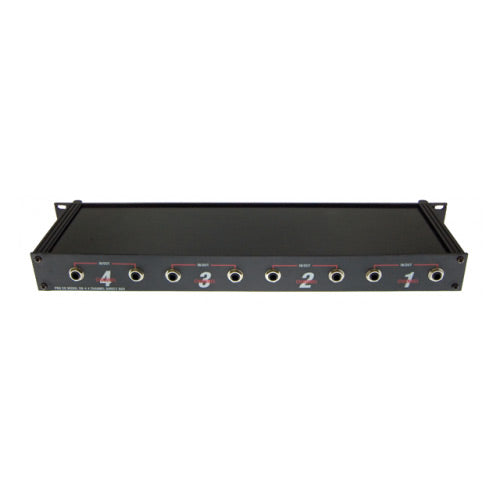

The DB4A provides four discrete "direct-box" channels in a convenient single space (1 3/4" , 44.45mm) rack-mounting package. Ideal for the multi-keyboardist, it is equally well suited to any application requiring the interface of unbalanced high-impedance equipment and balanced low-impedance mixer inputs. The versatile design of the DB4A allows easy integration with any high-quality audio system. Three parallel-connected IN/OUT jacks for unbalanced signals make "patching in" at virtually any stage of the signal path a simple task. Signals may be taken straight from the instruments (and effects devices) themselves, or from sub-mixer outputs (if you have to run out of mixer channels). Of course, multiple DB4A's can be used when separate outputs from each instrument or effect are needed.

The DB4A's rugged 16-gauge steel and aluminum "Uni-box" construction enclosure is finished in a durable black texture powder coat finish with black anodized aluminum side channels. Easy- to-read control graphics are incorporated into the Lexan® front and back panel overlays. Inside, DBT-P transformers combine superb audio quality with unsurpassed noise rejection. The DB4A can be mounted in any standard 19" (482.6mm) rack.

Features:

  • Floating Transformer-Balanced XLR Output for Maximum Isolation
  • 4 Independent Channels for 4 Keyboards, Drum Machine Outputs, etc.
  • 3 IN/OUT Jacks per Channel for Convenient Loop-Thru
  • LINT Mode Handles Signals to +34 dBv
  • GND/LIFT Switch Eliminates Hum and Buzz
  • Rack-mounted "Uni-box" Construction for Superior Protection and Shielding
  • Flush-mounted Switches and Connectors Resist Damage
  • Passive Design Requires No Batteries or Phantom Power

More +

Product Specs

Frequency Repsonse 20 Hz - 20 kHz, ± .5% @ -15 dBv output.
-3 dB @ approximately 85 kHz.
Total Harmonic Distortion <.03% 20 Hz - 20 kHz @ -30 dBv output.
<.1% 30 Hz - 20 kHz @ -15 dBv output.
<.25% 20 Hz - 20 kHz @ -15 dBv output.
Phase Response <-18 degrees @ 20 kHz (ref. 1.0 kHz).
Rise Time <4.5 microseconds (2.0 kHz square wave, 10%-90%).
Voltage Stepdown <22 dB @ 1.0 kHz (INST mode).
SPKR mode attenuate signal by 20 dB
Input Impedance >130 kΩ @ 1.0 kHz (INST mode).
>105 kΩ @ 10kHz (INST mode).
Nominal source impedance is 20 kΩ.
Approx. 8.2 kΩ (SPKR mode)
Nominal source impedance is 0 Ω.
Output Impedance <210 Ω @ 1.0 KHZ.
<215 Ω @ 10 kHz.
Nominal output impedance is 1.0 kΩ.
Maximum Input Level @ 50 HZ for 1% THD +16 dBv (INST), +34 dBv (LINE) @ 20 Hz.
+21 dBv (INST), +41 dBv (LINE) @ 30 Hz.
+26 dBv (INST), +46 dBv (LINE) @ 50 Hz.
