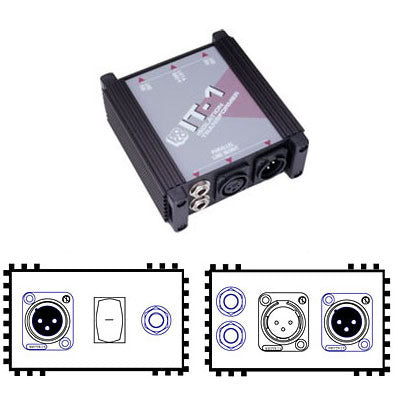

Pro Co IT1 Line Level Transformer Isolation Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The ruggedly built Pro Co IT-1 Transformer is the perfect piece for a variety of applications where transformer-floated outputs are a necessity. The IT-1 provides a high-quality solution for interfacing problems including being used as a direct box, breaking ground loops between balanced and un-balanced lines, minimizing interference from SCR lighting dimmers, radio transmitters and 60Hz AC power wiring and more.
| True Floating Transformer Isolation for Unbalanced Line-Level Outputs |
|
| Input, Output and Loop-Thru XLR and 1/4" (6.3mm) Phone Jack Connectors |
|
| Can Be Used As Line-Level Direct Box |
|
| Ideal for Portable and Permanent Sound Systems |
|
| Rugged "Uni-box" Construction Shields and Protects |
| Frequency Response | 20Hz to 20kHz +/- 0.5dB @ 0dBv output -3dB @ approximately 85Hz | THD (Main Outputs) | Less than 0.25% 20Hz to 20kHz @ 0dBv output Less than 0.05% 30Hz to 20kHz @ +18dBv output Less than 1% 20Hz to 20kHz @ +18dBv output | Input Impedance | Greater than 680 ohm @ 1.0kHz Greater than 680 ohm @ 10kHz | Output Impedance | Less than 120 ohm @ 1.0kHz Less than 120 ohm @ 10kHz | Voltage Loss | Less than 2dB @ 1kHz | Input Connections | Male and Female XLR inputs wired in parallel to (2) 1/4 in. phone jacks | Output Connections | XLR (male) and 1/4 in. phone | Weight | 1.0 lb. (0.45 kg) | Dimensions | 4.87 x 4.375 x 1.75 in. (123.8 x 111.1 x 44.4mm) |
The ruggedly built Pro Co IT-1 Transformer is the perfect piece for a variety of applications where transformer-floated outputs are a necessity. The IT-1 provides a high-quality solution for interfacing problems including being used as a direct box, breaking ground loops between balanced and un-balanced lines, minimizing interference from SCR lighting dimmers, radio transmitters and 60Hz AC power wiring and more.
| True Floating Transformer Isolation for Unbalanced Line-Level Outputs |
|
| Input, Output and Loop-Thru XLR and 1/4" (6.3mm) Phone Jack Connectors |
|
| Can Be Used As Line-Level Direct Box |
|
| Ideal for Portable and Permanent Sound Systems |
|
| Rugged "Uni-box" Construction Shields and Protects |
| Frequency Response | 20Hz to 20kHz +/- 0.5dB @ 0dBv output -3dB @ approximately 85Hz | THD (Main Outputs) | Less than 0.25% 20Hz to 20kHz @ 0dBv output Less than 0.05% 30Hz to 20kHz @ +18dBv output Less than 1% 20Hz to 20kHz @ +18dBv output | Input Impedance | Greater than 680 ohm @ 1.0kHz Greater than 680 ohm @ 10kHz | Output Impedance | Less than 120 ohm @ 1.0kHz Less than 120 ohm @ 10kHz | Voltage Loss | Less than 2dB @ 1kHz | Input Connections | Male and Female XLR inputs wired in parallel to (2) 1/4 in. phone jacks | Output Connections | XLR (male) and 1/4 in. phone | Weight | 1.0 lb. (0.45 kg) | Dimensions | 4.87 x 4.375 x 1.75 in. (123.8 x 111.1 x 44.4mm) |
