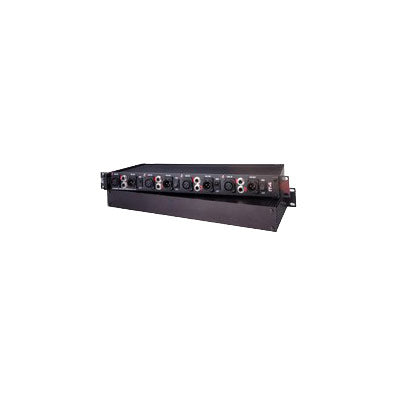

Pro Co IT4A Four-channel Transformer Isolation Balancer with TRS and XLR I/O Connectors
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Pro Co IT-4A is the perfect piece for a variety of applications where transformer-floated outputs are a necessity. The IT-4A provides four channels of high-quality solution for interfacing problems including being used as a direct box, breaking ground loops between balanced and un-balanced lines, minimizing interference from SCR lighting dimmers, radio transmitters and 60Hz AC power wiring and more.
Features- True Floating Transformer Isolation for Unbalanced Line-Level Outputs4-Channels in Single-Rack SpaceInput, Output and Loop-Thru XLR and 1/4 (6.3mm) Phone Jack ConnectorsCan Be Used As Line-Level Direct BoxIdeal for Portable and Permanent Sound SystemsRugged Uni-box Construction Shields and Protects
| Frequency Response | 20Hz to 20kHz +/- .5dB @ 0dBv output,-3dB @ approzimately 85kHz |
| THD (Main Outputs) | Less than 0.25% 20Hz to 20kHz @ 0 dBv output;Less than 0.5% 30Hz to 20kHz |
| Input Impedance | Greater than 680 ohm @ 1.0kHz;Greater than 680 ohm @ 10kHz |
| Output Impedance | Less than 120 ohm @ 1.0kHz;Less than 120 ohm @ 10kHz |
| Voltage Loss | Less than 2dB @ 1.0kHz |
| Input Connections | XLR (female) and 1/4 in. phone |
| Output Connections | XLR (male) and 1/4 in. phone |
| Weight | 4.11 lbs. (1.70 kg) |
| Dimensions | 19 x 4.75 x 1.75 in. (482.6 x 120.7 x 44.5mm) |
The Pro Co IT-4A is the perfect piece for a variety of applications where transformer-floated outputs are a necessity. The IT-4A provides four channels of high-quality solution for interfacing problems including being used as a direct box, breaking ground loops between balanced and un-balanced lines, minimizing interference from SCR lighting dimmers, radio transmitters and 60Hz AC power wiring and more.
Features- True Floating Transformer Isolation for Unbalanced Line-Level Outputs4-Channels in Single-Rack SpaceInput, Output and Loop-Thru XLR and 1/4 (6.3mm) Phone Jack ConnectorsCan Be Used As Line-Level Direct BoxIdeal for Portable and Permanent Sound SystemsRugged Uni-box Construction Shields and Protects
| Frequency Response | 20Hz to 20kHz +/- .5dB @ 0dBv output,-3dB @ approzimately 85kHz |
| THD (Main Outputs) | Less than 0.25% 20Hz to 20kHz @ 0 dBv output;Less than 0.5% 30Hz to 20kHz |
| Input Impedance | Greater than 680 ohm @ 1.0kHz;Greater than 680 ohm @ 10kHz |
| Output Impedance | Less than 120 ohm @ 1.0kHz;Less than 120 ohm @ 10kHz |
| Voltage Loss | Less than 2dB @ 1.0kHz |
| Input Connections | XLR (female) and 1/4 in. phone |
| Output Connections | XLR (male) and 1/4 in. phone |
| Weight | 4.11 lbs. (1.70 kg) |
| Dimensions | 19 x 4.75 x 1.75 in. (482.6 x 120.7 x 44.5mm) |
