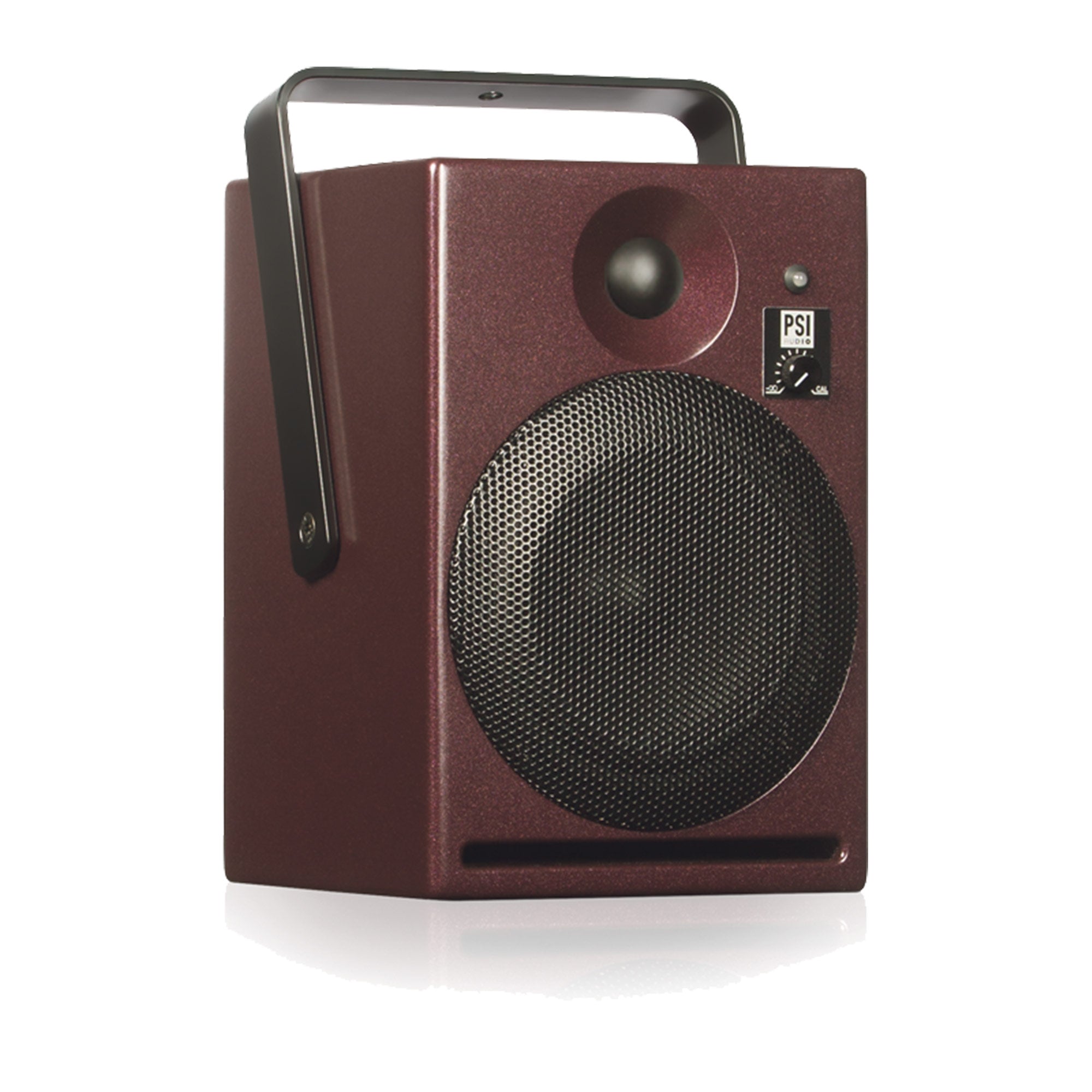

PSI Audio A14-M Broadcast - Compact Two-Way Studio Monitor with Bracket (Red)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The A14-M is designed to produce the highest possible SPL and broad bandwidth in an extremely compact cabinet. It is perfect for applications with limited space that still require the best in terms of precision and reliability. Nothing else comes close.
Features:
- 100% Analog - No DSP
- Flat frequency response
- Perfect stereo image
- Handmade tweeter
- Equipped with brackets
- Class A/B Amplifiers
- Individually calibrated
- 5+1 years warranty
- Handmade in Switzerland
Fast and reliable results with the A14-M Broadcast
"Have you heard?" The number one question in news and gossip does not concern the audio engineer with A14-M speakers - they have heard everything.
The sound that has earned PSI Audio the respect of sound professionals all around the world improves your results and quickens your pace. From broadcast vans to the use as surround speakers in immersive setups, the A14-M Broadcast brings the trademark PSI Audio accuracy into the most discerning and demanding environments. Speakers you can trust... from any angle.
Handmade tweeter
What do you do when you cannot find a driver appropriate for the sonic accuracy you want to achieve with your speaker? At PSI Audio, we decided to just build our own then. The tweeter used in the A14-M is unique, our own development and built by hand in our manufacture in Switzerland. Superior to any market-bought solutions, our tweeter offers unparalleled clarity, subtlety and fidelity. It took a lot of time and effort to create this tweeter - certainly a lot more than buying one from an international supplier would have.
But the result is absolutely worth it.
Extend the low frequencies and add power
Ranging down to 56 Hz, the A14-M already impresses with a lot of transparent bass reproduction for its size. By adding one of our subwoofers, you can turn a pair of A14-M into a proper full-range system with all the clarity and precision you desire.
Add the compact Sub A125-M or the flagship full range Sub A225-M.
| Potential peak power | 110 + 45 W |
| Continuous max SPL@1 m | 98 dB |
| Short term max. SPL@1m | 103 dB |
| Peak max. SPL@1m | 113 dB |
| Signal to noise ratio (S/N) | 95 dBA |
| Bandwidth at -6dB | 56-23'000 Hz |
| SPL tolerances | ʱ2.5dB |
| Phase tolerances | ʱ 45 (350 Hz Р20 kHz) deg |
| Dispersion (H x V) | 80 x 35 deg |
| System | 2 ways |
| Crossover frequency | 3600 Hz |
| Woofer ext. diam. | 147mm |
| Woofer ext. diam. | 5.8in |
| W. diaphragm diam. | 104mm |
| W. diaphragm diam. | 4.1in |
| Tweeter ext. dim. | 90mm |
| Tweeter ext. dim. | 3.5in |
| T. diaphragm diam. | 27mm |
| T. diaphragm diam. | 1.06in |
| Dimensions W x H x D | 163 x 243 x 170mm |
| Dimensions W x H x D | 6.4 x 9.6 x 6.7in |
| Net Weight | 4.9Kg |
| Net Weight | 10.8 lbs |
| Input connector | 1 x XLR F / 3P |
| Warranty | 5 (+1) years |
