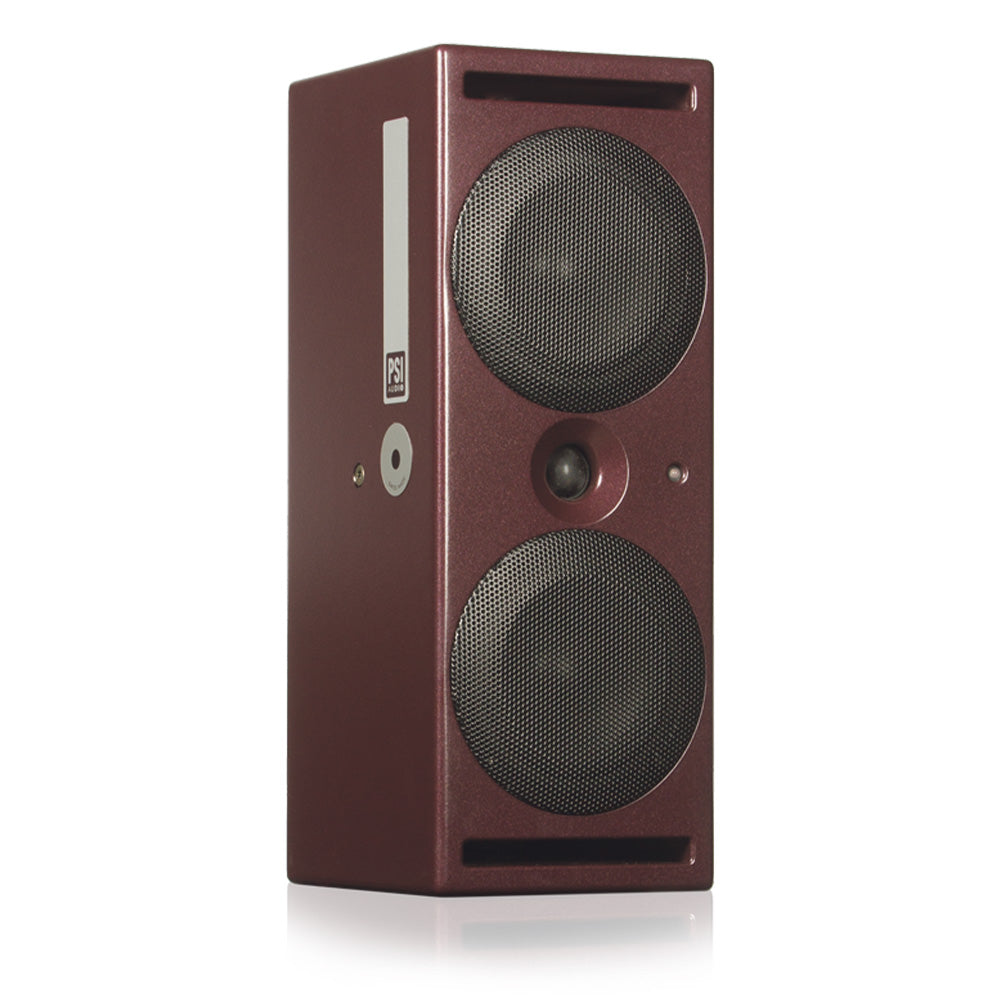

PSI Audio A214-M - Active Two-Way Center Channel Reference Monitor (Red)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The A214-M is designed as the ideal centre speaker for surround systems. Its incredible power is optimised to satisfy the requirements of post-production and film mixing suites.
Features:
- 100% Analog - No DSP
- Flat frequency response
- Perfect stereo image
- True D'Appolito design
- Monitor can be swivelled 90°
- Class G/H Amplifiers
- Individually calibrated
- 5+1 years warranty
- Handmade in Switzerland
The perfect immersion in your studio
Only you know where your story begins, and who knows where it will take you? The A214-M can help you define that "where" - by enhancing your surround setup with an optimised centre speaker.
The sound that has earned PSI Audio the respect of audio professionals all around the world is primarily defined by accuracy and hence its natural reproduction, playing back sound without altering it. The A214-M perfectly translates these qualities into a speaker ideally suited for the central position in immersive audio applications. Get all the fine details of the voices in the dialogue, hear that little rasp, that hint of a lisp introduced by the compressor. Start hearing if anything is just slightly off in the voices immediately, identify the source and create better results in less time. The A214-M gives you all the information you need.
True D'Appolito
The 214-M was developed to be a compact central speaker with sound pressure maximized more than bandwidth.
A tweeter and 2 woofers in D'Appolito configuration in an extremely compact cabinet but capable of astonishing sound pressure levels.
A214-M - The powerful centrepiece
The A214-M is the ideal centre speaker for surround systems. Its power and precision make it the perfect choice for discerning post-production studios and film mixing suites.
Most common surround setup: A21-M as L+R, A14-M as surround, A214-M as center, Sub A225-M as LFE. Thanks to the phase compensation on the whole range of monitors, these can be mixed and matched in any immersive setup.
| Potential peak power | 280 + 45W |
| Continuous max SPL@1 m | 104dB |
| Short term max. SPL@1m | 108dB |
| Peak max. SPL@1m | 117dB |
| Signal to noise ratio (S/N) | 96dBA |
| Bandwidth at -6dB | 53-23'000 Hz |
| SPL tolerances | ʱ2.0dB |
| Phase tolerances | ʱ 45 (300 Hz Р20 kHz) deg |
| Dispersion (H x V) | 80 x 40 deg |
| System | 2 ways |
| Crossover frequency | 1800 Hz |
| Woofer ext. diam. | 147 (2x)mm |
| Woofer ext. diam. | 5.8 (2x)in |
| W. diaphragm diam. | 104 (2x)mm |
| W. diaphragm diam. | 4.1 (x2)in |
| Tweeter ext. dim. | 100mm |
| Tweeter ext. dim. | 3.9in |
| T. diaphragm diam. | 27mm |
| T. diaphragm diam. | 1.06in |
| Dimensions W x H x D | 166 x 446 x 200mm |
| Dimensions W x H x D | 6.6 x 17.6 x 7.9in |
| Net Weight | 10.5Kg |
| Net Weight | 23.1 lbs |
| Input connector | 1 x XLR F / 3P |
| Warranty | 5 (+1) years |
The A214-M is designed as the ideal centre speaker for surround systems. Its incredible power is optimised to satisfy the requirements of post-production and film mixing suites.
Features:
- 100% Analog - No DSP
- Flat frequency response
- Perfect stereo image
- True D'Appolito design
- Monitor can be swivelled 90°
- Class G/H Amplifiers
- Individually calibrated
- 5+1 years warranty
- Handmade in Switzerland
The perfect immersion in your studio
Only you know where your story begins, and who knows where it will take you? The A214-M can help you define that "where" - by enhancing your surround setup with an optimised centre speaker.
The sound that has earned PSI Audio the respect of audio professionals all around the world is primarily defined by accuracy and hence its natural reproduction, playing back sound without altering it. The A214-M perfectly translates these qualities into a speaker ideally suited for the central position in immersive audio applications. Get all the fine details of the voices in the dialogue, hear that little rasp, that hint of a lisp introduced by the compressor. Start hearing if anything is just slightly off in the voices immediately, identify the source and create better results in less time. The A214-M gives you all the information you need.
True D'Appolito
The 214-M was developed to be a compact central speaker with sound pressure maximized more than bandwidth.
A tweeter and 2 woofers in D'Appolito configuration in an extremely compact cabinet but capable of astonishing sound pressure levels.
A214-M - The powerful centrepiece
The A214-M is the ideal centre speaker for surround systems. Its power and precision make it the perfect choice for discerning post-production studios and film mixing suites.
Most common surround setup: A21-M as L+R, A14-M as surround, A214-M as center, Sub A225-M as LFE. Thanks to the phase compensation on the whole range of monitors, these can be mixed and matched in any immersive setup.
| Potential peak power | 280 + 45W |
| Continuous max SPL@1 m | 104dB |
| Short term max. SPL@1m | 108dB |
| Peak max. SPL@1m | 117dB |
| Signal to noise ratio (S/N) | 96dBA |
| Bandwidth at -6dB | 53-23'000 Hz |
| SPL tolerances | ʱ2.0dB |
| Phase tolerances | ʱ 45 (300 Hz Р20 kHz) deg |
| Dispersion (H x V) | 80 x 40 deg |
| System | 2 ways |
| Crossover frequency | 1800 Hz |
| Woofer ext. diam. | 147 (2x)mm |
| Woofer ext. diam. | 5.8 (2x)in |
| W. diaphragm diam. | 104 (2x)mm |
| W. diaphragm diam. | 4.1 (x2)in |
| Tweeter ext. dim. | 100mm |
| Tweeter ext. dim. | 3.9in |
| T. diaphragm diam. | 27mm |
| T. diaphragm diam. | 1.06in |
| Dimensions W x H x D | 166 x 446 x 200mm |
| Dimensions W x H x D | 6.6 x 17.6 x 7.9in |
| Net Weight | 10.5Kg |
| Net Weight | 23.1 lbs |
| Input connector | 1 x XLR F / 3P |
| Warranty | 5 (+1) years |
