DALE SKU # PSIA-ZPA23001B

PSI Audio A23-M - Active Three-Way Nearfield/Midfield Reference Monitor (Black)

Sale price$5,935.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The A23-M is the combination of our advanced analogue technology and the development of a unique midrange driver. The result is precision never achieved before on a 3-way monitor. You will wonder how you ever managed to work without it.

    Features:

    • 100% Analog – No DSP
    • Flat frequency response
    • Perfect stereo image
    • Handmade midrange driver AND tweeter

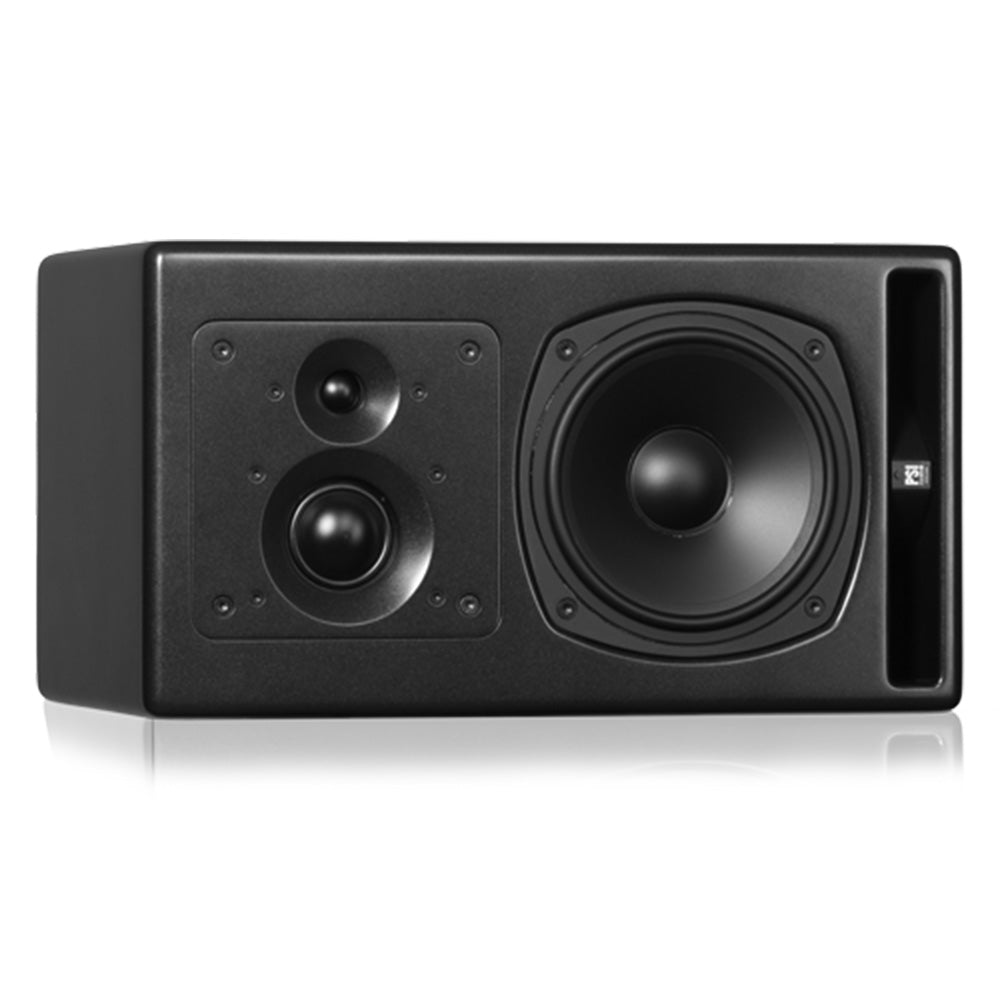

    • Tweeter-mid unit can be swivelled 90°
    • Class G/H Amplifiers
    • Individually calibrated
    • 5+1 years warranty
    • Handmade in Switzerland

    Your success story with the A23-M
    Only you know where your story begins, and who knows where it will take you? But with the A23-M, you are prepared for everything. You can even rotate the tweeter and midrange driver to fit your studio perfectly!

    Then there is the sound that has earned PSI Audio the respect of sound professionals all around the world. Building on the renowned A25-M, PSI Audio has created a more compact A23-M that retains the outstandingly accurate, mastering-grade audio reproduction. Assess the entire frequency range effortlessly even without a subwoofer – although you can opt to enhance the A23-M with a Sub A225-M, of course. Whatever story you need to tell, the A23-M helps you along the way – and once you have heard it, you certainly will not go back.

    Handmade tweeter + midrange driver
    The handmade tweeter used on the A23-M has already made the success of PSI's biggest 3-way studio monitor, the A25-M. To achieve the ultimate precision for this compact 3-way, it was also necessary to build a custom midrange driver. After more than 2 years of analyses and development, PSI is proud to release the current version: the most accurate and transparent mid that you can find on the market.

    Tri-powered with proprietary analogue amps (Class G/H for bass + midrange driver and Class A/B for the tweeter), the A23-M is the top of the art active compact 3-way studio monitor. It is dedicated to music recording, mixing and mastering, broadcast and post production.

    Extend the low frequencies and add power
    When used with one of PSI's subwoofers, the A23-M transforms into an amazing 4-way system with ultra-precise control on all the frequencies, from the very low end up to the highest notes.

    Add the compact Sub A125-M (two units are required to match the maximum SPL of the A23-M) or the full range Sub A225-M.

    Potential peak power 310 + 120 + 55W
    Continuous max SPL@1 m 108dB
    Short term max. SPL@1m 111dB
    Peak max. SPL@1m 122dB
    Signal to noise ratio (S/N) 100dBA
    Bandwidth at -6dB 34-23'000 Hz
    SPL tolerances ʱ1.5dB
    Phase tolerances ʱ 45 (200 Hz Р20 kHz) deg
    Dispersion (H x V) 85 x 40 deg
    System 3 ways
    Crossover frequency 620, 3'300 Hz
    Woofer ext. diam. 240mm
    Woofer ext. diam. 9.4in
    W. diaphragm diam. 172mm
    W. diaphragm diam. 6.8in
    Tweeter ext. dim. 100mm
    Tweeter ext. dim. 3.9in
    T. diaphragm diam. 27mm
    T. diaphragm diam. 1.06in
    Dimensions W x H x D 280 x 500 x 340mm
    Dimensions W x H x D 11 x 19.7 x 13.4in
    Net Weight 18Kg
    Net Weight 39.6lbs

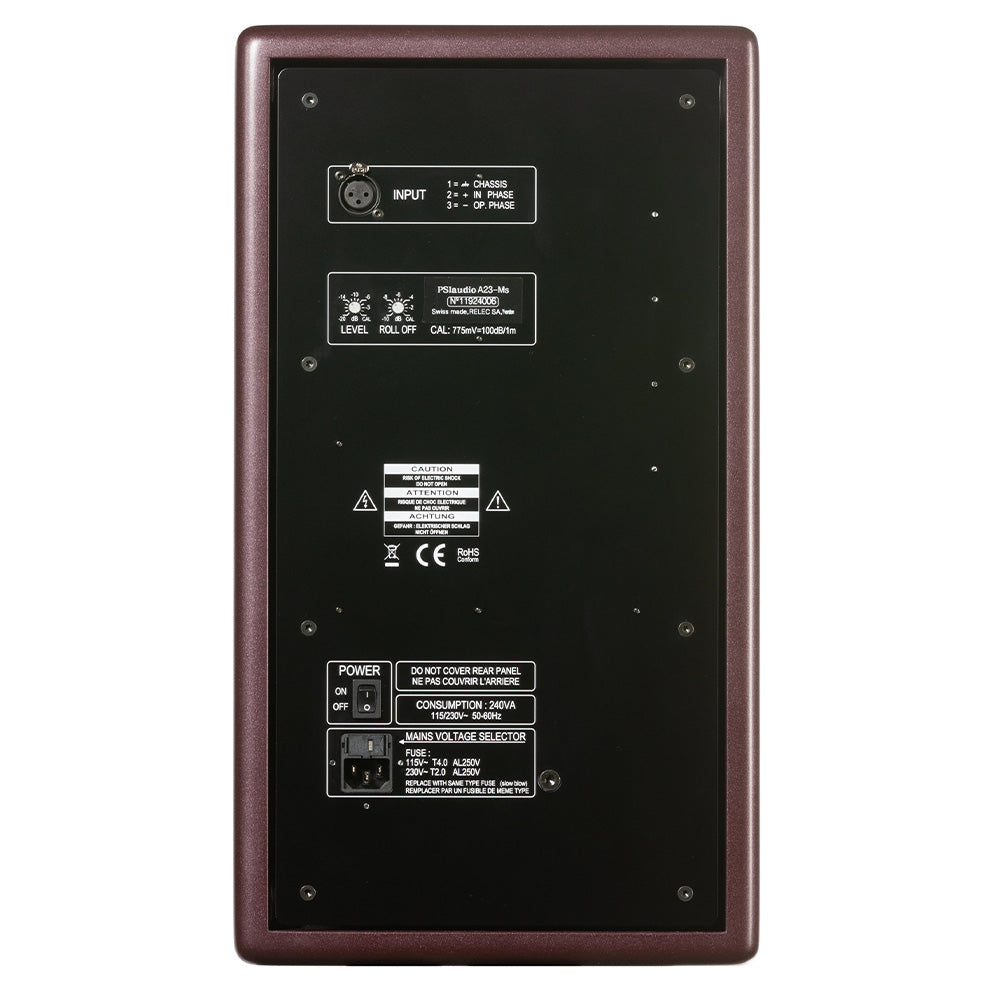

    Input connector 1 x XLR F / 3P
    Warranty 5 (+1) years
