Description

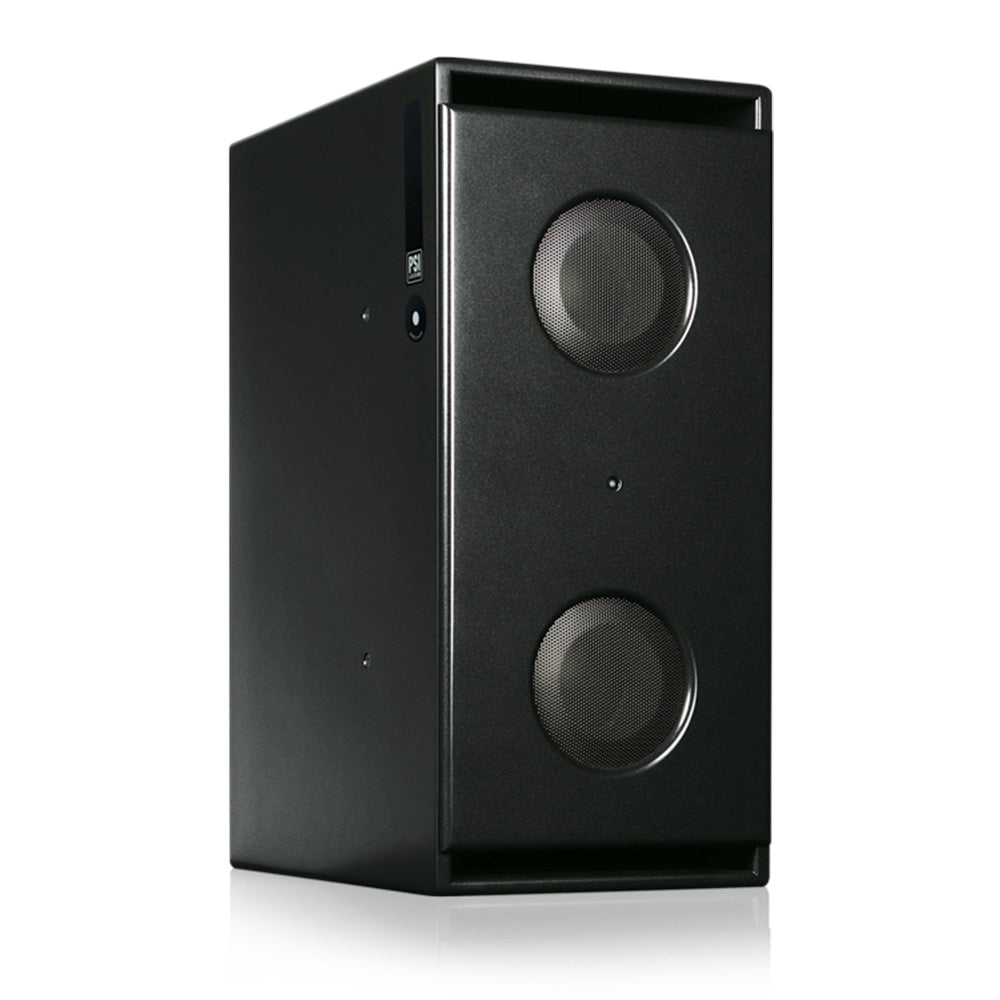

For those who want more than just "some bass": the A225-M is the ideal addition to any PSI Audio monitoring system, granting the same trademark fidelity to the lowest frequencies - precision down to 24 Hz!
Features:
- 100% Analog - No DSP
 - Flat frequency response
 - Coherent to each monitor
 - R+B compatible
 - Class G/H Amplifiers
 - Individually calibrated
 - 5+1 years warranty
 - Handmade in Switzerland

 The perfect low end in your studio
 Given enough power, going low with a speaker is not too much of a challenge. Reproducing low frequencies with precision, however, is a different matter entirely. The PSI Audio Sub A225-M brings a whole new dimension of accuracy to the low end.
PSI Audio has translated its general approach of unaltered, maximum fidelity reproduction to the bass spectrum, allowing for a riveting experience that will change the way you work. Taking the guesswork out of the bass management, the A225-M grants an accurate representation of what is really going on "down below". Take control and create a sonic wonderland that reaches throughout the entire spectrum with no insecurities and no need to double-check your work on a different system. Get a subwoofer you can trust.
Add control on your surround setup or on low frequencies
 If you use a surround system or are working with several different speakers, the R+B - Router and Bass management System - could save you a lot of time.
R+B is an 8 in / 8 out transparent matrix that will fit into A225-M and help you selecting the speakers you are working with.
Please note that R+B is an option for the Sub A225-M and is not included as standard.
A subwoofer for the whole range
 The Sub A225-M is the perfect addition to any PSI Audio speaker setup. No matter if you are working with the compact A17-M or the large A25-M, the A225-M will seamlessly integrate with all our monitors. Simply engage the bass roll-off on the satellites and enjoy a full-range system that extends down to 24 Hz with all the linearity in frequency and phase that you are used to from your monitor speakers.
| Potential peak power | 480W |
| Continuous max SPL@1 m | 108dB |
| Short term max. SPL@1m | 111dB |
| Peak max. SPL@1m | 115dB |
| Signal to noise ratio (S/N) | 102dBA |
| Bandwidth at -6dB | 24-100 Hz |
| SPL tolerances | ʱ2.0dB |
| Phase tolerances | ʱ 45 (300 Hz Р500 Hz) deg |
| System | 1 ways |
| Woofer ext. diam. | 293 (2x)mm |
| Woofer ext. diam. | 11.4 (x2)in |
| W. diaphragm diam. | 213 (2x)mm |
| W. diaphragm diam. | 8.3 (x2)in |
| Dimensions W x H x D | 320 x 700 x 500mm |
| Dimensions W x H x D | 12.6 x 27.7 x 19.9in |
| Net Weight | 35.6Kg |
| Net Weight | 78.4lbs |
| Input connector | 2 x XLR F2 x XLR M |
| Warranty | 5 (+1) years |
For those who want more than just "some bass": the A225-M is the ideal addition to any PSI Audio monitoring system, granting the same trademark fidelity to the lowest frequencies - precision down to 24 Hz!
Features:
- 100% Analog - No DSP
 - Flat frequency response
 - Coherent to each monitor
 - R+B compatible
 - Class G/H Amplifiers
 - Individually calibrated
 - 5+1 years warranty
 - Handmade in Switzerland

 The perfect low end in your studio
 Given enough power, going low with a speaker is not too much of a challenge. Reproducing low frequencies with precision, however, is a different matter entirely. The PSI Audio Sub A225-M brings a whole new dimension of accuracy to the low end.
PSI Audio has translated its general approach of unaltered, maximum fidelity reproduction to the bass spectrum, allowing for a riveting experience that will change the way you work. Taking the guesswork out of the bass management, the A225-M grants an accurate representation of what is really going on "down below". Take control and create a sonic wonderland that reaches throughout the entire spectrum with no insecurities and no need to double-check your work on a different system. Get a subwoofer you can trust.
Add control on your surround setup or on low frequencies
 If you use a surround system or are working with several different speakers, the R+B - Router and Bass management System - could save you a lot of time.
R+B is an 8 in / 8 out transparent matrix that will fit into A225-M and help you selecting the speakers you are working with.
Please note that R+B is an option for the Sub A225-M and is not included as standard.
A subwoofer for the whole range
 The Sub A225-M is the perfect addition to any PSI Audio speaker setup. No matter if you are working with the compact A17-M or the large A25-M, the A225-M will seamlessly integrate with all our monitors. Simply engage the bass roll-off on the satellites and enjoy a full-range system that extends down to 24 Hz with all the linearity in frequency and phase that you are used to from your monitor speakers.
| Potential peak power | 480W |
| Continuous max SPL@1 m | 108dB |
| Short term max. SPL@1m | 111dB |
| Peak max. SPL@1m | 115dB |
| Signal to noise ratio (S/N) | 102dBA |
| Bandwidth at -6dB | 24-100 Hz |
| SPL tolerances | ʱ2.0dB |
| Phase tolerances | ʱ 45 (300 Hz Р500 Hz) deg |
| System | 1 ways |
| Woofer ext. diam. | 293 (2x)mm |
| Woofer ext. diam. | 11.4 (x2)in |
| W. diaphragm diam. | 213 (2x)mm |
| W. diaphragm diam. | 8.3 (x2)in |
| Dimensions W x H x D | 320 x 700 x 500mm |
| Dimensions W x H x D | 12.6 x 27.7 x 19.9in |
| Net Weight | 35.6Kg |
| Net Weight | 78.4lbs |
| Input connector | 2 x XLR F2 x XLR M |
| Warranty | 5 (+1) years |
