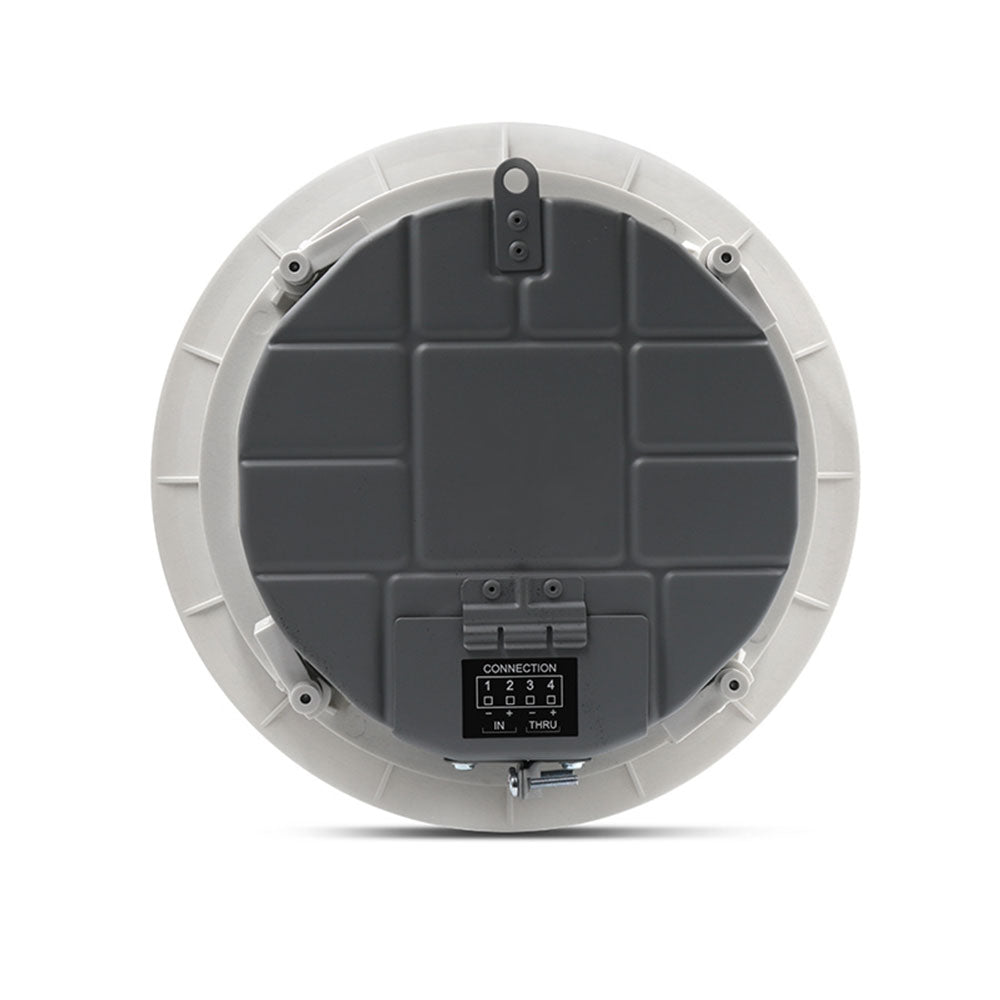

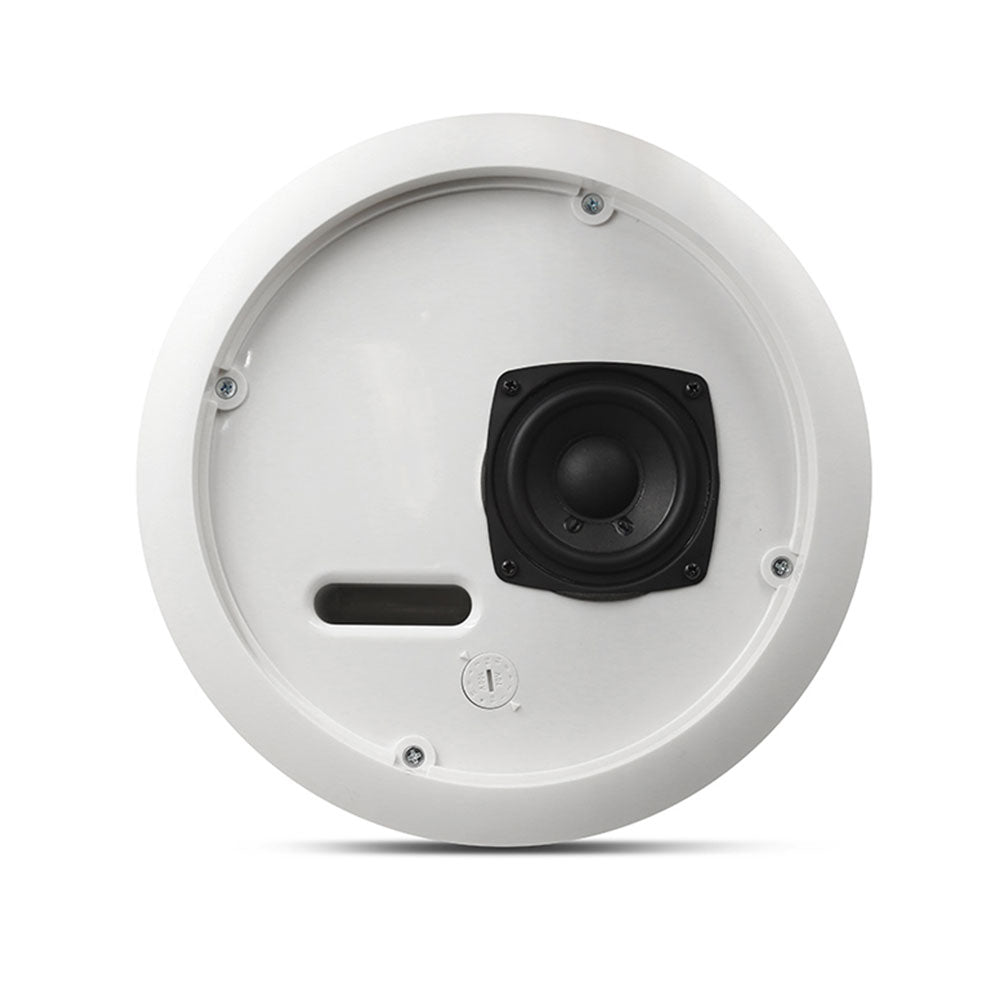

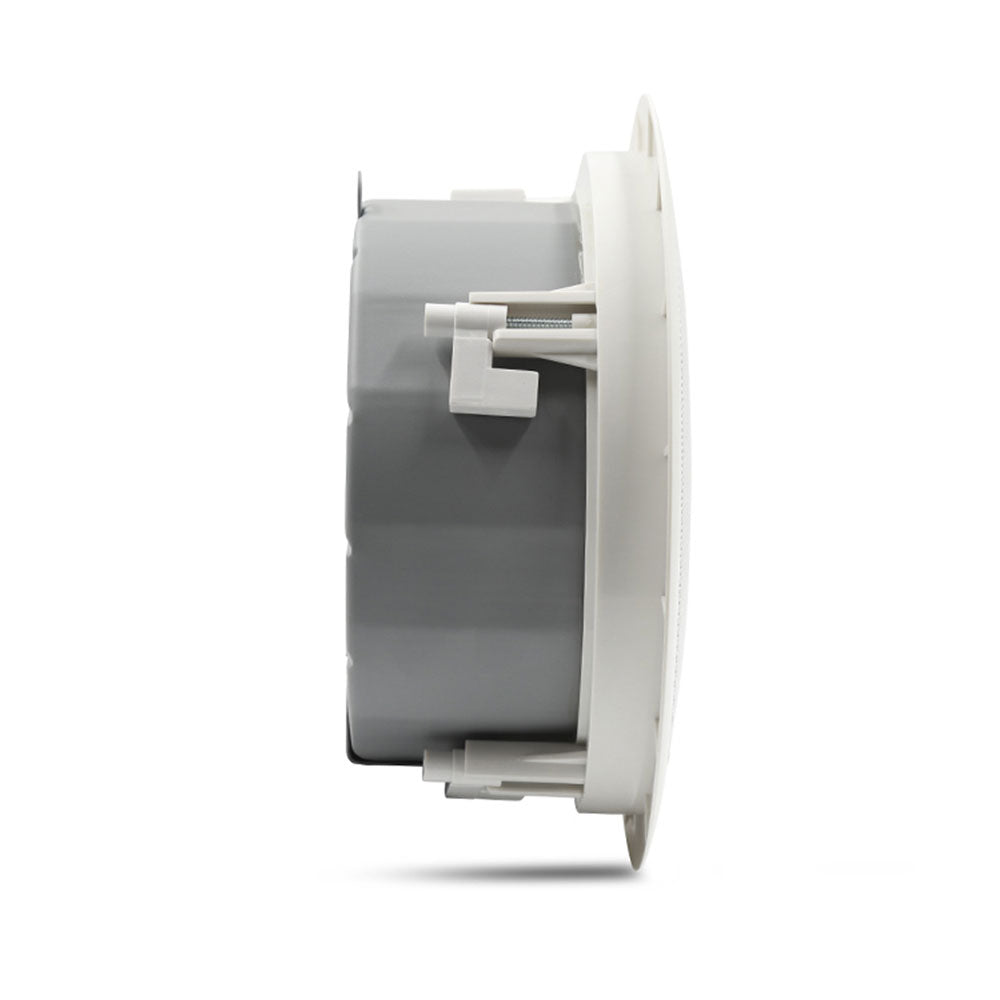

QSC AC-C2T-LP AcousticCoverage Series Full-Range Low-Profile Ceiling Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
The AC-C2T-LP is a low-profile, full-range 2.75-inch ceiling-mount loudspeaker, designed for voice-reinforcement or background music applications in spaces with lower ceiling heights. Featuring a 95 mm installation depth, the AC-C2T-LP is perfect for modern installations where tighter space restrictions and ceiling obstructions are more common.
Features:
- Low-profile enclosure ensures no obstructions during installation
- High-quality 2.75" full-range transducer provides a natural rise in high frequency extension
- Ported baffle for increased low frequency extension down to 75 Hz
- Low saturation 70 / 100 V transformers with 8 ohm bypass
- 4 pole Euroblock connector eases system wiring
- Intrinsic Correctionª voicings available via Q-SYS Ecosystem and QSC processing amplifiers
- White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
- Complete EASE, CAD and BIM information available online
Transducer | 2.75 in (70 mm), weather-treated paper cone |
Effective frequency range | 70 Hz to 20 kHz |
Broad-band sensitivity | 84 dB |
Rated noise power/voltage | 16 W / 11.3 V RMS |
Coverage angle (-6 dB) | 170 deg. (500 Hz to 5 kHz) |
Maximum SPL (continuous / peak) | 96 / 102 dB |
Rated impedance | 8 ohm |
Transformer taps | Bypass: 16 ohm |
Input connector type | Euroblock connector with parallel output terminals |
Baffle material | ABS polymer |
Grille material | Powder coated steel |
Back can material | Powder coated steel |
Net weight | 4.2 lb (1.9 kg) |
Product dimensions | 10.35 x 3.82 in (263 x 97 mm) |
Cut-out dimensions | 9 in (229 mm) |
Ceiling capture thickness | 0.25 - 1.5 in (6.35 - 38.1 mm) |
Shipping weight | 13.8 lb (6.3 kg) |
Shipping dimensions (W x D x H) | 25.2 x 14.2 x 7.2 in |
Included accessories | Rails and C-ring for ceiling tile installation |
Optional accessories | AC-MR6æmud ring for sheet rock installation |
Priced individually, but sold in pairs.
The AC-C2T-LP is a low-profile, full-range 2.75-inch ceiling-mount loudspeaker, designed for voice-reinforcement or background music applications in spaces with lower ceiling heights. Featuring a 95 mm installation depth, the AC-C2T-LP is perfect for modern installations where tighter space restrictions and ceiling obstructions are more common.
Features:
- Low-profile enclosure ensures no obstructions during installation
- High-quality 2.75" full-range transducer provides a natural rise in high frequency extension
- Ported baffle for increased low frequency extension down to 75 Hz
- Low saturation 70 / 100 V transformers with 8 ohm bypass
- 4 pole Euroblock connector eases system wiring
- Intrinsic Correctionª voicings available via Q-SYS Ecosystem and QSC processing amplifiers
- White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
- Complete EASE, CAD and BIM information available online
Transducer | 2.75 in (70 mm), weather-treated paper cone |
Effective frequency range | 70 Hz to 20 kHz |
Broad-band sensitivity | 84 dB |
Rated noise power/voltage | 16 W / 11.3 V RMS |
Coverage angle (-6 dB) | 170 deg. (500 Hz to 5 kHz) |
Maximum SPL (continuous / peak) | 96 / 102 dB |
Rated impedance | 8 ohm |
Transformer taps | Bypass: 16 ohm |
Input connector type | Euroblock connector with parallel output terminals |
Baffle material | ABS polymer |
Grille material | Powder coated steel |
Back can material | Powder coated steel |
Net weight | 4.2 lb (1.9 kg) |
Product dimensions | 10.35 x 3.82 in (263 x 97 mm) |
Cut-out dimensions | 9 in (229 mm) |
Ceiling capture thickness | 0.25 - 1.5 in (6.35 - 38.1 mm) |
Shipping weight | 13.8 lb (6.3 kg) |
Shipping dimensions (W x D x H) | 25.2 x 14.2 x 7.2 in |
Included accessories | Rails and C-ring for ceiling tile installation |
Optional accessories | AC-MR6æmud ring for sheet rock installation |
