QSC AC-C4T 4-Inch Full-Range Ceiling Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.

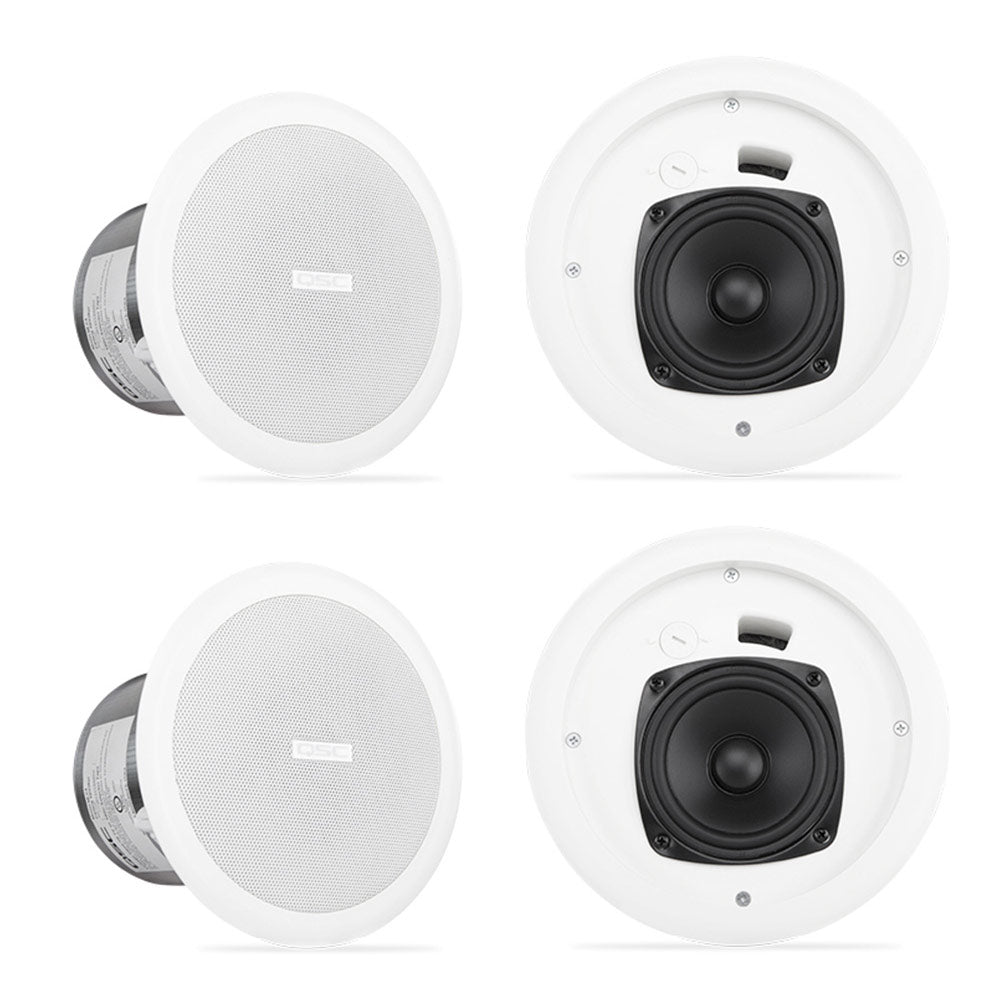

Pair of QSC AC-C4T 4-Inch Full-Range Ceiling Loudspeaker (White)
AcousticCoverageª is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products.ÊÊAchieveing remarkable performance for the cost,ÊAcousticCoverageÊis ideally suited for wide areaÊdeployments such as office buildings,ÊÊhealthcare facilities, transportation terminals, and other cost sensitive installations.
Features:
- High quality 4" full-range transducer provides exceptional clarity through the critical voice range.
- Ported baffle for increased low frequency extension down to 70 Hz.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- Advanced voicing filter sets using QSC Intrinsic Correctionª are available through either Q-SYS processing or CXD amplifier platforms.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
- Complete EASE, CAD, and BIM information available online
| Effective frequency range | 70 Hz to 16 kHz |
| Rated noise power / voltage | 16 watts / 11.3 volts (rms) |
| Broad-band sensitivity | 89 dB SPL |
| Coverage angle (-6 dB) | 140Á (500 Hz to 5 kHz) |
| Maximum continuous SPL | 101 dB |
| Maximum peak SPL | 107 dB |
| Rated impedance | 8 ohms |
| Transformer taps: | |
| 70 V | 16, 8, 4, 2, 1 watts and 8-ohm bypass |
| 100V | 16, 8, 4, 2, watts and 8-ohm bypass |
| Transducer | 4" Polypropylene cone with butyl rubber surround |
| Input connector type | Euroblock connector with parallel output terminals |
| Baffle material | Painted ABS polymer |
| Grille material | Powder coated steel |
| Back can material | Galvanized steel |
| Testing | Listed UL1480, UL2043 safe for use in air handling space |
| Net weight | 4.9 lb / 2.22 kg |
| Product dimensions | 8.4" _ 7.9î (214 _ 201 mm) |
| Cut-out Dimensions | 7.31" (185.67mm) |
| Ceiling Capture Thickness | 0.25" to 1.5" (6.35 to 38.1mm) |
| Shipping weight | 15.1 lb / 6.86 kg |
| Shipping dimensions | 10.75" _ 24" _ 10.5" (273.1 _ 609.6 _ 266.7 mm) |
| Included accessories | Rails and C-ring for ceiling tile installation |
Priced individually, but sold in pairs.
Pair of QSC AC-C4T 4-Inch Full-Range Ceiling Loudspeaker (White)
AcousticCoverageª is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products.ÊÊAchieveing remarkable performance for the cost,ÊAcousticCoverageÊis ideally suited for wide areaÊdeployments such as office buildings,ÊÊhealthcare facilities, transportation terminals, and other cost sensitive installations.
Features:
- High quality 4" full-range transducer provides exceptional clarity through the critical voice range.
- Ported baffle for increased low frequency extension down to 70 Hz.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- Advanced voicing filter sets using QSC Intrinsic Correctionª are available through either Q-SYS processing or CXD amplifier platforms.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
- Complete EASE, CAD, and BIM information available online
| Effective frequency range | 70 Hz to 16 kHz |
| Rated noise power / voltage | 16 watts / 11.3 volts (rms) |
| Broad-band sensitivity | 89 dB SPL |
| Coverage angle (-6 dB) | 140Á (500 Hz to 5 kHz) |
| Maximum continuous SPL | 101 dB |
| Maximum peak SPL | 107 dB |
| Rated impedance | 8 ohms |
| Transformer taps: | |
| 70 V | 16, 8, 4, 2, 1 watts and 8-ohm bypass |
| 100V | 16, 8, 4, 2, watts and 8-ohm bypass |
| Transducer | 4" Polypropylene cone with butyl rubber surround |
| Input connector type | Euroblock connector with parallel output terminals |
| Baffle material | Painted ABS polymer |
| Grille material | Powder coated steel |
| Back can material | Galvanized steel |
| Testing | Listed UL1480, UL2043 safe for use in air handling space |
| Net weight | 4.9 lb / 2.22 kg |
| Product dimensions | 8.4" _ 7.9î (214 _ 201 mm) |
| Cut-out Dimensions | 7.31" (185.67mm) |
| Ceiling Capture Thickness | 0.25" to 1.5" (6.35 to 38.1mm) |
| Shipping weight | 15.1 lb / 6.86 kg |
| Shipping dimensions | 10.75" _ 24" _ 10.5" (273.1 _ 609.6 _ 266.7 mm) |
| Included accessories | Rails and C-ring for ceiling tile installation |
