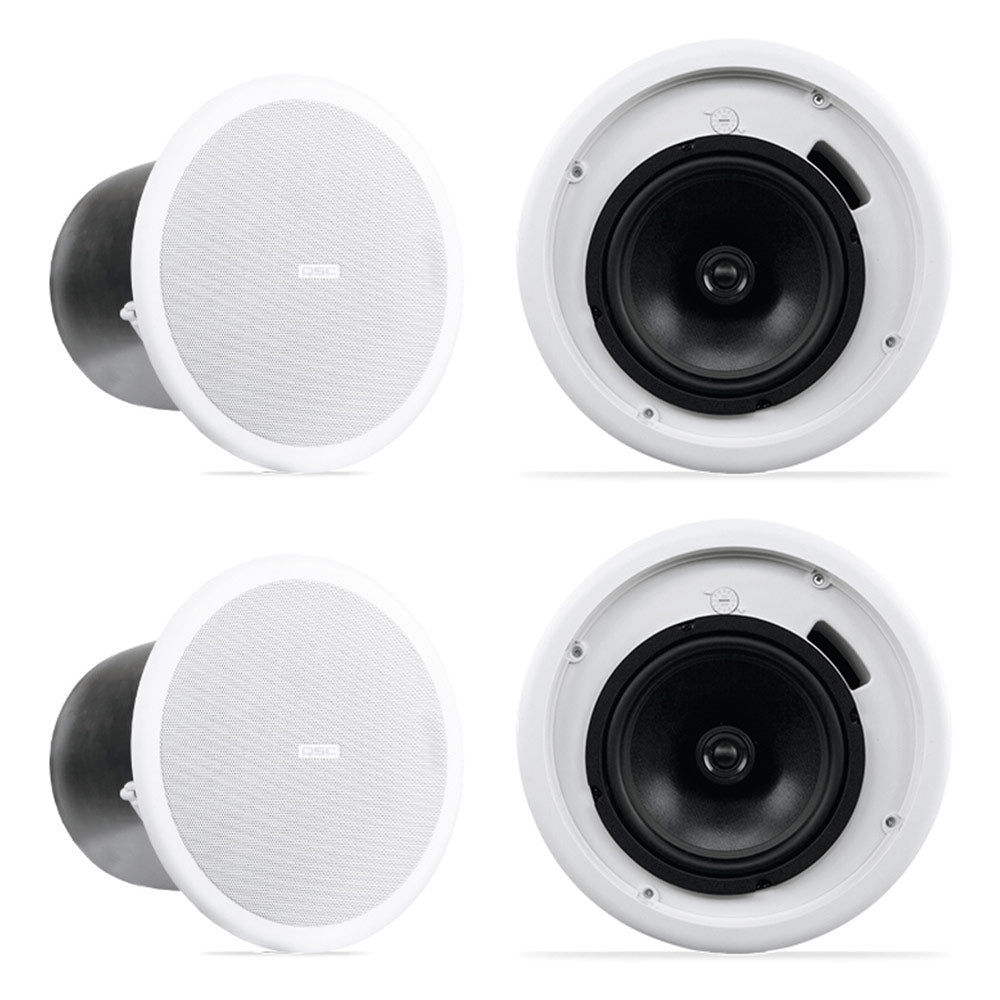

QSC AC-C8T 8-Inch Full-Range Ceiling Loudspeaker (White)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Priced individually, but sold in pairs.
AcousticCoverageª is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products.ÊÊAchieveing remarkable performance for the cost,ÊAcousticCoverageÊis ideally suited for wide areaÊdeployments such as office buildings,ÊÊhealthcare facilities, transportation terminals, and other cost sensitive installations.
Features:
- High quality transducers provide exceptional clarity through the critical voice range.
- Improved musicality often not seen in typical BGM class products.
- Ported baffle for increased low frequency extension down to 52 Hz.
- Low saturation 70/100V transformers with 8 ohm bypass.
- 4-pole Euroblock connector eases system wiring.
- Advanced voicing via QSC Intrinsic Correctionª, applied using the Q-SYS networking platform or CXD Series Amplifiers.
- White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
- Complete EASE, CF2, CAD, & BIM information available online.
| Effective frequency range | 52 Hz - 20 kHz |
| Rated noise power / voltage | 80 watts / 25.3 volts (rms) |
| Broad-band sensitivity | 89 dB SPL |
| Coverage angle (-6 dB) | 100Á (500 Hz to 5 kHz) |
| Maximum continuous SPL | 108 dB |
| Maximum peak SPL | 114 dB |
| Rated impedance | 8 ohms |
| Transformer taps: | |
| 70 V: | 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass |
| 100V: | 60, 30, 15, 7.5 watts and 8-ohm bypass |
| HF Transducer | 22 mm [.86 in] silk dome tweeter, coaxially mounted |
| LF Transducer | 210 mm [8 in] Polypropylene cone with butyl rubber surround |
| Input connector type | Euroblock connector with parallel output terminals |
| Baffle material | Painted ABS polymer |
| Grille material | Painted steel |
| Back can material | Plated steel |
| Testing | Listed UL1480, UL2043 safe for use in air handling space |
| Net weight | 5.2 kg [11.5 lb] |
| Product dimensions | ø316 x 288 mm [ø12.4 x 11.3 in] |
| Cut-out Dimensions | ø285 mm [ø11.2 in] |
| Ceiling Capture Thickness | 6 - 38 mm [0.25 - 1.5 in] |
| Shipping weight | 13.3 kg [29.3 lb] (pair packed) |
| Shipping dimensions | 743 x 381 x 381 mm [29.3 x 15 x 15 in] |
| Included accessories | Rails / C-ring for ceiling tile installation |
