Description

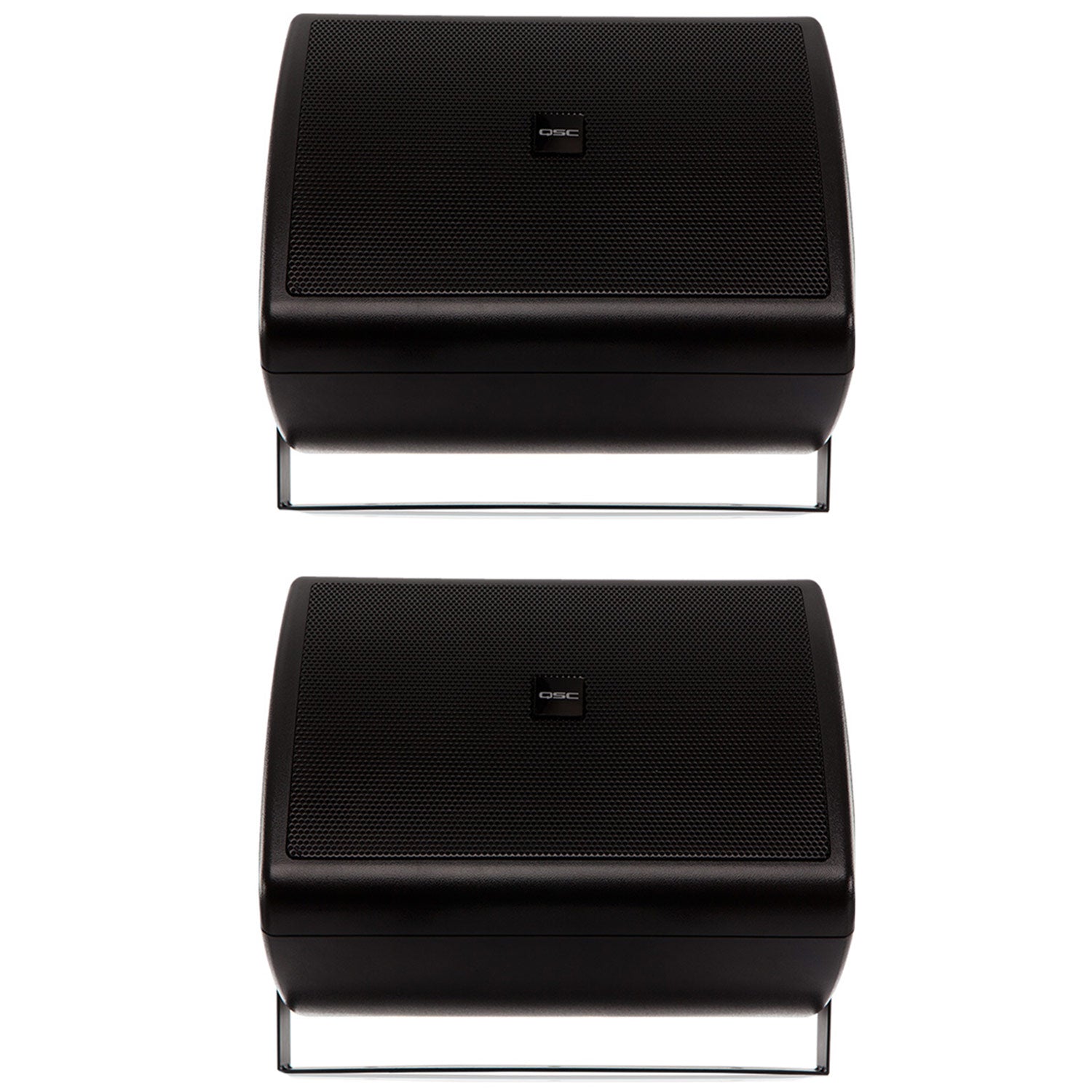

Priced individually, but sold in pairs.

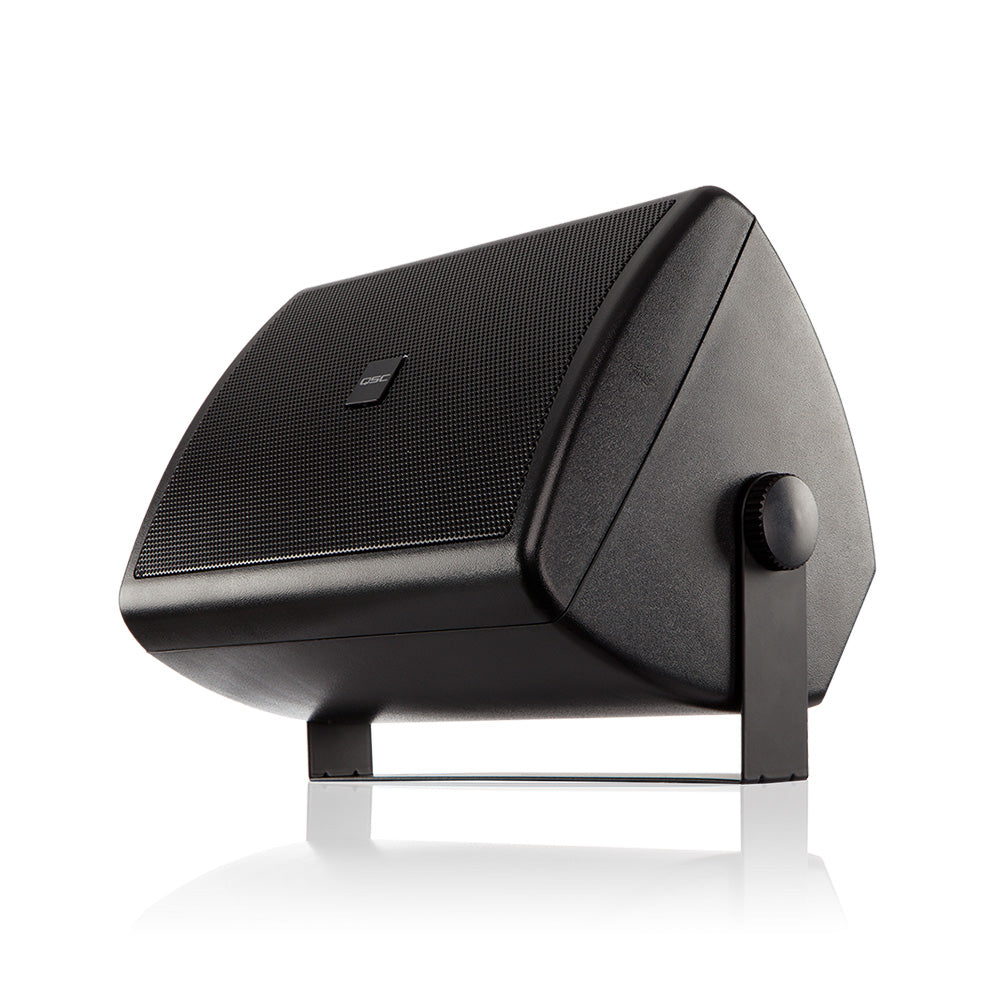

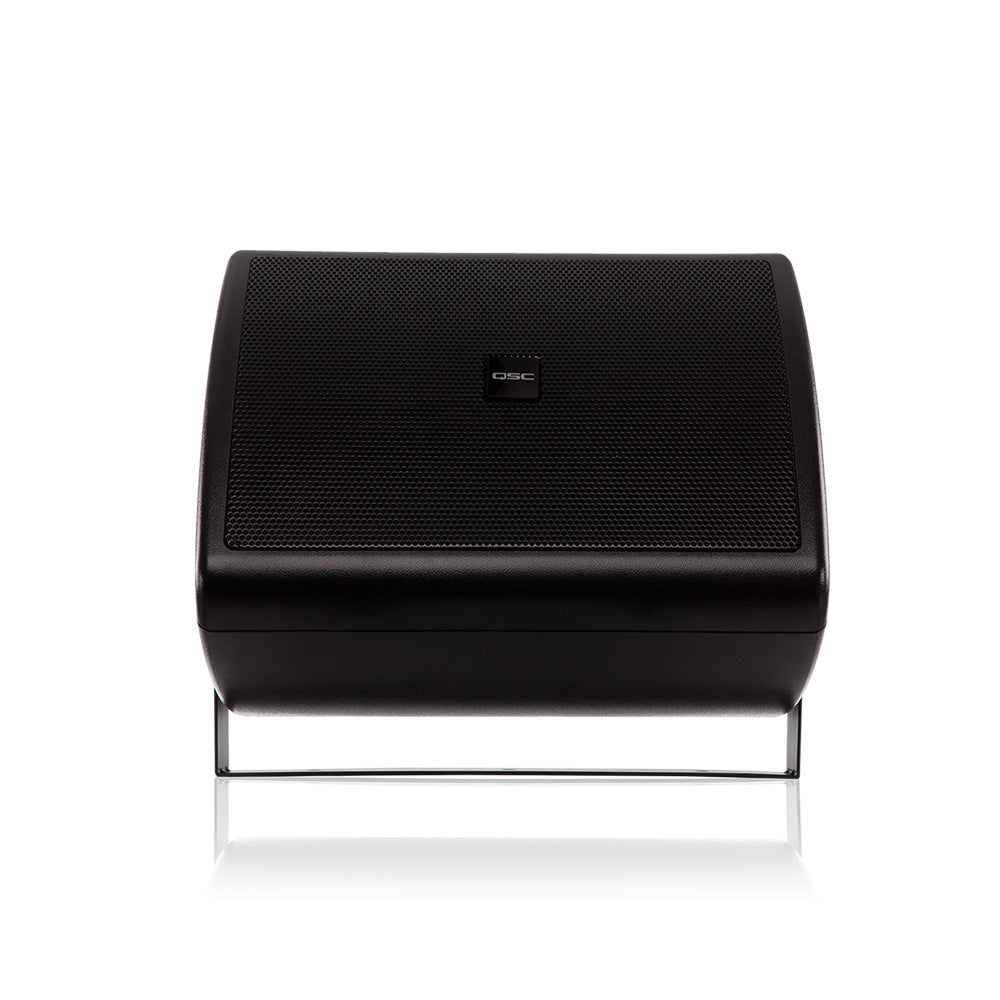

AcousticCoverageª is designed to offer integrators a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical BGM class products. ÊApplications for AcousticCoverageª speakers include wide area paging systems, background music, office buildings, healthcare facilities, concourses, transportation terminals and more.
Features:
- High quality transducers provide exceptional clarity through the critical voice range.
- Improved musicality often not seen in typical BGM class products.
- Ported baffle for increased low frequency extension down to 70 Hz.
- Low saturation 70/100V transformers with 8 ohm bypass.
- 4-pole Euroblock connector eases system wiring.
- Advanced voicing via QSC Intrinsic Correctionª, applied using Q-SYS processing or CXD amplifier platforms.
- Available in black (RAL 9011) or white (RAL 9010).
- Complete EASE, CAD & BIM information available online.
Effective frequency range | 70 Hz-20 kHz |
Rated noise power / voltage | 16 watts / 11.3 volts rms |
Broad-band sensitivity | 85 dB SPL |
Coverage angle (-6 dB) | 130Á conical (500 Hz-5 kHz) |
Directivity factor (Q) | 6 |
Directivity Index | 8 dB |
Maximum continuous SPL | 97 dB |
Maximum peak SPL4 | 103 dB |
Rated impedance | 8 ohms |
Recommended amplifier power | 32 watts into 8 ohms |
Transformer taps | 70V: 16, 8, 4, 2, 1 watts 100V: 16, 8, 4, 2 watts 8 ohm bypass |
LF transducer | 100 mm (4 in) Polypropylene woofer with 25 mm (1 in) voice coil |
HF transducer | 25 mm (1 in) Aluminium dome tweeter with 25 mm (1 in) voice coil |

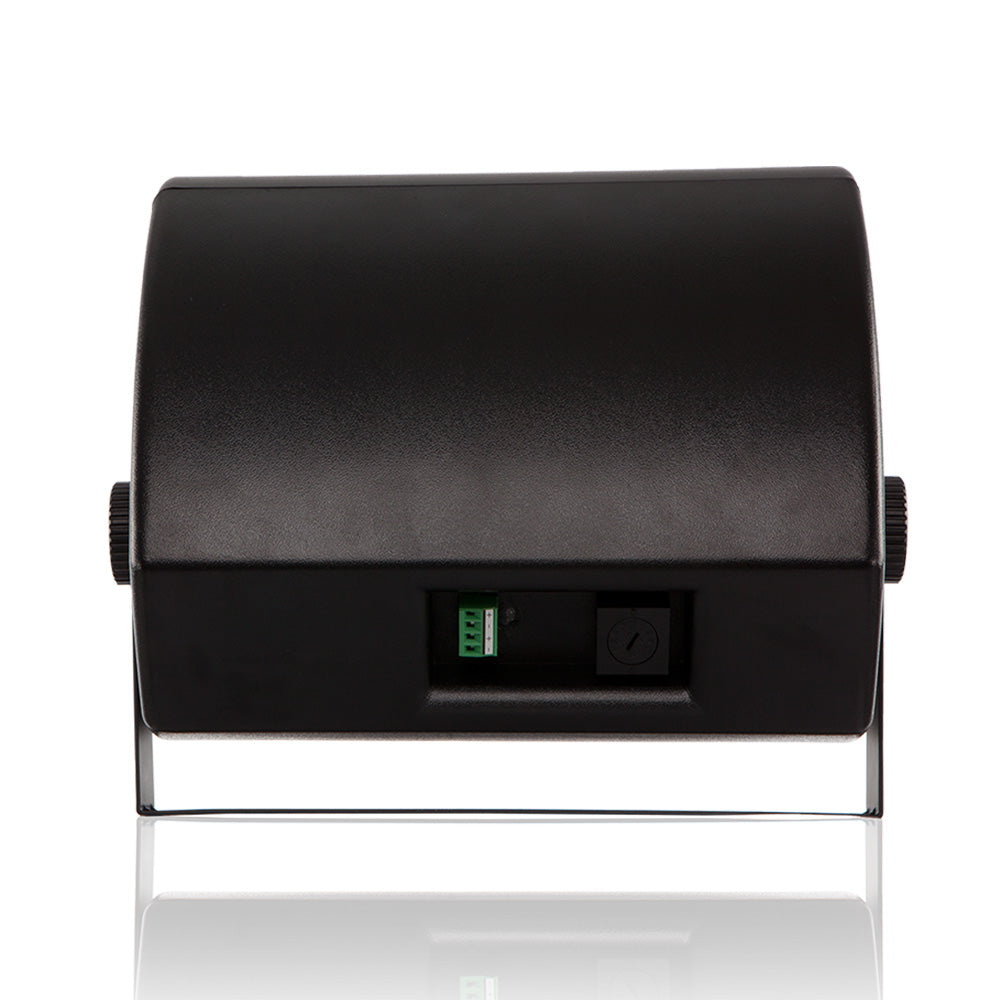

Input connector type | Euroblock connector with parallel output |
Enclosure material | UV treated, high impact ABS polymer |
Grille material | Powder coated steel |
Yoke material | Powder coated steel with brass inserts |
Enclosure Details
| IP-44 Designed for indoor use -20 to 50Á C (-4 to 122Á F) |
Product Dimensions (HWD) inches | 9.1 x 6.3 x 5.9 |
Product Dimensions (HWD) mm | 230 _ 160 _ 150 |
Net Weight | 5.3 lb / 2.4 kg |
Shipping weight | 5.3 kg (11.8 lb) pair packed |
Shipping Dimensions (HWD) inches | 11.5 _ 8.1 _ 14.5 pair packed |
Shipping Dimensions (HWD) mm | 292 x 206 x 368 pair packed |
Included accessories | Yoke mount system, euroblock connector |
