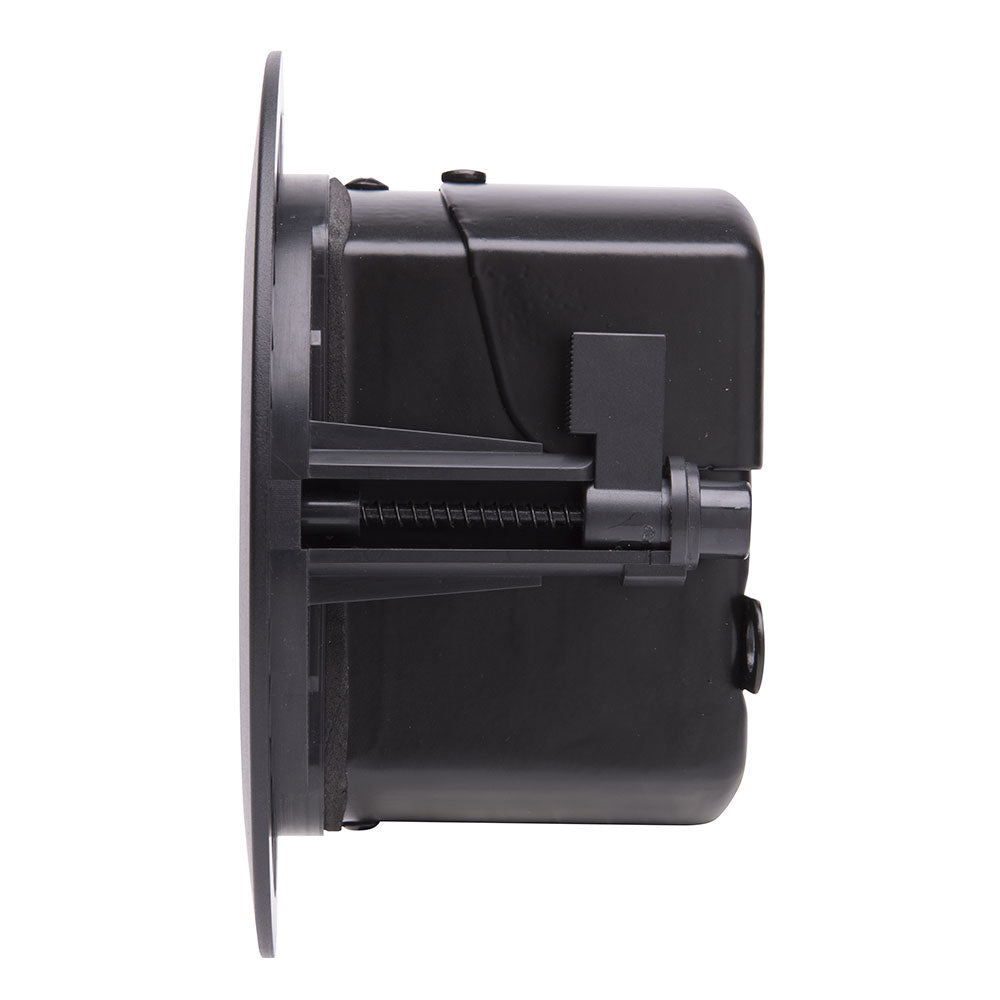

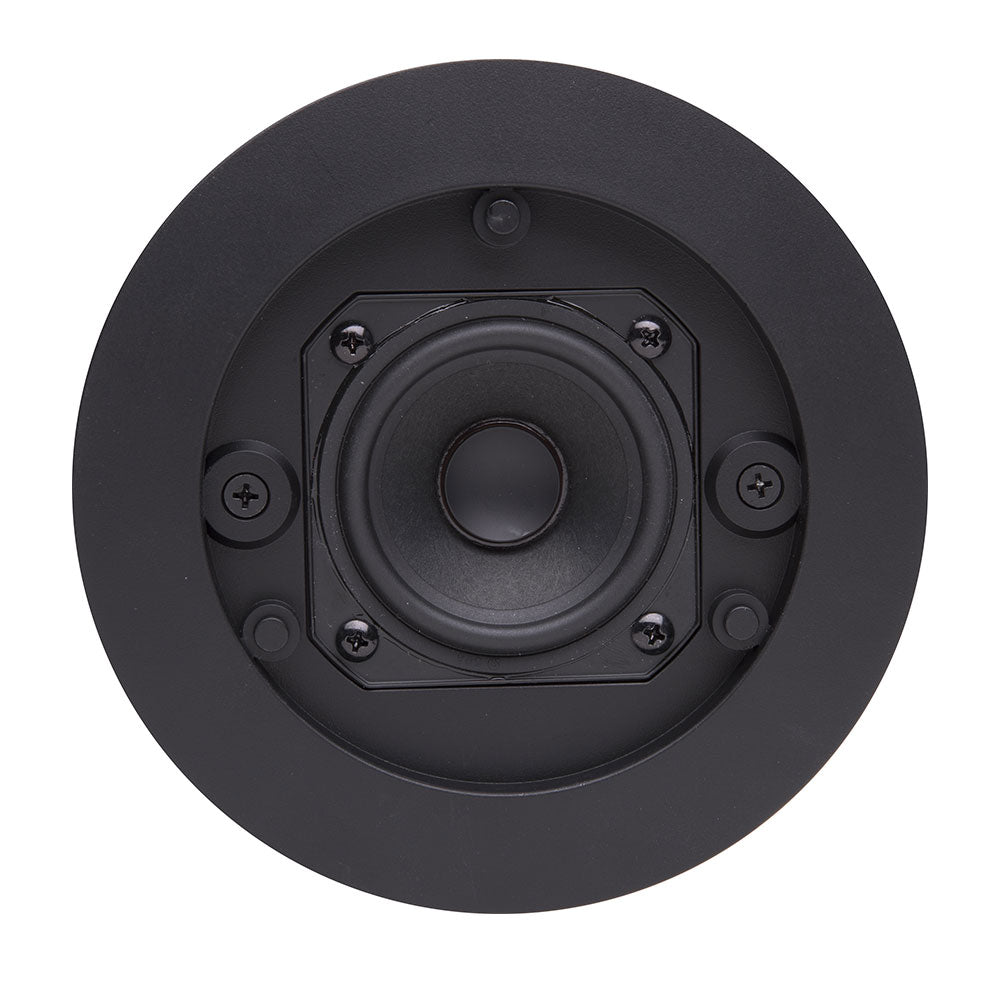

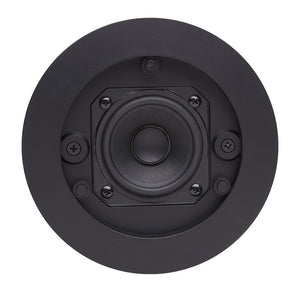

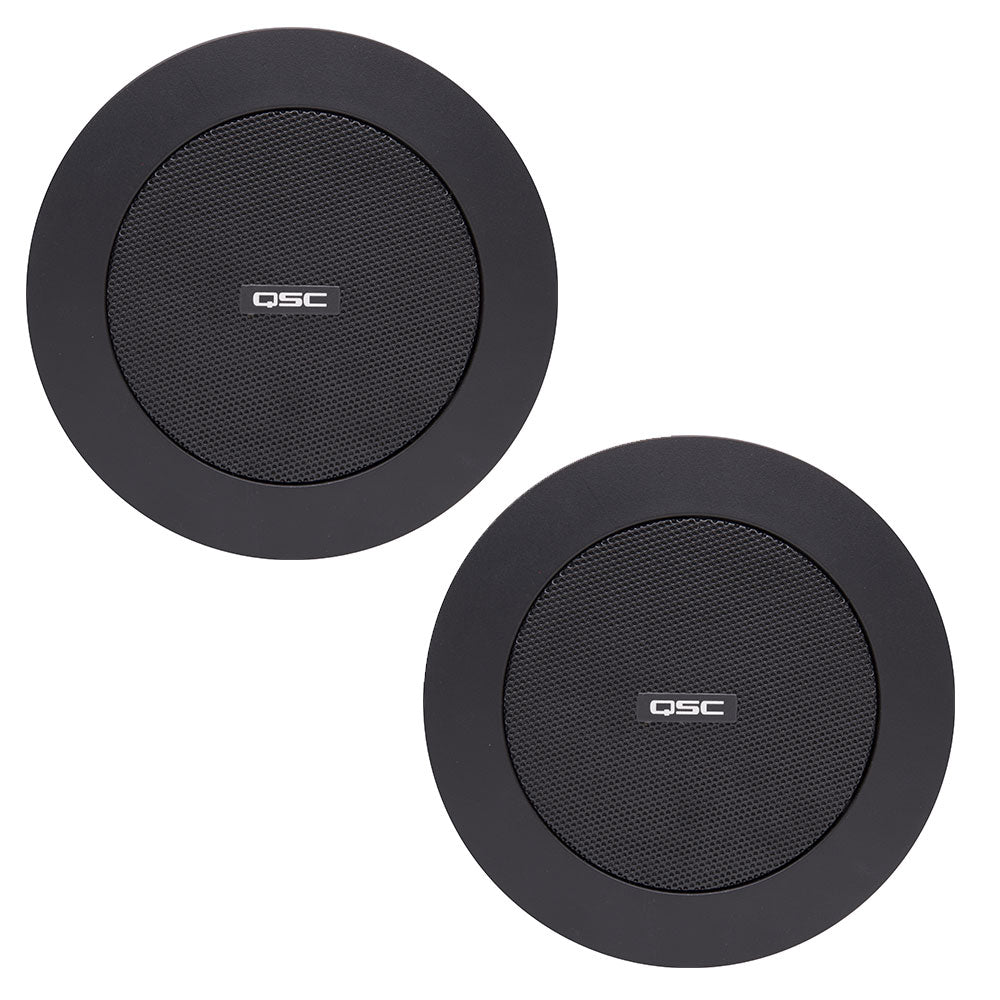

QSC AD-C SAT AcousticDesign Series Satellite Ceiling Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The QSC AD-C.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Inverted aluminum dome dust cap
- Rated at 16 ohm
- Locking 2-pole Euroblock connectors
- Snap-fit magnetic grills
- Removable conduit cover plate
- 2x long travel dog-ear blind mount system
- Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 and UL2043 certified
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz - 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB]æ (rated @ 1 W, 1 m) | 82 |
| Coverage (_6 dB) | æ 170 deg. Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (continuous / peak) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer taps / impedance | Bypass: 16 ohm |
| Connector | 2-pole Euroblock connectors |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122 deg. F (-20 to 50 deg. C) |
| Cutout dimension | O 4.5-inch (O 115 mm) |
| Net weight | 1.39 lb (630 g) |
| Product dimensions (O x H) | O 5.9 x 3.4-inch (O 150 x 86 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensionsæ (H x W x D) | TBD (pair packed) |
| Included accessories | C-ring, Euroblock connector, cut-out template, grill (pair packed) |
| Safety agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.æ Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance withæ IEC60849 / EN60849 systems. |
