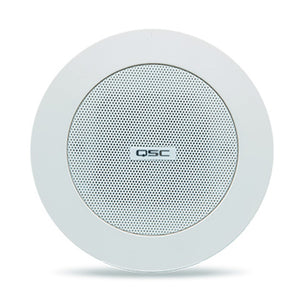

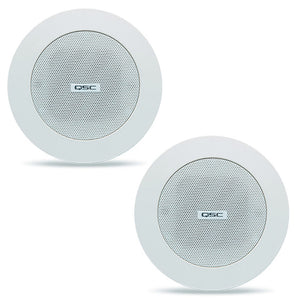

QSC AD-C SAT AcousticDesign Series Satellite Ceiling Speaker (Black)

  • Dale #:

    QSC-ADCSATWH
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

Priced individually, but sold in pairs.The QSC AD-C.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are sp... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

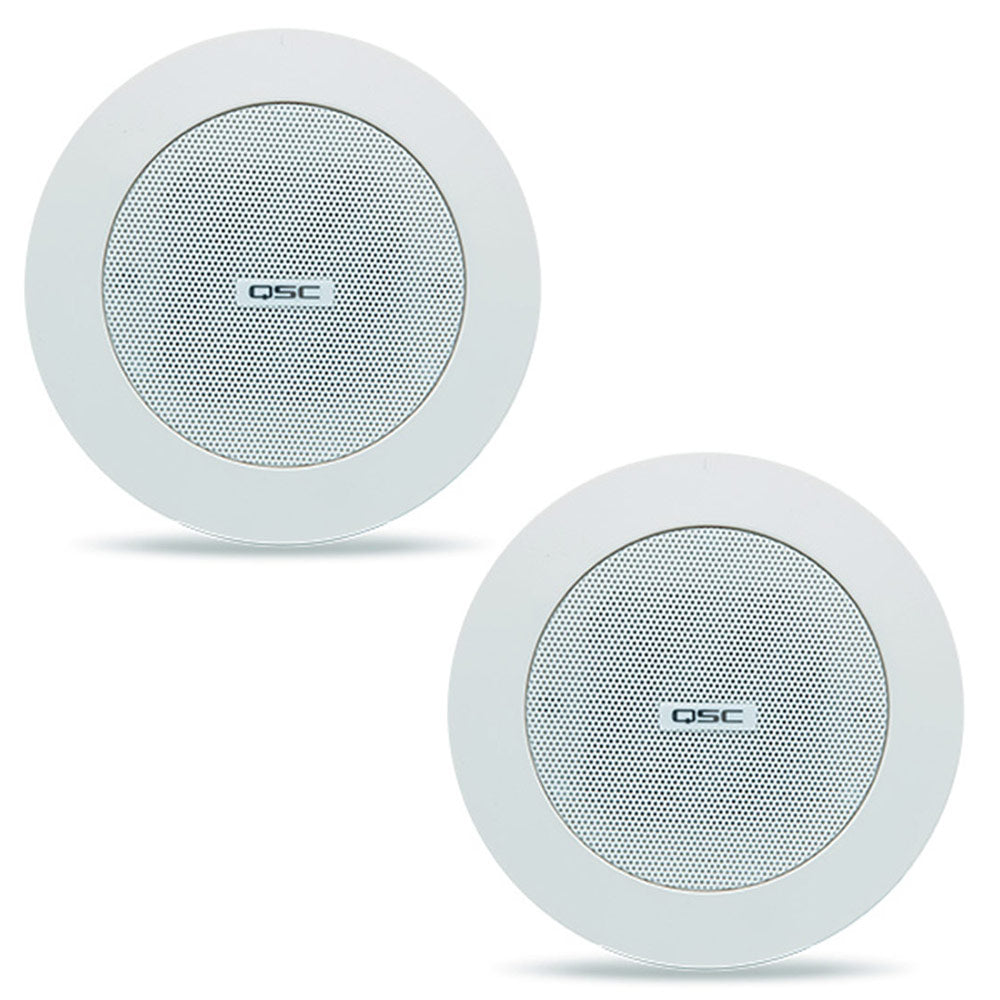

Priced individually, but sold in pairs.

The QSC AD-C.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Features:

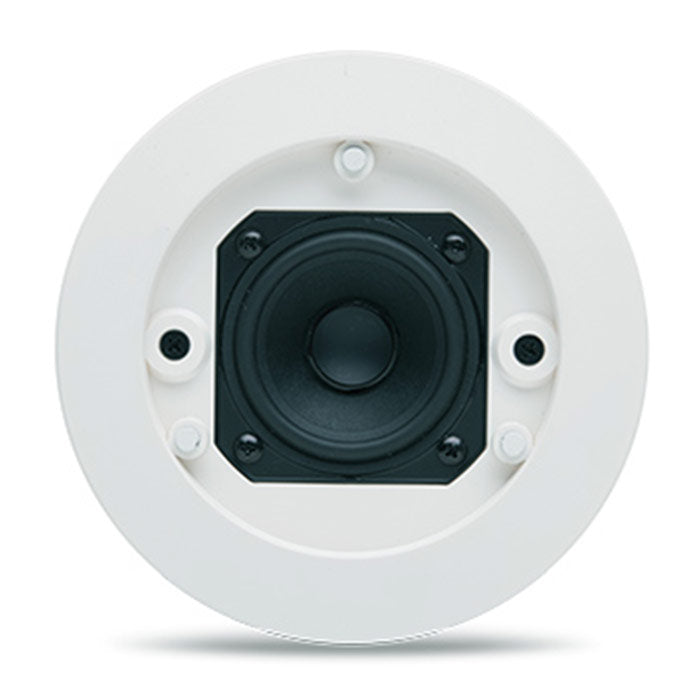

  • Inverted aluminum dome dust cap
  • Rated at 16 ohm
  • Locking 2-pole Euroblock connectors
  • Snap-fit magnetic grills

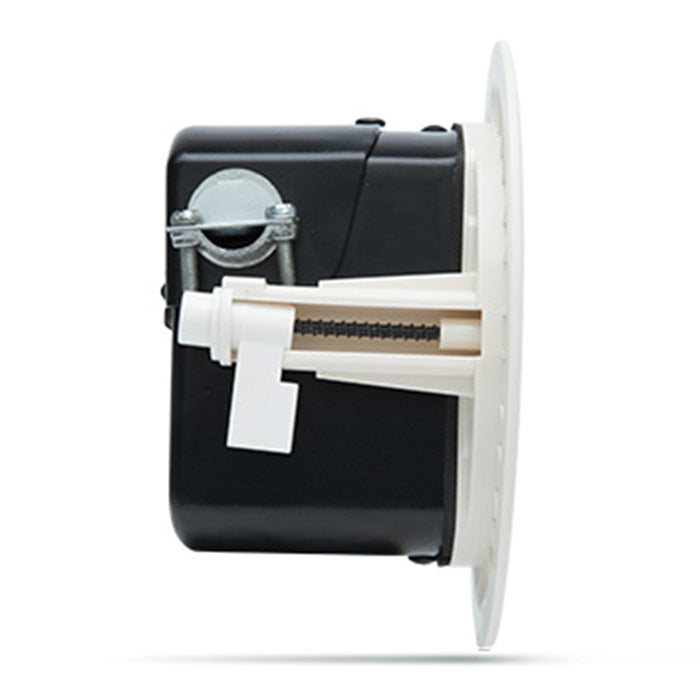

  • Removable conduit cover plate

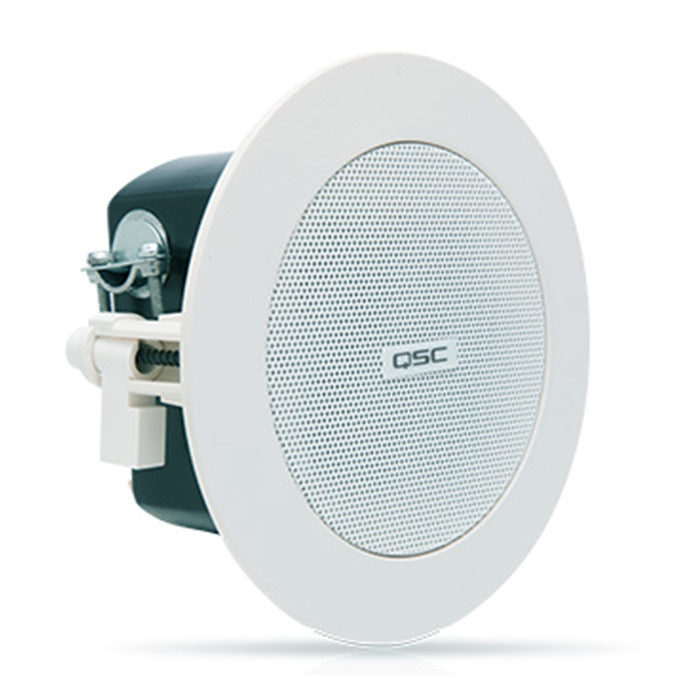

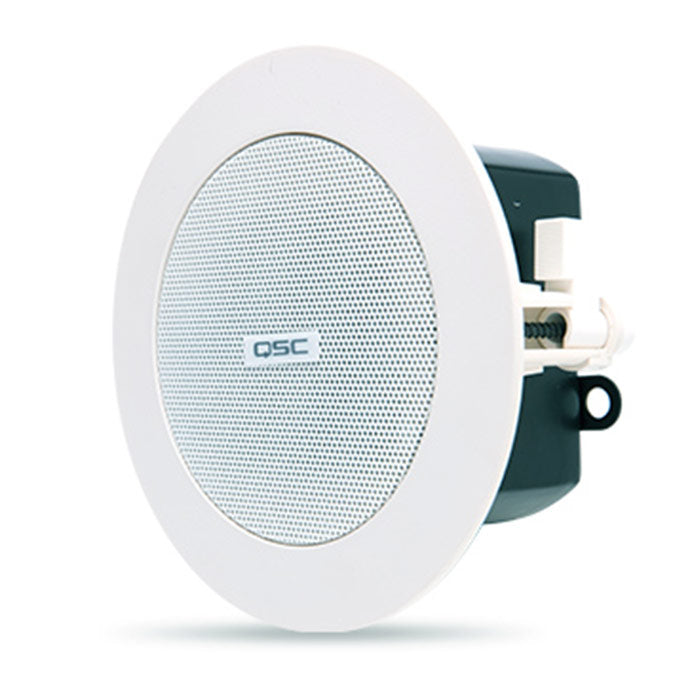

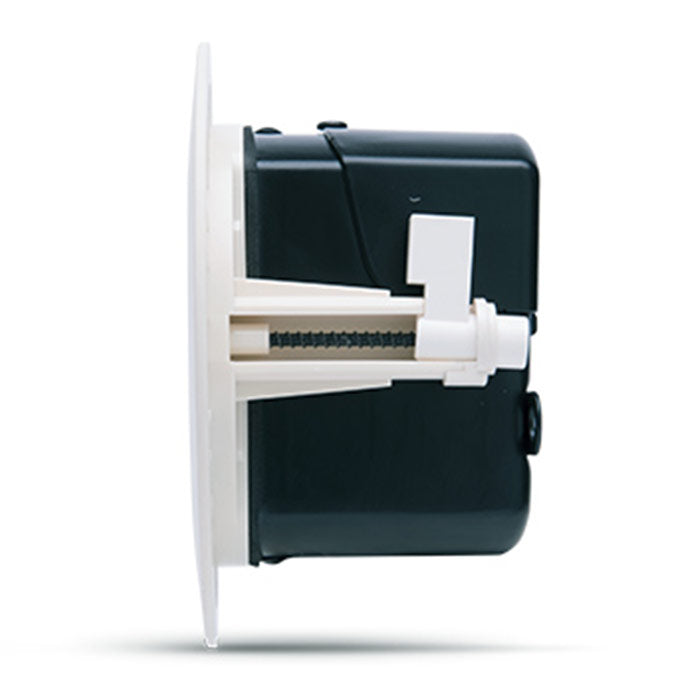

  • 2x long travel dog-ear blind mount system
  • Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 and UL2043 certified

More +

Product Specs

LF transducerN/A
HF transducer2.75-inch (70 mm) weather treated paper cone woofer
Effective frequency range150 Hz - 20 kHz
Rated noise power / voltage25 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)
82
Coverage (_6 dB)
170 deg. Conical
Directivity factorTBD
Directivity index [dB]TBD
Maximum SPL [dB]
(continuous / peak)
90 / 96
Recommended amplifier25 W (with 1st order high-pass filter at 200 Hz)
Transformer taps / impedanceBypass: 16 ohm
Connector2-pole Euroblock connectors
Enclosure materialABS baffle on powder coated steel back can
Grille materialPowder coated steel
Ingress protectionIP-34
Operating environmentDesigned for indoor use
Operating temperature range-4 to 122 deg. F (-20 to 50 deg. C)
Cutout dimensionO 4.5-inch (O 115 mm)
Net weight1.39 lb (630 g)
Product dimensions (O x H)O 5.9 x 3.4-inch (O 150 x 86 mm)
Shipping weightTBD (pair packed)
Shipping dimensions
(H x W x D)
TBD (pair packed)
Included accessoriesC-ring, Euroblock connector, cut-out template, grill (pair packed)
Safety agencyUL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces.
Transformer UL registered per UL1876, ROHS, CE compliant.
Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with
IEC60849 / EN60849 systems.
