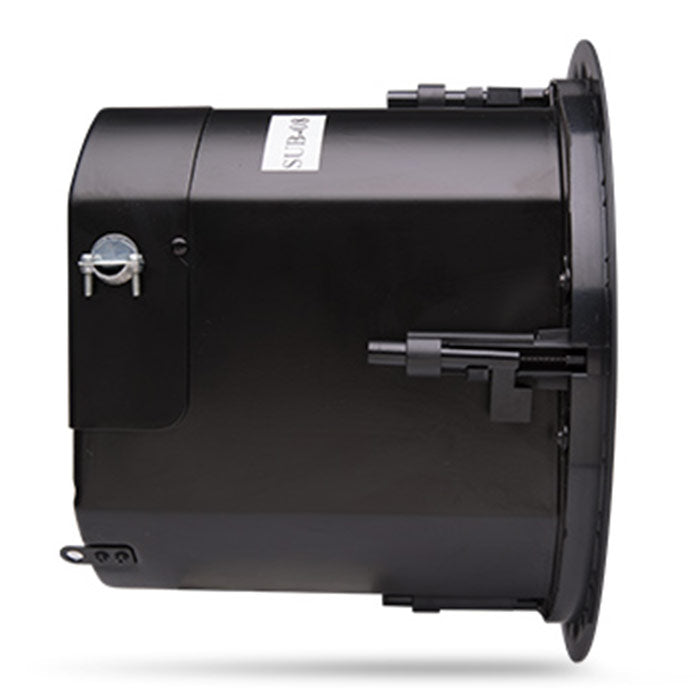

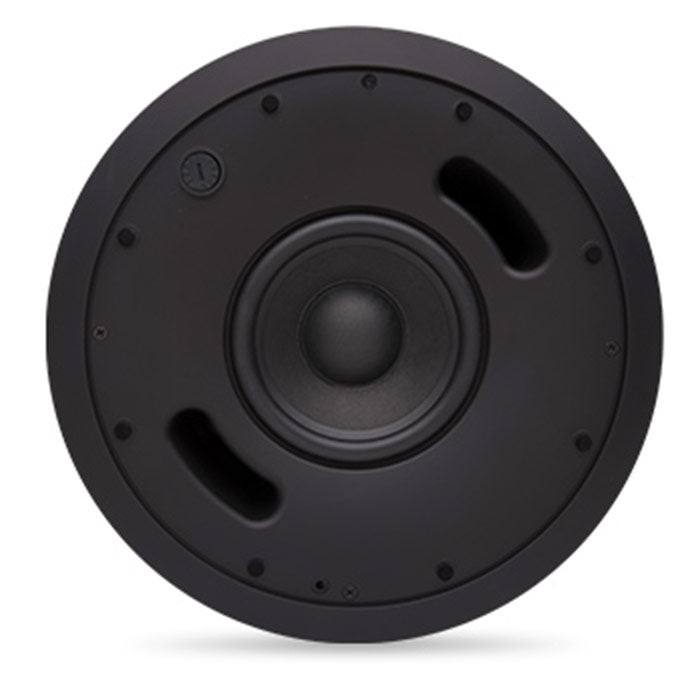

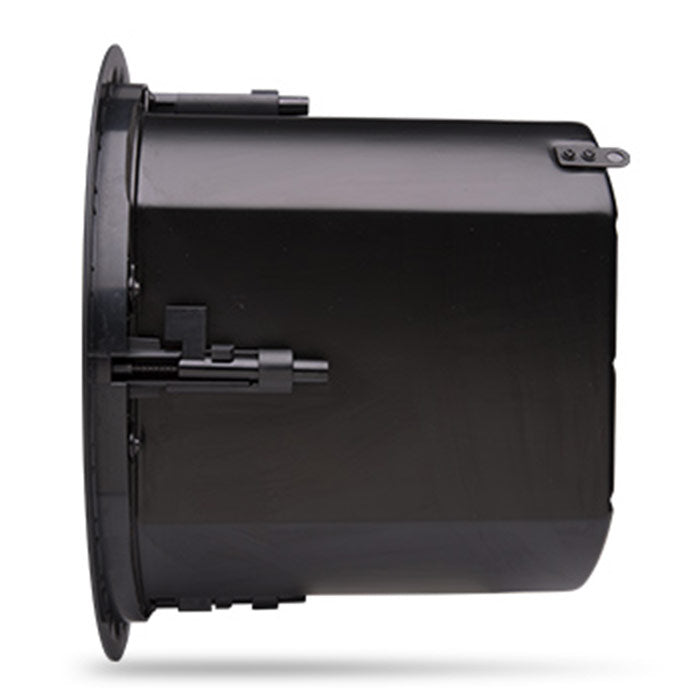

QSC AD-C SUB AcousticDesign Series Installation Subwoofer (Black)

  • Dale #:

    QSC-ADCSUBBK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The QSC AD-C.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Features:

  • Dual voice-coil for improved thermal dissipation and higher output
  • Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
  • 4x built-in high-pass filtered outputs
  • Snap-fit magnetic grills
  • Locking 4-pole Euroblock connectors
  • Removable conduit cover plate
  • 4x double stepped, long travel dog-ear blind mount system
  • Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
  • Available in black (RAL 9011) or white (RAL 9010)
  • UL1480 and UL2043 certified

More +

Product Specs

LF transducer 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
HF transducer N/A
Effective frequency range 45 Hz – 150 Hz
Rated noise power / voltage 100 W / 20 V (rms)
Sensitivity [dB]
(rated @ 1 W, 1 m)
86
Coverage (‐6 dB) Omni
Directivity factor TBD
Directivity index [dB] TBD
Maximum SPL [dB]
(continuous / peak)
100 / 106
Recommended amplifier 100 W
Transformer taps / impedance

Bypass: 4 Ω

100 W (70 V); NA (100 V) Tap: 50 Ω

50 W (70 V); 100 W (100 V) Tap: 100 Ω

25 W (70 V); 50 W (100 V) Tap: 200 Ω

12.5 W (70 V); 25 W (100 V) Tap: 400 Ω

Connectors Mono input: 4-pole Euroblock with thru output
Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
Enclosure material ABS baffle on powder coated steel back can
Grill material Powder coated steel
Ingress protection IP-34
Operating environment Designed for indoor use
Operating temperature range -4 to 122° F (-20 to 50° C)
Net weight 19.2 lb (8.7 kg)
Product dimensions
(Ø x H)
Ø 13.4 x 10-inch (Ø 340 x 254 mm)
Shipping weight TBD
Shipping dimensions
(H x W x D)
TBD
Included accessories C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
Safety agency

UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.
Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
