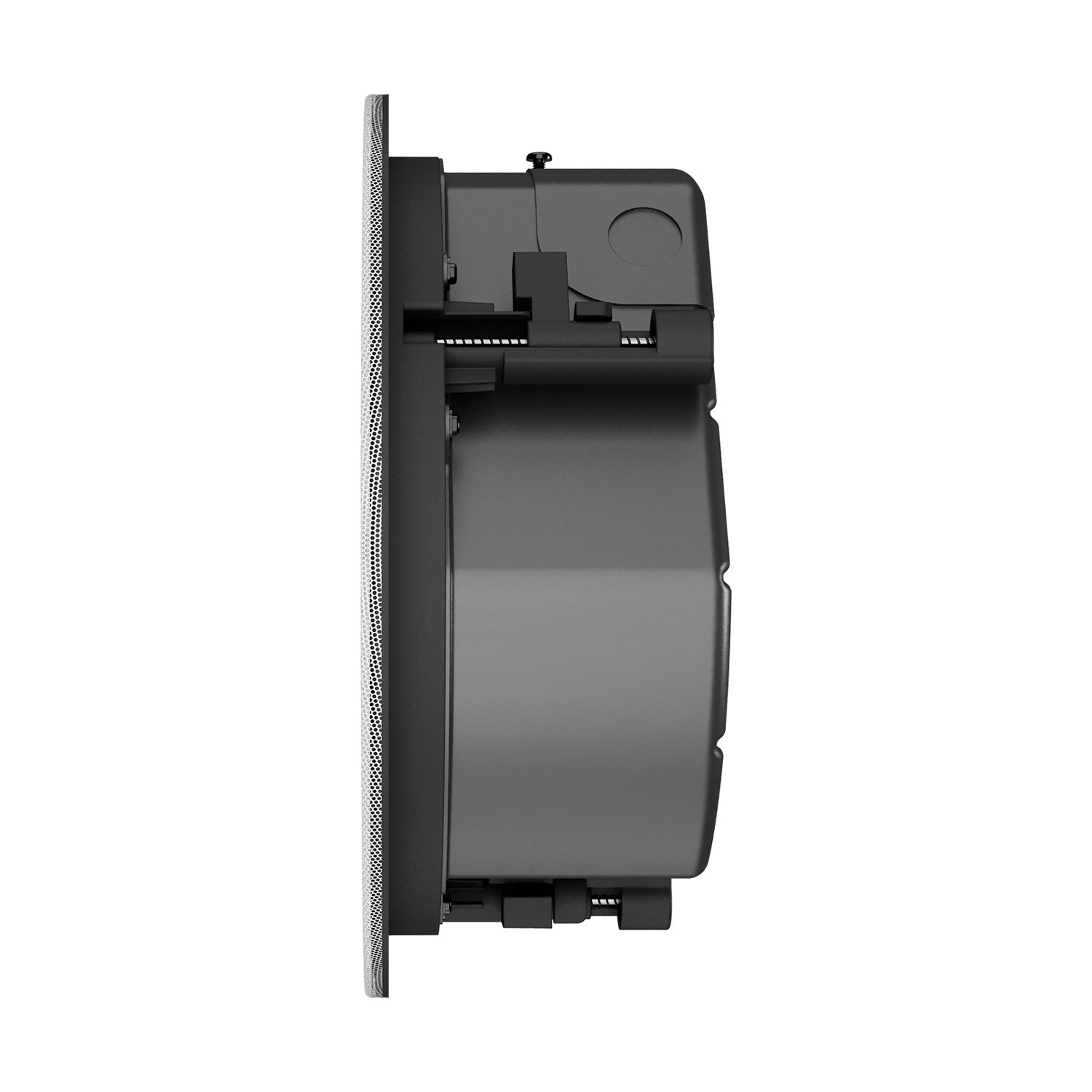

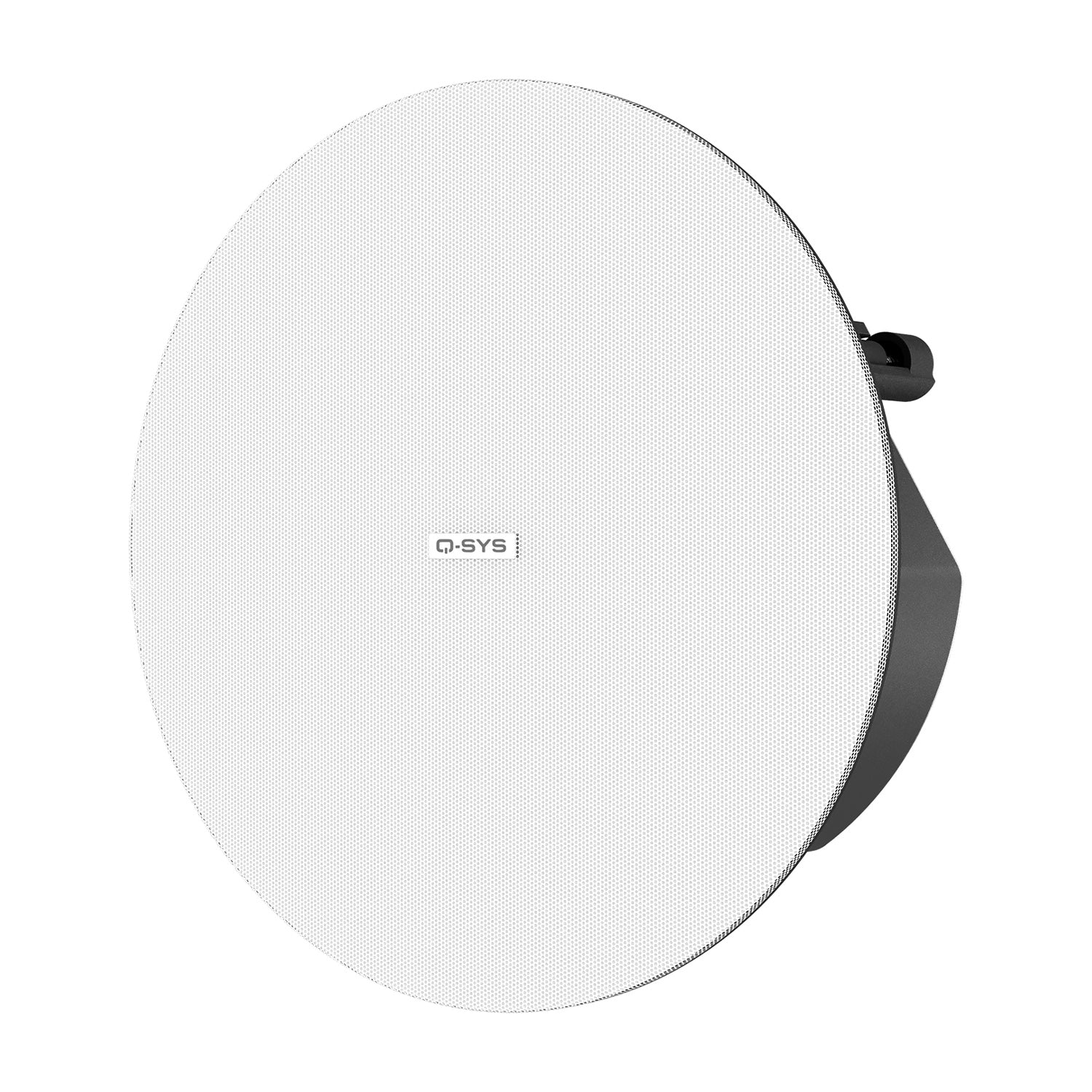

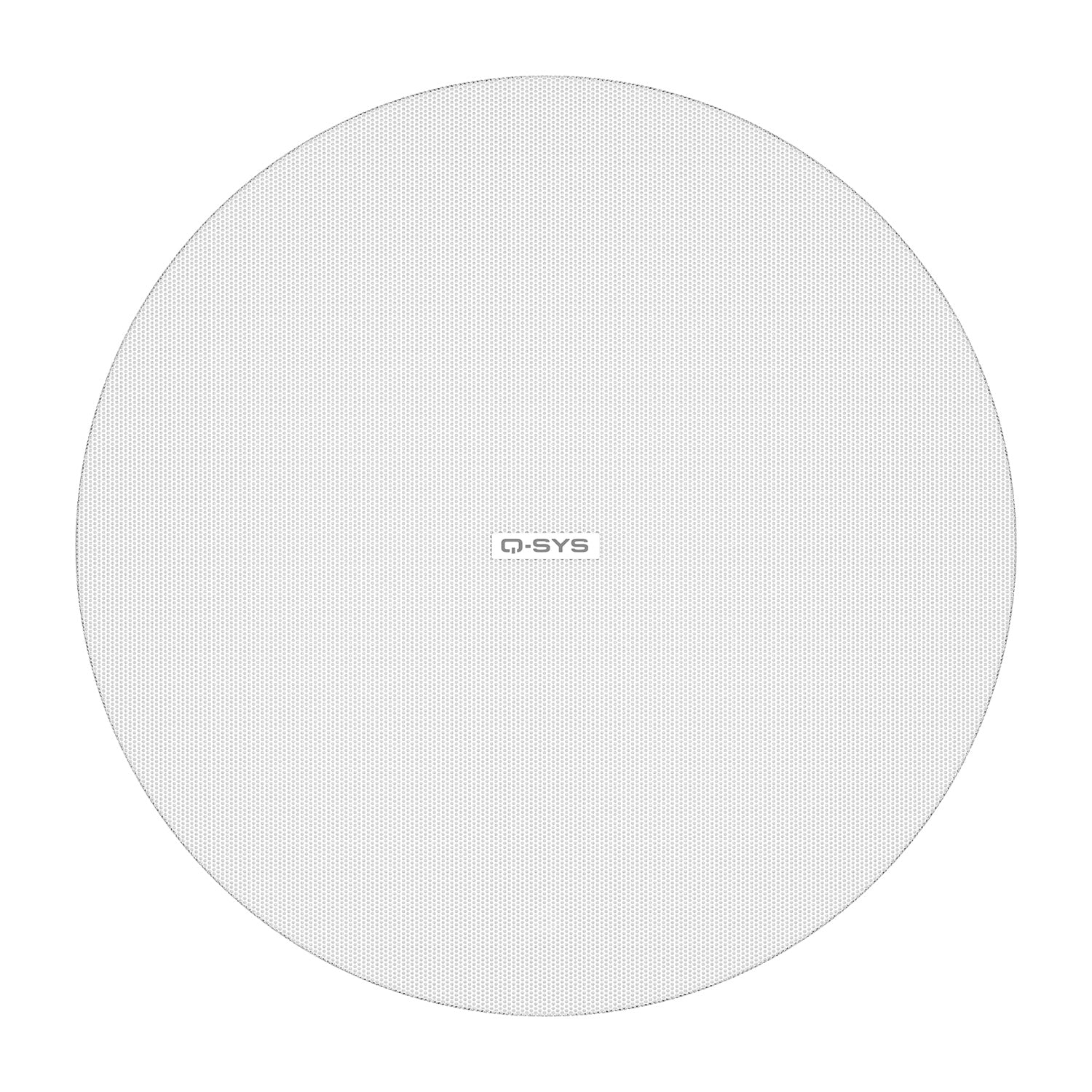

QSC AD-C4T-LPZB-WH - AcousticDesign Premium Low Profile 2-Way 4.5" Ceiling Speaker (White / Zero Bezel)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced per speaker, but sold in pairs.
AcousticDesign™ ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.
Features:
- Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
- Sleek zero bezel design for modern architectural needs
- Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction™ voicings available via Q-SYS™
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in signal white (RAL 9003), with black grille accessory sold separately
- Complete EASE, CAD, and BIM information available online
Effective frequency range1 |
70 Hz Ð 20 kHz |
Rated noise power / voltage2 |
30 watts / 22 volts (rms) |
Sensitivity [dB]3 |
87 TBD |
Rated coverage (-6 dB)4 |
150¡ conical DMTª |
Directivity factor (Q) |
4.5 |
Directivity index (DI) [dB] |
6.5 |
Maximum continuous SPL [dB]5 |
102 |
Maximum peak SPL [dB]5 |
108 |
Nominal impedance [ohms] |
16 |
Recommended amplifier |
60 watts |
Transformer taps / impedance |
16½ (in bypass setting) |
LF transducer |
114 mm [4.5-inch] weather resistant paper cone woofer |
HF transducer |
19 mm [0.75-inch] aluminum dome tweeter |
Input connector type |
Euroblock connector with parallel output |
Enclosure material |
ABS baffle on powder coated steel back can |
Grille material |
Powder coated steel |
Ingress protection |
IP-34 |
Operating environment |
Designed for indoor use |
Operating temperature range |
-20 to 50¡ C [-4 to 122¡ F] |
Cutout dimension |
¯ 240Êmm [¯ 9.45-inch] |
Net weight |
3 kg [6.6 lb] |
Product dimensions (Diameter x Height) |
¯ 280 x 100 mm [¯ 11.02 x 3.93-inch] |
Shipping weight |
10.2 kg [22.5 lb] (pair packed) |
Shipping dimensions (H x W x D) |
183 x 699 x 394mm [7.2 x 27.5 x 15.5-inch](pair packed) |
Included accessories |
C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
Optional accessories |
AD-MR6 (pre-install mud ring), 245 mm cutout size |
Safety Agency |
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems. |
