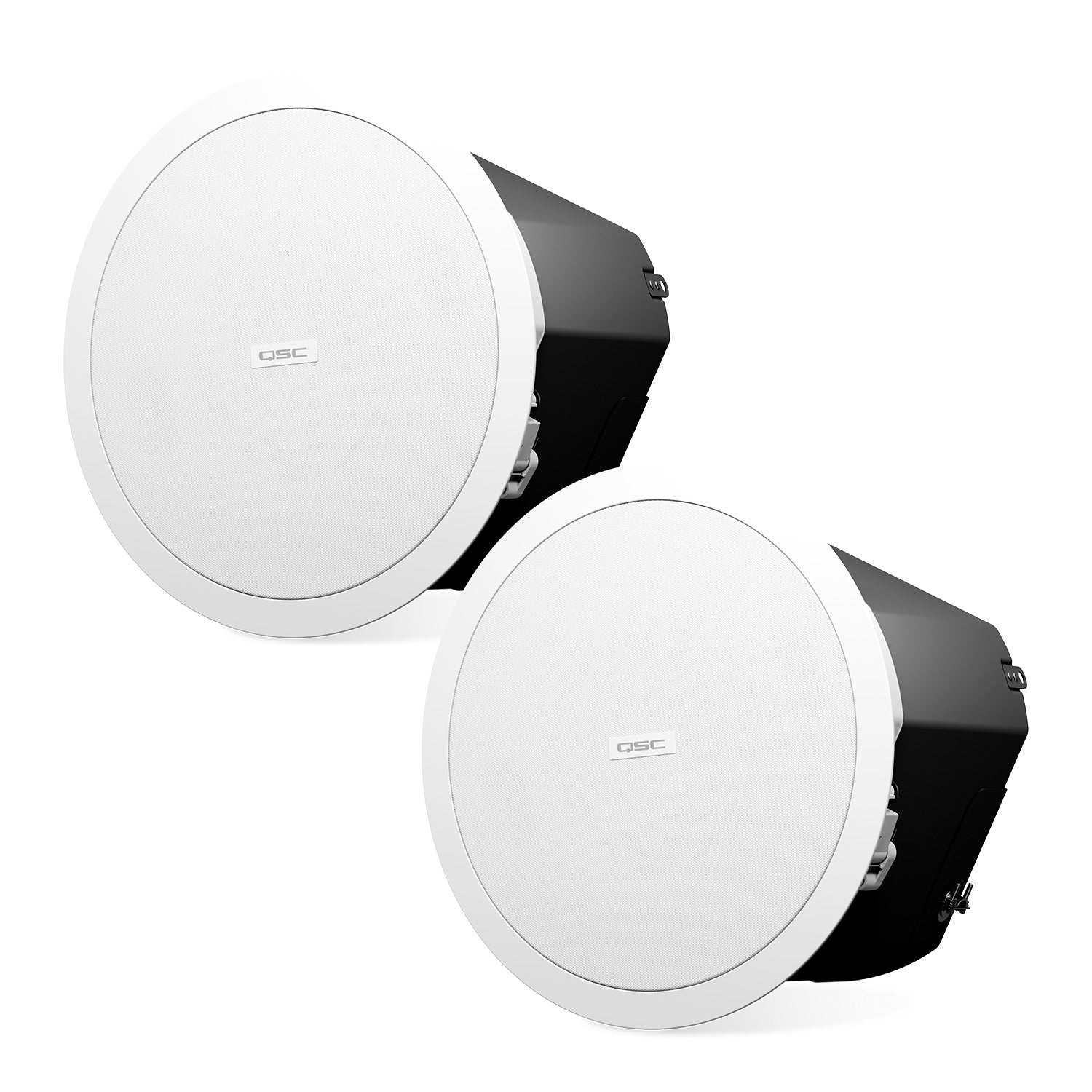

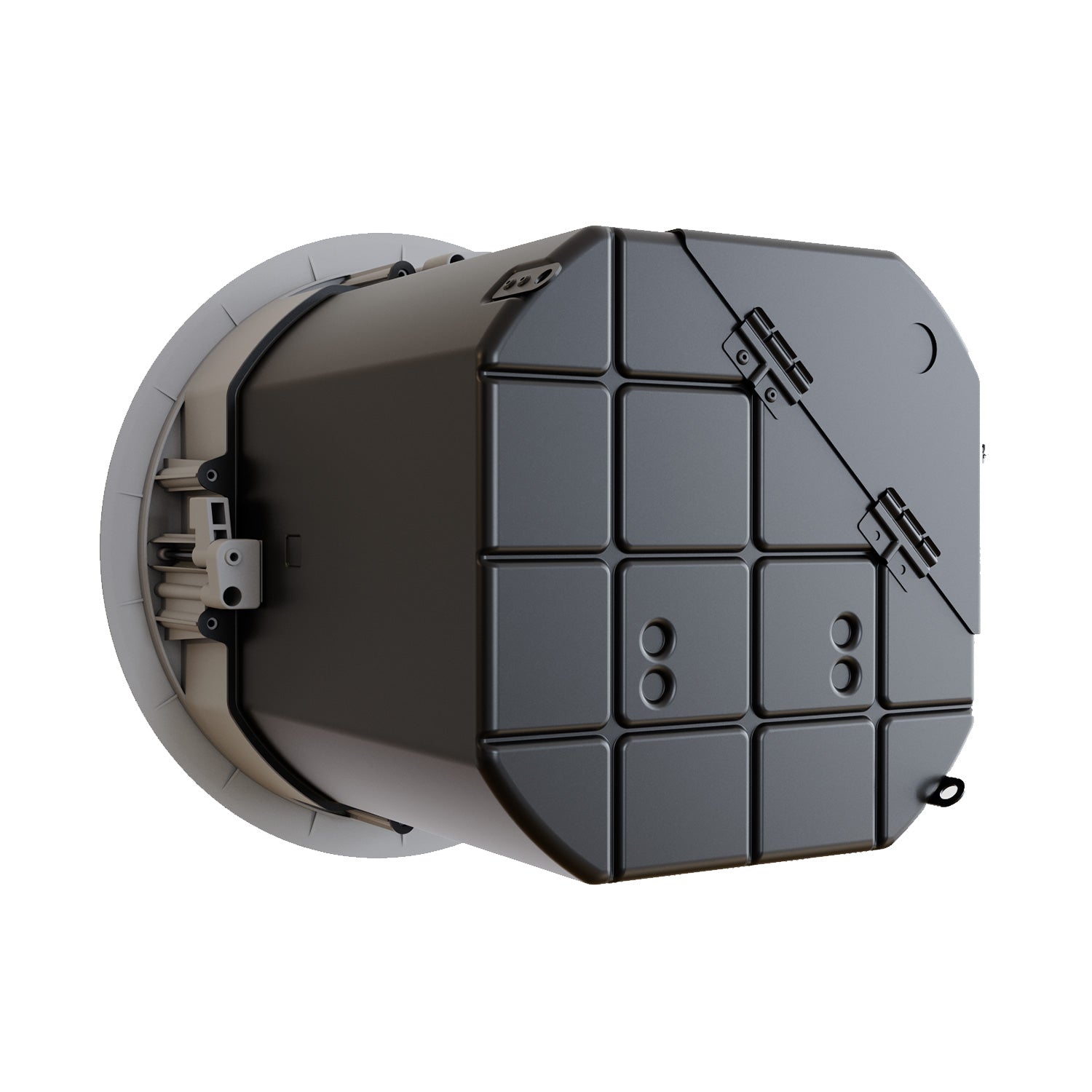

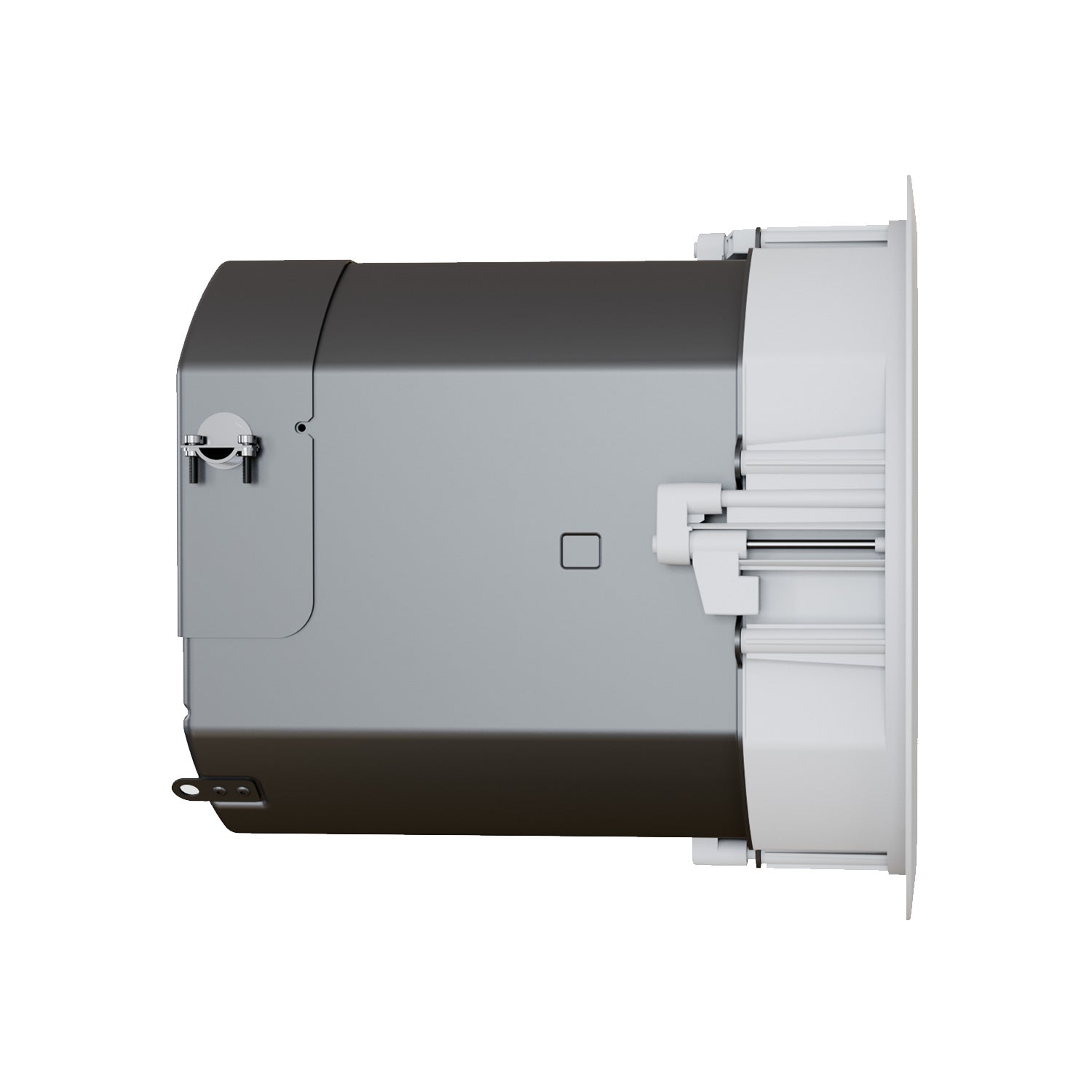

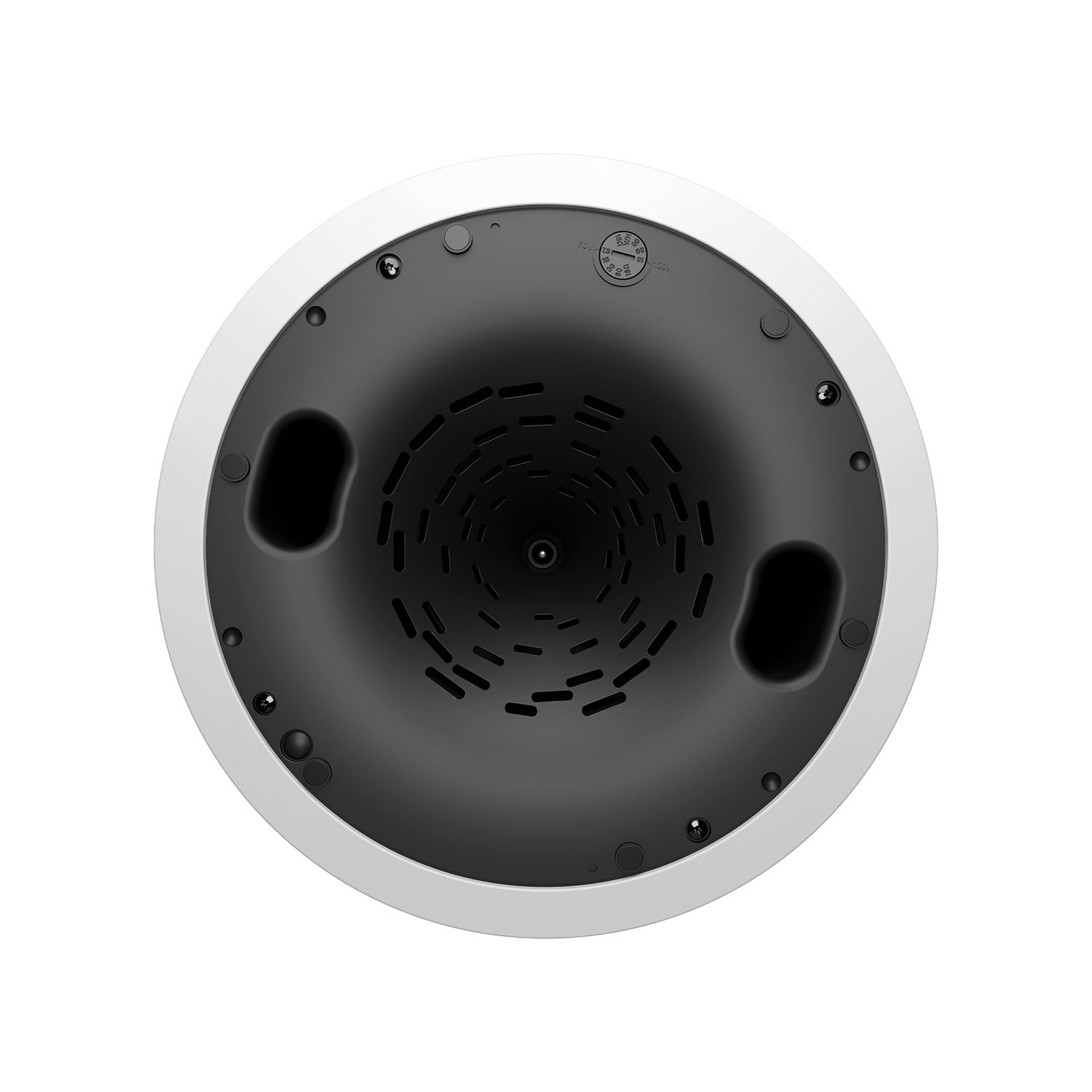

QSC AD-C6T-HC - 6.5-inch, 2-Way Ceiling-Mount Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
AcousticDesignª ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.
Features:
- Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
- Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correctionª voicings available via Q-SYSª
- 16 ohm bypass with multiple transformer taps for 70/100 Vrms systems
- 75 deg. coverage pattern
- Available in white (RAL 9010)
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers | 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter |
| Sensitivity | 90ædB @ 1 W, 1 m |
| Freq. range (-10 dB) | 45 Hz - 20 kHz |
| Rated noise power (@16 ohm bypass) | 120 W |
| Coverage (-6 dB) | 75 deg. |
| Directivity factor | 10 |
| Directivity index | 10 dB |
| Max SPL (continuous/peak) | 110 dB / 116 dB @ 1 m |
| Taps (70 V/ 100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 ohm |
| Min impedance | 14.97 ohm @ 208 Hz |
| Crossover frequency | 2.5 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Net weight | 19 lb (8.58 kg) |
| Product dimensions | 12 x 13.4 x 13.4 in (313 x 340 x 340 mm) |
Priced individually, but sold in pairs.
AcousticDesignª ceiling loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience.
Features:
- Higher power handling and tighter coverage area enables venues with high ceilings or reverberant spaces
- Consistent tonal characteristics across the entire AcousticDesign Series let you mix and match form factors across your venue
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correctionª voicings available via Q-SYSª
- 16 ohm bypass with multiple transformer taps for 70/100 Vrms systems
- 75 deg. coverage pattern
- Available in white (RAL 9010)
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers | 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter |
| Sensitivity | 90ædB @ 1 W, 1 m |
| Freq. range (-10 dB) | 45 Hz - 20 kHz |
| Rated noise power (@16 ohm bypass) | 120 W |
| Coverage (-6 dB) | 75 deg. |
| Directivity factor | 10 |
| Directivity index | 10 dB |
| Max SPL (continuous/peak) | 110 dB / 116 dB @ 1 m |
| Taps (70 V/ 100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 ohm |
| Min impedance | 14.97 ohm @ 208 Hz |
| Crossover frequency | 2.5 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Net weight | 19 lb (8.58 kg) |
| Product dimensions | 12 x 13.4 x 13.4 in (313 x 340 x 340 mm) |
