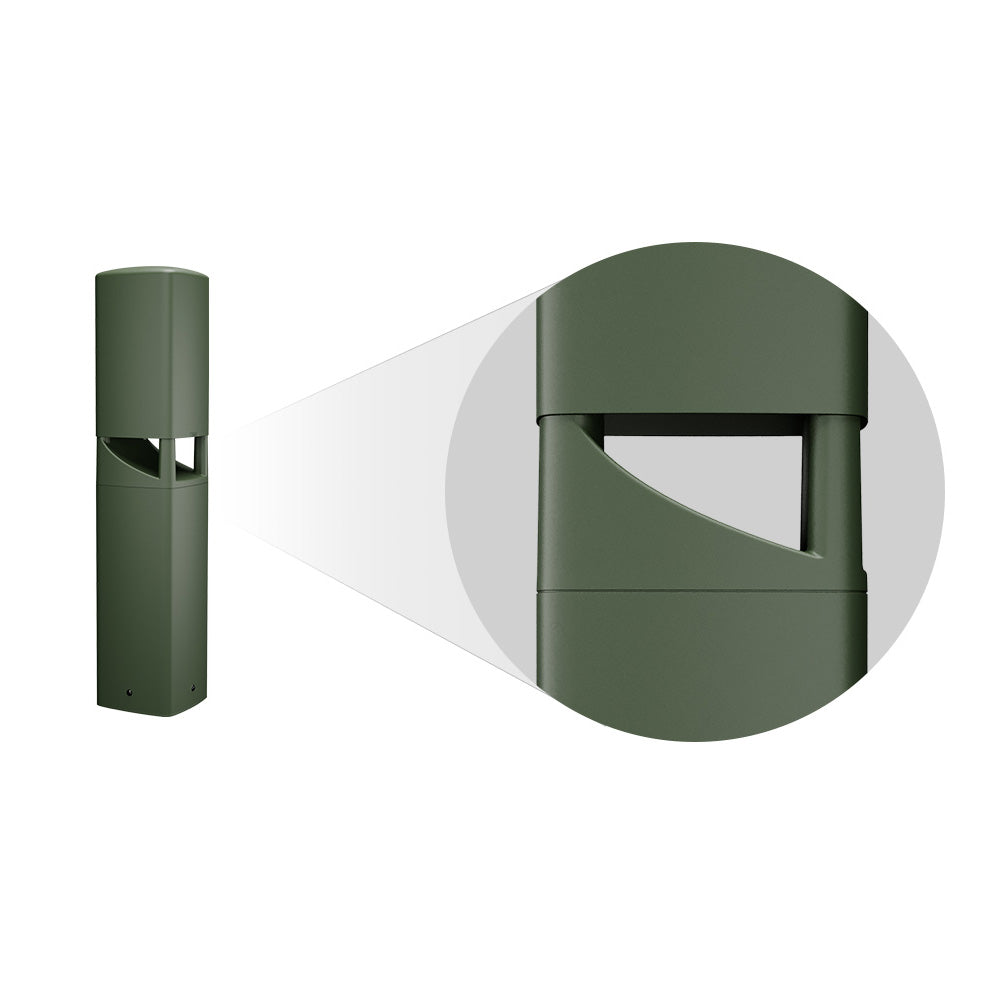

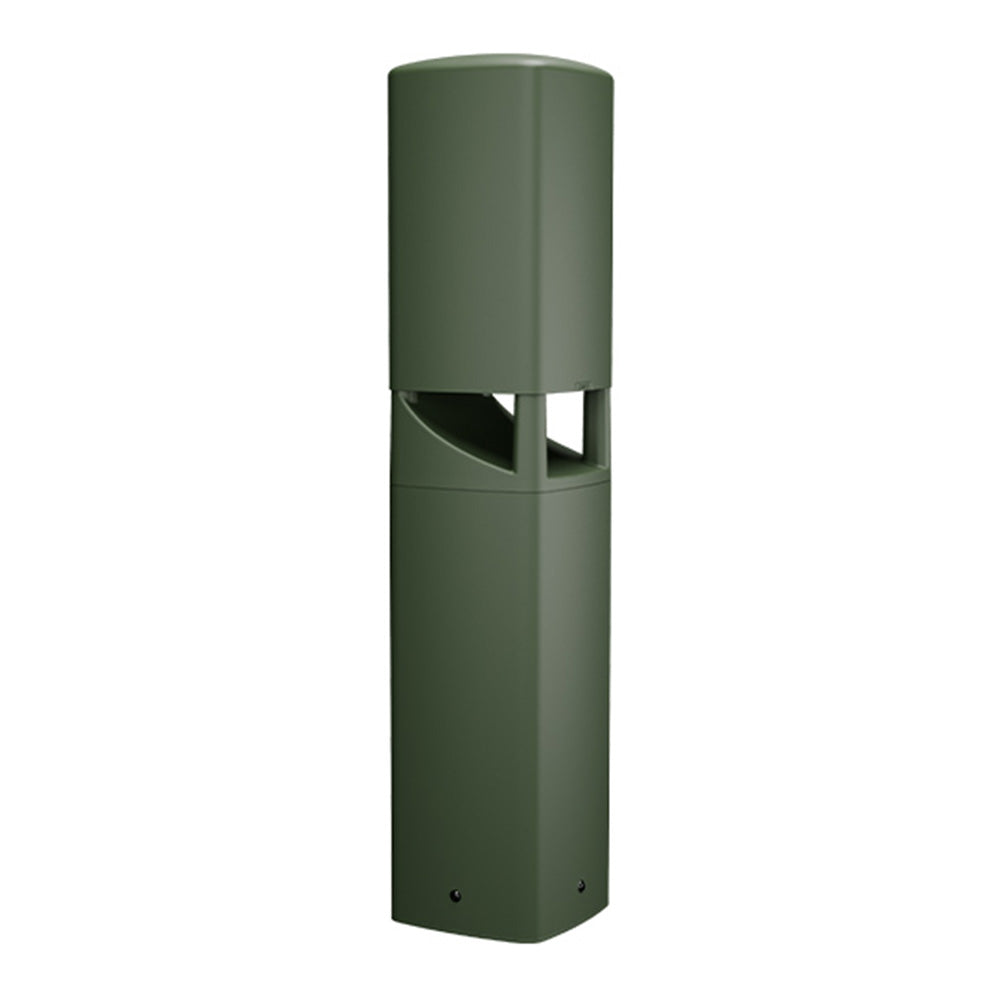

QSC AD-DWL.180 - AcousticDesign Series Landscape Loudspeaker



  • Dale #:

    QSC-ADDWL180

  • Availability:

    Not in Stock - Reserve Yours

  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The AcousticDesign™ Series Direct Weather landscape (AD-DWL) loudspeakers and companion subwoofer have been weatherized and ruggedized to face the elements while offering superior sound quality for your outdoor installation. Features: 5.25 in (135mm) weather-resistant cone woofer; 1 in (25m... Read More

Our Price: $660.00

affirm logo 3, 6 or 12 monthly payments available.

Learn more

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The AcousticDesign™ Series Direct Weather landscape (AD-DWL) loudspeakers and companion subwoofer have been weatherized and ruggedized to face the elements while offering superior sound quality for your outdoor installation.

Features:

  • 5.25 in (135mm) weather-resistant cone woofer; 1 in (25mm) aluminum dome tweeter
  • 180° focused outdoor coverage
  • Reliable 60 W 70 / 100 V transformers with 16 Ω bypass
  • Maximum peak SPL 110 dB (16 Ω bypass)
  • Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE accessory)
  • Tamper resistant stainless-steel hardware
  • Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior
  • Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)
  • Advanced voicing filter sets using Intrinsic Correction™, available through Q-SYS
  • Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance


Optimal Outdoor Sound Experience
All AcousticDesign™ Series Direct Weather models address the variabilities of outdoor environments with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The 180° coverage angle enables full coverage to comply with individual environmental requirements.

Impact Resistance
Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.

All Weather Durability
With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.

Advanced Loudspeaker Voicings
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via Q-SYS for a complete systems solution.

More +

Product Specs

Effective frequency range 55 Hz - 25 kHz
Rated noise power 80 W
Broadband sensitivity >84 dB @1 W/1M (500 - 5 kHz)
Coverage angle (-6 dB) 180° (500 Hz – 5 kHz)
Directivity factor (Q) Coming soon
Directivity Index Coming soon
Maximum continuous SPL 104 dB
Maximum peak SPL 110 dB
Rated impedance 16 Ω
Transformer taps 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
Transducer (1)  5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround

(1)  1 in (25mm) aluminum dome tweeter, rubber surround
Input connector type Wire pig-tail, blunt
Enclosure material Glass-Filled polypropylene, F1-F2 UL Rated
Grille material Polyester fabric on polycarbonate frame
Mount Direct to concrete
ENCLOSURE DETAILS
Ingress protection (IP - 55)
Operating environment Designed for outdoor use
Testing Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV

Passed Mil-STD-202f standard for salt spray (specific to electrical components)
Product dimensions (HWD) 30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support)
Net weight  10.36 lb (4.7 kg)
Shipping weight 14.8 lb (6.7 kg)
Shipping dimensions (HWD) 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm)
Included accessories Direct-to-concrete mounting collar
