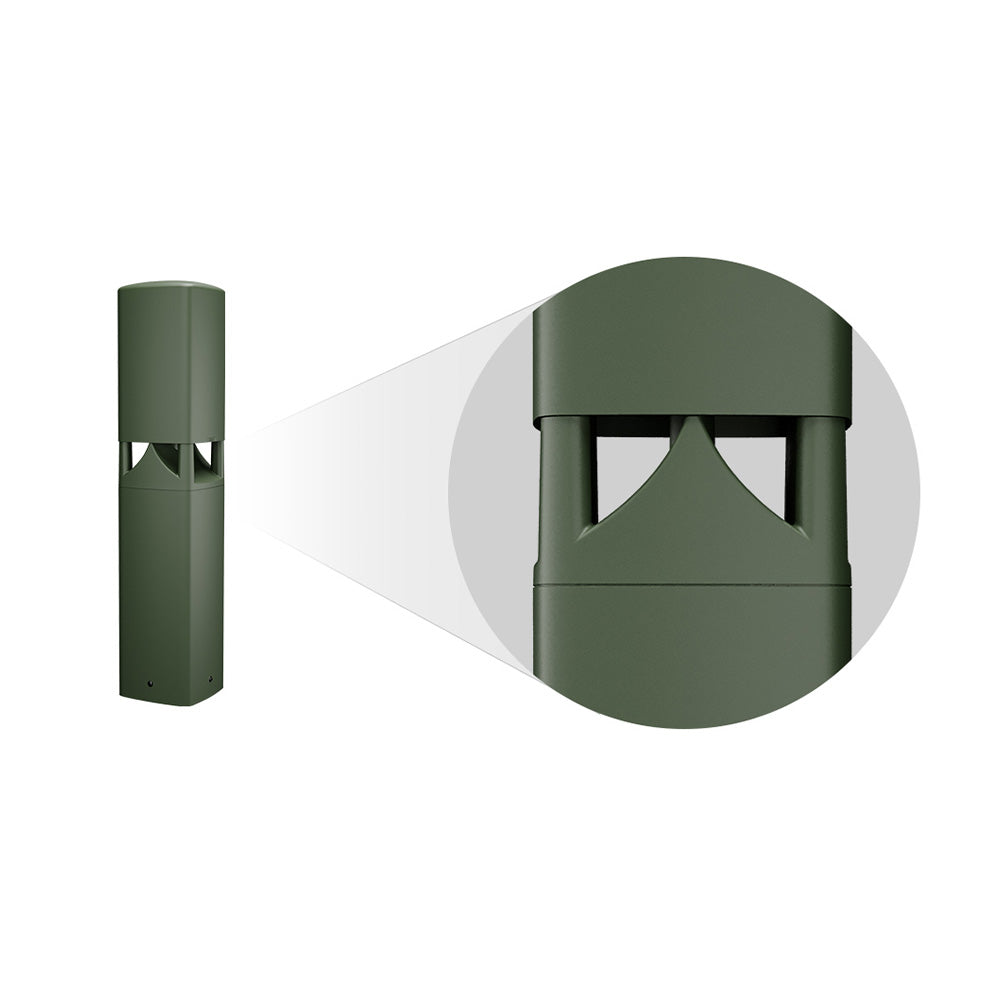

QSC AD-DWL.360 - AcousticDesign Series Landscape Speaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AcousticDesign™ Series Direct Weather landscape (AD-DWL) loudspeakers and companion subwoofer have been weatherized and ruggedized to face the elements while offering superior sound quality for your outdoor installation.
Features:
- 5.25 in (135mm) in weather-resistant cone woofer; (2x) 1 in (25mm) aluminum dome tweeter
- 360° focused outdoor coverage
- Reliable 60 W 70 / 100 V transformers with 16 Ω bypass
- Maximum peak SPL 110 dB (16 Ω bypass)
- Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE accessory)
- Tamper resistant stainless-steel hardware
- Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior
- Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)
- Advanced voicing filter sets using Intrinsic Correction™, available through Q-SYS
- Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance
Optimal Outdoor Sound Experience
All AcousticDesign™ Series Direct Weather models address the variabilities of outdoor environments with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The 360° coverage angle enables customization for individual environmental requirements.
Impact Resistance
Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.
All Weather Durability
With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.
Advanced Loudspeaker Voicings
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via Q-SYS for a complete systems solution.
| Effective frequency range | 55 Hz - 25 kHz |
| Rated noise power | 80 W |
| Broadband sensitivity | >84 dB @ 1 W/1m (200 - 10 kHz) |
| Coverage angle (-6 dB) | 360¡ (500 Hz Ð 5 kHz) |
| Directivity factor (Q) | Coming Soon |
| Directivity Index | Coming Soon |
| Maximum continuous SPL | 104 dB |
| Maximum peak SPL | 110 dB |
| Rated impedance | 16 ½ |
| Transformer taps | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Transducer | (1) 5.31 in weather resistant cone woofer, ferrite magnet, rubber surround (2) 1 in aluminum dome tweeter, rubber surround |
| Input connector type | Wire pig-tail, blunt |
| Enclosure material | Glass-Filled polypropylene, F1-F2 UL Rated |
| Grille material | Polyester fabric on polycarbonate frame |
| Mount | Direct to concrete |
| ENCLOSURE DETAILS | |
| Ingress protection | (IP - 55) |
| Operating environment | Designed for outdoor use |
| Testing | Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components) |
| Product dimensions (HWD) | 30.16 in (76mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support) |
| Net weightÊ | 10.36 lb (4.7 kg) |
| Shipping weight | 14.8 lb (6.7 kg) |
| Shipping dimensionsÊ(HWD) | 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm) |
| Included accessories | Direct-to-concrete mounting collar |
The AcousticDesign™ Series Direct Weather landscape (AD-DWL) loudspeakers and companion subwoofer have been weatherized and ruggedized to face the elements while offering superior sound quality for your outdoor installation.
Features:
- 5.25 in (135mm) in weather-resistant cone woofer; (2x) 1 in (25mm) aluminum dome tweeter
- 360° focused outdoor coverage
- Reliable 60 W 70 / 100 V transformers with 16 Ω bypass
- Maximum peak SPL 110 dB (16 Ω bypass)
- Includes direct-to-concrete mounting collar (burial mounting option via AD-DWL.BASE accessory)
- Tamper resistant stainless-steel hardware
- Rugged F1-F2 UL Rated polypropylene/fiberglass construction exterior
- Unobtrusive green color and style allows it to blend with the environment (or paintable exterior allows for further customization)
- Advanced voicing filter sets using Intrinsic Correction™, available through Q-SYS
- Meets Ingress Protection (IP) rating of IP-55 for dust and splash resistance
Optimal Outdoor Sound Experience
All AcousticDesign™ Series Direct Weather models address the variabilities of outdoor environments with an elevated bollard design, allowing sound to travel above obstructions for an optimal listener experience. The 360° coverage angle enables customization for individual environmental requirements.
Impact Resistance
Featuring direct-to-concrete or in-earth base supports for permanent installation as well as tamper-resistant screws and a rugged exterior, the AcousticDesign™ Series Direct Weather family mitigates damage from accident or attempted tampering.
All Weather Durability
With an Ingress Protection (IP) Rating of IP55, durable polypropylene/fiberglass construction and stainless-steel hardware, this series is built to withstand the long-term outdoor exposure.
Advanced Loudspeaker Voicings
To further enhance performance and speed of install with optimum result, advanced voicing filter sets using Intrinsic Correction™ techniques are available via Q-SYS for a complete systems solution.
| Effective frequency range | 55 Hz - 25 kHz |
| Rated noise power | 80 W |
| Broadband sensitivity | >84 dB @ 1 W/1m (200 - 10 kHz) |
| Coverage angle (-6 dB) | 360¡ (500 Hz Ð 5 kHz) |
| Directivity factor (Q) | Coming Soon |
| Directivity Index | Coming Soon |
| Maximum continuous SPL | 104 dB |
| Maximum peak SPL | 110 dB |
| Rated impedance | 16 ½ |
| Transformer taps | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Transducer | (1) 5.31 in weather resistant cone woofer, ferrite magnet, rubber surround (2) 1 in aluminum dome tweeter, rubber surround |
| Input connector type | Wire pig-tail, blunt |
| Enclosure material | Glass-Filled polypropylene, F1-F2 UL Rated |
| Grille material | Polyester fabric on polycarbonate frame |
| Mount | Direct to concrete |
| ENCLOSURE DETAILS | |
| Ingress protection | (IP - 55) |
| Operating environment | Designed for outdoor use |
| Testing | Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components) |
| Product dimensions (HWD) | 30.16 in (76mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support) |
| Net weightÊ | 10.36 lb (4.7 kg) |
| Shipping weight | 14.8 lb (6.7 kg) |
| Shipping dimensionsÊ(HWD) | 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm) |
| Included accessories | Direct-to-concrete mounting collar |
