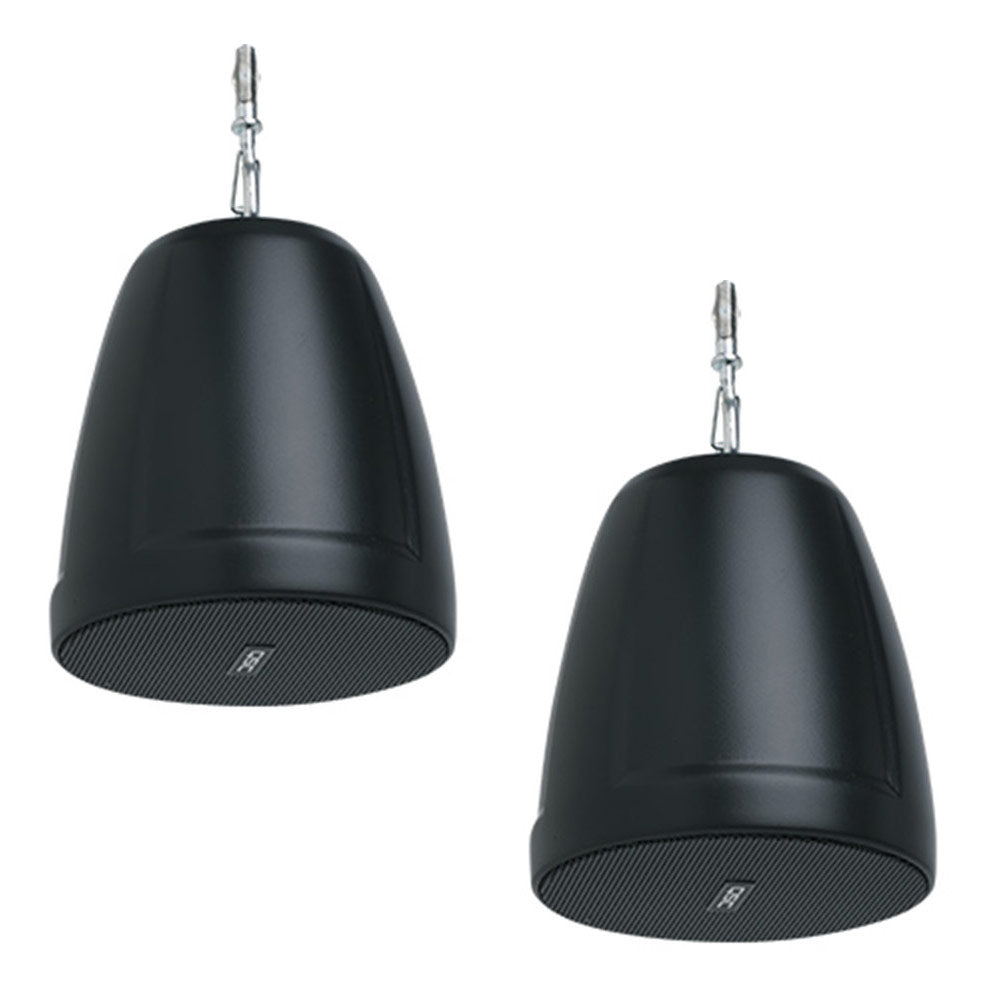

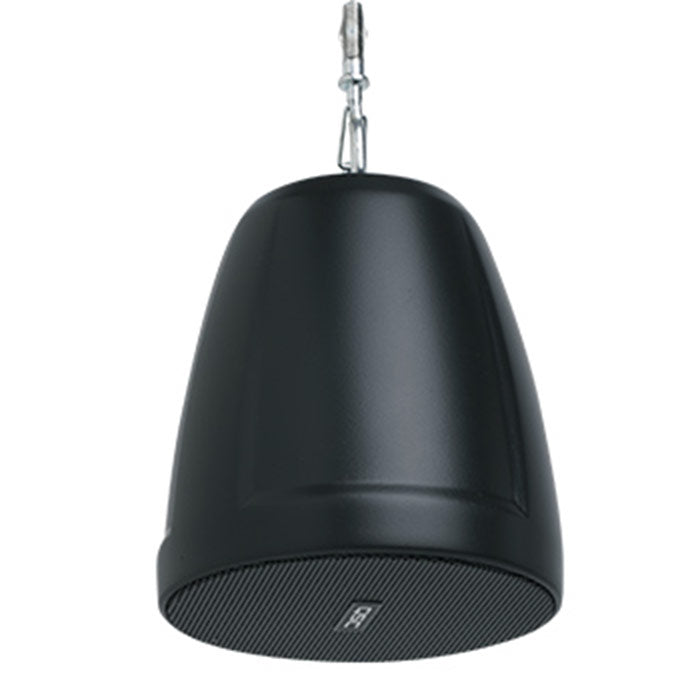

QSC AD-P SAT AcousticDesign Series Satellite Pendant Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
The QSC AD-P.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with anyÊsubwoofer in the AD Series SUB/SAT line.
Features:
- Inverted aluminum dome dust cap
- Rated at 16 ohm
- Locking 2-pole Euroblock connectors
- Snap-fit magnetic grills
- Quick link cable assemblies and slip-lock fasteners supplied
- Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 certified
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz - 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB] (rated @1 W, 1 m) | 82 |
| Coverage (_6 dB) [ deg.] | 170 deg. Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB]æ (rated, 1 m (continuous / peak)) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Impedance | 16 ohm |
| Connectors | 2-pole Euroblock |
| Enclosure material | ABS |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122 deg. F (-20 to 50 deg. C) |
| Net weight | 0.92 lb (416 g) |
| Product dimensions (O x H) | O 4.3 x 4.5-inch (O 110 x 115 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D) | TBD (pair packed) |
| Included accessories | Cable rigging, 1x Euroblock connector, grill |
| Safety agency | UL1480, Transformer UL registered per UL1876, ROHS, CE compliant |
Priced individually, but sold in pairs.
The QSC AD-P.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with anyÊsubwoofer in the AD Series SUB/SAT line.
Features:
- Inverted aluminum dome dust cap
- Rated at 16 ohm
- Locking 2-pole Euroblock connectors
- Snap-fit magnetic grills
- Quick link cable assemblies and slip-lock fasteners supplied
- Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
- UL1480 certified
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz - 20 kHz |
| Rated noise power / voltage | 25 W / 20 V (rms) |
| Sensitivity [dB] (rated @1 W, 1 m) | 82 |
| Coverage (_6 dB) [ deg.] | 170 deg. Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB]æ (rated, 1 m (continuous / peak)) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Impedance | 16 ohm |
| Connectors | 2-pole Euroblock |
| Enclosure material | ABS |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122 deg. F (-20 to 50 deg. C) |
| Net weight | 0.92 lb (416 g) |
| Product dimensions (O x H) | O 4.3 x 4.5-inch (O 110 x 115 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D) | TBD (pair packed) |
| Included accessories | Cable rigging, 1x Euroblock connector, grill |
| Safety agency | UL1480, Transformer UL registered per UL1876, ROHS, CE compliant |
