Description

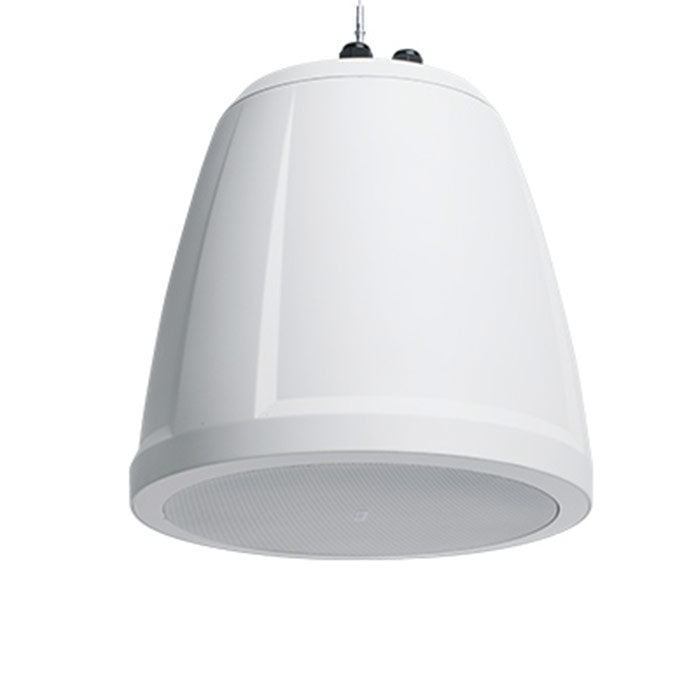

The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match... Read MoreOur Price: $574.00
Free Shipping (Continental US)
Suggested Accessories
Description
The QSC AD-P.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
More +
Product Specs
LF transducer | 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer |
HF transducer | N/A |
Effective frequency range | 55 Hz – 150 Hz |
Rated noise power / voltage | 100 W / 20 V (rms) |
Sensitivity [dB] (rated @1 W, 1 m) | 86 |
Coverage (-6 dB) | Omni |
Directivity factor | TBD |
Directivity index [dB] | TBD |
Maximum SPL [dB] (continuous / peak) | 100 / 106 |
Recommended amplifier | 100 W |
Transformer taps / impedance | Bypass:4 Ω 100 W (70 V); NA (100 V) Tap: 50 Ω 50 W (70 V); 100 W (100 V) Tap: 100 Ω 25 W (70 V); 50 W (100 V) Tap: 200 Ω 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω |
Connectors | Mono input: 4-pole Euroblock with thru output Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites |
Enclosure material | ABS |
Grille material | Powder coated steel |
Ingress protection | IP-34 |
Operating environment | Designed for indoor use |
Operating temperature range | -4 to 122° F (-20 to 50° C) |
Net weight | 16.5 lb (7.5 kg) |
Product dimensions (Ø x H) | Ø 13.6 x 13.8-inch (Ø 4.3 x 4.5 mm) |
Shipping weight | TBD |
Shipping dimensions (H x W x D) |
TBD |
Included accessories | 2x cable rigging, 3x Euroblock connector, 2x sealed input cover, grill |
Safety agency | UL1480, Transformer UL registered per UL1876, ROHS, CE compliant |
More +
