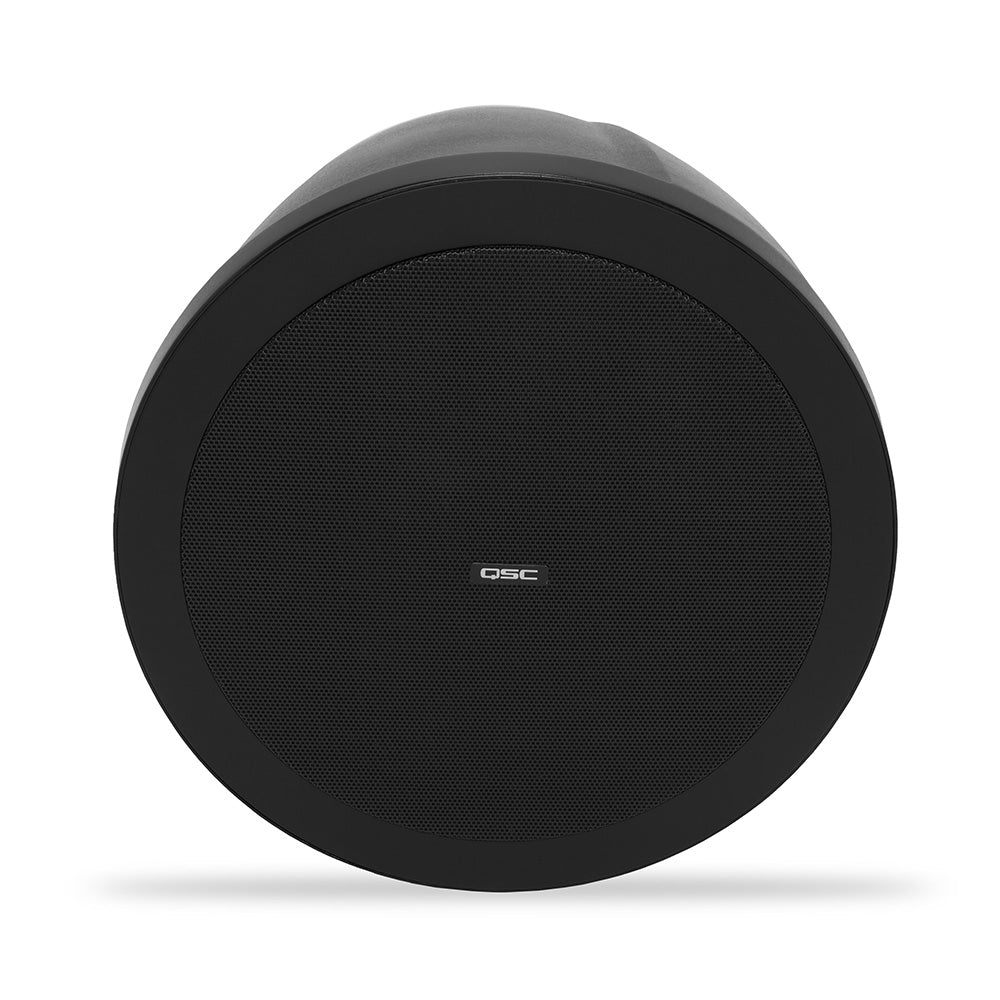

QSC AD-P4T AcousticDesign 2-Way 4-Inch Pendant Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
QSC AD-P4T AcousticDesign 2-Way 4-Inch Pendant Loudspeaker (Black)
Sale price$330.00
Description
The QSC AcousticDesign™ AD-P4T is a 4.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations.
Features:
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16 ohm bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
| Effective frequency range | 65 Hz Ð 20 kHz |
| Rated noise power / voltage | 30 watts / 22 volts (rms) |
| Sensitivity [dB] Sensitivity at 4m, 100V maximum tap |
87.9Ê TBD |
| Rated coverage (-6 dB) | 150¡ conical DMTª |
| Directivity factor | 4.5 |
| Directivity index [dB] | 6.5 |
| Maximum continuous SPL [dB] | 102 |
| Maximum peak SPL [dB] | 108 |
| Nominal impedance [ohms] | 16 |
| Recommended amplifier | 60 watts |
| Transformer taps / impedance | 16½ (in bypass setting)Ê 3.75W (70V); 7.5W (100V) Tap: 1333½Ê 7.5W (70V); 15W (100V) Tap: 667½Ê 15W (70V); 30W (100V) Tap: 333½Ê 30W (70V); N/A (100V) Tap: 167½ |
| LF transducer | 114 mm [4.5 in] weather treated paper cone woofer |
| HF transducer | 19 mm [0.75" in] aluminum dome tweeter |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Impact Resistant ABS |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -20 to 50¡ C [-4 to 122¡ F] |
| Net weight | 2.9 kg [6.5 lb] |
| Product dimensions (Diameter x Height) | ¯ 237 x 272 mm [¯ 9.3 x 10.7 in.] |
| Shipping weight | 3.9 kg [8.7 lb] |
| Shipping dimensions (H x W x D) | 298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in] |
| Included mounting hardware | Two quick-link cable assembliesÊ(length 3.25m / 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille. |
| Safety Agency | UL1480, Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
The QSC AcousticDesign™ AD-P4T is a 4.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations.
Features:
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYS Q-SYS Platform and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16 ohm bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
| Effective frequency range | 65 Hz Ð 20 kHz |
| Rated noise power / voltage | 30 watts / 22 volts (rms) |
| Sensitivity [dB] Sensitivity at 4m, 100V maximum tap |
87.9Ê TBD |
| Rated coverage (-6 dB) | 150¡ conical DMTª |
| Directivity factor | 4.5 |
| Directivity index [dB] | 6.5 |
| Maximum continuous SPL [dB] | 102 |
| Maximum peak SPL [dB] | 108 |
| Nominal impedance [ohms] | 16 |
| Recommended amplifier | 60 watts |
| Transformer taps / impedance | 16½ (in bypass setting)Ê 3.75W (70V); 7.5W (100V) Tap: 1333½Ê 7.5W (70V); 15W (100V) Tap: 667½Ê 15W (70V); 30W (100V) Tap: 333½Ê 30W (70V); N/A (100V) Tap: 167½ |
| LF transducer | 114 mm [4.5 in] weather treated paper cone woofer |
| HF transducer | 19 mm [0.75" in] aluminum dome tweeter |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Impact Resistant ABS |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -20 to 50¡ C [-4 to 122¡ F] |
| Net weight | 2.9 kg [6.5 lb] |
| Product dimensions (Diameter x Height) | ¯ 237 x 272 mm [¯ 9.3 x 10.7 in.] |
| Shipping weight | 3.9 kg [8.7 lb] |
| Shipping dimensions (H x W x D) | 298 x 362 x 286 mm [11.75 x 14.25 x 11.25 in] |
| Included mounting hardware | Two quick-link cable assembliesÊ(length 3.25m / 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille. |
| Safety Agency | UL1480, Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
