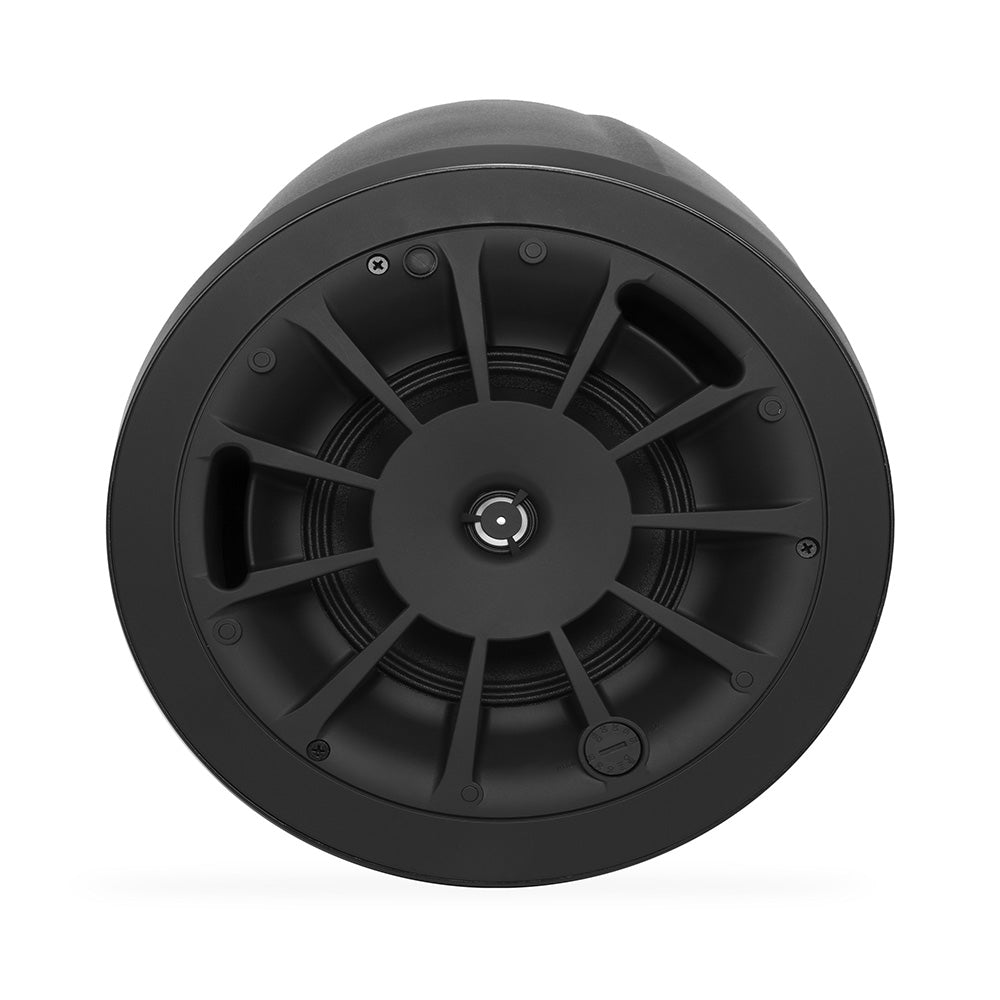

QSC AD-P6T AcousticDesign 2-Way 6.5-Inch Pendant Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The QSC AcousticDesign™ AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations.
Features:
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYS Platform and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16 ohm bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
Effective frequency range |
55 Hz Ð 20 kHz |
Rated noise power / voltage |
60 watts / 31 volts (rms) |
Sensitivity [dB] |
88Ê |
Rated coverage (-6 dB) |
135¡ conical DMTª |
Directivity factor |
6.5 |
Directivity index [dB] |
8 |
Maximum continuous SPL [dB] |
106 |
Maximum peak SPL [dB] |
112 |
Nominal impedance [ohms] |
16 |
Recommended amplifier |
120 watts |
Transformer taps / impedance |
16½ (in bypass setting)Ê |
LF transducer |
165 mm [6.5 in] weather treated paper cone woofer |
HF transducer |
19 mm [0.75" in] aluminum dome tweeter |
Input connector type |
Euroblock connector with parallel output |
Enclosure material |
Impact Resistant ABS |
Grille material |
Powder coated steel |
Ingress protection |
IP-34 |
Operating environment |
Designed for indoor use |
Operating temperature range |
-20 to 50¡ C [-4 to 122¡ F] |
Net weight |
4.1 kg [9 lb] |
Product dimensions (Diameter x Height) |
¯ 287 x 323 mm [¯ 11.3 x 12.7 in.] |
Shipping weight |
5.4 kg [11.8 lb] |
Shipping dimensions (H x W x D) |
343 x 406 x 356 mm [13.5 x 16 x 14 in] |
Included mounting hardware |
Two quick-link cable assembliesÊ(length 3.25m / 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille. |
Safety Agency |
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
The QSC AcousticDesign™ AD-P6T is a 6.5" two-way pendant-mount loudspeaker ideally suited for a wide variety of foreground and background sound reinforcement applications which utilize 70/100V or 16? bypass configurations.
Features:
- Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
- DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 2x quick-link suspension cables and slip-lock fasteners provided
- Intrinsic Correction™ voicings available via Q-SYS Platform and CXD amplifiers
- Low-saturation and low-loss 70/100V transformers with 16 ohm bypass
- Blemish-free removable logo
- Sealable input cover to prevent moisture from entering the input terminal block
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, & BIM information available online
Effective frequency range |
55 Hz Ð 20 kHz |
Rated noise power / voltage |
60 watts / 31 volts (rms) |
Sensitivity [dB] |
88Ê |
Rated coverage (-6 dB) |
135¡ conical DMTª |
Directivity factor |
6.5 |
Directivity index [dB] |
8 |
Maximum continuous SPL [dB] |
106 |
Maximum peak SPL [dB] |
112 |
Nominal impedance [ohms] |
16 |
Recommended amplifier |
120 watts |
Transformer taps / impedance |
16½ (in bypass setting)Ê |
LF transducer |
165 mm [6.5 in] weather treated paper cone woofer |
HF transducer |
19 mm [0.75" in] aluminum dome tweeter |
Input connector type |
Euroblock connector with parallel output |
Enclosure material |
Impact Resistant ABS |
Grille material |
Powder coated steel |
Ingress protection |
IP-34 |
Operating environment |
Designed for indoor use |
Operating temperature range |
-20 to 50¡ C [-4 to 122¡ F] |
Net weight |
4.1 kg [9 lb] |
Product dimensions (Diameter x Height) |
¯ 287 x 323 mm [¯ 11.3 x 12.7 in.] |
Shipping weight |
5.4 kg [11.8 lb] |
Shipping dimensions (H x W x D) |
343 x 406 x 356 mm [13.5 x 16 x 14 in] |
Included mounting hardware |
Two quick-link cable assembliesÊ(length 3.25m / 128 in 2mm thickness), two slip-lock fasteners, locking euro-block connector, sealable input cover and screws, snap-fit magnetic grille. |
Safety Agency |
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick (pending), CE compliant. Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems. |
