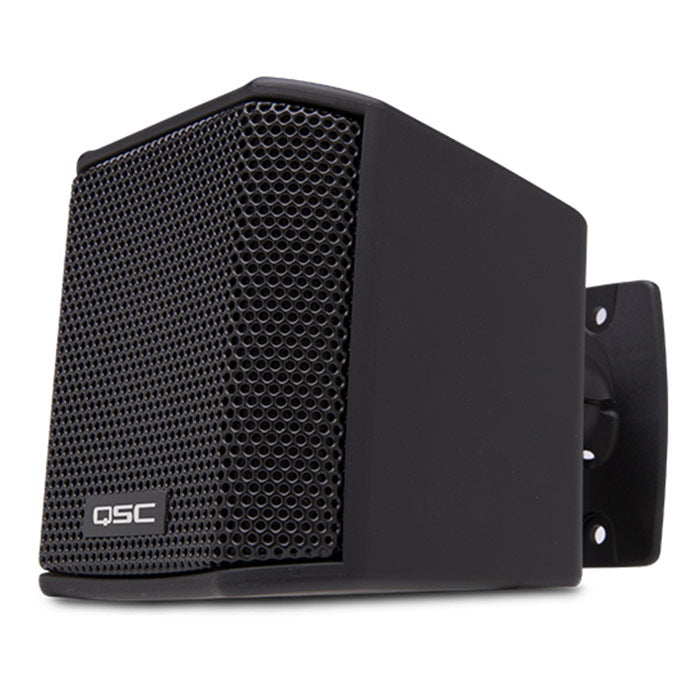

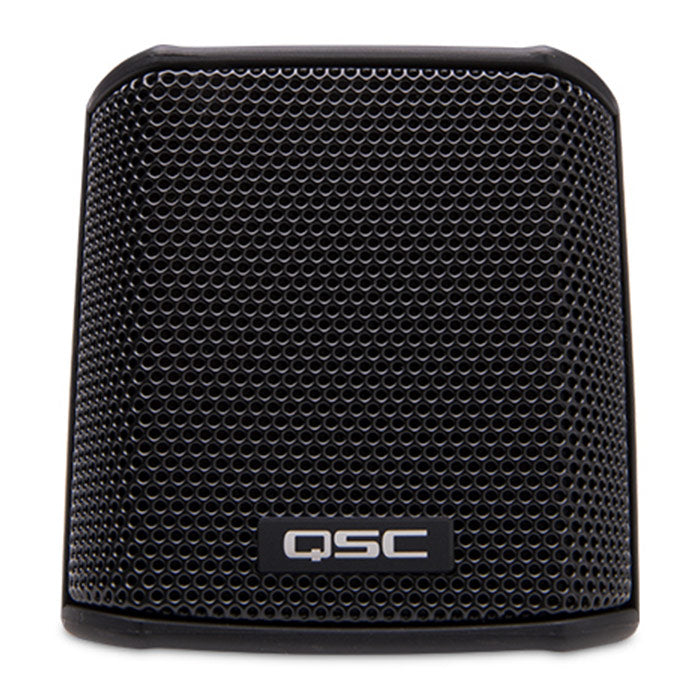

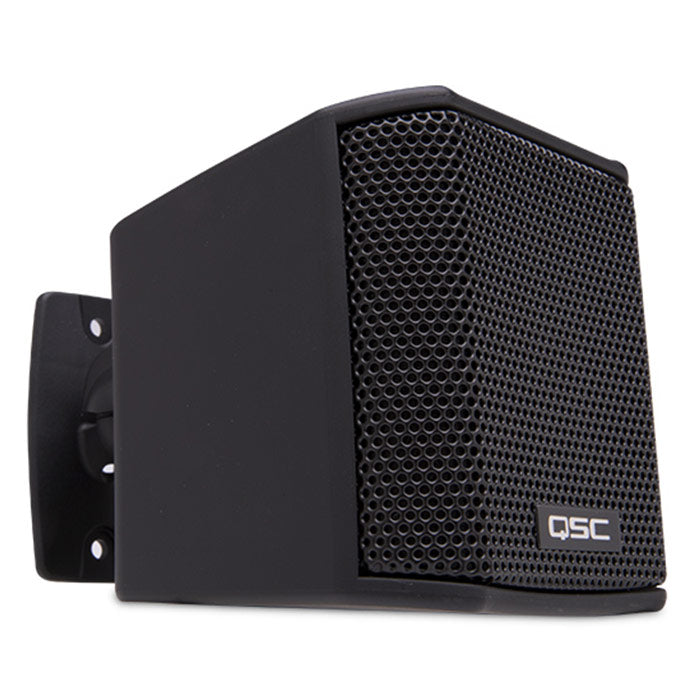

QSC AD-S SAT AcousticDesign Series Surface Mount Satellite Speaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

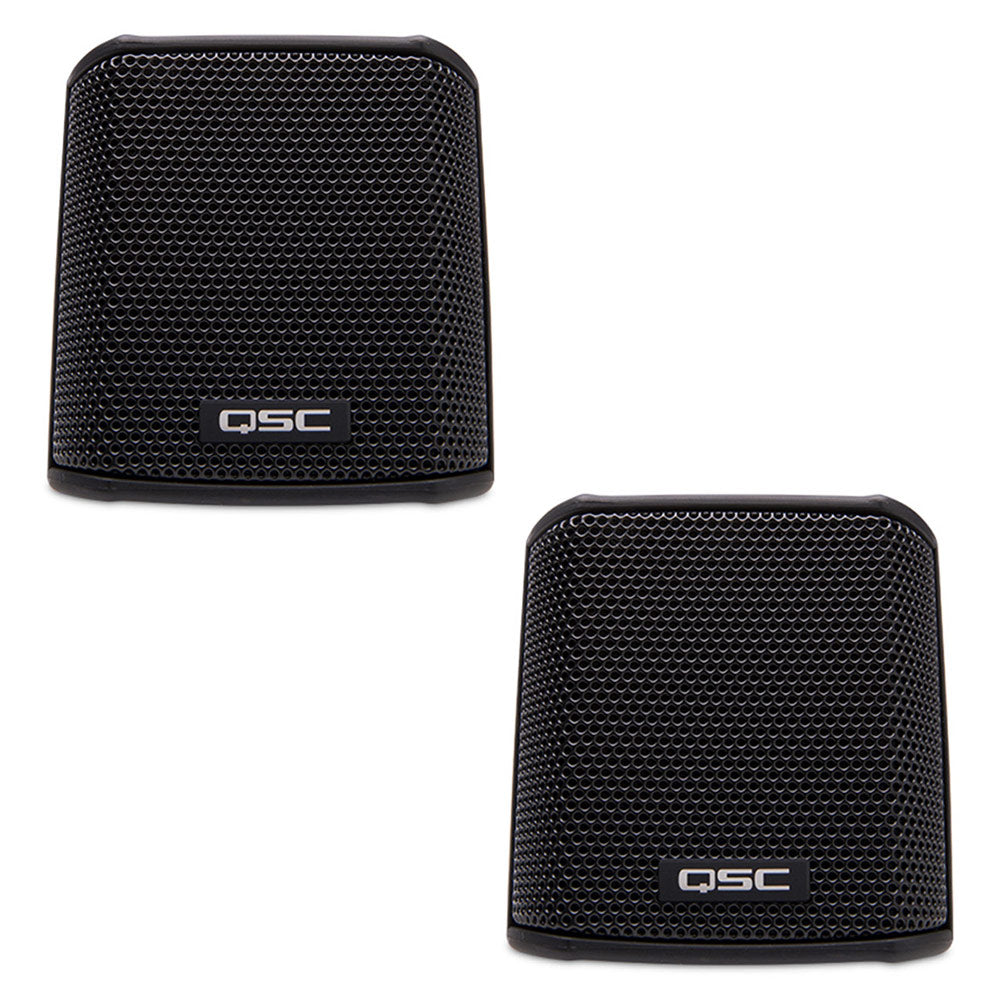

Priced individually, but sold in pairs.
The QSC AD-S.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Inverted aluminum dome dust cap
- Rated at 16 ohm
- Locking 2-pole Euroblock connectors
- X-Mountª Mini mounting hardware provides repeatable angles without drift or sag
- Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz - 20 kHz |
| Rated noise power / voltage 6 | 25 W / 20 V (rms) |
| Sensitivity [dB]æ (rated @ 1 W, 1 m) | 82 |
| Coverage (_6 dB) [ deg.] | 170 Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (rated, 1 m (continuous / peak) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer taps / impedance | Bypass: 16 ohm |
| Connector | 2-pole Euroblock |
| Enclosure material | ABS |
| Grill material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122 deg. F (-20 to 50 deg. C) |
| Net weight | 0.95 lb (433 g) |
| Product dimensions including wall bracketæ (H x W x D) | 3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D | TBD (pair packed) |
| Included accessories | X-Mount Mini, Euroblock connector (pair packed) |
| Safety agency | Transformer UL registered per UL1876, ROHS, CE compliant |
Priced individually, but sold in pairs.
The QSC AD-S.SAT is part of the AcousticDesignª Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Inverted aluminum dome dust cap
- Rated at 16 ohm
- Locking 2-pole Euroblock connectors
- X-Mountª Mini mounting hardware provides repeatable angles without drift or sag
- Intrinsic Correctionª voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
| LF transducer | N/A |
| HF transducer | 2.75-inch (70 mm) weather treated paper cone woofer |
| Effective frequency range | 150 Hz - 20 kHz |
| Rated noise power / voltage 6 | 25 W / 20 V (rms) |
| Sensitivity [dB]æ (rated @ 1 W, 1 m) | 82 |
| Coverage (_6 dB) [ deg.] | 170 Conical |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (rated, 1 m (continuous / peak) | 90 / 96 |
| Recommended amplifier | 25 W (with 1st order high-pass filter at 200 Hz) |
| Transformer taps / impedance | Bypass: 16 ohm |
| Connector | 2-pole Euroblock |
| Enclosure material | ABS |
| Grill material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122 deg. F (-20 to 50 deg. C) |
| Net weight | 0.95 lb (433 g) |
| Product dimensions including wall bracketæ (H x W x D) | 3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136 mm) |
| Shipping weight | TBD (pair packed) |
| Shipping dimensions (H x W x D | TBD (pair packed) |
| Included accessories | X-Mount Mini, Euroblock connector (pair packed) |
| Safety agency | Transformer UL registered per UL1876, ROHS, CE compliant |
