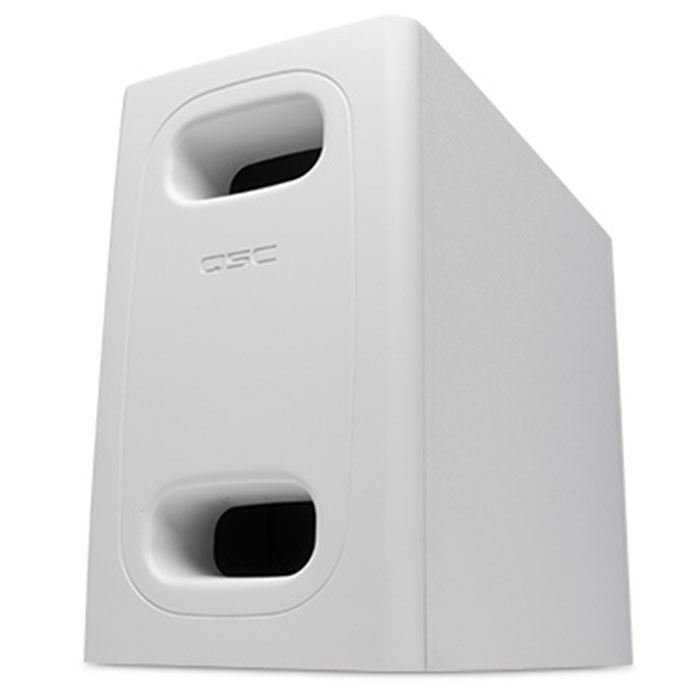

QSC AD-S SUB AcousticDesign Series Surface Mount Subwoofer (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The QSC AD-S.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Dual voice-coil for improved thermal dissipation and higher output
- Low saturation and low-loss 70/100 V transformers in mono mode
- Low-Z mono or stereo configurable
- 4x built-in high-pass filtered outputs
- Locking 4-pole Euroblock connectors
- Reversible rear panel cover with cable tie anchors
- Reversible V-wall mount hardware
- Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
| LF transducer | 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer |
| HF transducer | N/A |
| Effective frequency range | 45 Hz Ð 150 Hz |
| Rated noise power / voltage | 100 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
86 |
| Coverage (_6 dB) [¡] | Omni |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (continuous / peak) |
100 / 106 |
| Recommended amplifier | 100 W |
| Transformer taps / impedance | 70 V: 100, 50, 25, 12.5 W (mono only) 100 V: 100, 50, 25 W (mono only) Bypass: 4 ½ mono or 8 ½ + 8 ½ stereo |
| Connectors | Hi-Z mono input: 4-pole Euroblock with thru output Low-Z input: 4-pole Euroblock, left (mono) and right Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites |
| Enclosure material | Vinyl wrapped medium density fiberboard |
| Port baffle / cover panel | ABS |
| Ingress protection | N/A |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122¡ F (-20 to 50¡ C) |
| Net weight | 23.6 lb (10.7 kg) |
| Product dimensions (¯ x H) | 13.8 x 8.2 x 17-inch (350 x 209 x 432 mm) |
| Shipping weight | TBD |
| Shipping dimensions (H x W x D | TBD |
| Included accessories | V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet |
| Safety agency | Transformer UL registered per UL1876, ROHS, CE compliant |
The QSC AD-S.SUB is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.
Features:
- Dual voice-coil for improved thermal dissipation and higher output
- Low saturation and low-loss 70/100 V transformers in mono mode
- Low-Z mono or stereo configurable
- 4x built-in high-pass filtered outputs
- Locking 4-pole Euroblock connectors
- Reversible rear panel cover with cable tie anchors
- Reversible V-wall mount hardware
- Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
- Available in black (RAL 9011) or white (RAL 9010)
| LF transducer | 6.5-inch (165 mm) dual voice coil weather treated paper cone woofer |
| HF transducer | N/A |
| Effective frequency range | 45 Hz Ð 150 Hz |
| Rated noise power / voltage | 100 W / 20 V (rms) |
| Sensitivity [dB] (rated @ 1 W, 1 m) |
86 |
| Coverage (_6 dB) [¡] | Omni |
| Directivity factor | TBD |
| Directivity index [dB] | TBD |
| Maximum SPL [dB] (continuous / peak) |
100 / 106 |
| Recommended amplifier | 100 W |
| Transformer taps / impedance | 70 V: 100, 50, 25, 12.5 W (mono only) 100 V: 100, 50, 25 W (mono only) Bypass: 4 ½ mono or 8 ½ + 8 ½ stereo |
| Connectors | Hi-Z mono input: 4-pole Euroblock with thru output Low-Z input: 4-pole Euroblock, left (mono) and right Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites |
| Enclosure material | Vinyl wrapped medium density fiberboard |
| Port baffle / cover panel | ABS |
| Ingress protection | N/A |
| Operating environment | Designed for indoor use |
| Operating temperature range | -4 to 122¡ F (-20 to 50¡ C) |
| Net weight | 23.6 lb (10.7 kg) |
| Product dimensions (¯ x H) | 13.8 x 8.2 x 17-inch (350 x 209 x 432 mm) |
| Shipping weight | TBD |
| Shipping dimensions (H x W x D | TBD |
| Included accessories | V-wall bracket, 4x euroblock connector, rear cover panel, adhesive rubber feet |
| Safety agency | Transformer UL registered per UL1876, ROHS, CE compliant |
