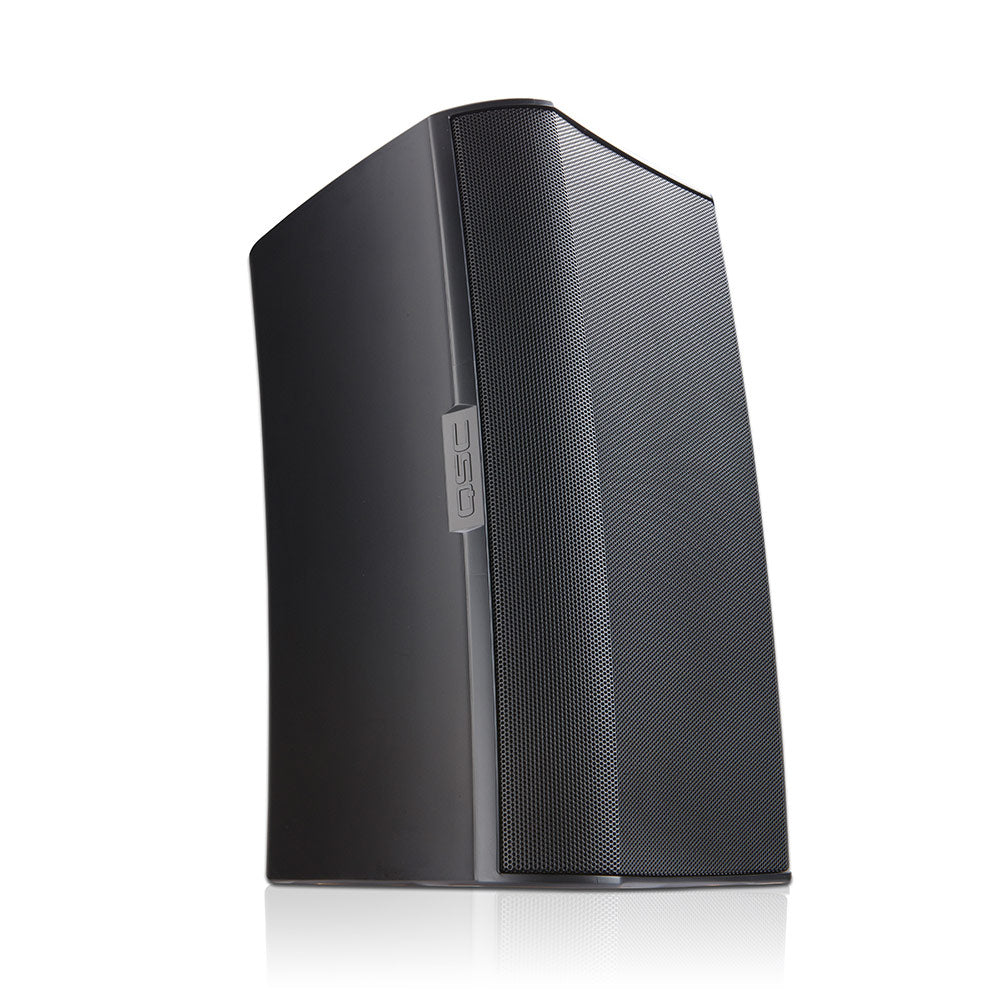

QSC AD-S10T AcousticDesign 10" 2-Way Surface Mount Loudspeaker (Black)

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications.

Features:

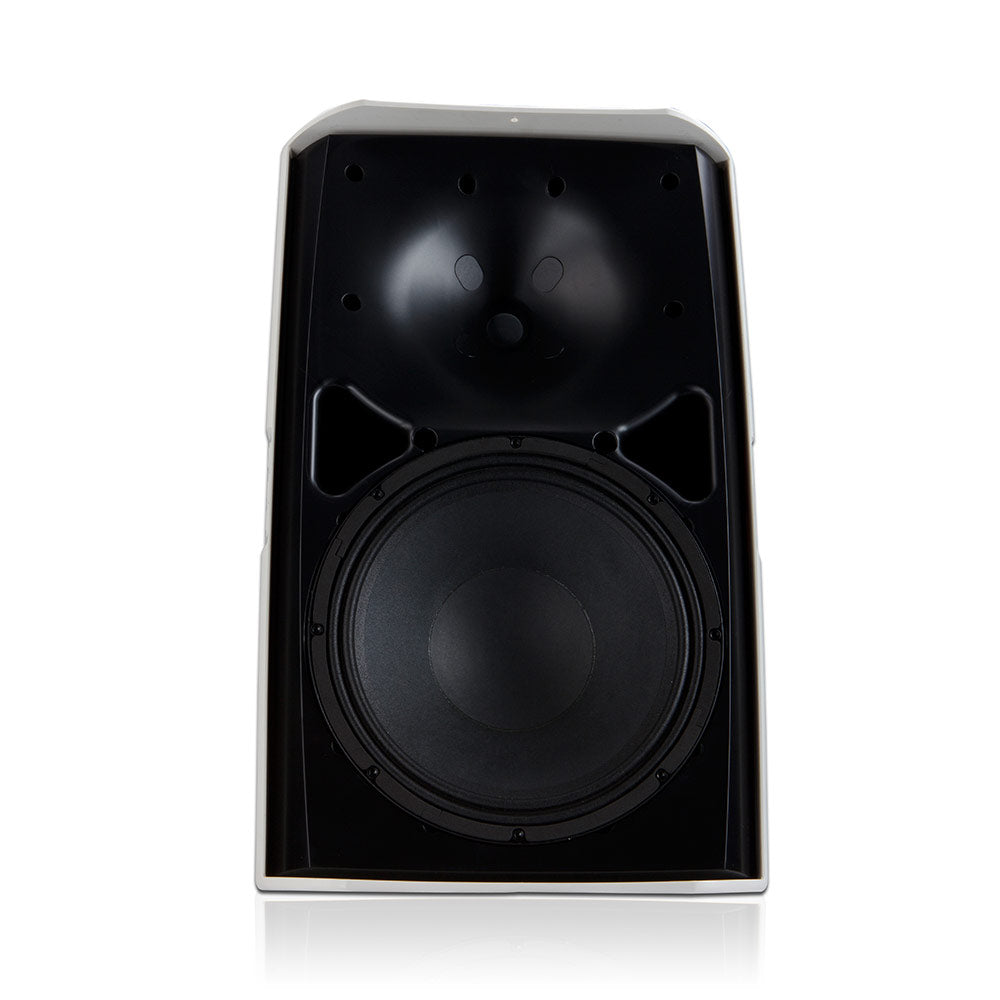

• 10" weather treated woofer; 1.4" compression driver
• 90° Axisymmetric (conical) coverage
• 100 watt low-saturation and low-loss 70/100V transformers with 8ohm bypass
• Maximum peak SPL 122 dB (8 ohm bypass)
• DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
• X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility
• Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-Sys processing or CXD amplifier platforms
• Lightweight ABS enclosures offer long-term durability and lasting good looks
• Sealed input panel cover and powder coated aluminum grilles for added weather resistance
• Meets IEC60529 IP-54 for dust and splash resistance
• Available in black (RAL 9011) or white (RAL 9010)
• Complete EASE, CF2, CAD, and BIM information available online

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications.

Consistent and even axisymmetric coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

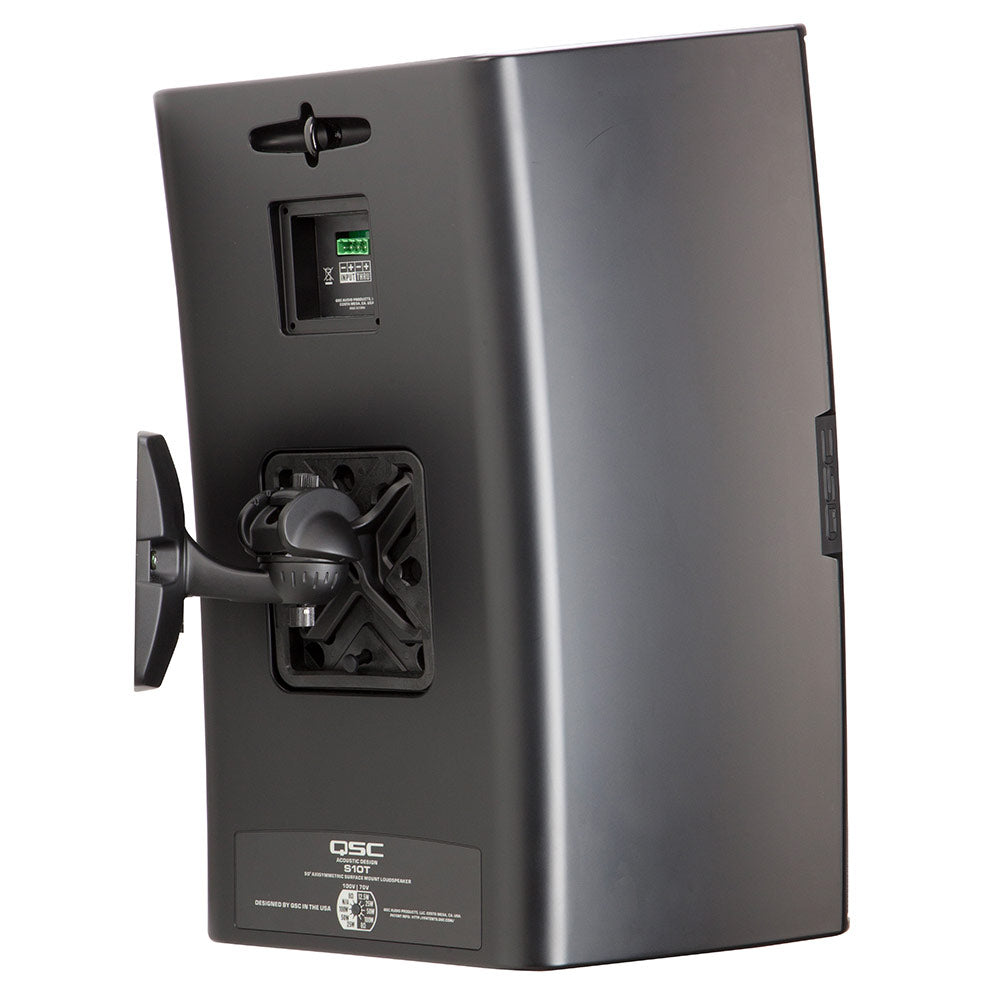

AcousticDesign models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8 ohm bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.

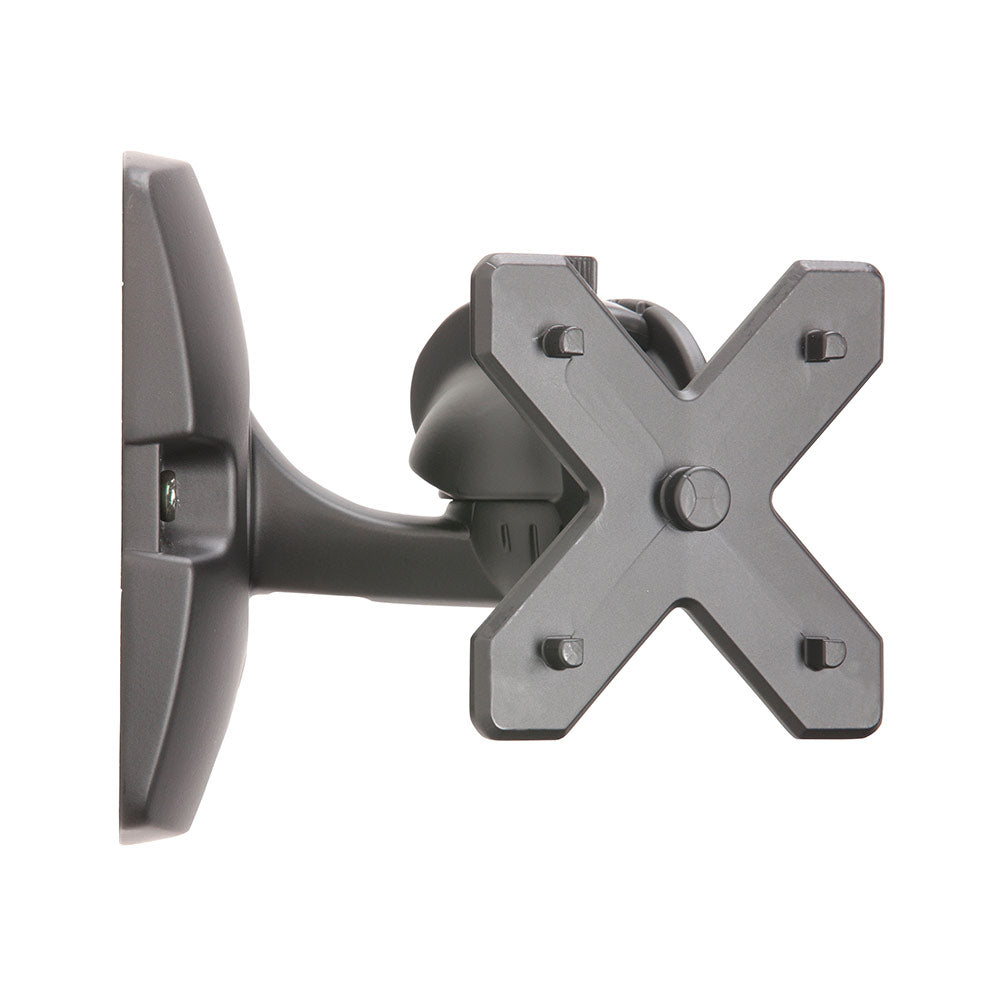

Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time.  Articulation marks allow pre-configuration of the X-Mount while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.

The AcousticDesign series feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. Complimenting adjacent product families, AcousticDesign surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.

To assist in successful systems integration, EASE, CF2, CAD, and BIM files are available for download.
