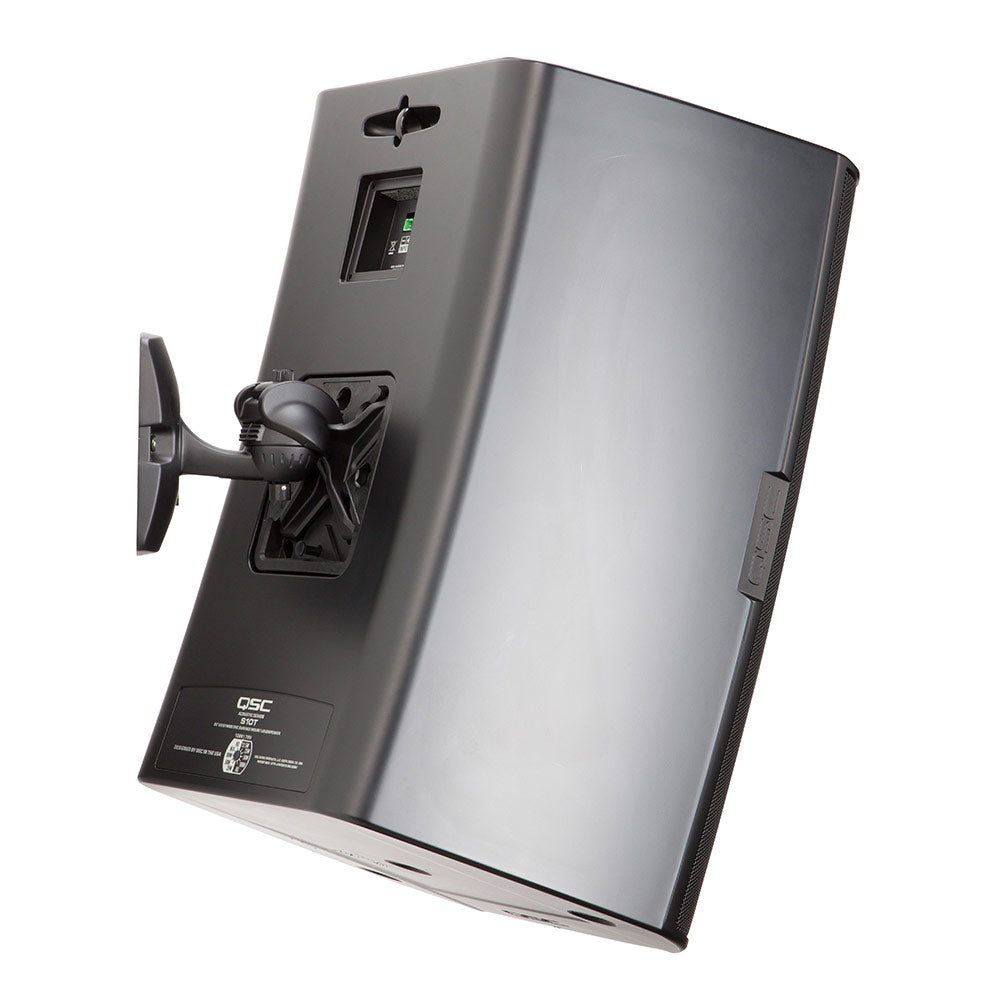

QSC AD-S12T AcousticDesign 12" 2-Way Surface Mount Loudspeaker (Black)

  • Dale #:

    QSC-ADS12BK
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident ins... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications.

Features:

  • 12" weather treated woofer; 1.4" compression driver
  • 75° Axisymmetric (conical) coverage
  • Maximum peak SPL?126 dB
  • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
  • Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-Sys processing or CXD amplifier platforms
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online

AcousticDesign series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications.

Consistent and even axisymmetric coverage is achieved through DMT (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

AcousticDesign models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8 ohm bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.

Installers will appreciate the award-winning X-Mount system included with each full-range AcousticDesign model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time.  Articulation marks allow pre-configuration of the X-Mount while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.

The AcousticDesign series feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. Complimenting adjacent product families, AcousticDesign surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.

To assist in successful systems integration, EASE, CF2, CAD, and BIM files are available for download.

More +

Product Specs

Effective frequency range 52 Hz to 20 kHz
Rated noise power / voltage 300 watts / 50 volts (rms)
Broadband sensitivity 95 dB SPL
Coverage angle (-6 dB) 75°
Directivity factor (Q) 12
Directivity Index 11 dB
Maximum continuous SPL 120 dB
Maximum peak SPL 126 dB
Rated impedance 8 ohms
Recommended amplifier power (loudspeaker program power) 600 watts
Transformer taps n/a
HF transducer 1” exit / 1.4” voice coil compression driver
LF transducer 12” weather resistant paper cone woofer, 3” / 76 mm voice coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material Painted ABS polymer
Grille material Powder coated aluminum
Yoke material
Ingress protection IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use using the following tests:

Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.

Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days

High and low temperature: tested to QSC internal standards between -20° and 50° C
Net weight 35.2 lb / 16 kg
Product dimensions 23.4” × 13.9” × 12.7” (594 × 354 × 323 mm)
Shipping weight 46.3 lb / 21 kg
Shipping dimensions 34.5” x 17.9” x 17.2” (765 x 455 x 437 mm)
Included accessories X-Mount mounting system, Euroblock connector, Input panel cover
Optional accessories YMS12 yoke mount, M10 Kit-C
