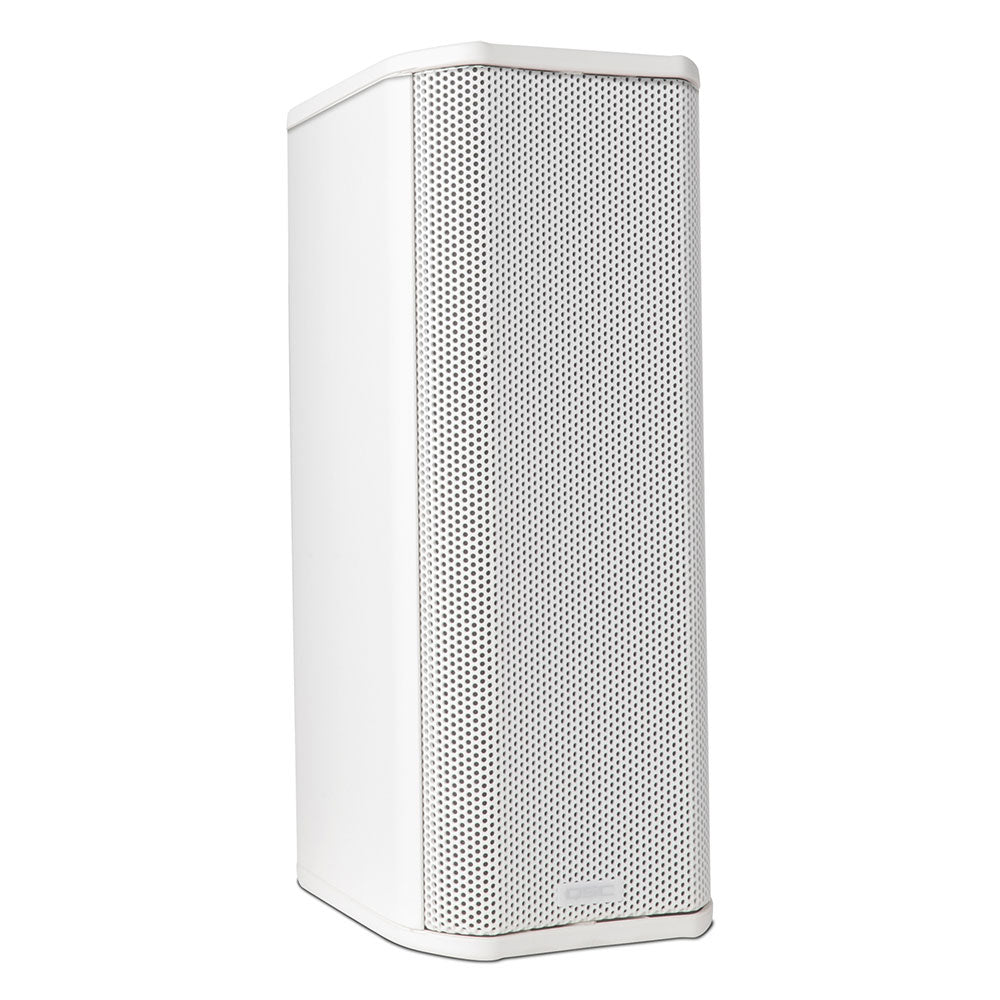

QSC AD-S402T Column Surface-Mount Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The AcousticDesign™ Series AD-S402T is a 4-driver column surface-mount loudspeaker. This premium full range system is capable of 70 V / 100 V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features:
- Deliberately unobtrusive industrial design.
- Available in white (RAL 9010) or black (RAL 9011).
- Paintable enclosure and grille.
- Complete EASE, CLF, CAD and BIM information.
- Rugged aluminum construction.
- UV Inhibitors in all white models.
- IP-54 rating for dust and splash resistance.
- Powder-coated grille and weather-treated cones.
- Close to wall pan/tilt bracket included.
- Low saturation 70 V / 100 V transformers.
- 16 ohm low impedance bypass.
- Screw-down Euro block connector with loop-through.
- Sealable input weather cup – keeps moisture away from wiring.
Transducer |
(x4) 2.5 in (63.5 mm) weather treated paper cone woofer |
Effective frequency range 1, 2, 3, 8 |
110 Hz Ð 20 kHz |
Rated noise power / voltage 6 |
60 W / 31 V (rms) |
Sensitivity [dB] |
Rated @1 W, 1m 2, 3, 4, 8 : 85 |
Coverage (_6 dB) [¡] |
Rated 2, 5, 8 : 150 x 35 |
Directivity factor 2, 5, 8 |
11 |
Directivity index [dB] 2, 5, 8 |
10.5 |
Maximum SPL [dB] |
Rated, 1m (continuous / peak) 7 : 105 / 111 |
Recommended amplifier |
120 W |
Transformer taps / impedance |
Bypass: 16 ½ |
Input connector type |
Euroblock connector with parallel output |
Enclosure material |
Powder coated aluminum |
Grille material |
Powder coated aluminum |
Ingress protection |
IP-54 |
Operating environment |
Designed for indoor or outdoor use |
Operating temperature range |
-4 to 122¡ F (-20 to 50¡ C) |
Net weight |
7.5 lb (3.4 kg) |
Product dimensions (H x W x D) |
12.89 x 5.17 x 4.97 in |
Shipping Weight |
11 lb (5 kg) |
Shipping Dimensions (H x W x D) |
21.4 x 12.2 x 9.6 in |
Included accessories |
Sealed input cover plate with gland nut |
Safety Agency |
UL1480A |
