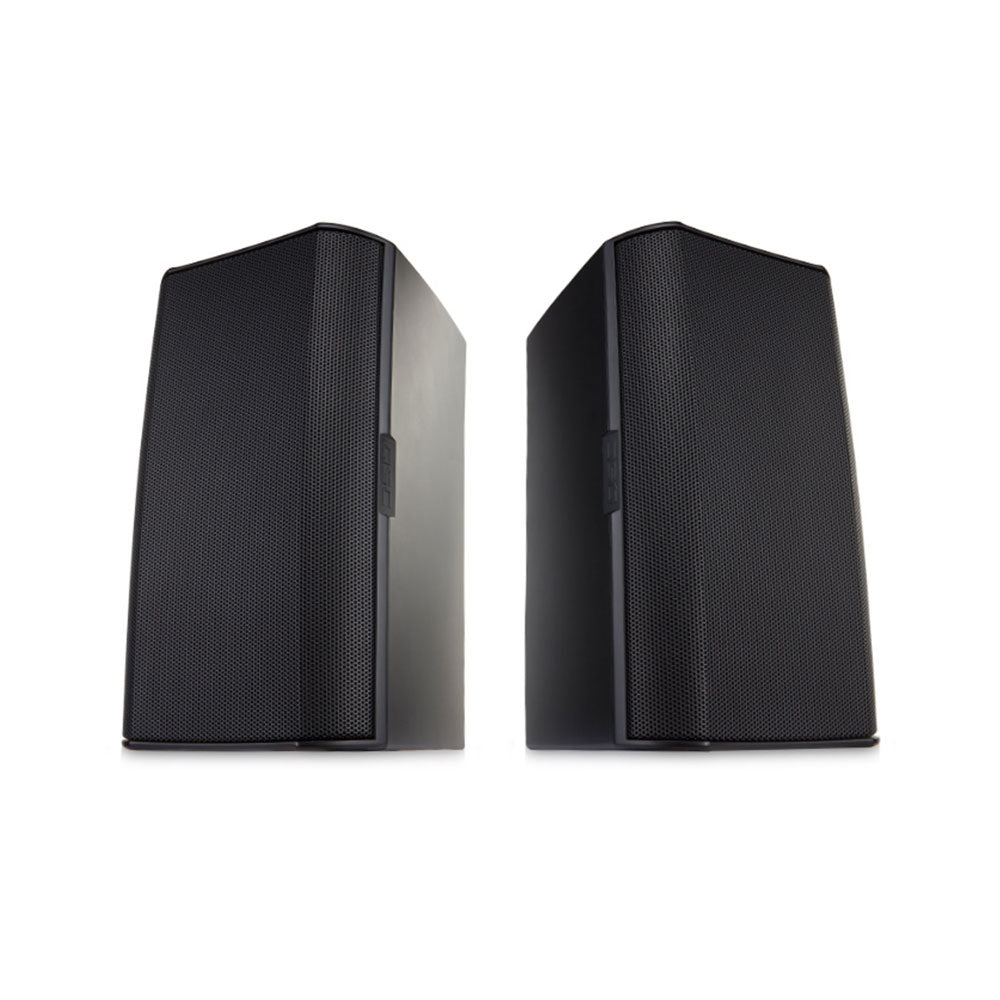

QSC AD-S5T AcousticDesign Series 2-Way Surface Mount Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Priced individually, but sold in pairs.
AcousticDesignª surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mountª system and weather input cover.
Features:
- 5.25 inch weather treated woofer; 1 inch silk dome tweeter
- 115 deg. conical DMT coverage
- 60 watt low-saturation and low-loss 70/100V transformers with 8 ohm bypass
- Maximum peak SPL 116 dB (8 ohm bypass)
- DMTª (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
- X-Mountª system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionª, available through either Q-SYS or CXD amplifier platform
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| Effective frequency range | 60 Hz - 20 kHz |
| Rated noise power / voltage | 100 W |
| Broadband sensitivity | 86 dB SPL |
| Coverage angle | 115 deg. conical DMT |
| Directivity factor (Q) | 6.9 |
| Directivity Index | 7 dB |
| Maximum continuous SPL | 106 dB |
| Maximum peak SPL | 112 dB |
| Rated impedance | 8 ohms |
| Transformer taps | 70 V: 7.5, 15, 30, 60, bypass 100 V: n/a, 15, 30, 60, bypass |
| HF transducer | 1-inch damped fabric dome tweeter, 1-inch voice coil |
| LF transducer | 5.25-inch paper cone woofer, 1-inch voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Product dimensions (HWD) | 11.3 x 6.9 x 6.8 in (286 x 175 x 174 mm) |
| Shipping weight | 20.2 lbs / 9.2 kg (pair packed) |
| Shipping dimensions (HWD) inches | 15.9 x 10.3 x 18.3 in (405 x 262 x 465 mm) |
| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |
Priced individually, but sold in pairs.
AcousticDesignª surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mountª system and weather input cover.
Features:
- 5.25 inch weather treated woofer; 1 inch silk dome tweeter
- 115 deg. conical DMT coverage
- 60 watt low-saturation and low-loss 70/100V transformers with 8 ohm bypass
- Maximum peak SPL 116 dB (8 ohm bypass)
- DMTª (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
- X-Mountª system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionª, available through either Q-SYS or CXD amplifier platform
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| Effective frequency range | 60 Hz - 20 kHz |
| Rated noise power / voltage | 100 W |
| Broadband sensitivity | 86 dB SPL |
| Coverage angle | 115 deg. conical DMT |
| Directivity factor (Q) | 6.9 |
| Directivity Index | 7 dB |
| Maximum continuous SPL | 106 dB |
| Maximum peak SPL | 112 dB |
| Rated impedance | 8 ohms |
| Transformer taps | 70 V: 7.5, 15, 30, 60, bypass 100 V: n/a, 15, 30, 60, bypass |
| HF transducer | 1-inch damped fabric dome tweeter, 1-inch voice coil |
| LF transducer | 5.25-inch paper cone woofer, 1-inch voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| X-Mount material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Product dimensions (HWD) | 11.3 x 6.9 x 6.8 in (286 x 175 x 174 mm) |
| Shipping weight | 20.2 lbs / 9.2 kg (pair packed) |
| Shipping dimensions (HWD) inches | 15.9 x 10.3 x 18.3 in (405 x 262 x 465 mm) |
| Included accessories | X-Mount mounting system, Euroblock connector, input panel cover |
