QSC AD-S6 Two-Way 6-Inch Surface Mount Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
QSC AD-S6 Two-Way 6-Inch Surface Mount Loudspeaker (White)
Sale price$455.00
Description
Priced individually, but sold in pairs.
AcousticDesignª surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mountª system and weather input cover.
Features:
- 6.5-inch weather treated woofer
- 105 deg. conical DMT coverage
- Maximum peak SPL 116 dB (16 ohm)
- DMT (Directivity Matched Transitionª) ensures smooth, uniform frequency response over the coverage area

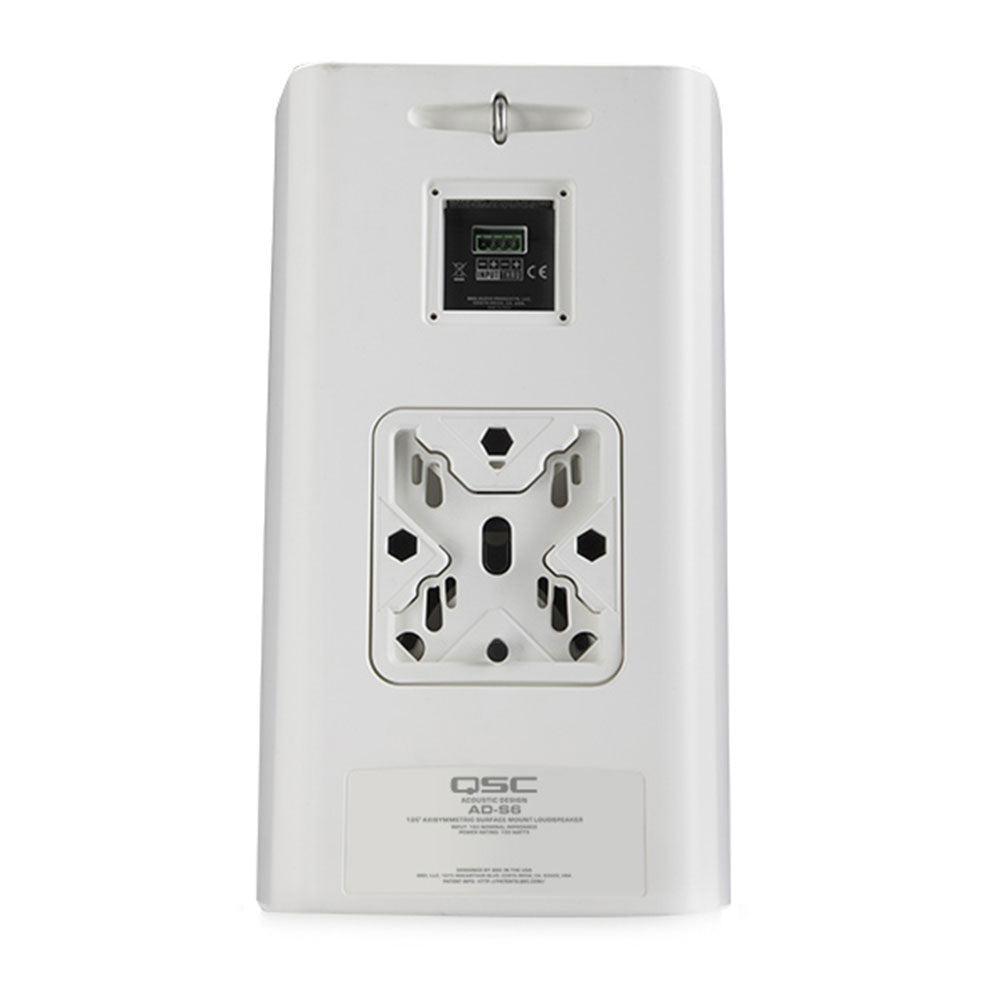

- X-Mountª system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionª, available through either Q-SYS processing or CXD amplifier platforms
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| HF transducer | 1" silk dome tweeter / 1" voice coil, horn loaded |
| LF transducer | 6.5" weather treated paper cone woofer 1.5" / 38 mm voice coil |
| Effective frequency range1,2,3,8 | 58 Hz - 20k Hz |
| Rated noise power / voltage6 | 150 W / 49 V (rms) |
| Broadband sensitivity2,3,4,8 | 89 dB SPL |
| Coverage angle (-6 dB)2,5,8 | 105 deg. conical DMT |
| Directivity factor (Q)2,5,8 | 5 |
| Directivity Index | 7 dB |
| Maximum continuous SPL7 | 110 dB |
| Maximum peak SPL7 | 116 dB |
| Rated impedance | 16 ohm |
| Recommended amplifier power | 300 W |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD-S6 Series loudspeakers qualified for outdoor use using the following tests:
|
| Operarating temperature range | -20 to 50 deg.C / -4 to 122 deg.F |
| Net weight | 11.6 lb / 5.26 kg |
| Product dimensions (HWD) inches | 14.4 x 8.5 x 8.5 |
| Product dimensions (HWD) mm | 365 x 215 x 215 |
| Shipping weight | 28.7 lb / 13.02 kg (pair packed) |
| Shipping dimensions (HWD) inches | 20 x 12 x 23 (pair packed) |
| Shipping dimensions (HWD) mm | 510 x 305 x 585 (pair packed) |
| Included accessories | Patented X-Mount» mounting system, Euroblock connector, input panel cover |
Priced individually, but sold in pairs.
AcousticDesignª surface loudspeakers offer a variety of models specifically tailored for demands of higher fidelity applications. Designed for clarity and presence, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mountª system and weather input cover.
Features:
- 6.5-inch weather treated woofer
- 105 deg. conical DMT coverage
- Maximum peak SPL 116 dB (16 ohm)
- DMT (Directivity Matched Transitionª) ensures smooth, uniform frequency response over the coverage area
- X-Mountª system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced voicing filter sets using QSC Intrinsic Correctionª, available through either Q-SYS processing or CXD amplifier platforms
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance
- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
| HF transducer | 1" silk dome tweeter / 1" voice coil, horn loaded |
| LF transducer | 6.5" weather treated paper cone woofer 1.5" / 38 mm voice coil |
| Effective frequency range1,2,3,8 | 58 Hz - 20k Hz |
| Rated noise power / voltage6 | 150 W / 49 V (rms) |
| Broadband sensitivity2,3,4,8 | 89 dB SPL |
| Coverage angle (-6 dB)2,5,8 | 105 deg. conical DMT |
| Directivity factor (Q)2,5,8 | 5 |
| Directivity Index | 7 dB |
| Maximum continuous SPL7 | 110 dB |
| Maximum peak SPL7 | 116 dB |
| Rated impedance | 16 ohm |
| Recommended amplifier power | 300 W |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details | |
| Ingress protection | IP-54 |
| Operating environment | Designed for indoor and outdoor use |
| Testing | The AD-S6 Series loudspeakers qualified for outdoor use using the following tests:
|
| Operarating temperature range | -20 to 50 deg.C / -4 to 122 deg.F |
| Net weight | 11.6 lb / 5.26 kg |
| Product dimensions (HWD) inches | 14.4 x 8.5 x 8.5 |
| Product dimensions (HWD) mm | 365 x 215 x 215 |
| Shipping weight | 28.7 lb / 13.02 kg (pair packed) |
| Shipping dimensions (HWD) inches | 20 x 12 x 23 (pair packed) |
| Shipping dimensions (HWD) mm | 510 x 305 x 585 (pair packed) |
| Included accessories | Patented X-Mount» mounting system, Euroblock connector, input panel cover |
