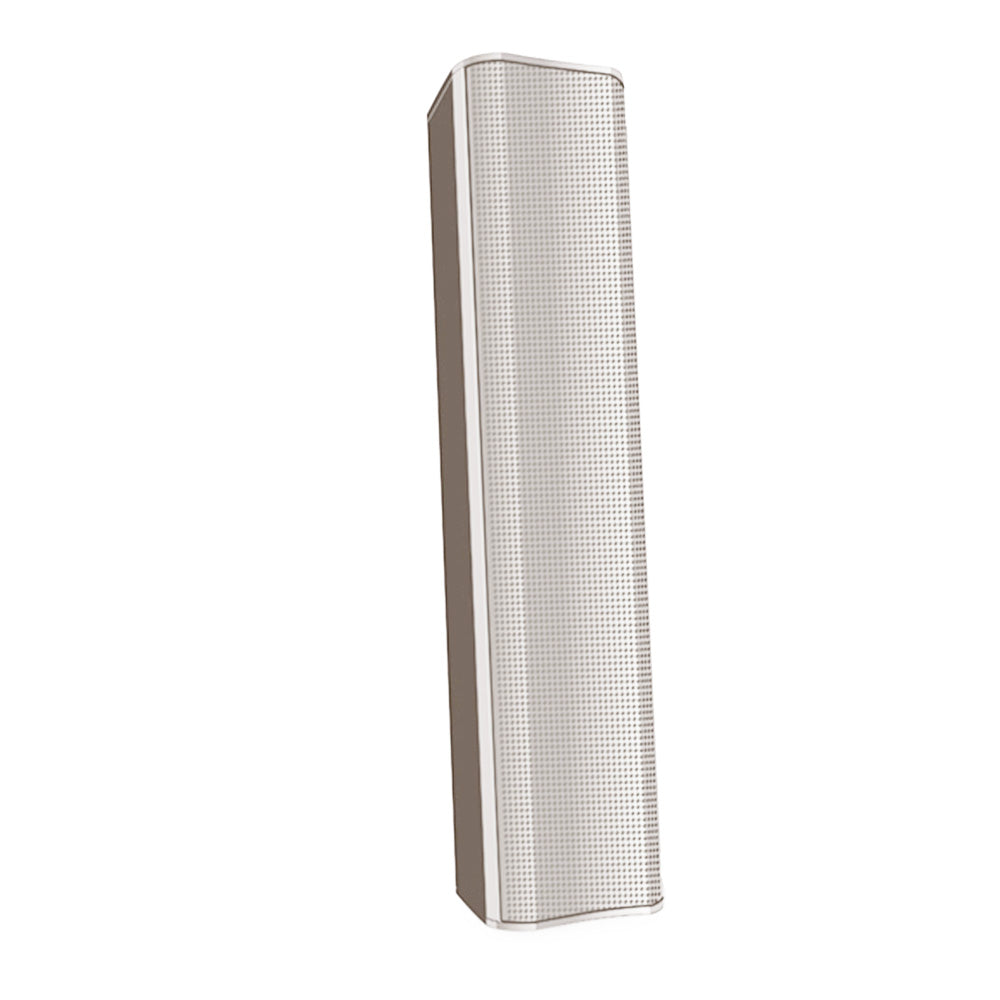

QSC AD-S802T Surface-Mount Column Loudspeaker (White)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The all-new AcousticDesign™ Series AD-S802T is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features:
- Deliberately unobtrusive industrial design.
- Available in white (RAL 9010) or black (RAL 9011).
- Paintable enclosure and grill.
- Complete EASE, CLF, CAD & BIM information.
- Rugged aluminum construction.
- UV Inhibitors in all white models.
- IP-54 rating for dust and splash resistance.
- Powder-coated grills and weather-treated cones.
- Close to wall pan/tilt bracket included.
- Low saturation 70/100V transformers.
- 8 ohm low impedance bypass.
- Screw-down Euro block connector with loop-through.
- Sealable input weather cup – keeps moisture away from wiring.
Effective frequency range |
200 Hz Ð 17K Hz |
Power Capacity |
120 W |
System Sensitivity |
89 dB |
Coverage Angle Horizontal (-6dB) |
150¡ (800 Hz - 5K Hz) |
Coverage Angle Vertical (-6 dB) |
15¡ (3.5 Hz - 17K Hz) |
Output 4 |
116 |
Driver Information |
(x8) 2.5" weather resistant paper cone woofer |
Rated Impedance |
8 ohm |
Input Connectors |
4-pin Euro terminal |
Enclosure |
Aluminum |
Ingress Protection |
IP-54 |
Net Weight |
TBD |
The all-new AcousticDesign™ Series AD-S802T is a 8-driver column surface-mount loudspeaker. This premium full range system is capable of 70V/100V or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.
Features:
- Deliberately unobtrusive industrial design.
- Available in white (RAL 9010) or black (RAL 9011).
- Paintable enclosure and grill.
- Complete EASE, CLF, CAD & BIM information.
- Rugged aluminum construction.
- UV Inhibitors in all white models.
- IP-54 rating for dust and splash resistance.
- Powder-coated grills and weather-treated cones.
- Close to wall pan/tilt bracket included.
- Low saturation 70/100V transformers.
- 8 ohm low impedance bypass.
- Screw-down Euro block connector with loop-through.
- Sealable input weather cup – keeps moisture away from wiring.
Effective frequency range |
200 Hz Ð 17K Hz |
Power Capacity |
120 W |
System Sensitivity |
89 dB |
Coverage Angle Horizontal (-6dB) |
150¡ (800 Hz - 5K Hz) |
Coverage Angle Vertical (-6 dB) |
15¡ (3.5 Hz - 17K Hz) |
Output 4 |
116 |
Driver Information |
(x8) 2.5" weather resistant paper cone woofer |
Rated Impedance |
8 ohm |
Input Connectors |
4-pin Euro terminal |
Enclosure |
Aluminum |
Ingress Protection |
IP-54 |
Net Weight |
TBD |
