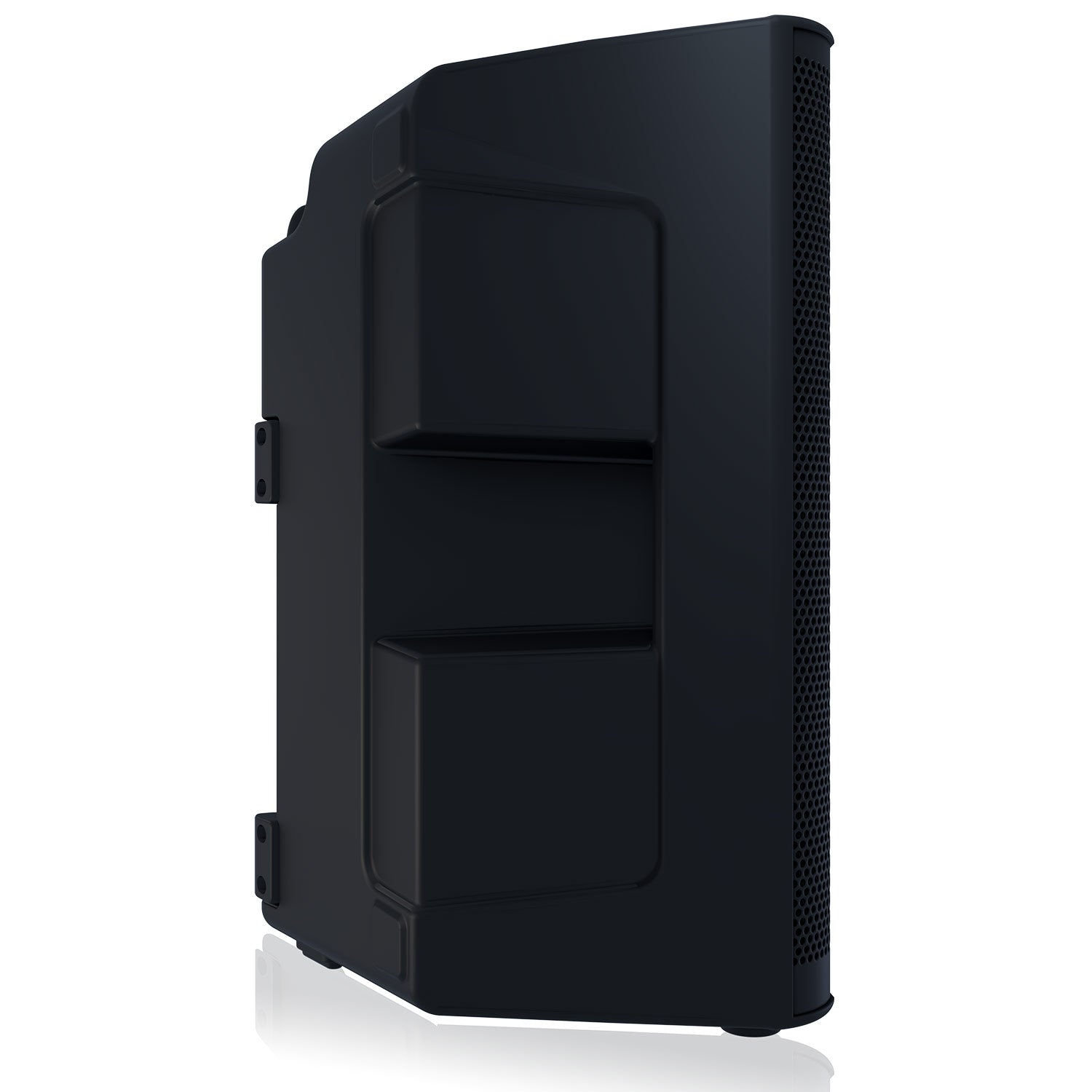

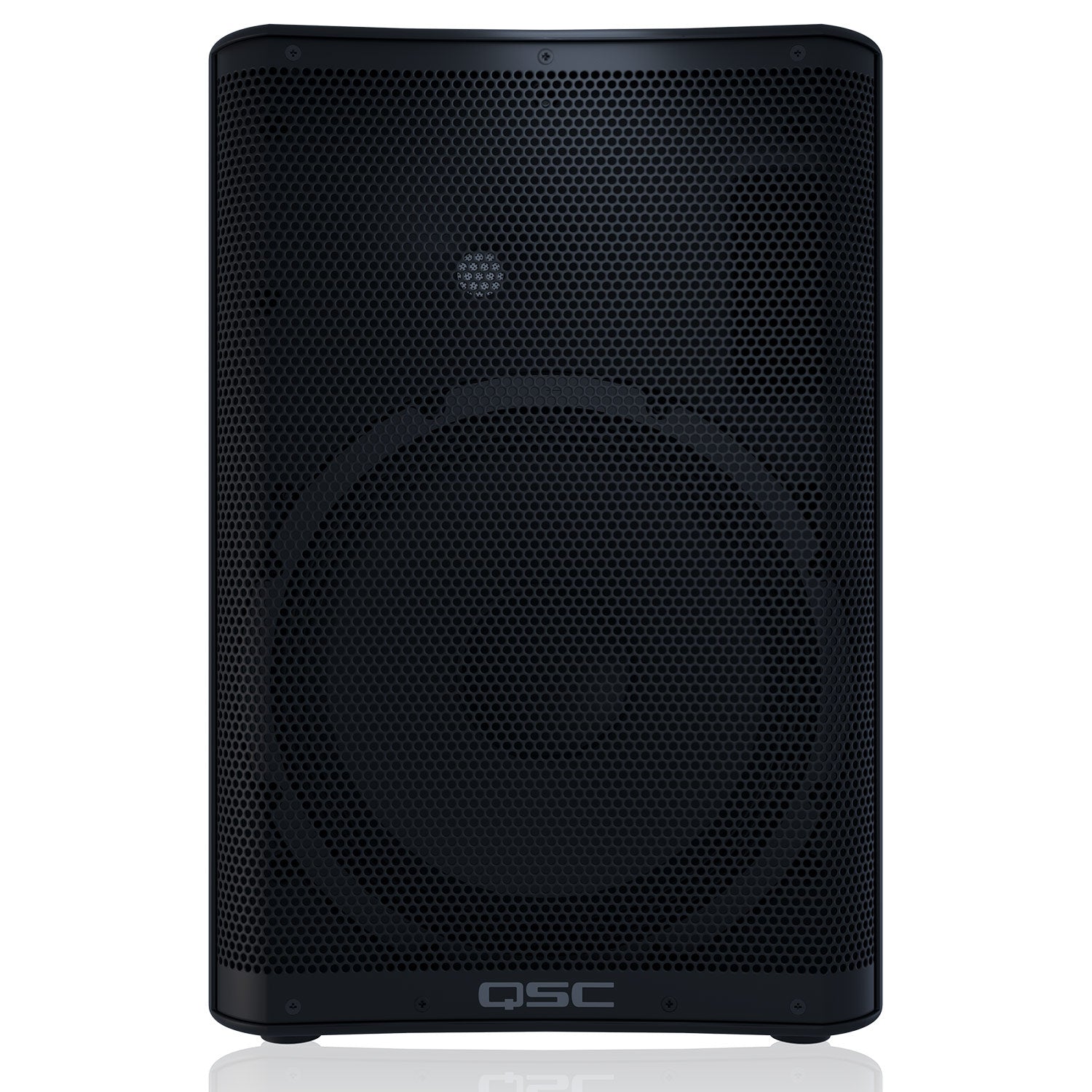

QSC CP12 Two-Way 12-Inch Active Loudspeaker
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The CP Series offers QSC performance, quality and reliability, in a highly compact package. CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selectable contours for commonly used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 3-Year Warranty* (*With product registration. For more information, please visit qsc.com)
CP's 1000-watt power amplifier, matching transducers and advanced DSP deliver stunning performance for such a small loudspeaker. You can mix up to three input sources (mic/line, line and music playback device) making CP a great single-box PA system, or it can be deployed on a speaker pole, as a floor monitor or musical instrument amplifier as part of a larger system. One-touch DSP with preset contours for the most common applications is also provided
| Configuration | Two-way active loudspeaker |
| LF Transducer | 12 in (305 mm), cone |
| HF Transducer | 1.4 in (35.6 mm) compression driver |
| Frequency Response (-6 dB) | 49 - 20 kHz |
| Frequency Range (-10 dB) | 47 - 20 kHz |
| Nominal Coverage Angle | 75¡ Axisymetric |
| Maximum Rated SPL1 | 126 dB |
| Amplifier | Class D |
| Peak | Ê800 W (LF), 200 W (HF) |
| Controls | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators | Power LED 2 x Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors | 2 x locking XLR/F 1/4" combo (Line Input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
| AC Power Input | Universal power supply 100 Ð 240 VAC, 50 Ð 60 Hz |
| AC Power Consumption 1/8th Power | 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
| Enclosure Material | Polypropylene |
| Attachment Points | M10 threaded insert |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel |
| Dimensions (HxWxD) | 20.3 x 13.8 x 12.7 in 516 x 350 x 323 mm |
| Net Weight | 30.3 lbs (13.7 kg) |
| Shipping Weight | 36.3 lbs (16.5 kg) |
| Regulatory | EMC, UL, CB |
| Optional Accessories | CP12 Tote, CP12 Outdoor Cover CP12 Yoke |
The CP Series offers QSC performance, quality and reliability, in a highly compact package. CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selectable contours for commonly used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 3-Year Warranty* (*With product registration. For more information, please visit qsc.com)
CP's 1000-watt power amplifier, matching transducers and advanced DSP deliver stunning performance for such a small loudspeaker. You can mix up to three input sources (mic/line, line and music playback device) making CP a great single-box PA system, or it can be deployed on a speaker pole, as a floor monitor or musical instrument amplifier as part of a larger system. One-touch DSP with preset contours for the most common applications is also provided
| Configuration | Two-way active loudspeaker |
| LF Transducer | 12 in (305 mm), cone |
| HF Transducer | 1.4 in (35.6 mm) compression driver |
| Frequency Response (-6 dB) | 49 - 20 kHz |
| Frequency Range (-10 dB) | 47 - 20 kHz |
| Nominal Coverage Angle | 75¡ Axisymetric |
| Maximum Rated SPL1 | 126 dB |
| Amplifier | Class D |
| Peak | Ê800 W (LF), 200 W (HF) |
| Controls | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators | Power LED 2 x Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors | 2 x locking XLR/F 1/4" combo (Line Input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
| AC Power Input | Universal power supply 100 Ð 240 VAC, 50 Ð 60 Hz |
| AC Power Consumption 1/8th Power | 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
| Enclosure Material | Polypropylene |
| Attachment Points | M10 threaded insert |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel |
| Dimensions (HxWxD) | 20.3 x 13.8 x 12.7 in 516 x 350 x 323 mm |
| Net Weight | 30.3 lbs (13.7 kg) |
| Shipping Weight | 36.3 lbs (16.5 kg) |
| Regulatory | EMC, UL, CB |
| Optional Accessories | CP12 Tote, CP12 Outdoor Cover CP12 Yoke |
