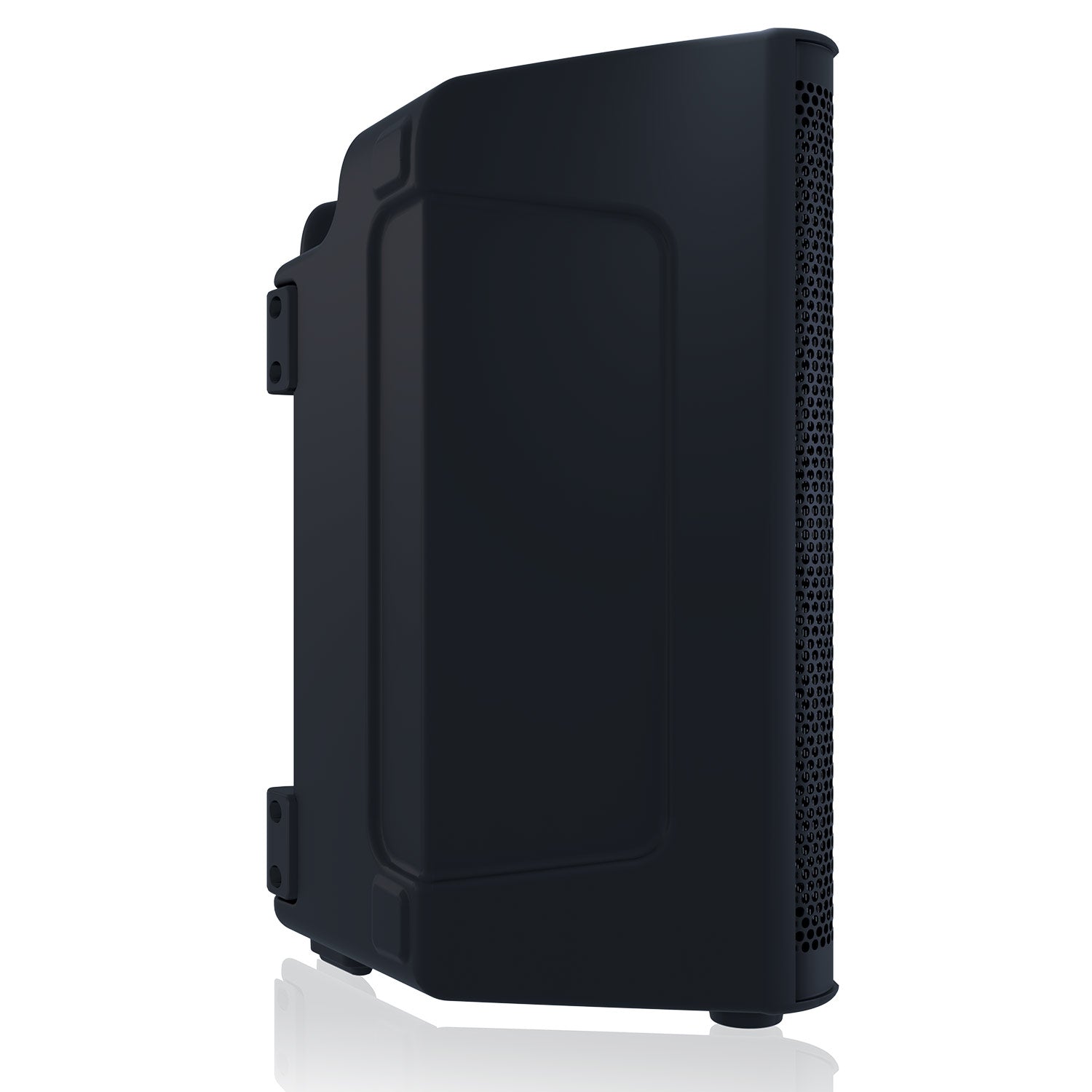

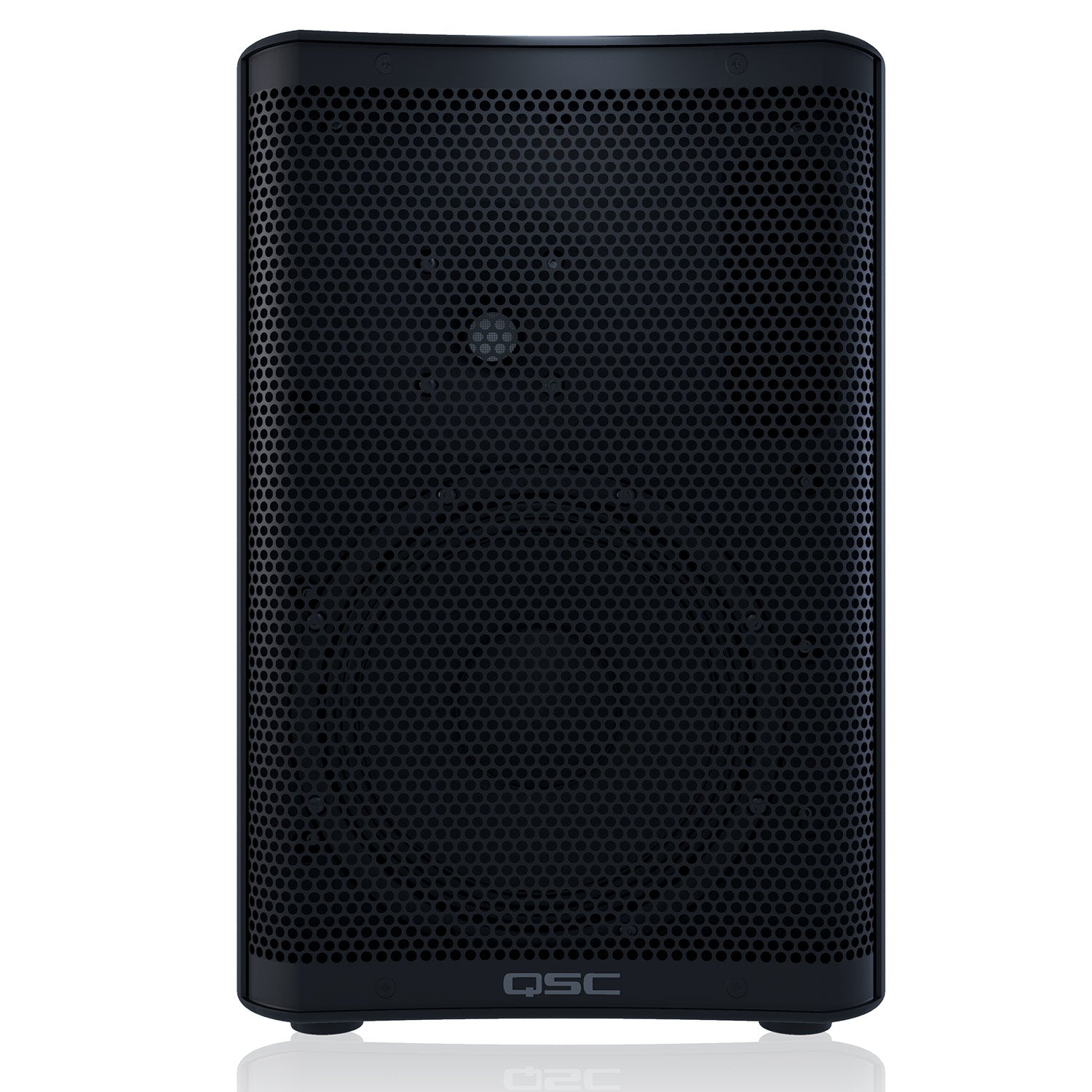

QSC CP8 Two-Way 8-Inch Active Loudspeaker
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CP Series offers QSC performance, quality and reliability, in a highly compact package. CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selectable contours for commonly used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 3-Year Warranty* (*With product registration. For more information, please visit qsc.com)
CP's 1000-watt power amplifier, matching transducers and advanced DSP deliver stunning performance for such a small loudspeaker. You can mix up to three input sources (mic/line, line and music playback device) making CP a great single-box PA system, or it can be deployed on a speaker pole, as a floor monitor or musical instrument amplifier as part of a larger system. One-touch DSP with preset contours for the most common applications is also provided
| Configuration | Two-way active loudspeaker |
| LF Transducer | 8 in (203 mm), cone |
| HF Transducer | 1.4 in (35.6 mm) compression driver |
| Frequency Response (-6 dB) | 56 - 20 kHz |
| Frequency Range (-10 dB) | 53 - 20 kHz |
| Nominal Coverage Angle | 90¡ Axisymetric |
| Maximum Rated SPL1 | 124 dB |
| Amplifier | Class D |
| Peak | Ê800 W (LF), 200 W (HF) |
| Controls | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators | Power LED 2 x Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors | 2 x locking XLR/F 1/4" combo (Line Input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
| AC Power Input | Universal power supply 100 Ð 240 VAC, 50 Ð 60 Hz |
| AC Power Consumption 1/8th Power | 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
| Enclosure Material | Polypropylene |
| Attachment Points | M10 threaded insert |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel |
| Dimensions (HxWxD) | 16.2 x 10.7 x 10.1 in 411 x 273 x 256 mm |
| Net Weight | 21.0 lbs (9.5 kg) |
| Shipping Weight | 25.5 lbs (11.4 kg) |
| Regulatory | EMC, UL, CB |
| Optional Accessories | CP8 Tote, CP8 Outdoor Cover CP8 Yoke |
The CP Series offers QSC performance, quality and reliability, in a highly compact package. CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selectable contours for commonly used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 3-Year Warranty* (*With product registration. For more information, please visit qsc.com)
CP's 1000-watt power amplifier, matching transducers and advanced DSP deliver stunning performance for such a small loudspeaker. You can mix up to three input sources (mic/line, line and music playback device) making CP a great single-box PA system, or it can be deployed on a speaker pole, as a floor monitor or musical instrument amplifier as part of a larger system. One-touch DSP with preset contours for the most common applications is also provided
| Configuration | Two-way active loudspeaker |
| LF Transducer | 8 in (203 mm), cone |
| HF Transducer | 1.4 in (35.6 mm) compression driver |
| Frequency Response (-6 dB) | 56 - 20 kHz |
| Frequency Range (-10 dB) | 53 - 20 kHz |
| Nominal Coverage Angle | 90¡ Axisymetric |
| Maximum Rated SPL1 | 124 dB |
| Amplifier | Class D |
| Peak | Ê800 W (LF), 200 W (HF) |
| Controls | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators | Power LED 2 x Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors | 2 x locking XLR/F 1/4" combo (Line Input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
| AC Power Input | Universal power supply 100 Ð 240 VAC, 50 Ð 60 Hz |
| AC Power Consumption 1/8th Power | 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
| Enclosure Material | Polypropylene |
| Attachment Points | M10 threaded insert |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel |
| Dimensions (HxWxD) | 16.2 x 10.7 x 10.1 in 411 x 273 x 256 mm |
| Net Weight | 21.0 lbs (9.5 kg) |
| Shipping Weight | 25.5 lbs (11.4 kg) |
| Regulatory | EMC, UL, CB |
| Optional Accessories | CP8 Tote, CP8 Outdoor Cover CP8 Yoke |
