QSC LA108 - L-Class 8-Inch 2-Way Active Line Array Loudspeaker

  • Dale #:

    QSC-LA108
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The LA108 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package. Delivering extraordinary audio experiences and exceptional performance via syste... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The LA108 is a next-generation, intelligent, active line array loudspeaker featuring a brilliant combination of leading-edge innovation, refined engineering and unparalleled ease of use in an easy-to-deploy package.

Delivering extraordinary audio experiences and exceptional performance via system intelligence and premium components, the LA108 is the result of a deep understanding of customer needs and application requirements. The LA108 is easy to configure and deploy for applications ranging from simple, portable, plug-and-play setups, to demanding, networked, high-tech AV productions and fixed installations. Solo entertainers, installers and production companies will value its intuitive splay angle adjustment and array optimization, as well as its flexible interoperability with networked audio systems (Dante®).

Deployed using dedicated array frame, ground-stacked (array frame combined with optional sub-stack adapters), or mounted using loudspeaker stand/pole, the LA108 loudspeaker also features daisy-chain connections for analog, digital audio and AC power (PowerCON TRUE1).

Features:

  • Purpose-designed, lightweight neodymium 8-inch (203 mm) woofer and 1.75-inch (44 mm) HF compression driver, delivering high, undistorted 134 dB max. peak SPL.
  • Energy efficient, 1300 W peak power Class D amplifier module with Power Factor Correction and extremely low AC consumption.
  • Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (100° H x 15° V) and exceptional throw.
  • Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
  • Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeaker's Rear User Interface (RUI) or QSC System Navigator™ App.
  • QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
  • Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.
  • Network solution includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions.
  • Flown (up to six units with array frame), ground-stacked (up to four LA108 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108) deployment options.
  • Industry-best global 6-Year Extended Warranty with product registration.

More +

Product Specs

Configuration Two-way active line array loudspeaker
LF Transducer 203 mm (8-inch), cone
HF Transducer 44 mm (1.75-inch), compression driver with Polyimide diaphragm
Frequency Response (-6 dB) 62 Hz - 20 kHz
Frequency Range (-10 dB) 57 Hz - 20 kHz
Nominal Coverage Angle 100° H x 15° V
Maximum Rated SPL1 (peak) 134 dB @1 m
Amplifier (peak) Class D, LF 1000 W / HF 300 W
Cooling Convection cooling
Controls Rotary push encoder
2 x Push buttons (Menu, ID)
Display Screen 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
Indicators Power LED
Limiter active LED
Standby active LED
2 x Signal LED

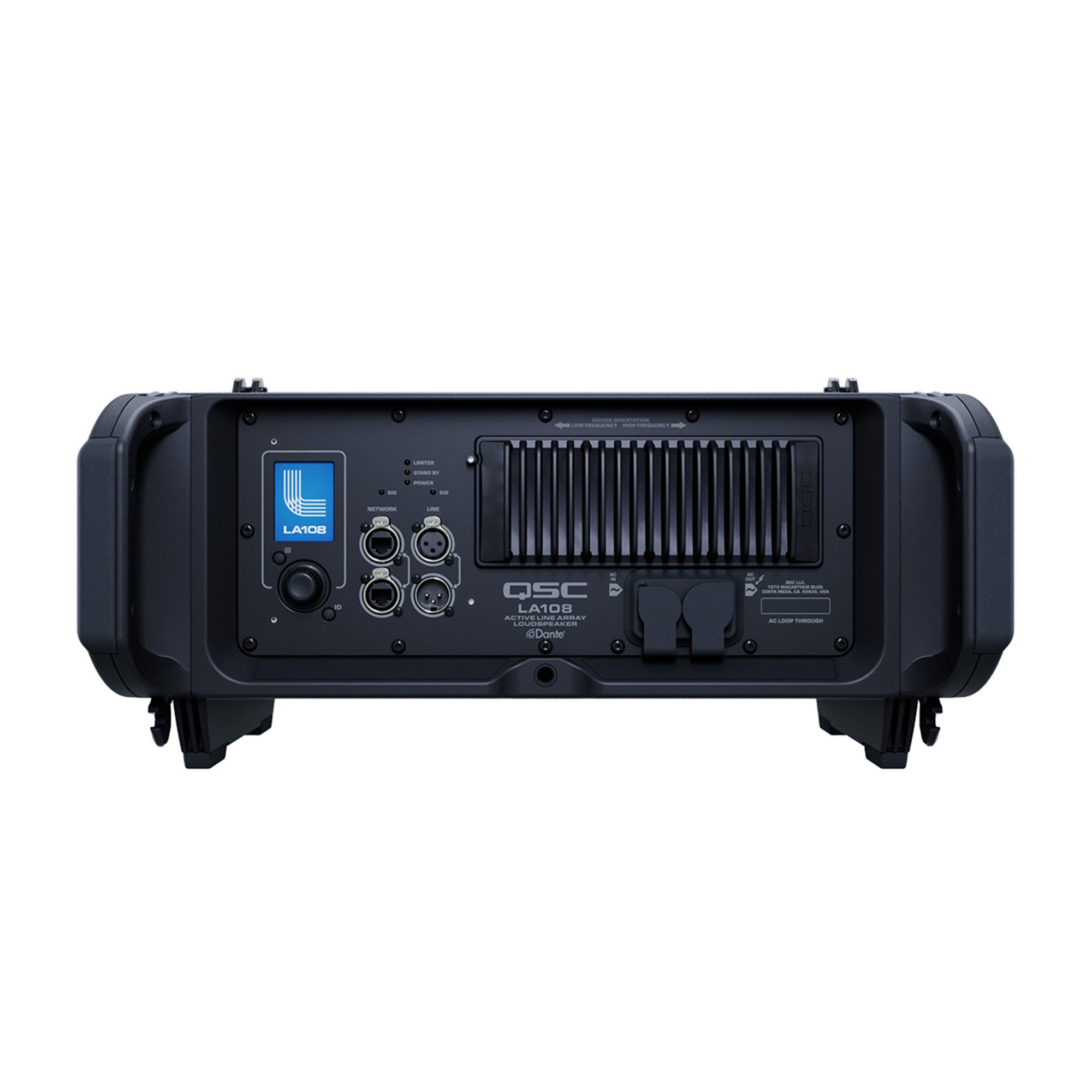

Connectors XLR Female (Analog In)
XLR Male (Analog Thru)
2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru)
2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption2 100 VAC, 0.8 A / 120 VAC, 0.75 A / 230 VAC, 0.5 A
Enclosure Material Impact Resistant ABS
Attachment Points QSC RapidDeploy™ rigging system
1x M10 (on rear panel for pull-back)
Color Black (RAL 9011)
Grille 18 GA Powder coated steel
Dimensions (H × W × D) 272 x 519 x 374 mm
10.7 x 20.4 x 14.7 inches
Net Weight 13.7 kg (30.1 lb)
Shipping Weight 17.1 kg (37.6 lb)
Supplied Accessories 1 x PowerCON TRUE1 power cable
Regulatory UL, CE, FCC Class B

More +
