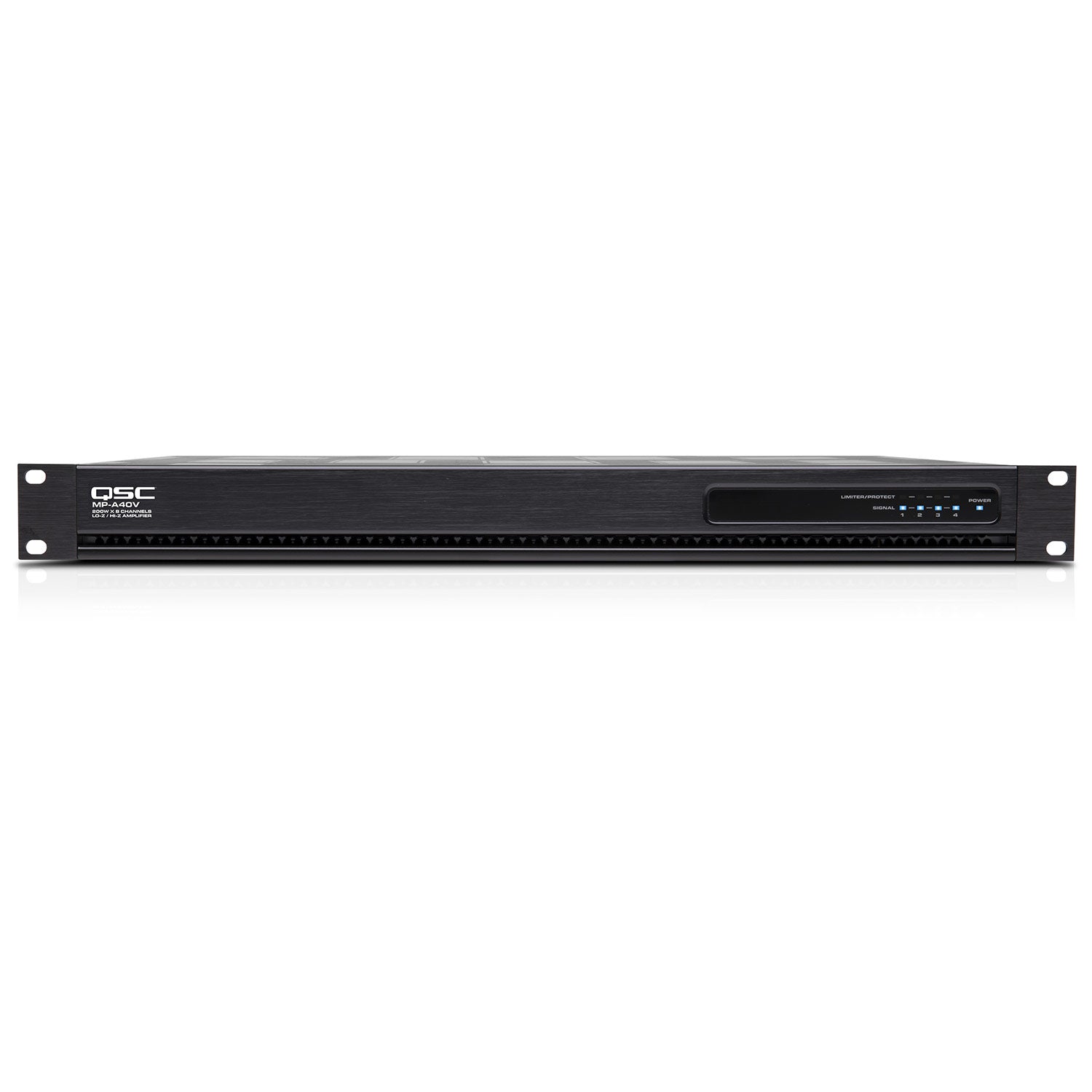

QSC MP-A40V Four-Channel Hi-Z/Low-Z Install Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MP-A Series music and paging amplifiers build on a 50-year legacy of QSC amplifier dependability and quality. The MP-A Series offers an incredible amount of flexibility for business music and paging applications, while maintaining high efficiency and low total cost of ownership.
Features:
- FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio
- Class-D output circuitry and switchmode power supply for high efficiency and low cost of ownership
- 1RU amplifier design for rack space savings
- Load selector for driving 4 Ω, 8 Ω, 70 V or 100 V on each channel
- Selectable 80 Hz highpass filter offered on each channel
- Power saving features - Auto-standby (after 28 minutes with seamless auto-ramp when signal returns) and remote standby input
- Amp status remote output
- Rock-solid QSC amplifier dependability
FlexAmp Technology
FlexAmp Technology allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio.
Hi-Z / Lo-Z
Each channel can be quickly configured to drive 4 Ω, 8 Ω, 70 V or 100 V on each channel.
Highpass Filter
The MP-A Series includes switchable 80 Hz high-pass filter on each output channel.
Power Efficient
MP-A Series amplifiers are extremely efficient with Class-D output circuitry and switchmode power supply.
Space Efficient
MP-A Series come in a 1RU chassis and are perfect for installations with rack space limitations.
| Channels | 4 |
Power (all channels driven) |
|
| FlexAmp Technology | Allows each pair of amplifier channels to deliver up to 400 W total power, in any ratio |
| Frequency response at 8 ½ | 20 Hz Ð 20 kHz +/- 0.5 dB |
| Signal to Noise | > 103 dB |
| Input sensitivity | 1.23 V (+4 dBu) |
| Gain at 8 ½ | 30.0 dB |
| Output circuitry | Class D |
| Input impedance | >10k, balanced or unbalanced |
| Maximum input level | 12.3 V (+24 dBu) |
Cooling |
|
Connectors Input connectors Remote connectors Output connectors |
Four 3.5mm Euro, 3-pin (green) One 3.5mm Euro, 5-pin (black) Two 5.0mm Euro, 4-pin (green) |
| Front panel indicators | Power, signal (per channel), limit / mute / protect (per channel) |
| Rear panel indicators | Bi-Color LED signal / limit/ mute/ protectÊ |
| User-configurable operating modes (per channel) |
DIP switch selectable, low impedance 4 ½ or 8 ½,Ê high impedance direct drive 70 V or 100 V |
| Remote I/O | Remote standby, amplifier status enunciation on 3.5 mm connectors |
| Highpass filter | 80 Hz DIP switch engaged per channel |
| Dimensions | 1.75 in x 19 in x 14.8 in (44 mm x 483 mm x 377 mm) |
| Net weight | 9.3 lb (4.2 kg) |
| Shipping weight | 13.9 lb (6.3 kg) |
| Power requirements | Universal power supply (with active power factor correction),Ê 100 Ð 240 VAC, 50 -60 Hz |
| Agency approvals | UL, CE, RoHS/WEEE compliant,Ê FCC class B (conducted and radiated emissions) |
| Carton contents | IEC cable, quick start guide, connector pack |
