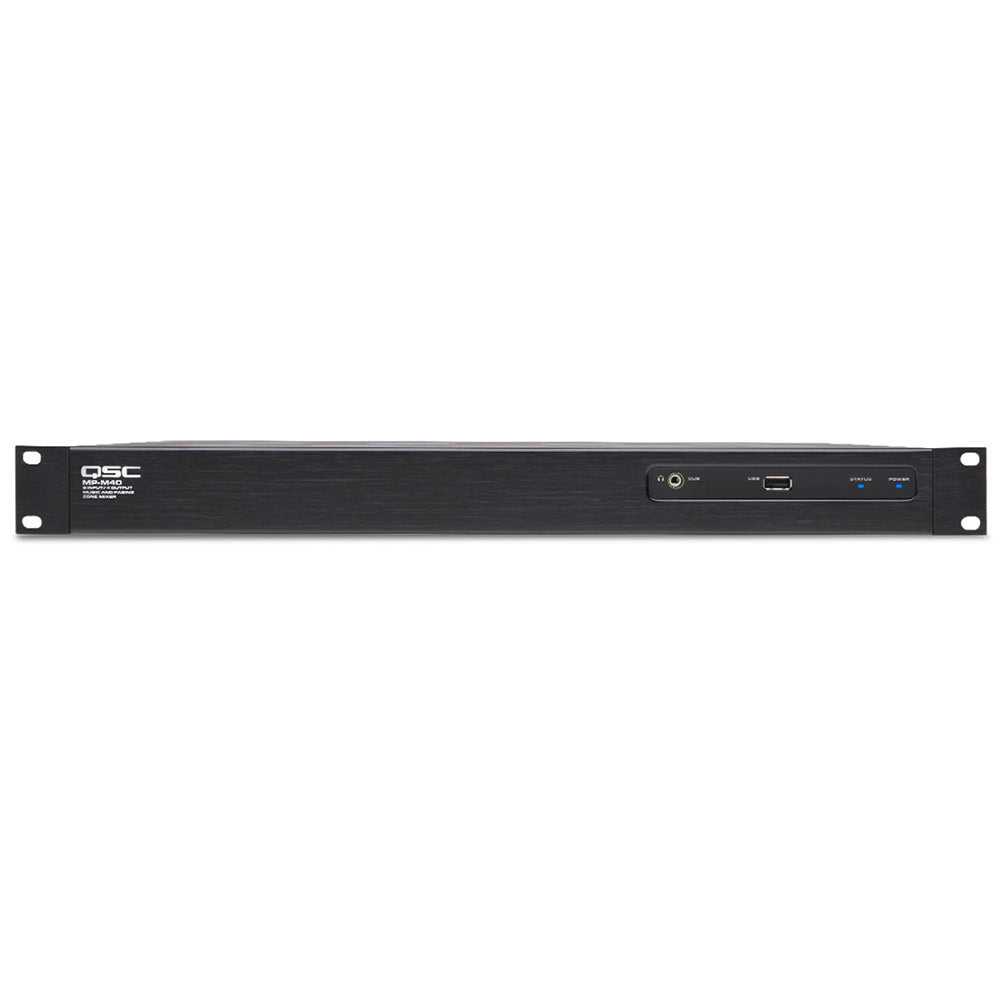

QSC MP-M40 - 8-Input 4-Output Music and Paging Mixer


  • Dale #:

    QSC-MPM40
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The QSC MP-M music and paging mixers are fixed architecture mixer/processors offering unprecedented capabilities combined with ease of configuration and operation. The products are intended for retail and hospitality applications in which high-quality audio from various sources is routed to multiple zones. Live mixing functions are also supported for applications requiring reinforcement of entertainment, presentations or conferences.

Features:

  • Easy configuration and design: MP Install app gives you an attractive graphic user environment with an intuitive workflow and controls that make it simple to manage all the inputs and outputs.
  • Workflow Wizard: Helps the installer keep track of tasks and easily navigate the mixer.
  • QSC loudspeaker voicings: Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.
  • Customized control level: Fine tune controls to allow as much or as little as the installation requires on the available MP-M Series control peripherals.
  • Wired/wireless control options: Use optional MP-MFC wall-mounted controllers with graphic display to control zone source and level or recall presets. MP Manage app expands these control options with wireless, more granular controls. In both cases, facility staff may be restricted to only those controls that they are authorized to use.
  • Complimentary aesthetics: MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.


Easy configuration and design
MP Install provides the system designer and installer an attractive graphic environment and intuitive workflow to configure and tune the system.

Workflow Wizard
Helps the installer keep track of tasks and easily navigate the mixer.

QSC Loudspeaker Voicings
Apply Intrinsic Correction™ (factory FIR/IIR presets) to QSC loudspeakers to maximize the performance and value of the system.

Customized End-User Control
Controls are easily customized to give facility staff as much or as little control as is needed.

User Control Options
The available MP-MFC wired, wall-mounted controllers with graphic display control source selection, level and preset recall. Or control the system from smartphones and tablets using the MP Manage app.

Complementary Aesthetics
MP-M Series mixers match the appearance aesthetic of the QSC MP-A Series music and paging amplifiers for an installation that looks as good as it sounds.

MP-MFC Controllers
The MP-MFC Controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. They provide multi-zone source selection, scene selection and volume control. Designers can configure these peripherals to provide end users with as much or as little control over the system as needed.

MP Install for PC or Tablet
This app allows system designers and installers to quickly and easily design and configure systems for MP-M Series mixers. This wireless control features an intuitive Workflow Wizard to navigate through room tuning and speed commissioning.

MP Manage for Smartphone
For wireless control, the MP Manage provides end users day-to-day operation of basic system functions including zone level, source selection, scene recall, scheduling, and mixer control. It also offer a unique store-and-forward zone paging functionality to the MP-M Series mixer.

More +

Product Specs

Inputs
Total 8
Mic/Line 4 (Euroblock)
RCA 4 (mono-summed RCA pairs)
Outputs
Total 6
Line 4 (Euroblock, balanced)
Music on Hold 1 (Euroblock, transformer balanced)
Cue (phones) 1 (3.5 mm, stereo)
Input Processing
EQ 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
Dynamics Gate, choice of Auto Gain Control (AGC) or Compressor
Output Processing
EQ 1/3 octave GEQ
Anti-feedback Filters 12-band variable notch filters
Dynamics Comp/limiter, ducker, loudness
Delay 100 msec
Loudspeaker tunings Factory: Intrinsic Correction™ voicing for QSC loudspeakers
User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)
Effects & RTA
Effects 1 multi-effects processor
RTA 1/3 octave RTA
Control Accessories
MP-MFC Optional wall controller
MP Install app For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs),
MP Manage app For end user control functions (for iOS/Android tablets and smartphones)

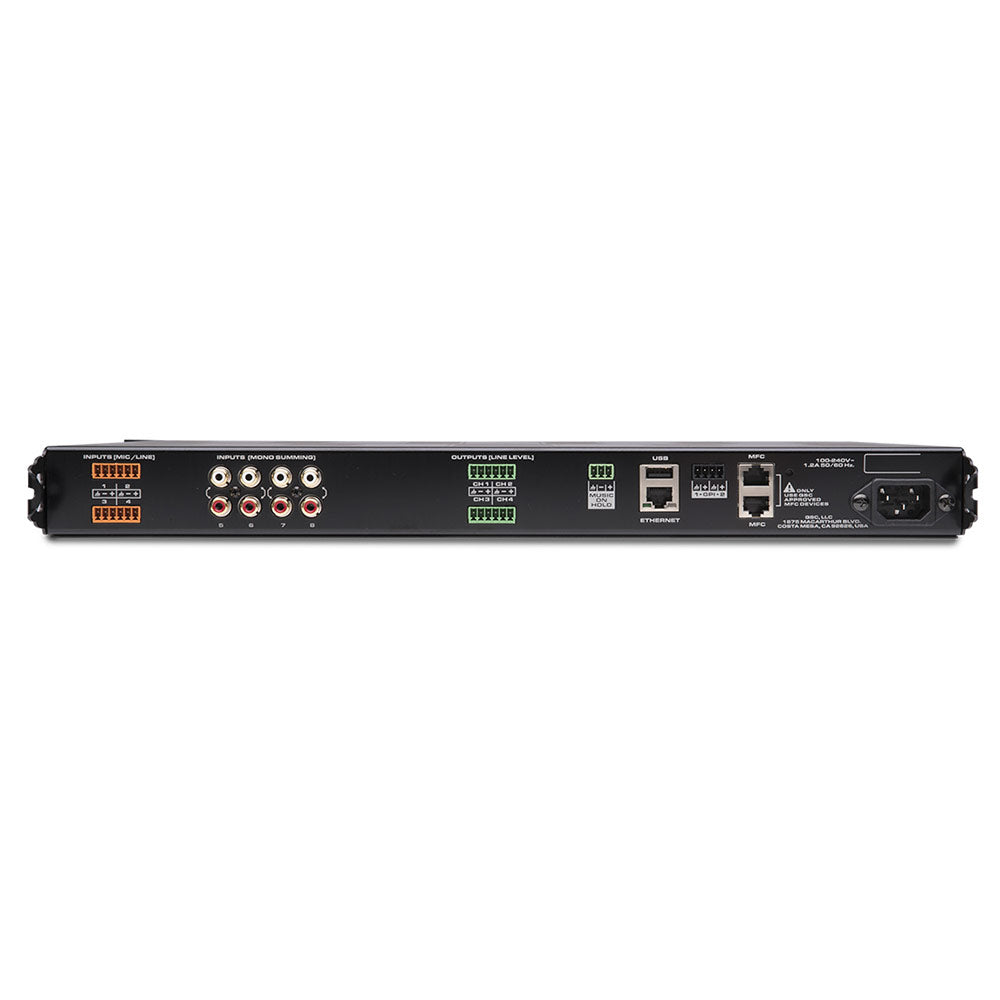

Other Connections
Ethernet 1 x RJ45 for connection to Wi-Fi router (user supplied)
MP-MFC ports 2 x RJ45
GPI 2 Inputs (Euroblock)
Net Dimensions (HWD) 1.75-inch x 19-inch x 14-inch (4.5 cm X 48.3 cm X 35.6 cm)
Weight - Shipping 11.0 lb (5.0 kg)
Weight - Net 7.0 lb (3.2 kg)
Phantom Power All microphone inputs (+12 volts)
Power Requirements TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
Indicators Blue POWER LED, blue STATUS LED
