QSC MP-MFC-NA-BK - Wall-Mount Controller for MP-M Series Mixers (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

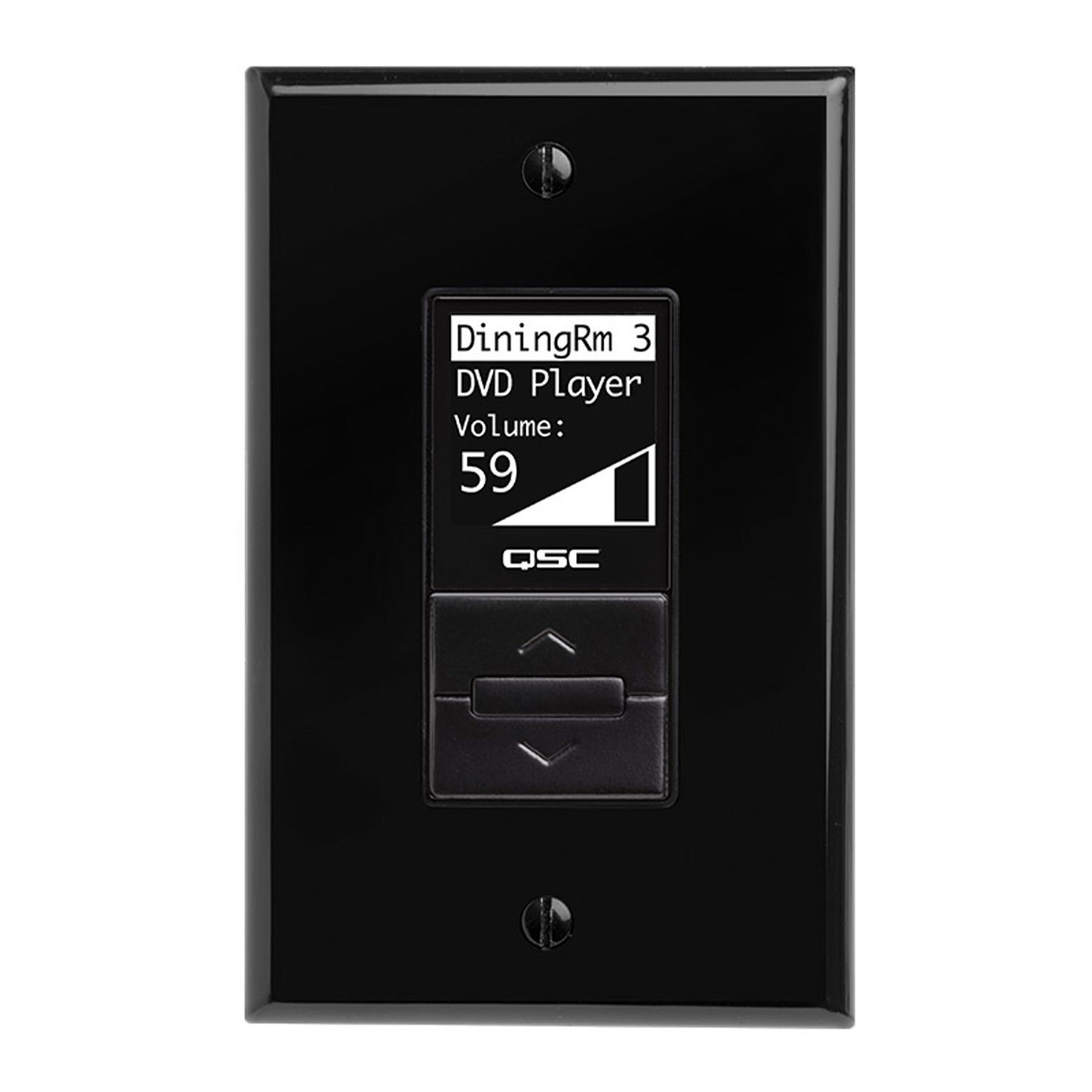

The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
Features:
- For use with the MP-M paging and music mixer/processor only
- Control zone source selection, zone output level, input level selection and scene recall
- Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
- Ability to daisy chain up to four MP-MFC controllers
- Up to 250 m cable length (CAT5)
- Up to eight MP-MFC controllers per MP-M Series mixer
- Available in black or white
- Available in NA and EU sizes
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2_ RJ45 |
| Display | 128 _ 128 pixels, 27 (L) _ 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions | MP-MFC-NA-BK Ð North American version, black MP-MFC-NA-WH Ð North American version, white MP-MFC-EU-BK Ð European version, black MP-MFC-EU-WH Ð European version, white |
| Dimensions (H_W_D) North American versions |
114 _ 7 _ 35 mm 4.5Ê_ 2.75Ê_ 1.4 in |
| Dimensions (H_W_D) European versions |
89 _ 89 _ 36 mm 3.5 _ 3.5 _ 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
Features:
- For use with the MP-M paging and music mixer/processor only
- Control zone source selection, zone output level, input level selection and scene recall
- Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
- Ability to daisy chain up to four MP-MFC controllers
- Up to 250 m cable length (CAT5)
- Up to eight MP-MFC controllers per MP-M Series mixer
- Available in black or white
- Available in NA and EU sizes
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2_ RJ45 |
| Display | 128 _ 128 pixels, 27 (L) _ 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions | MP-MFC-NA-BK Ð North American version, black MP-MFC-NA-WH Ð North American version, white MP-MFC-EU-BK Ð European version, black MP-MFC-EU-WH Ð European version, white |
| Dimensions (H_W_D) North American versions |
114 _ 7 _ 35 mm 4.5Ê_ 2.75Ê_ 1.4 in |
| Dimensions (H_W_D) European versions |
89 _ 89 _ 36 mm 3.5 _ 3.5 _ 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
