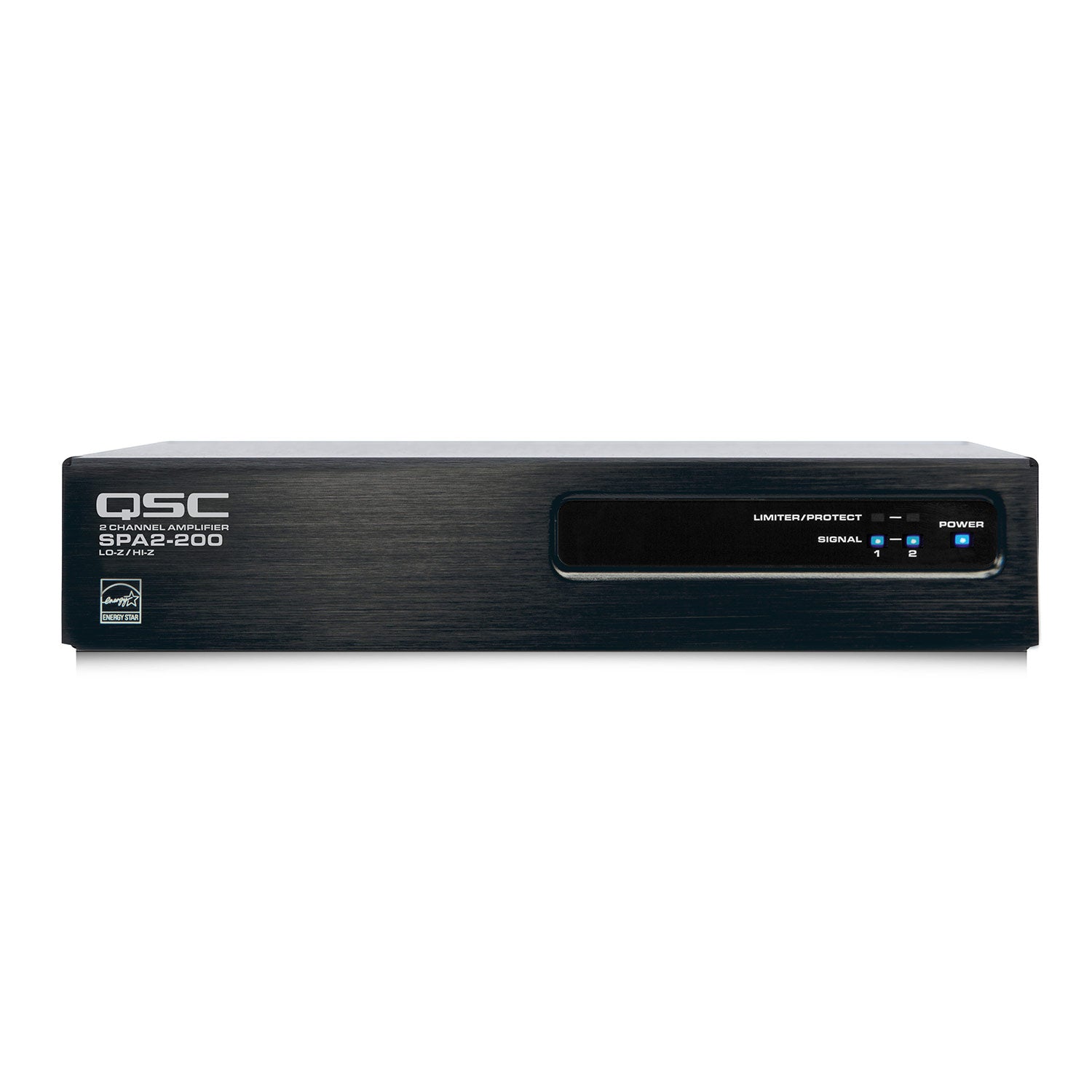

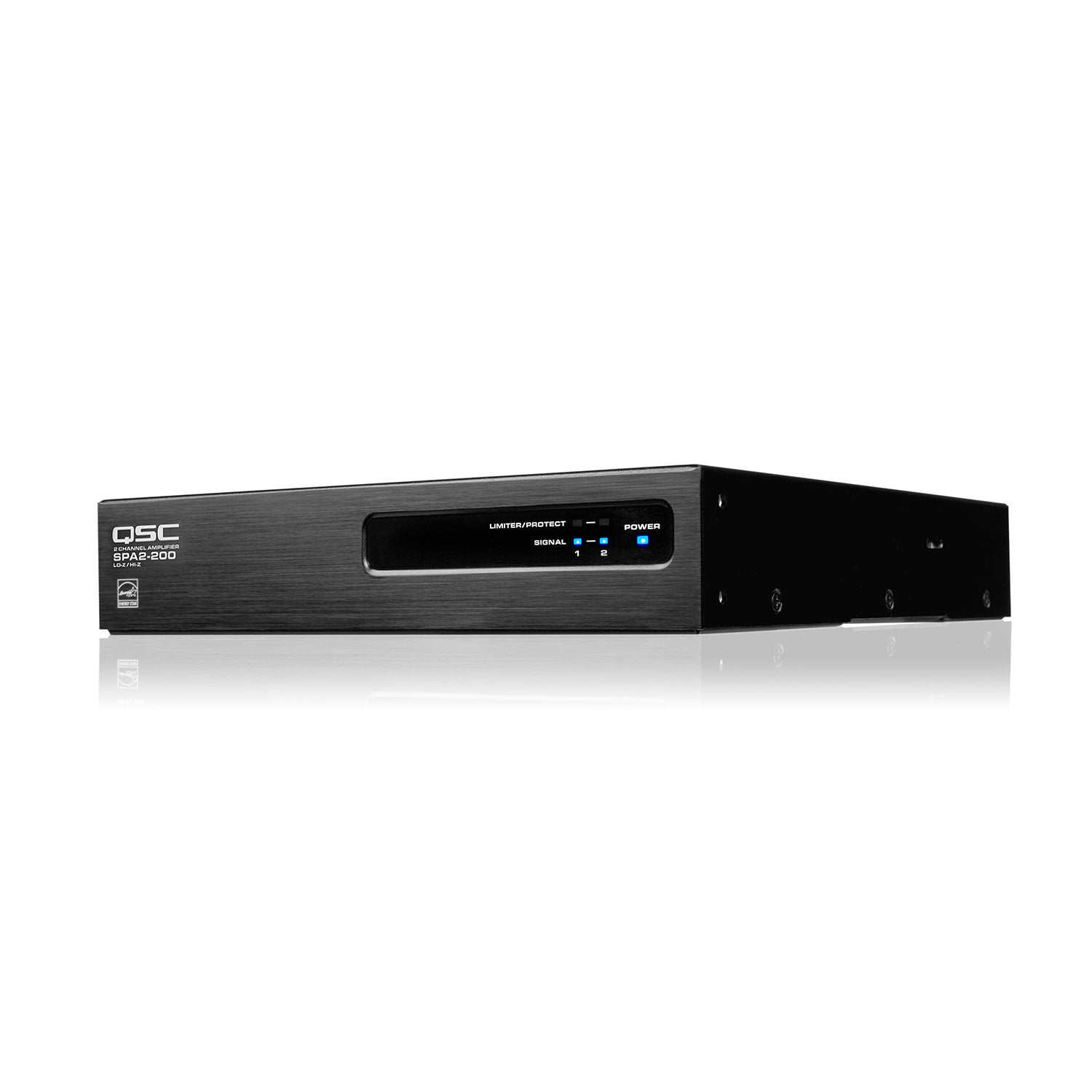

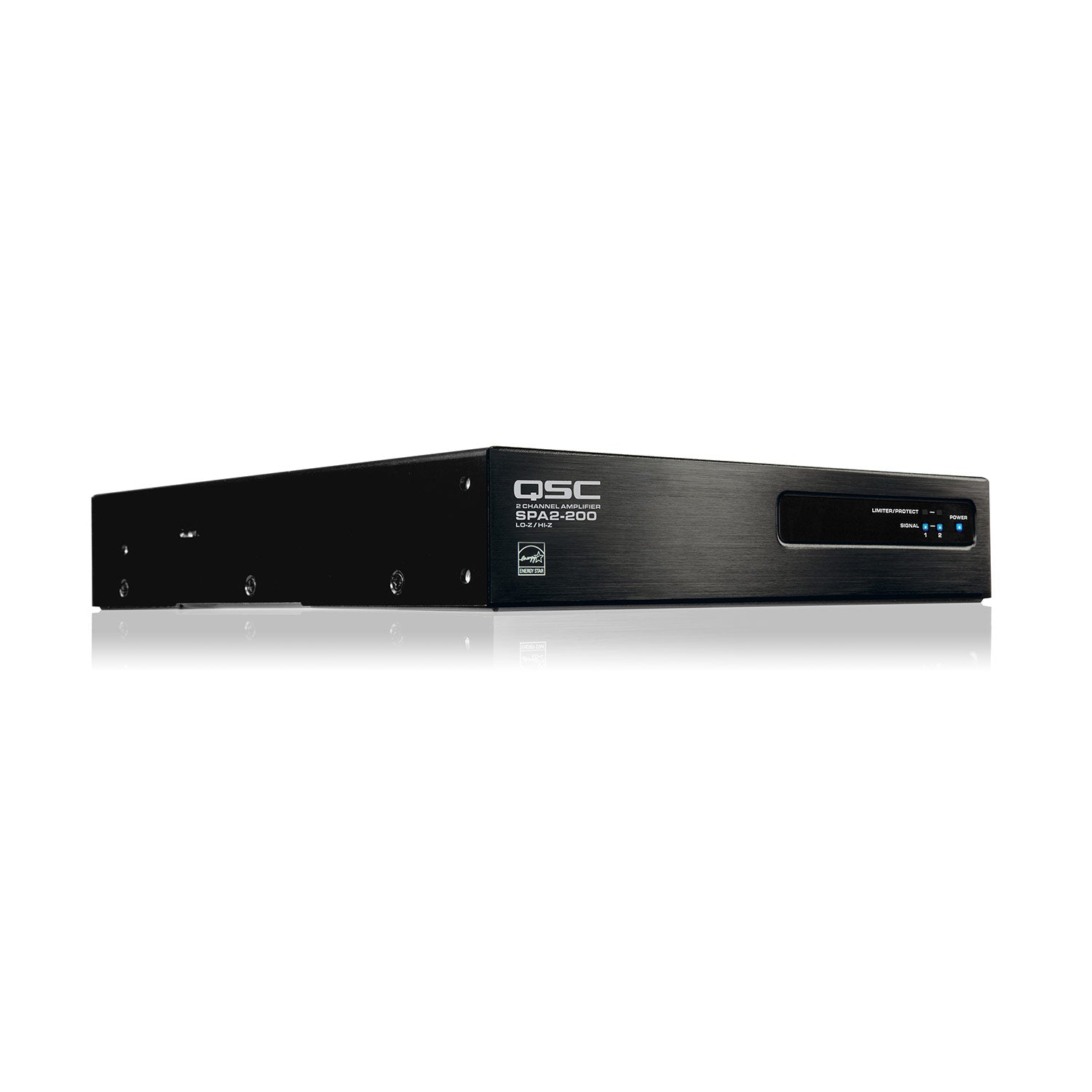

QSC SPA2-200 Two Channel Energy Star Commercial Amplifier

  • Dale #:

    QSC-SPA2200
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

For higher power the SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 400 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

For higher power the SPA2-200 two channel amplifier delivers up to 200 watts rms per channel into 4 or 8 ohms; the two channels can also be bridged providing up to 400 watts rms into 4 or 8 ohms. When the channels are bridged they can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a mono 70V or 100V output. Like the other SPA models, an 80Hz highpass filter is engaged when in 70V or 100V mode.

Features:

  • Up to 200 watts per channel into 4 and 8 ohms - the outputs of the SPA2-200 model are designed to provide up to 200 watts per channel into Low-Z loads.
  • ENERGY STAR® qualified amplifier - The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
  • Bridgeable outputs for higher power - Bridging the outputs of the SPA2-200 will deliver up to 350 watts into 70V or 100V when bridged.
  • Auto-Ramp provides quiet startup and power-down - The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
  • Rack-mountable 1U, half rack width enclosure - The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting


The SPA Series amplifiers from QSC are four half rack 1U, convection cooled power amplifiers delivering two or four channels of up to 200 watts per channel into 4 ohm and 8 ohm. These amplifiers can also be bridged to supply up to 400 watts into 4 ohm and 8 ohm, and up to 350 watts into 70V or 100V loads making them extremely flexible for Low-Z or High-Z applications. Utilizing an advanced Class-D amplifier design and Universal Power Supply the SPA Series are amazingly efficient allowing them to be convection cooled and are ENERGY STAR qualified with quiet auto-ramp standby functionality. The SPA Series amplifiers are housed in an unobtrusive black painted 1/2 RU chassis with unique mounting hardware enabling rack, table and wall mounting capabilities.

More +

Product Specs

Stereo Mode Watts Per Channel
8Ω dynamic, both channels driven 200 W
4Ω dynamic, both channels driven 200 W
Bridged Mode, watts per channel
8Ω & 4Ω 400 W

70V & 100v

350 W

Signal to Noise (A weighted, 20 Hz-20 kHz)

>100 dB

Input Sensitivity

1.23 Vrms (+4 dBu)

Maximum Voltage Gain

25.0 dB

Ouput Circuitry

Class D

Frequency Response (20 Hz - 20 kHz)

Frequency Response (20 Hz - 20 kHz)

Input Impedance

>10 kΩ (balanced), >10 kΩ (unbalanced)

Maximum Input Level

 12.3V (+24 dBu)

Highpass Filter

Switchable 80 Hz when Bridged in 70V & 100V

Front Panel Indicators

Power, per channel Signal, per channel Protect/Limit

Controls

4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair

Dimensions (HWD) inches

1.7 x 8.7 x 9.5 / 1RU

Dimensions (HWD) mm

43 x 220 x 241 / 1RU

Weight (Net)

4.0 lb / 1.4 kg

Weight (Shipping)

6.5 lb / 2.5 kg

Agency Approvals

UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit

Carton Contents

Power cable, quick start guide, connector kit, rack mount ears, mounting brackets
