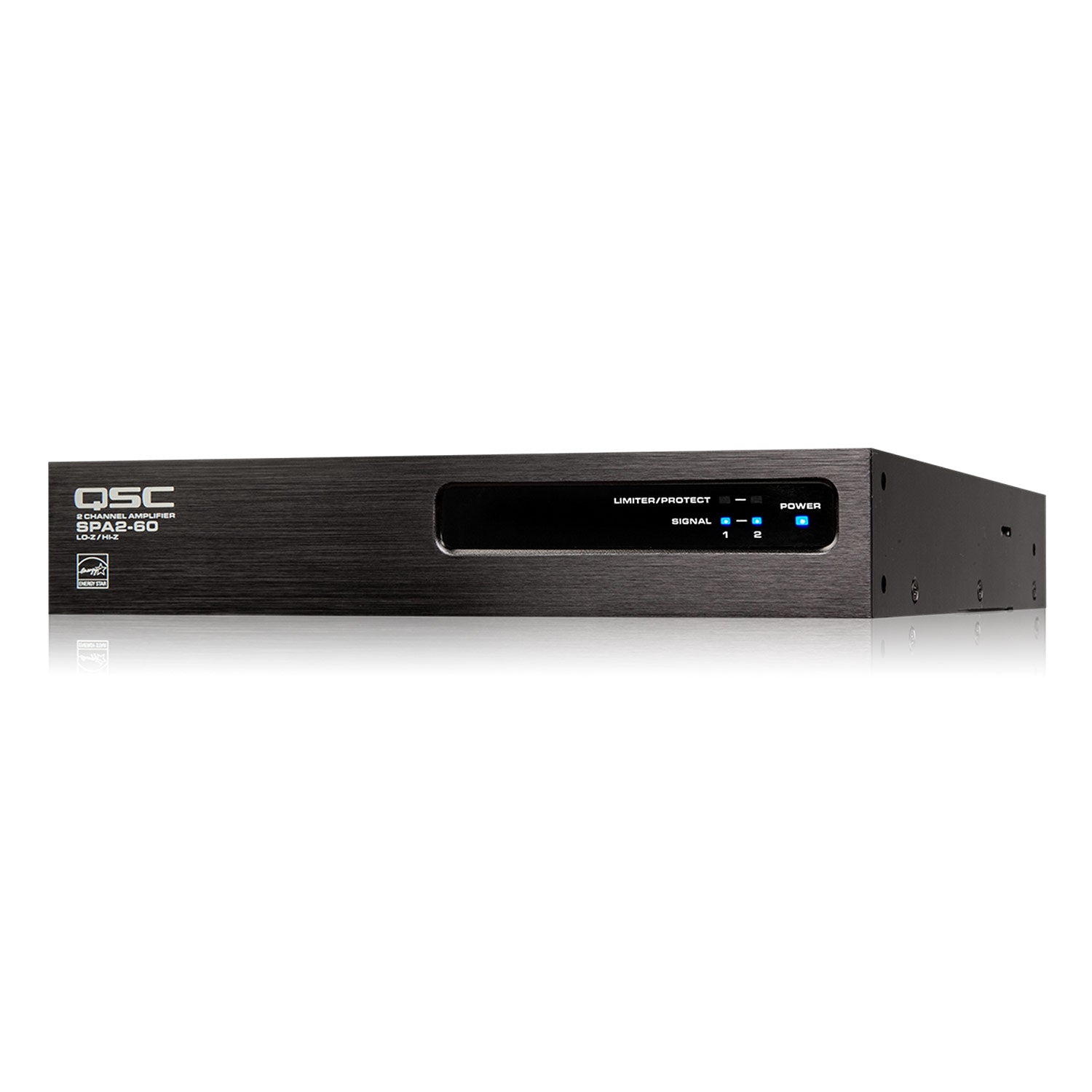

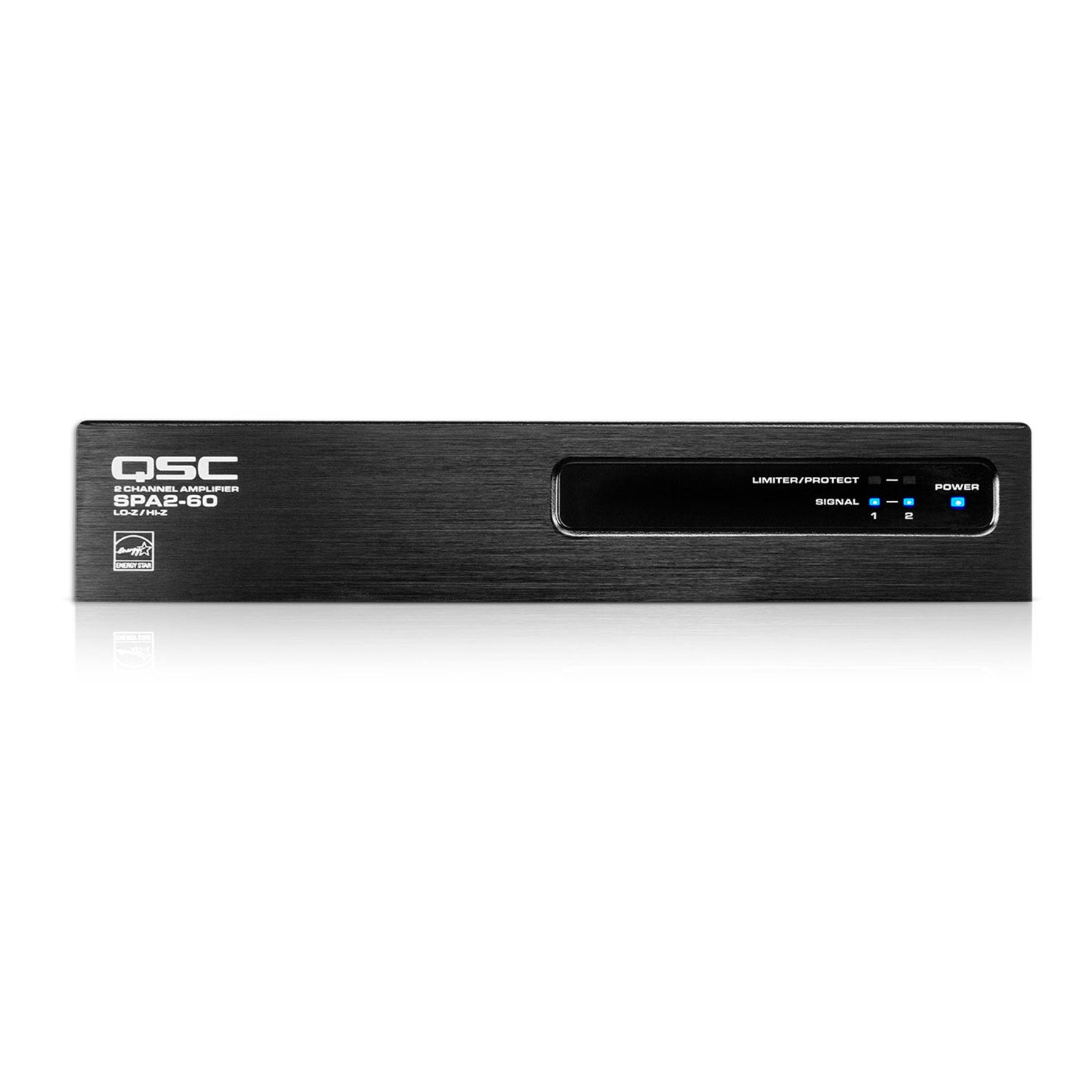

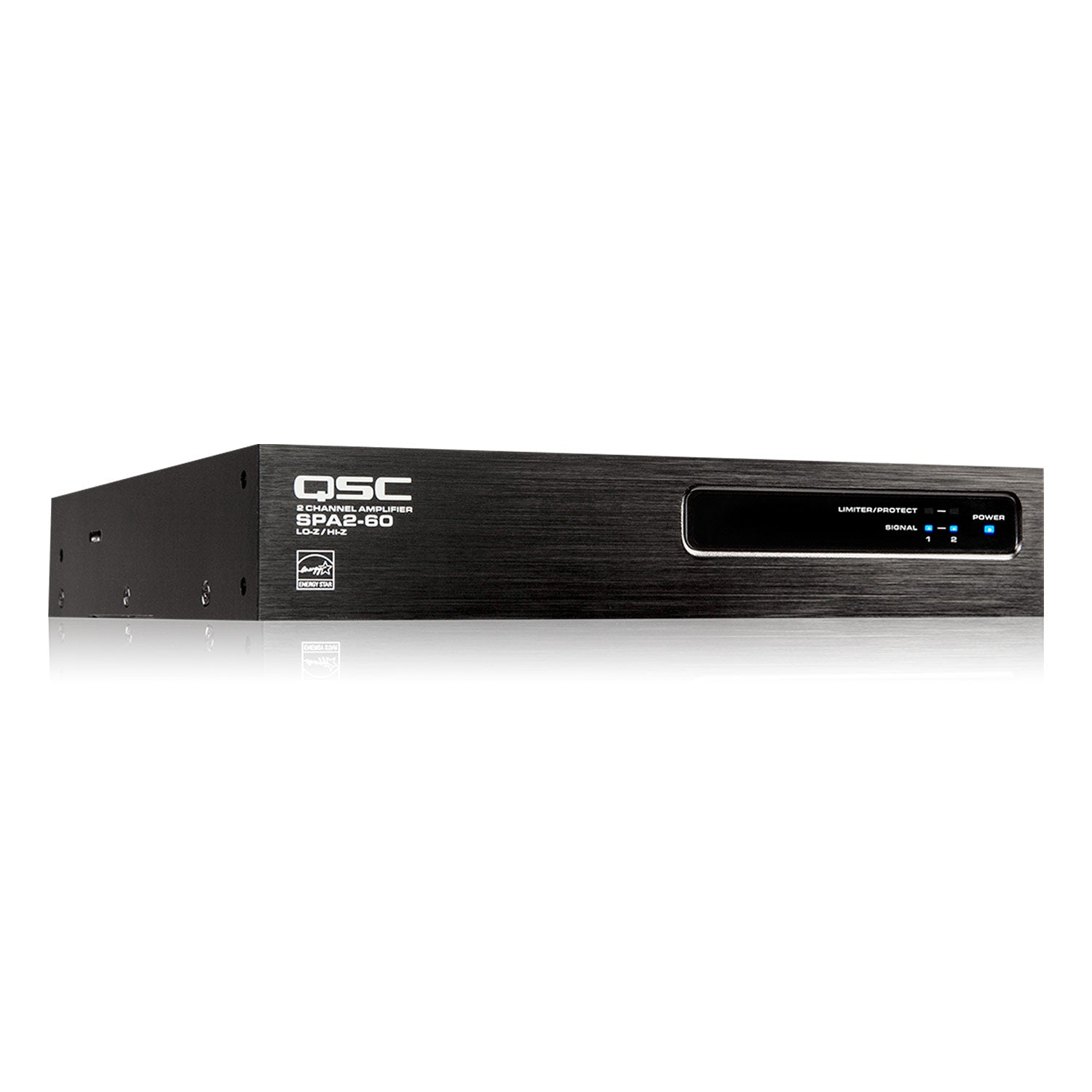

QSC SPA2-60 Two Channel Energy Star Commercial Amplifier

  • Dale #:

    QSC-SPA260
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms. The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms. The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a 70V or 100V output; when in 70V or 100V mode the 80Hz highpass filter is automatically engaged.

Features:

  • Up to 200 watts per channel into 4 and 8 ohms - the outputs of the SPA4-100 model are designed to provide up to 100 watts per channel into Low-Z loads.
  • ENERGY STAR® qualified amplifier - The ENERGY STAR qualified SPA amplifiers employ an efficient class-D design to conserve energy and reduce operational cost.
  • Bridgeable outputs for higher power - Bridgeable outputs for higher power - Bridging the outputs of the SPA4-100 will deliver up to 350 watts into 70V or 100V when bridged.
  • Auto-Ramp provides quiet startup and power-down - The ENERGY STAR auto-ramp circuitry ensures quiet and fast power up from standby and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.
  • Rack-mountable 1U, half rack width enclosure - The SPA amplifers can be mounted in 1 RU, 1/2 rack space, and their clever joining brackets enable easy under-table and wall-mounting


The SPA Series amplifiers from QSC are four half rack 1U, convection cooled power amplifiers delivering two or four channels of up to 200 watts per channel into 4 ohm and 8 ohm. These amplifiers can also be bridged to supply up to 400 watts into 4 ohm and 8 ohm, and up to 350 watts into 70V or 100V loads making them extremely flexible for Low-Z or High-Z applications. Utilizing an advanced Class-D amplifier design and Universal Power Supply the SPA Series are amazingly efficient allowing them to be convection cooled and are ENERGY STAR qualified with quiet auto-ramp standby functionality. The SPA Series amplifiers are housed in an unobtrusive black painted 1/2 RU chassis with unique mounting hardware enabling rack, table and wall mounting capabilities.

More +

Product Specs

Stereo Mode Watts Per Channel
8Ω dynamic, both channels driven 60 W
4Ω dynamic, both channels driven 60 W
Bridged Mode, watts per channel
8Ω & 4Ω 200 W

70V & 100v

250 W

Signal to Noise (A weighted, 20 Hz-20 kHz)

>100 dB

Input Sensitivity

1.23 Vrms (+4 dBu)

Maximum Voltage Gain

25.0 dB

Ouput Circuitry

Class D

Frequency Response (20 Hz - 20 kHz)

Frequency Response (20 Hz - 20 kHz)

Input Impedance

>10 kΩ (balanced), >10 kΩ (unbalanced)

Maximum Input Level

 12.3V (+24 dBu)

Highpass Filter

Switchable 80 Hz when Bridged in 70V & 100V

Front Panel Indicators

Power, per channel Signal, per channel Protect/Limit

Controls

4Ω/8Ω/70V Bridge Highpass On/100V Bridged Highpass On per channel pair

Dimensions (HWD) inches

1.7 x 8.7 x 9.5 / 1RU

Dimensions (HWD) mm

43 x 220 x 241 / 1RU

Weight (Net)

3.5 lb / 1.6 kg

Weight (Shipping)

6 lb / 2.3 kg

Agency Approvals

UL, CE, ENERGY STAR, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 witd PL-Kit

Carton Contents

Power cable, quick start guide, connector kit, rack mount ears, mounting brackets
