DALE SKU # RADI-DINETDANRX2

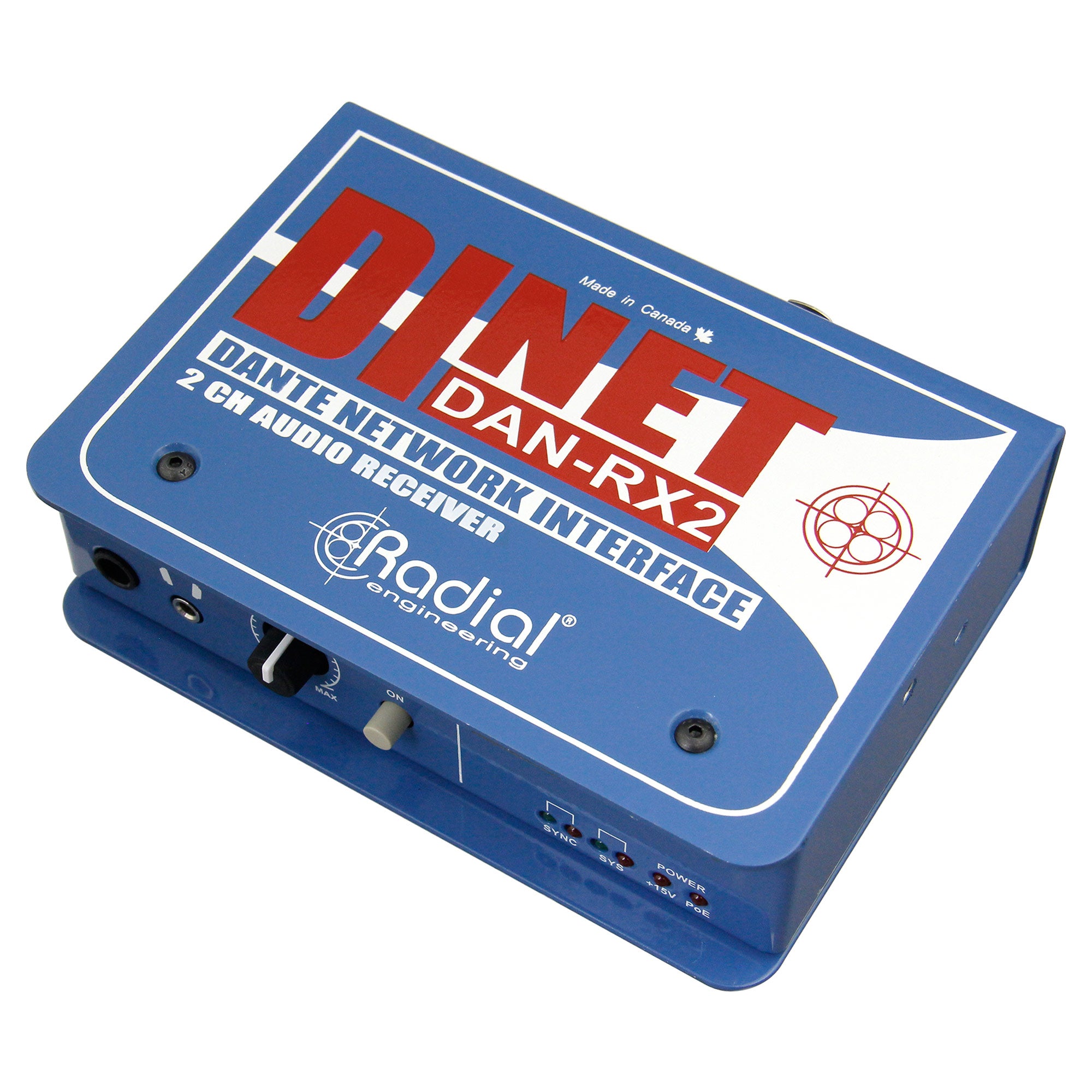

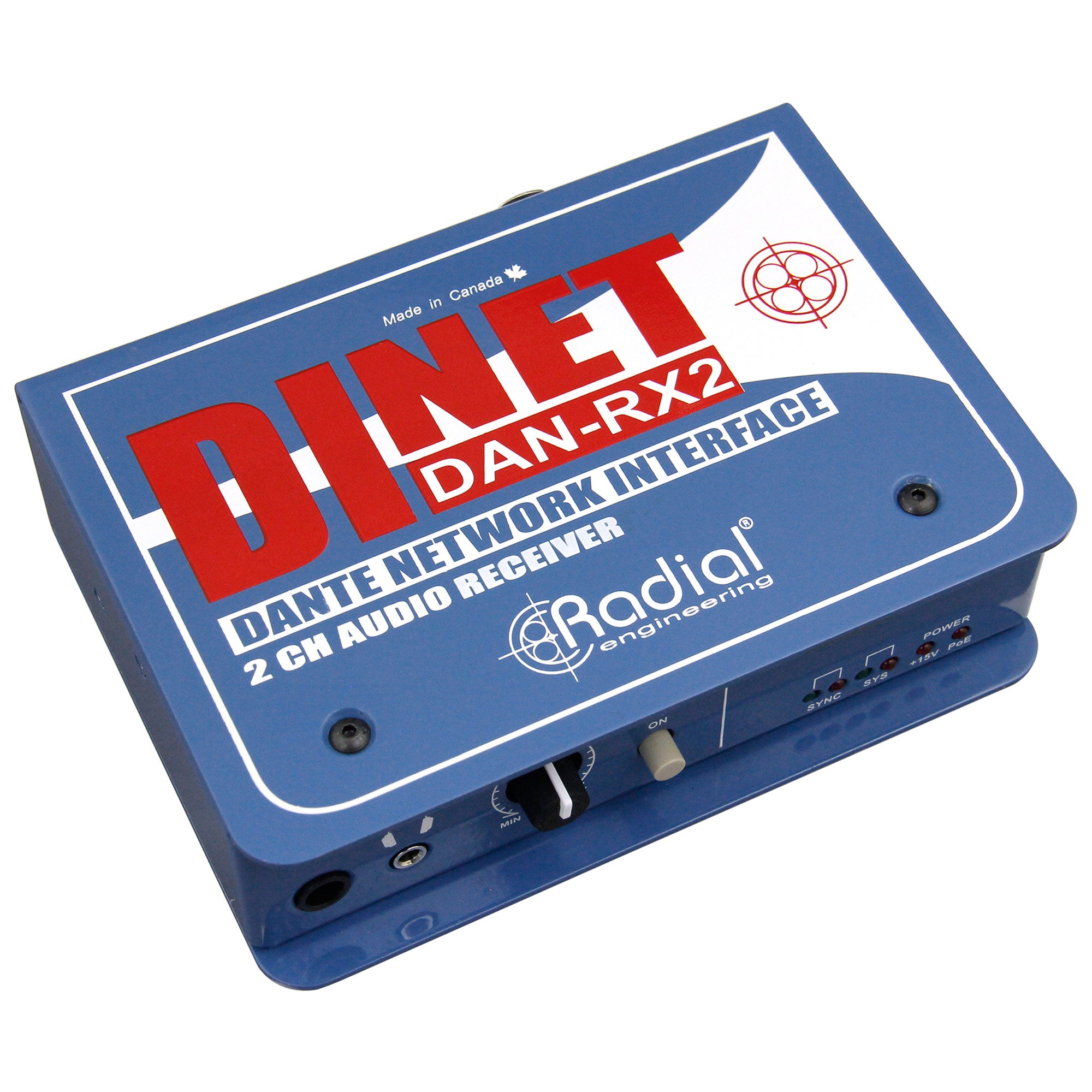

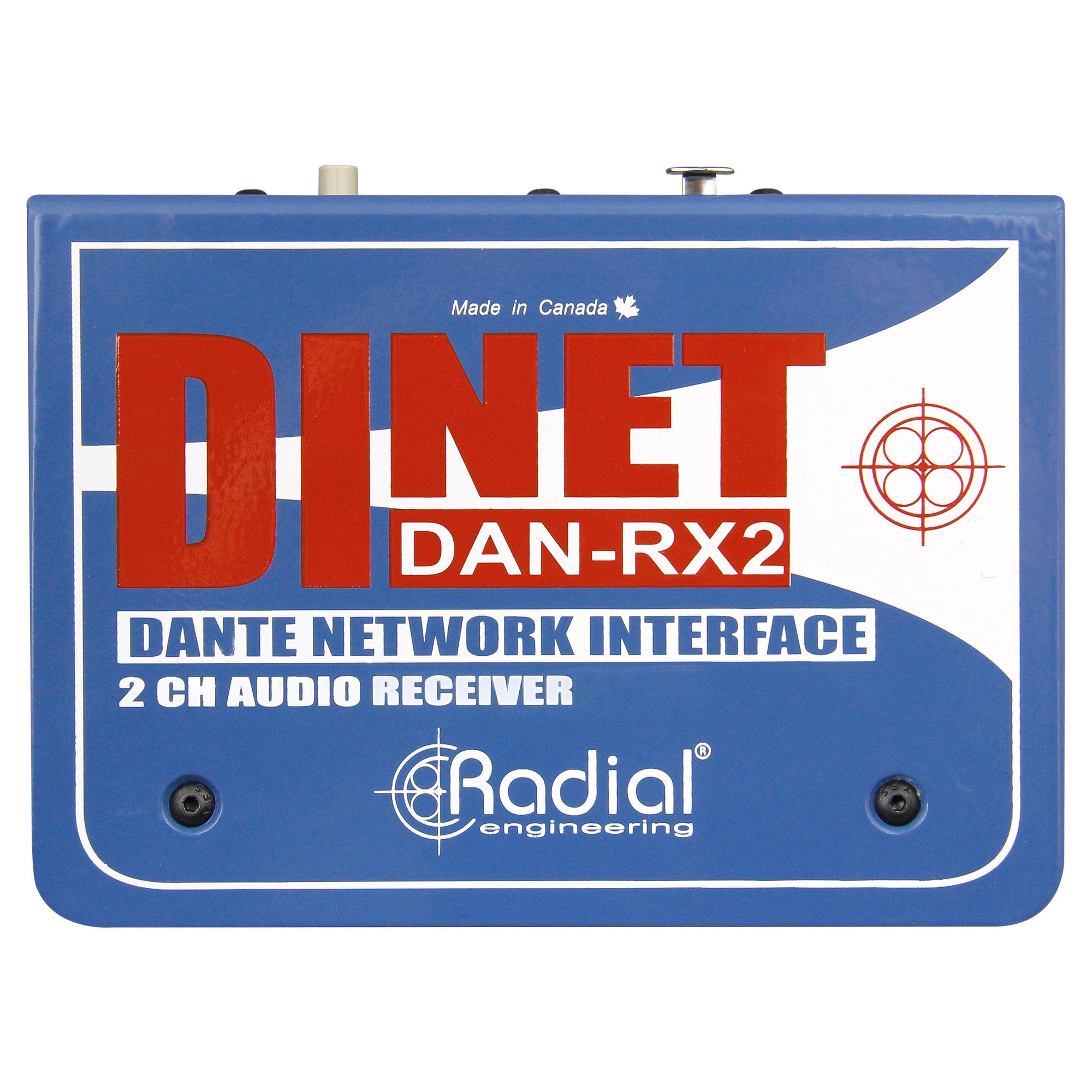

Radial Engineering DiNET DAN-RX2 - 2-Channel Dante Network Receiver

Sale price$579.99 Regular price$696.00
Save $116.01
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint that allows you to output audio from a Dante or AES67-compliant network for connection to professional audio systems.

    Features:

    • Stereo analog output device for Dante networks
    • Balanced XLR outputs for connection at mic or line level
    • Built-in headphone amplifier for personal monitoring
    • 24bit/96kHz digital to analog conversion
    • Compliant to AES67 specifications
    • Headphone Outputs
      • 3.5mm TRS and 1/4" TRS headphone outputs work with earbuds and standard headphones
    • Headphone Level
      • Sets output level of the headphone amplifier
    • Headphones On
      • Activates the headphone amplifier
    • SYNC LED
      • Red LED illuminates when unit is powered. Green LED will illuminate once connected to an Ethernet network. Flashing green LED indicates that the DAN-RX2 is in master clock mode, solid green LED indicates that it is in slave mode
    • SYS LED
      • Red LED illuminates when power is first applied. Switches to green LED once Dante processor becomes active
    • +15V LED
      • Illuminates when the DAN-RX2 is receiving power via the included DC power adapter
    • PoE LED
      • Illuminates when the DAN-RX2 is receiving Power over Ethernet (PoE)

    Robust digital audio distribution

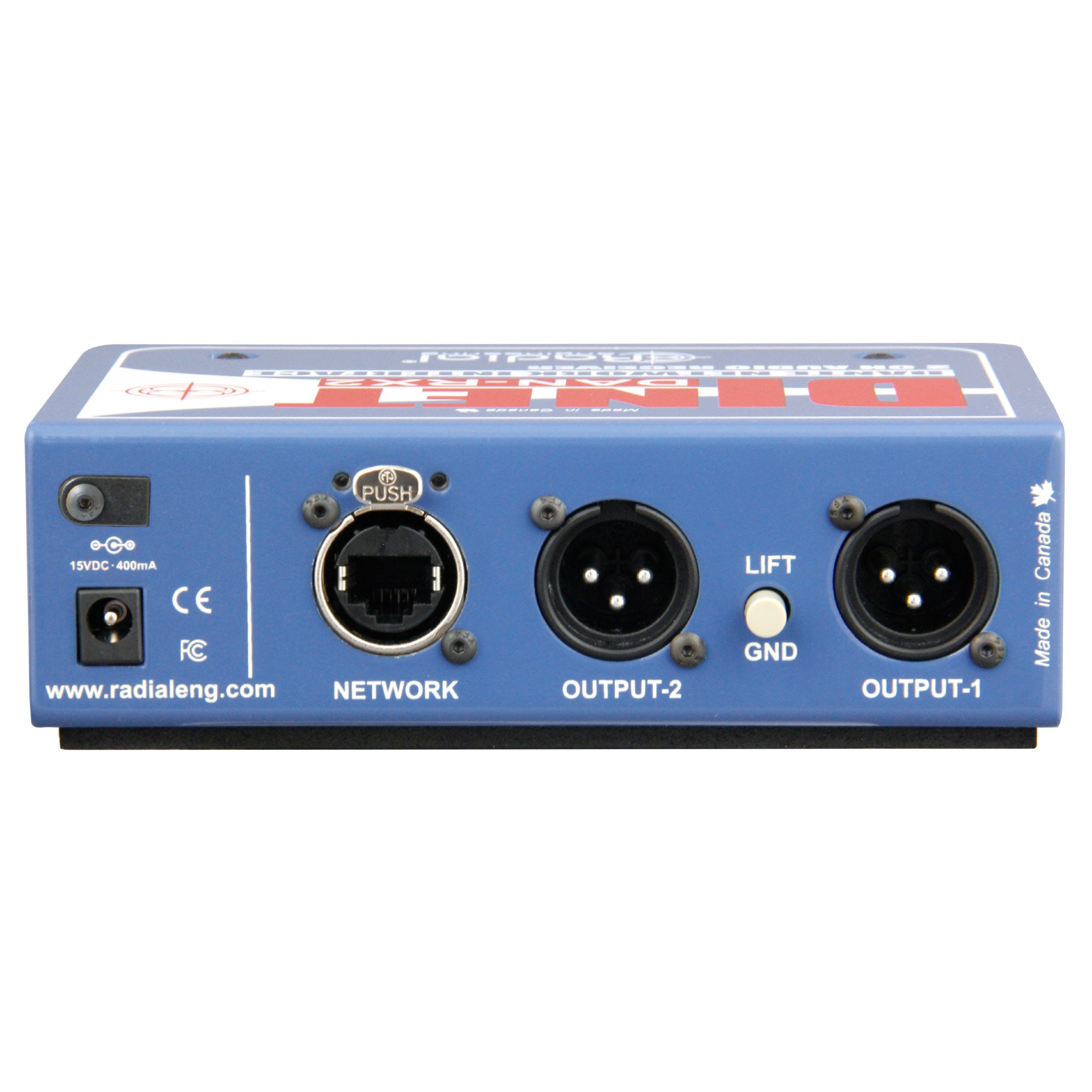

    The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs include a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

    Audio circuit typeHigh current balanced active output device
    Number of channels2
    Frequency response20Hz-20kHz
    Dynamic range>100dB
    Gain+18dBu max @ 0dBFS
    Total harmonic distortion0.007% @ -6dBFS
    Output Impedance150?
    Noise44.1kHz, 48kHz, 88.2kHz, and 96kHz
    Features
    Input Connectors2x XLR male, 1x 3.5mm / 2x 1/4Ó headphone out
    Output Connectors2x XLR male, 1x 3.5mm / 2x 1/4Ó headphone out
    Extras
    Bit Depth24 bit
    Idle Channel Noise-108dB
    Channel Separation>75dB
    Power Consumption1.25W
    Power over Ethernet (PoE)Class 1 IEEE 802.3af
    General
    Construction14-gauge steel
    FinishDurable powder coat
    Size (L x W x D)4.5Ó x 2Ó x 6Ó (121 x 6 x 147mm)
    Power15VDC 400mA (included) or PoE
    ConditionsFor use in dry locations only between 5¡C and 40¡C
    WarrantyRadial 3-year, transferable
