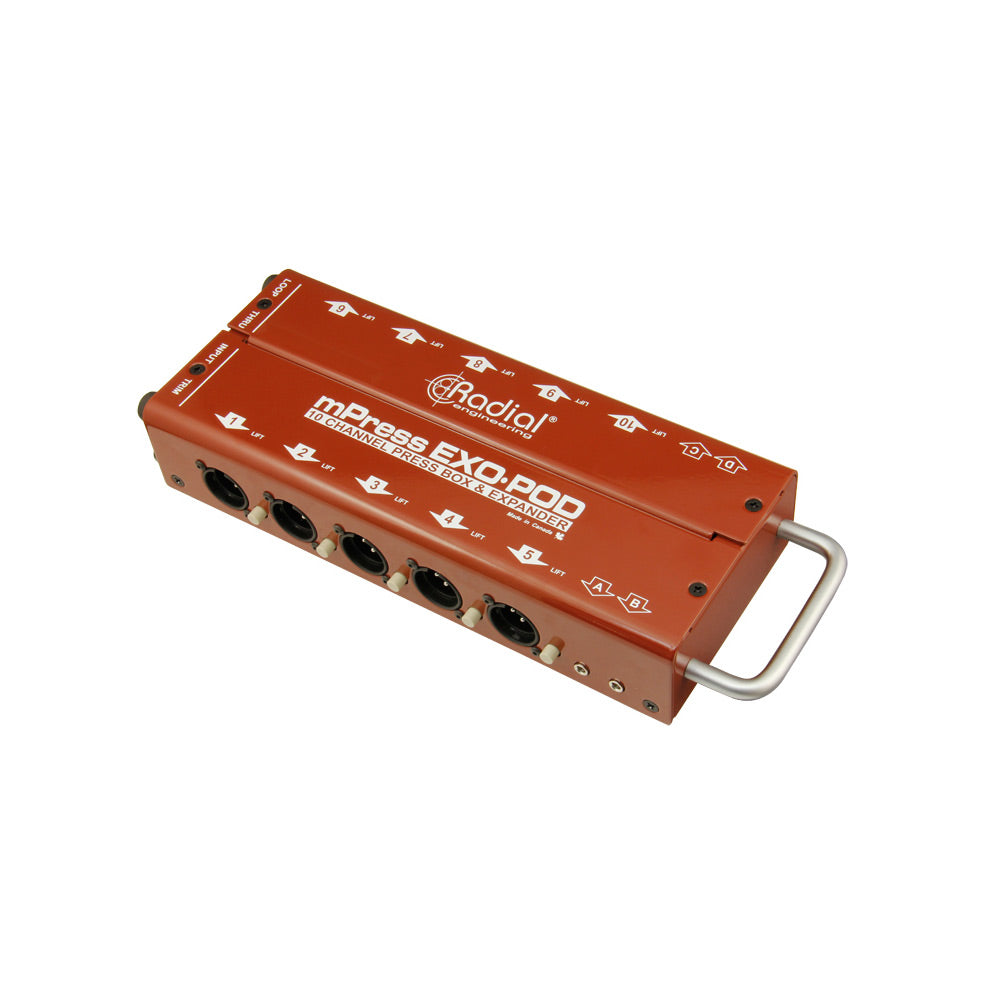

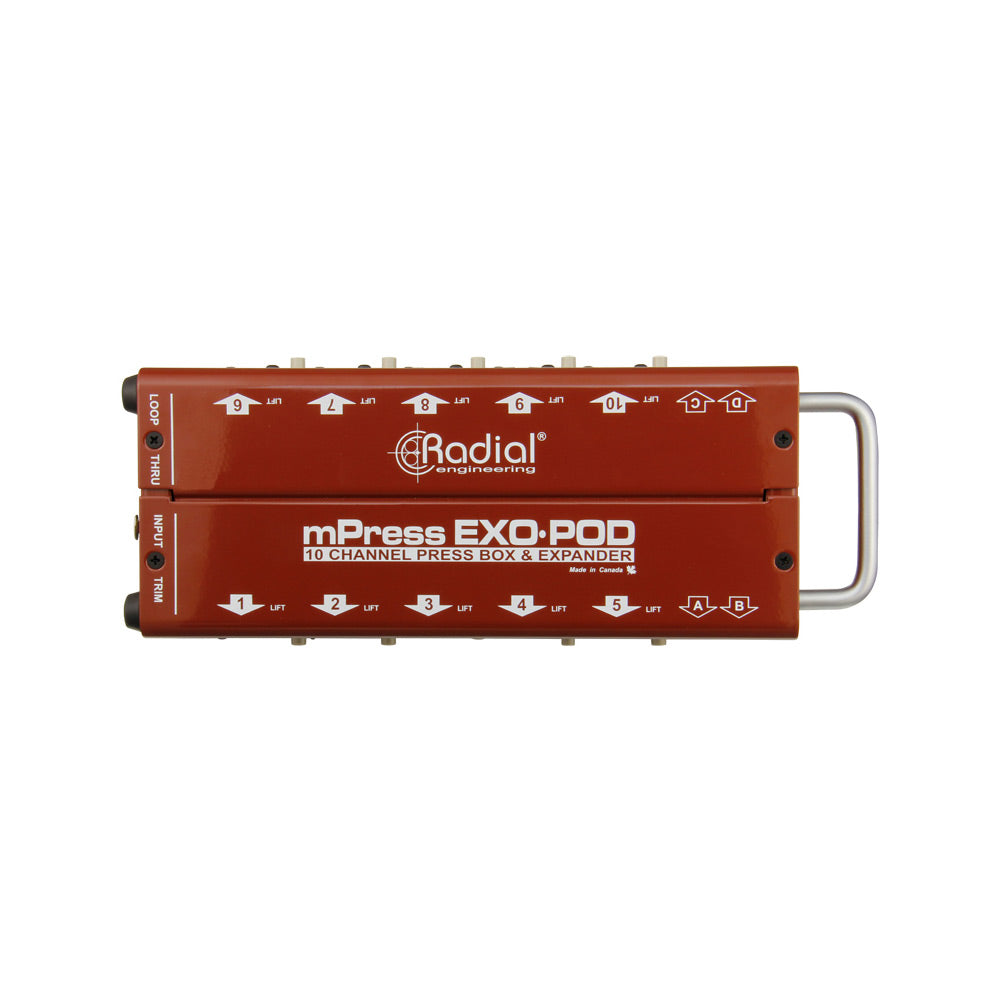

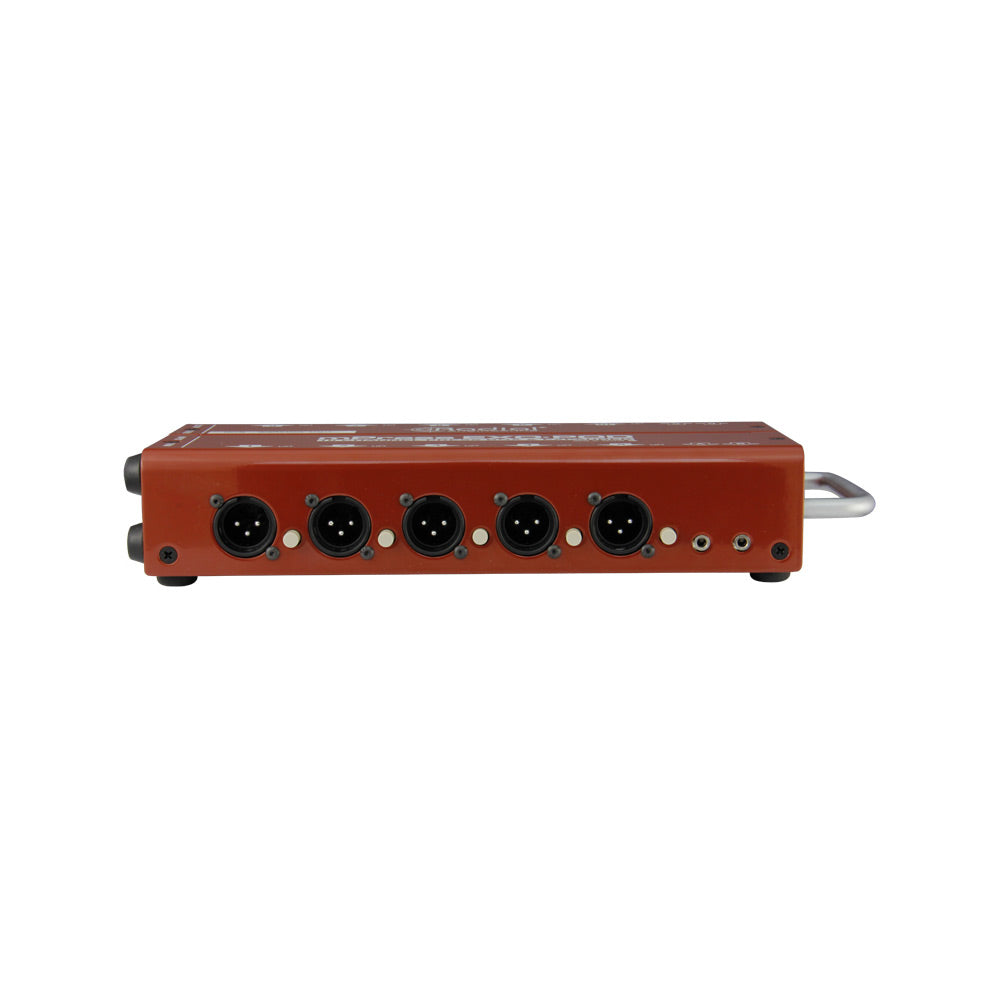

Radial Engineering EXO-Pod Floorbox Expander for mPress Press Box

  • Dale #:

    RADI-EXOPOD
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 8:30 am to 5:30 pm

Description

The Radial Exo-Pod is a passive broadcast splitter that can take the balanced line output from a mixing console and distribute the signal to 14 hand-held recorders, video cameras or wireless receivers. It can also be used in conjunction with the Radial mPress master press box to create a modular ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Description

The Radial Exo-Pod is a passive broadcast splitter that can take the balanced line output from a mixing console and distribute the signal to 14 hand-held recorders, video cameras or wireless receivers. It can also be used in conjunction with the Radial mPress master press box to create a modular solution for hundreds of individual press feeds.

The compact floor-box begins with 14-gauge steel construction for exceptional durability against the rigours of the road. The steel casing also provides excellent shielding against stray magnetic fields from stage lighting dimmers, power transformers and electrical cables. This is augmented with protective bumpers to protect the connectors and trim control switch from damage plus a sturdy steel handle for easy manipulation. Connecting to and from the Exo-Pod begins with a balanced XLR input, ten XLR balanced outputs and four mini 3.5mm TRS connectors for video cameras, hand-held recorders, tablets or other media systems. A variable input trim allows the broadcast technician to reduce the output level locally for convenience. All of the outputs are transformer isolated to eliminate hum and buzz that is often encountered due to ground loops. The XLR outputs are supplemented with individual ground lift switches to further abate noise.

As the Exo-Pod is completely passive, no power is required. You simply connect your line level source and feed as many as 14 mic inputs at once with excellent audio performance, high signal-to-noise and plenty of headroom.

Features:

  • Passive design with 14 transformer isolated outputs
  • Set & forget variable output trim control
  • Balanced line level XLR input with expandable input
  • Extra durable heavy 14-gauge steel construction

More +

Product Specs

Audio circuit type: Passive
Frequency response: <20Hz to >20kHz ±1dB
Total harmonic distortion: 0.001%
Dynamic range: >136dB / >100dB
Input impedance: 350 Ω
Common mode rejection ratio: 63dB
Gain - input to XLR output: -3.5dB / -18dBu
Gain - input to mini out: -1.3db / -20dB
Clip level - input: >+26dBu
Output impedance - XLR outs: 1000 Ω
Output impedance - mini outs: 4600 Ω
Equivalent input noise: -108dBu/-84dBu
Noise floor - XLR out: -111dBu
Noise floor - mini out: -86dBu
Intermodulation distortion: 0.006%
Phase deviation: -5/+25°
Controls: Input level trim
Switches: Ground lifts
Construction: 14-gauge steel chassis & outer shell
Finish: Durable powder coat
Size: L:11.75"" x W:5" H:2.25" (298.45mm x 127mm x 57.15mm)
Weight: 3.6lb
Shipping size: L:13.37" x W:5.5" H:3.25" (571.5mm x 260.35mm x 114.3mm)
Shipping weight: 4lb
Warranty: Radial 3-year, transferable
