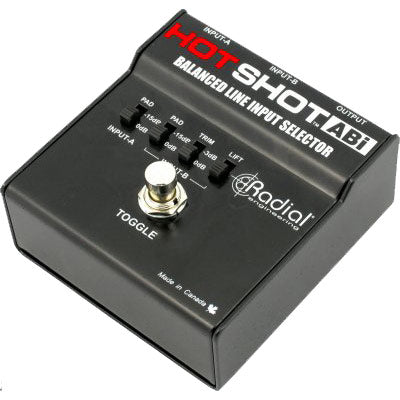

Radial Engineering Hotshot ABI Balanced Microphone Line Input Switcher Pedal


  • Dale #:

    RADI-HOTSHOTABI
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Radial Hot Shot ABI Balanced Microphone Line Input Switcher Pedal is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work. The HotShot ABi is... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Radial Hot Shot ABI Balanced Microphone Line Input Switcher Pedal is a balanced signal source selector that allows the user to instantly select between two signal sources by depressing a latching footswitch. As it is completely passive, powering is not required to make it work. The HotShot ABi is ideal for applications such as switching between two dynamic microphones on a stage or selecting between two audio sources. The latching switch also opens the door for other useful operations: These include using the HotShot ABi as a mute to turn off a microphone; to select between two wireless receivers for live sound system backup; for stereo guitars it can be used to select between two instruments; and for community hall assemblies, it provides the moderator with remote control over two audience microphones.

Features
  • On-stage line input signal AB redirectorToggle switch for one-push operationPads allow using devices with different signal levelsGround lift to eliminate buzz caused by ground loopsHeavy-duty construction, switches and components

More +

Product Specs

Circuit TypePassive true-bypass
InputsXLR-F x 2
OutputsXLR-M
Input Pads
Input-A-15dB switch
Input-B-15dB switch, -6dB 'trim' switch
Ground LiftLIFT switch - Input-B pin-1
FootswitchHeavy-duty high-cycle
Construction14 gauge steel, baked enamel finish
Size3.6 in. w x 3.75 in. d x 2 in. h (92 x 99 x 51mm)
Weight1.1 lbs. (0.5 kg)

More +
