Radial Engineering Hotshot DM1 Microphone Switcher Pedal with Mute and Signal Redirector


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

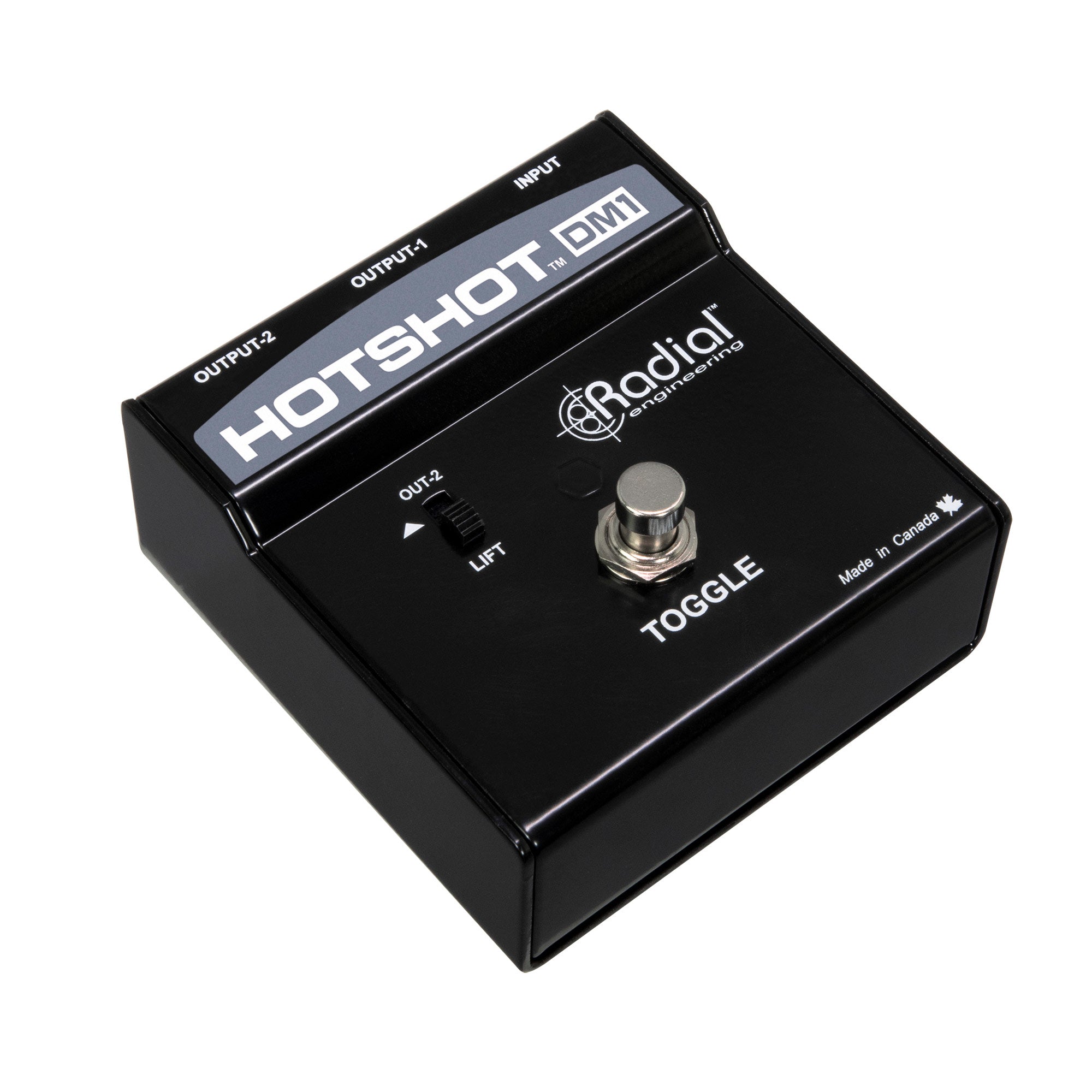

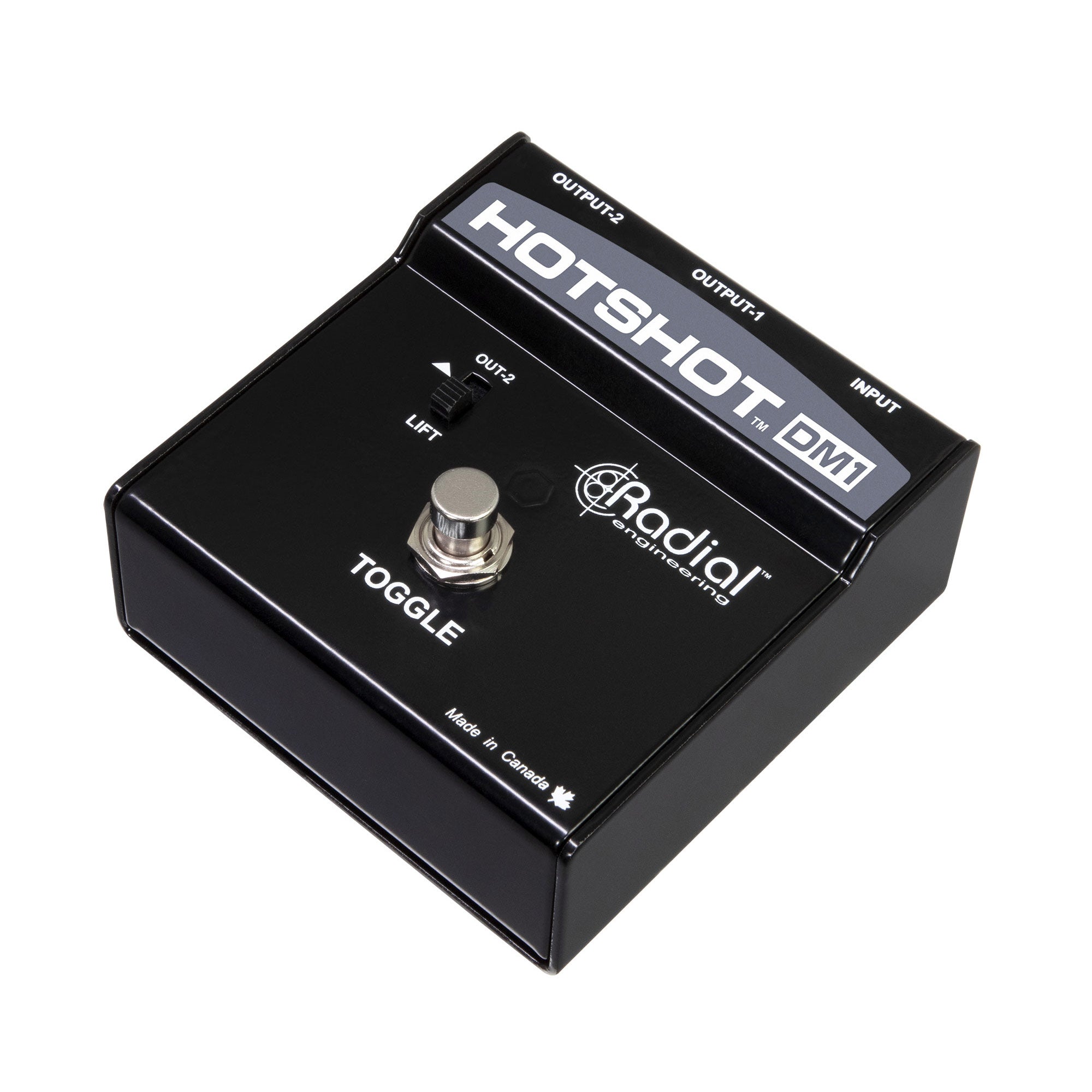

  • The HotShotDM-1 is an innovative a combination microphone signal splitter and mute switch that allows the user to depress a foot switch to mute his mic and redirect the signal to the monitoring system or intercom for on-stage communication with band-mates and technicians. Designed specifically for dynamic microphones, the DM-1 HotShot is a simple passive device that features an XLR input, momentary foot switch and 2 XLR outputs designated main and monitor. The microphone connects to the input and the main output connects to the sound system as usual. The monitor output is connected to the monitor desk where the monitor engineer can route the signal to the musicians on-stage monitoring systems and if desired, to the technical crew. Should a problem occur -- a change of song during a set or a level that requires adjustment -- the vocalist need merely depress his HotShot foot switch and he is now able to communicate this discreetly. As with all Radial stage switchers, the HotShot DM1 is designed to take the abuses of the road with it's rugged 14-gauge steel construction, baked enamel finish, heavy-duty isolated XLR connectors and switch.

    • On-stage mic mute and signal redirectorMomentary switch for one-push operationAllows discreet communication with band and crewGround lift to eliminate buzz caused by ground loopsToggle to second mic channel with or without effects

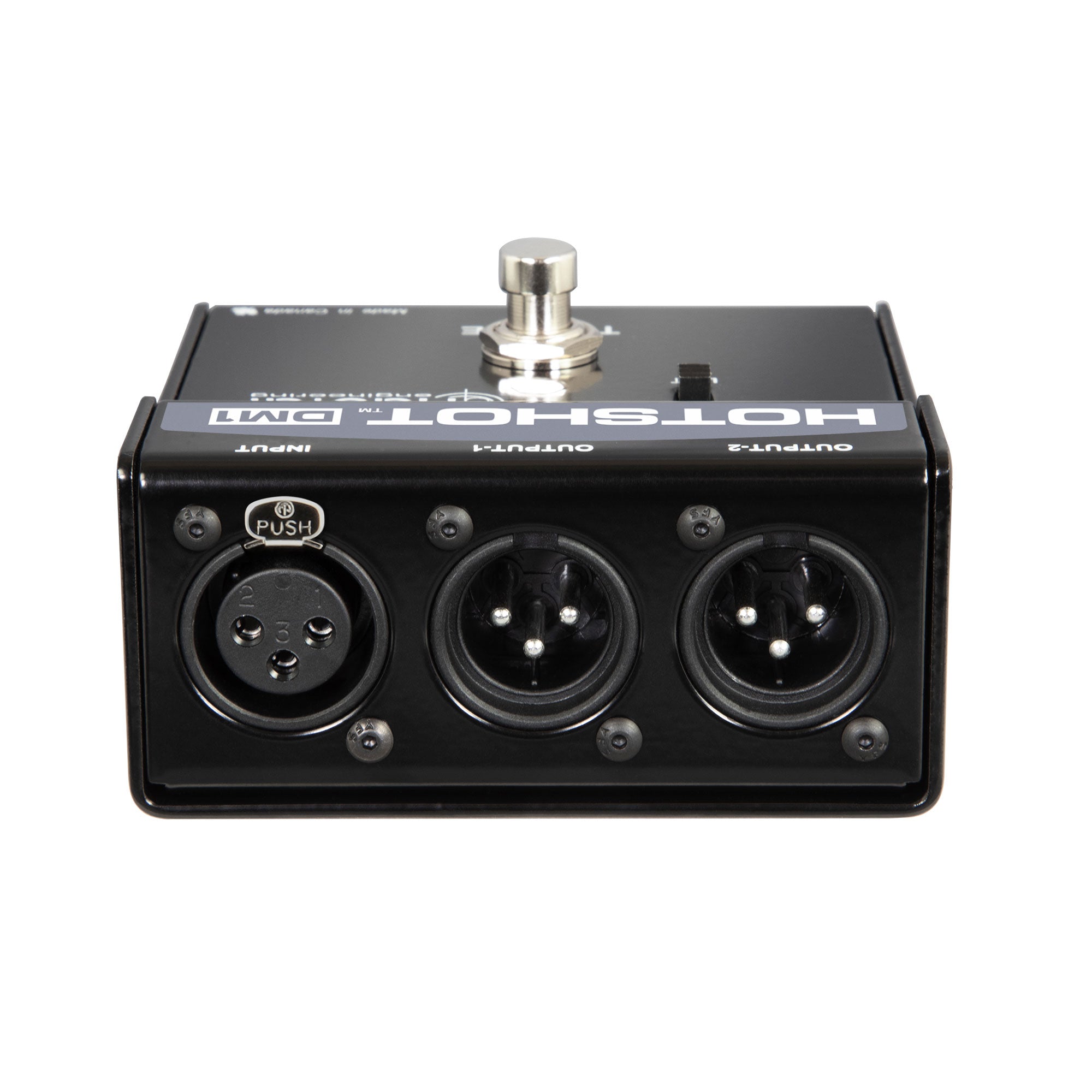

  • Inputs1 x XLR female Input jack
    Outputs1 x XLR male Main Output jack, 1 x XLR male Monitor Out jack
    ControlsGround Lift toggle switch, Bypass pedal
    Dimensions (WxDxH)3.6 x 3.9 x 2.0 (92 x 99 x 51mm)
    Weight1.25 lbs (0.56 kg)
