Radial Engineering J-ISO Stereo +4 to -10dB Line Level Converter

  • Dale #:

    RADI-JISO
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

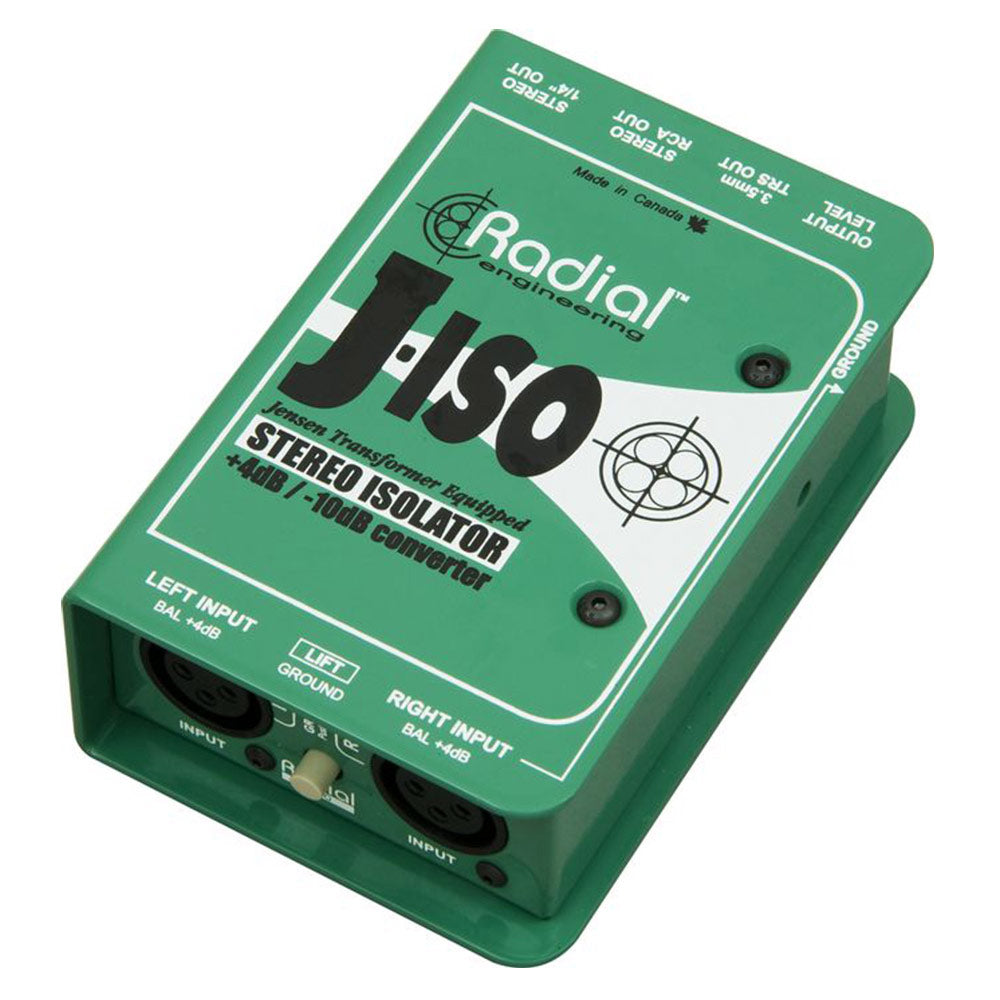

The Radial J-Iso is a stereo line isolator designed to convert a professional +4dB line level balanced signal to an unbalanced -10dB consumer level device. This enables you to take the balanced output of a mixer and feed a consumer level recorder or audio input on a computer. The J-Iso employs a ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Radial J-Iso is a stereo line isolator designed to convert a professional +4dB line level balanced signal to an unbalanced -10dB consumer level device. This enables you to take the balanced output of a mixer and feed a consumer level recorder or audio input on a computer. The J-Iso employs a premium Jensen transformer for optimal signal transfer to minimize distortion and artefact. Full bandwidth performance makes the J-Iso ideal for music production.

Features:

  • Converts balanced line level signals to unbalanced
  • Stereo signal path with set & forget level control
  • Transformer isolated to eliminate hum & buzz
  • J-Iso features Jensen™ transformers for optimal signal path

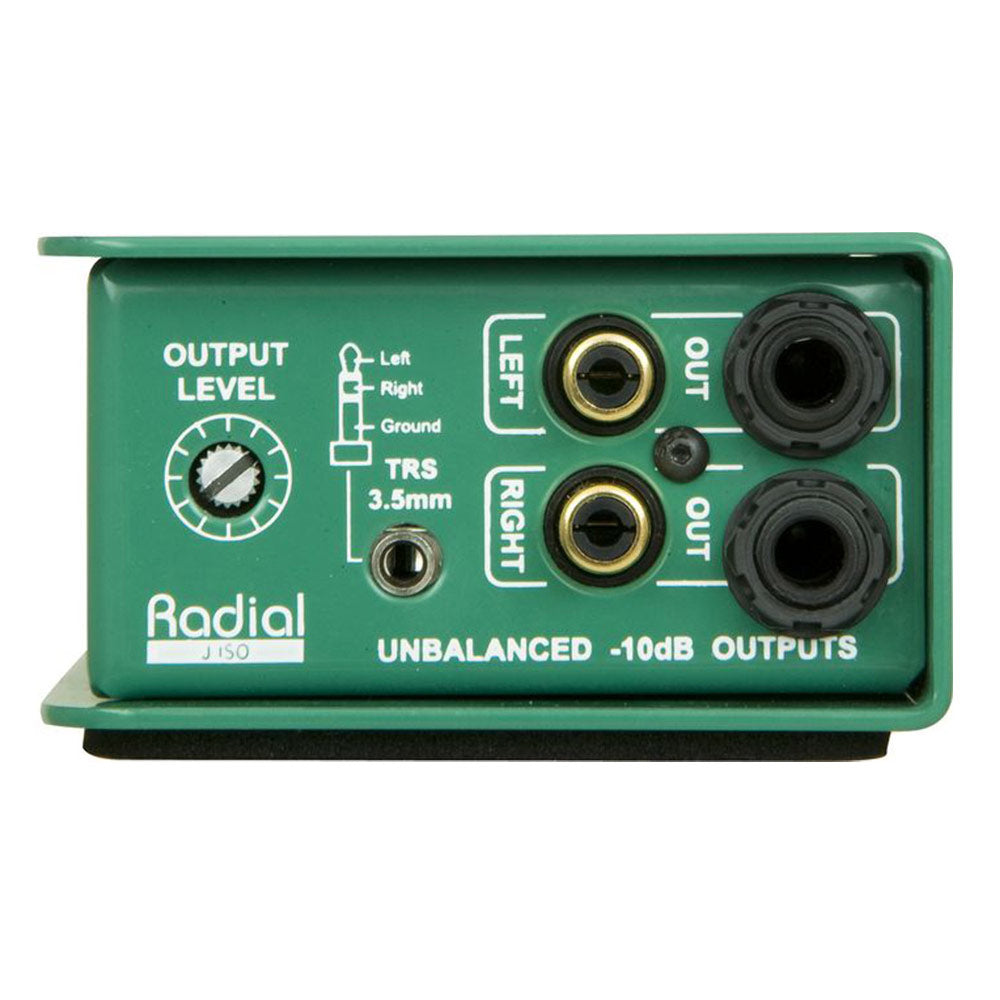

The passive design begins with 100% discrete components throughout. A set & forget level control lets you attenuate the input signal to prevent it from overloading the destination device. Output connections include a stereo pair of ¼" connectors, a set of RCAs and a mini 3.5mm (1/8") for interfacing to a mini recorder or lap-top computer. Transformer isolation helps eliminate hum and buzz caused by ground loops while eliminating stray DC currents from flowing.

Construction begins with 14 gauge steel throughout utilizing Radial's unique bookend construction. This creates a protective zone around the connectors and controls for added durability. The steel construction also assists by shielding the transformers from outside magnetic fields. Inside, the J-Iso features an innovative I-beam skeletal insert that makes it virtually impossible to torque the PC board. This reduces potential stress which could cause premature solder joint failure.

More +

Product Specs

Audio circuit type Passive, transformer based
Number of channels Stereo (dual mono)
Frequency response 20Hz ~ 20KHz (+0dB/ -1.5dB)
Dynamic range 130dB
Maximum input +20dBu @ 1kHz/1% THD+N
THD + Noise 0.001% @ 1kHz
Phase deviation 0.5° @ 100Hz; 1° @ 20Hz
CMRR -58dB
Input impedance 1.3k Ohms, unbalanced
Output impedance 520 Ohms, balanced
Features
Transformer Jensen JT-11-YMPC
Ground lift Disconnects XLR pin-1 at XLR input
XLR configuration AES standard (pin-2 hot)
Connectors Balanced XLR-F in; ¼", RCA and 3.5mm TRS unbalanced outputs
General
Construction 14 gauge steel chassis 14 gauge steel chassis
Finish Baked enamel Baked enamel
Size 84 x 127 x 48mm (3.3" x 5.0" x 2")
Weight 0.70 kg (1.55 lbs)
Shipping Size 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping Weight .87 kg (1.92 lbs)
Power Passive, no power required
Warranty Radial 3-year, transferable
