Radial Engineering JD6 Six Channel Rackmount Jensen Passive DI



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:RADI-JD6

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Radial JD6 is a high performance 6-channel rackmount direct box designed for the most demanding studio and live touring applications. Stemming from the industry standard Radial JDI, the JD6 incorporates six high performance audio transformers with extra RF filtering to ensure optimal signal transfer without noise, distortion or artefact of any kind. These are able to withstand extreme signal levels without choking. This makes the JD6 particularly effective when managing high output active devices such as digital pianos that will often overload most direct boxes or preamps.

    Features:

    • Passive direct box for concert touring and studio
    • Ultra linear nickel-laminated transformers
    • Handles extreme signal levels without distortion
    • Front and rear panel connectivity for added routing options

    The passive design further advantages signal transfer by providing galvanic isolation from the input to the output, thus eliminating the hum and buzz that is often encountered due to ground loops and DC current offsets. This makes the JD6 particularly effective for use with keyboards, drum machines, electronic drums and audio sources such as CD players or computers.

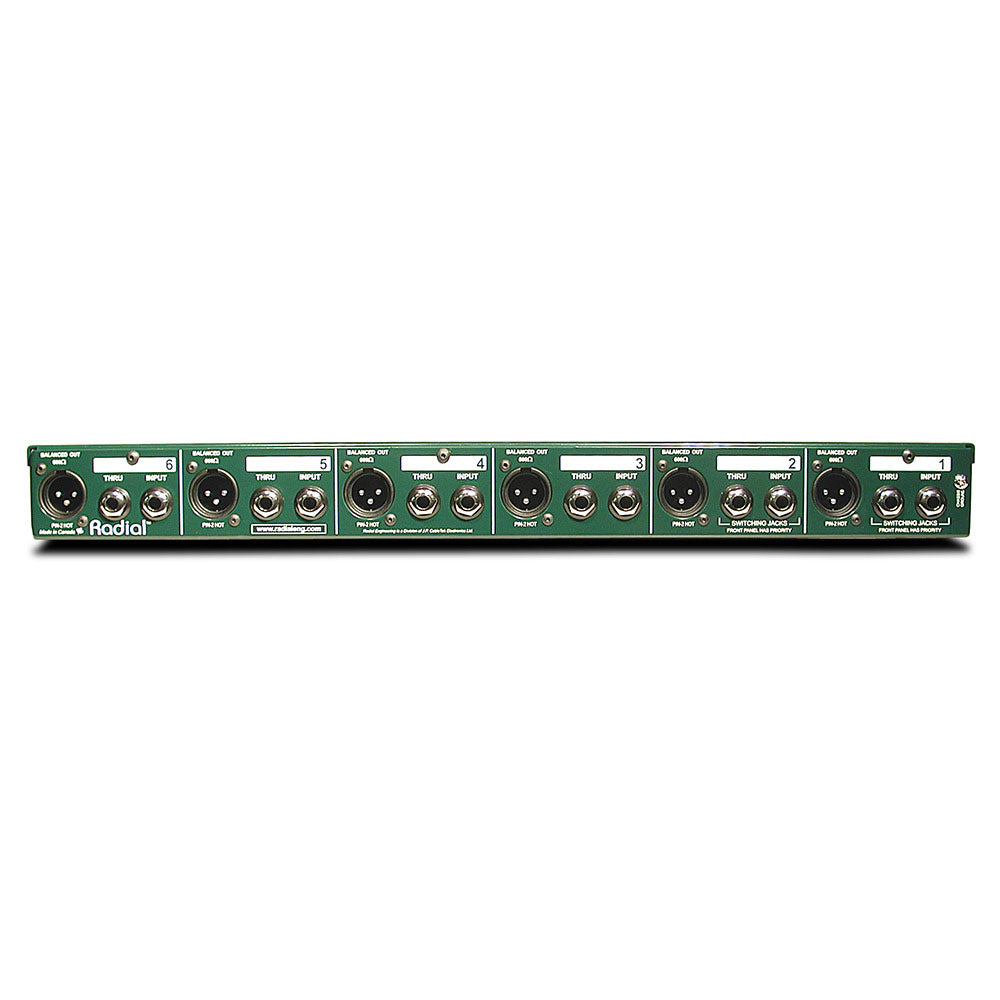

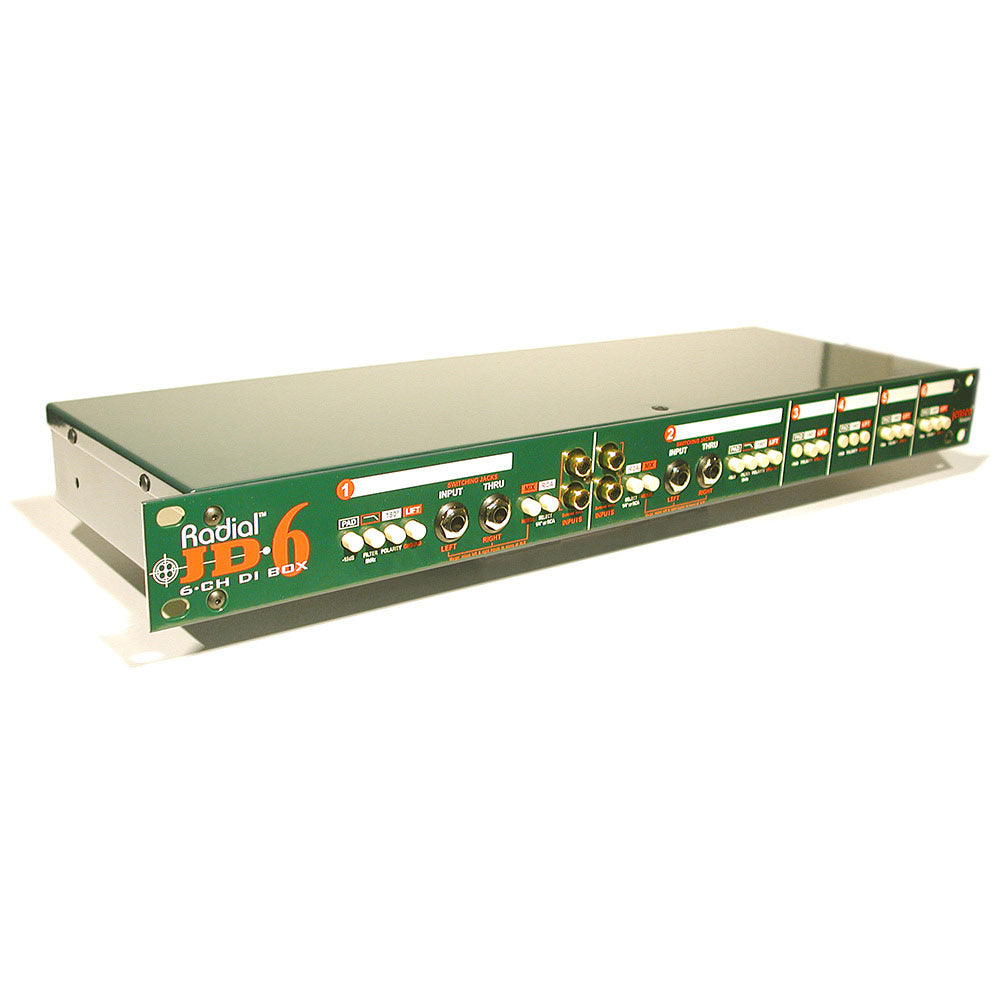

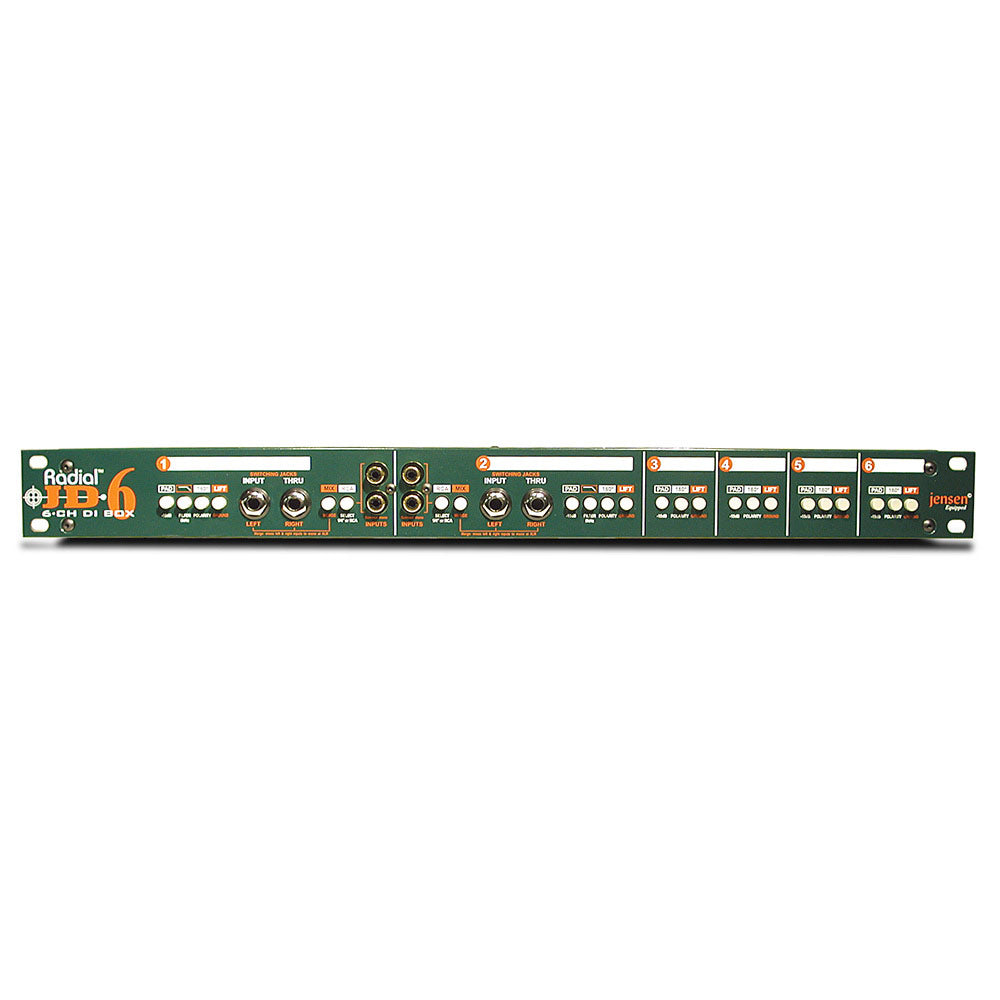

    Each JD6 channel is equipped with a rear-mounted ¼" instrument input and thru-put for the artist's amp plus a lo-Z balanced XLR output to feed the mixing desk. The front panel presents an ergonomically efficient array of switches and connectors including ground lift, 180º polarity reverse, stereo-to-mono merge plus a low-pass filter to reduce unwanted high frequency noise that is common with older vintage keyboards. Channels 1 and 2 are supplemented with front panel 'priority' connectors that switch the input as soon as a cable is inserted for improved efficiency in the studio.

    These features combine to present a true 'Swiss army knife' of options making the Radial JD6 the finest rack DI made today.

  • Input Connections2 x 1/4 TS phone (front panel), 6 x 1/4 TS phone (rear Panel), 4 x RCA phono (front panel)
    Output Connectors6 x XLR (rear panel), 2 x 1/4 TS phone Thru (front panel), 6 x 1/4 TS phone Thru (rear panel)
    Input Level+19dB
    Controls-15dB pad, polarity reverse and ground lift on all six channels; Low pass filter on channels 1 and 2; Merge of Input and Thru on channels 1 and 2; 1/4 or RCA input switch on channels 1 and 2 ;
    Frequency Response10Hz to 40kHz
    NoiseSNR: 119dB
    PowerPassive
    Dimensions (WxDxH)19 1U rackmount chassis
